Optimal Solution for Energy Saving and Gigabit High Performance

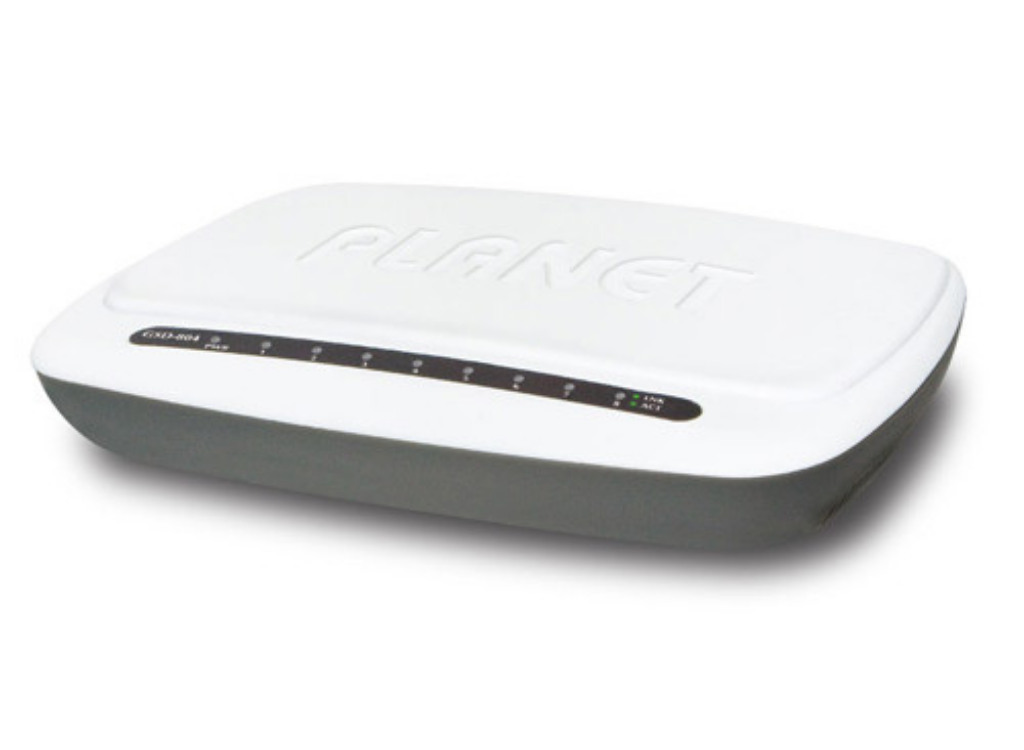

PLANET GSD-804 Green Networking Switch is an ideal solution in line with the energy-saving trend worldwide. The GSD-804 is an 8-port Gigabit Ethernet Switch, bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.
Energy Saving
The GSD-804, incorporating two advanced Green Networking technologies, is able to provide power saving by up to 40% but maintains high performance efficiently.
(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-804 will automatically adjust power usage of the ports that are shut down or not connected to network device.
(2) Intelligent scales power based on cable length
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-804 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-804 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.
Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-804 is designed with modern plastic compact housing and easy to deploy high speed Gigabit networking in home or SOHO applications. Providing 16Gbps internal switching fabric, the GSD-804 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-804 provides 4K MAC address table and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
Plug & Play
All RJ-45 copper interfaces of the GSD-804 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
| Category | Specification |
|---|---|
| Hardware Specifications | |
| Hardware Version | 8 |
| 10/100/1000BASE-T Ports | 8 auto MDI/MDIX ports |
| LED Display | One for Power, One for Link / Act per port |
| Enclosure | Plastic |
| Dimensions (W x D x H) | 168 x 100 x 29 mm |
| Weight | 175g |
| Power Requirements (External Power Adapter) | 5V DC, 1A |
| Power Consumption (100M Full Operation) | 3.4 watts / 11 BTU |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K |
| Flow Control | Back pressure half duplex, IEEE 802.3x pause frame full duplex |
| Switch Fabric | 16Gbps |
| Throughput (packet per second) | 11.9Mpps |
| Jumbo Packet Size | 9K |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Full-duplex Flow Control), IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Regulation Compliance | FCC Part 15 Class B, CE |
| Environments | |
| Temperature | Operating: 0 |
| Humidity | Operating: 5 |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
