Planet 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch | GSD-805

SKU: GSD-805
Part Number: GSD-805
Condition: Brand New
Purchase Orders Accepted
Save £9.68 Save £9.68
Original price £69.90
Inc. VAT
Original price £69.90 - Original price £69.90
Original price £69.90

£50.18 (Excl. VAT)

Current price - £60.22 Inc. VAT
£60.22 - £60.22
Current price- - £60.22
(Inc. VAT )
Availability:
19 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads

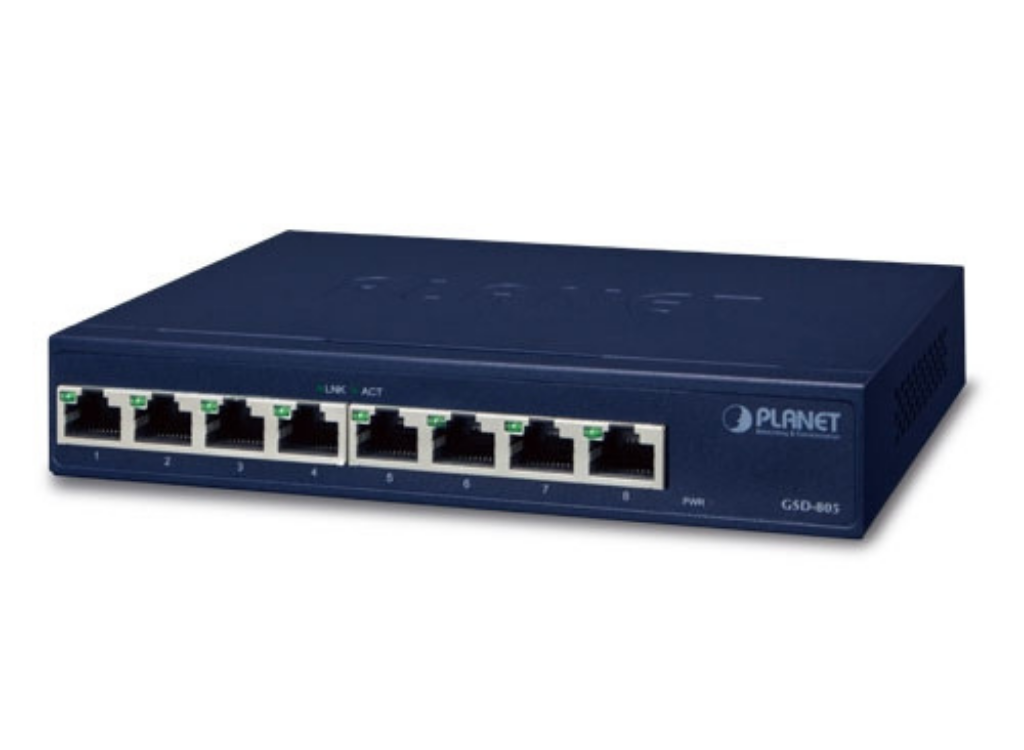

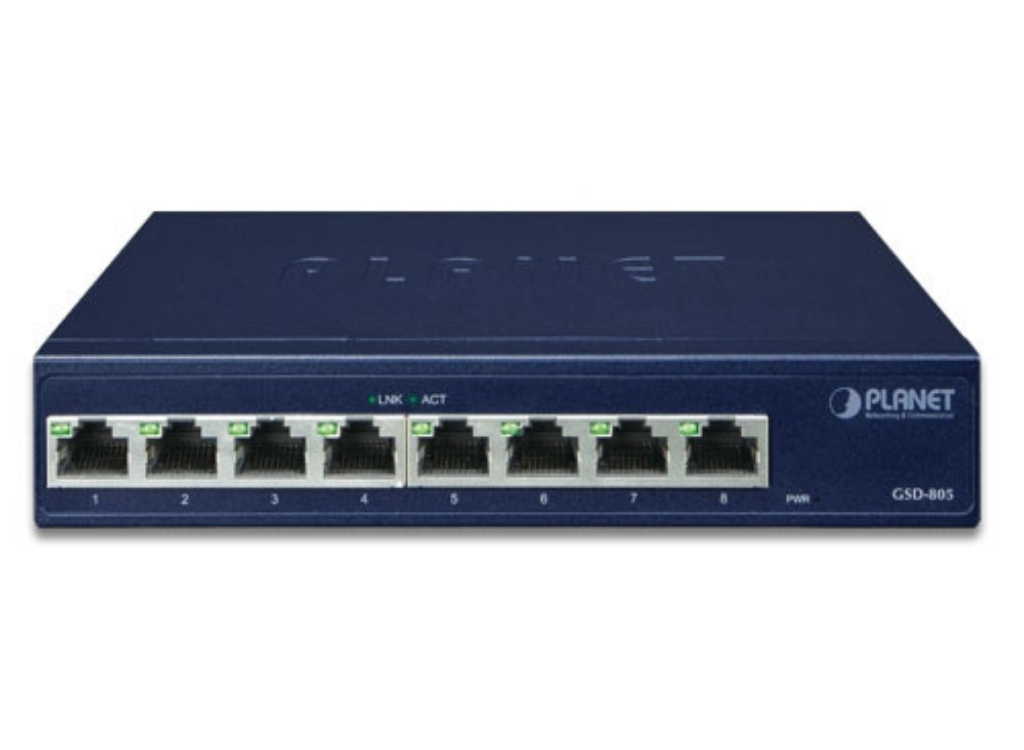

  • Planet 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch | GSD-805

    Energy-saving and Gigabit High-performance Networking Solution
    PLANET GSD-805 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch is a green networking solution in line with the energy-saving trend worldwide, but it comes with Gigabit wire-speed performance. Its compact metal housing makes the deployment of Gigabit networks easy for homes, SOHOs and SMBs that are space limited. The operating switch is noiseless as it has a fanless feature. Its internal power supply can be directly plugged into an electrical outlet without having to use a power adapter.


    VLAN Isolation

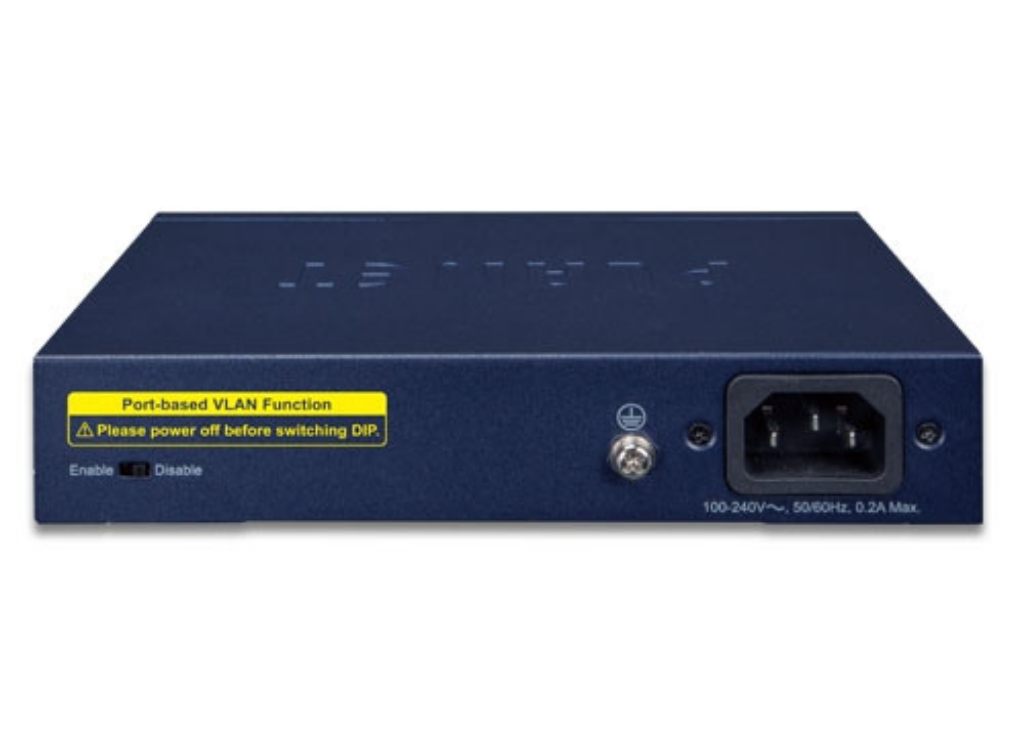

    The GSD-805 is equipped with the VLAN Isolation feature. When switching the DIP to the “Enable” position, ports 1 to 7 are not able to communicate with one another. This helps to prevent the IP camera’s multicast or broadcast storm from influencing one another.


    Saving Power by 40%

    The GSD-805, incorporating two advanced Green Networking technologies, is able to save power by up to 40% but maintains high performance efficiently.

    (1) Hibernation Link Down Power Saving
    The Hibernation Link Down Power Saving goes beyond IEEE specifications to automatically lower the power supply for a given port when it is not linked. With the Hibernation Link Down Power Saving technology, the GSD-805 will automatically adjust power usage of the ports that are shut down or not connected to a network device.

    (2) Intelligent Scales Power based on cable length
    Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-805 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-805 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.



    Robust Protection

    The GSD-805 protects against the ESD 4KV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

    Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
    Providing 16Gbps internal switching fabric, the GSD-805 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-805 provides 8K MAC address table, and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for Gigabit environments, especially for the network upgraded to a Gigabit environment.

    Plug & Play
    All RJ45 copper interfaces of the GSD-805 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

  • Category Specification
    Network Connector 8-Port RJ45 for 10/100/1000BASE-T, auto MDI/MDIX
    LED Display System: Power (Green); Per port: 10/100/1000 LNK/ACT (Green)
    Switch Architecture Store and Forward switch architecture
    MAC Address Table 8K MAC address table with auto learning function
    Packet Buffer 1Mbit
    Switch Fabric 16Gbps
    Switch Throughput 11.9Mpps @64 bytes
    Jumbo Packet 9216 bytes
    Flow Control Back pressure for half-duplex; IEEE 802.3x pause frame for full-duplex
    Power Requirements Internal power 100-240V AC, 50/60Hz, 0.2A
    Power Consumption Max. 2.4 watts/8.1 BTU
    Dimensions (W x D x H) 168 x 93 x 32mm
    ESD Protection Contact Discharge 4KV DC; Air Discharge 6KV DC
    EFT Protection ESD (Ethernet): 2KV; Surge (EFT for power): 4KV
    Surge Protection Different module ±1.5KV; Common mode ±2KV
    Electrostatic Standard ±2KV
    Weight 428g
    Standard Conformance EMI Safety: FCC Class B, CE
    Standard Compliance IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control
    Operating Environment 0 ~ 50 degrees C
    Storage Environment -10 ~ 70 degrees C
    Operating Humidity 5 ~ 95%, relative humidity, non-condensing
    Storage Humidity 5 ~ 95%, relative humidity, non-condensing
