Hardware Version |
2 |

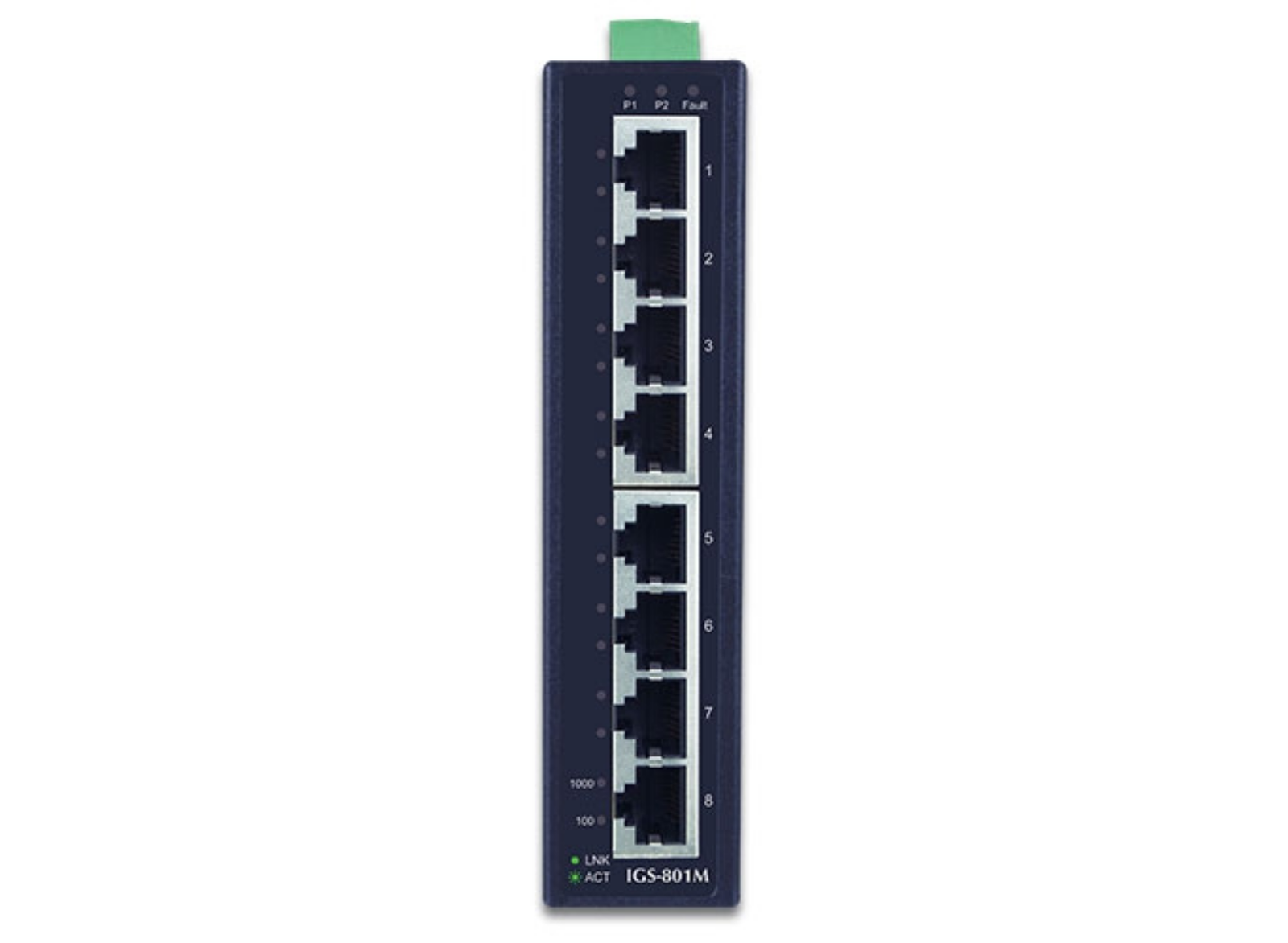

Copper Ports |
8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
Reset Button |
< 5 sec: System reboot |
|
> 5 sec: Factory default |

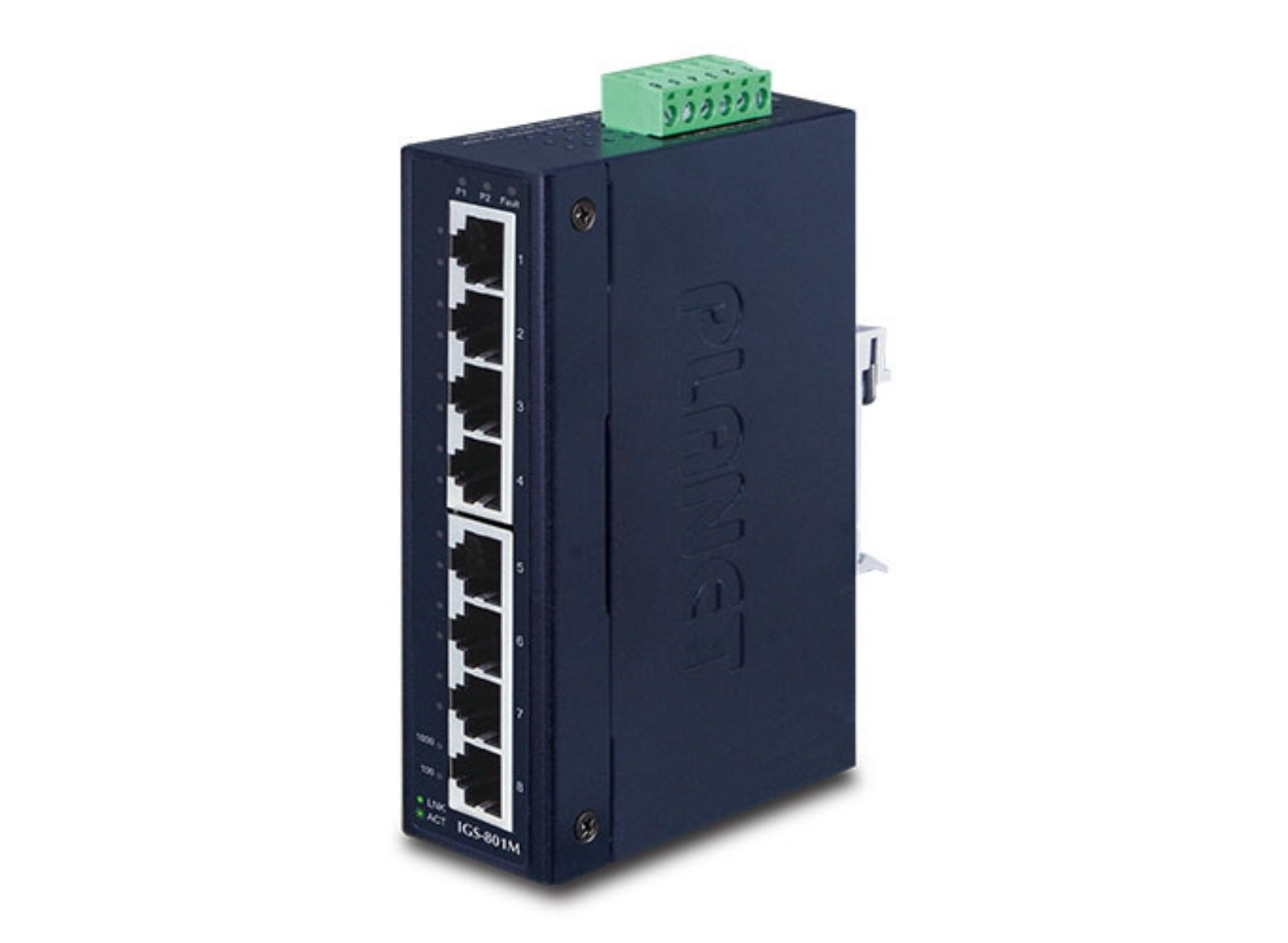

Connector |

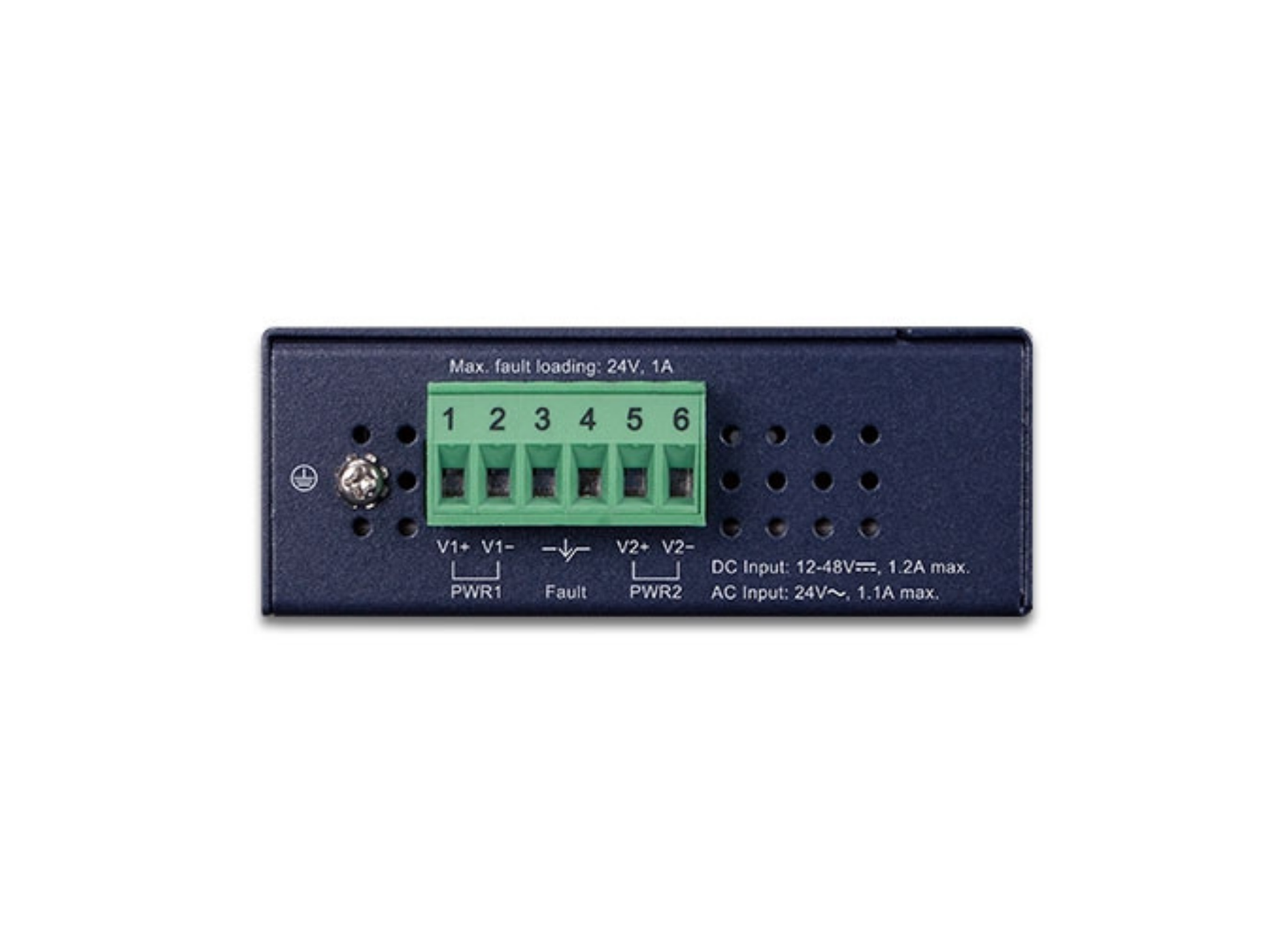

Removable 6-pin terminal block for power input |
|
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V |
Dimensions (W x D x H) |
135 x 87 x 32 mm, 1U height |
Weight |
472g |
Power Requirements |
DC 12 to 48V, AC 24V |
Power Consumption/ Dissipation |
4.5 watts/15BTU (System on), 10 watts/34BTU (Full loading) |
ESD Protection |
6KV DC |
Enclosure |
IP30 metal case |
Installation |
DIN-rail kit and wall-mount kit |
LED Indicators |
System: |
|
Power 1, Power 2, Fault Alarm |
|
Ports: |
|
10/100 Link/Act, 1000 Link/Act |
Switch Architecture |
Store-and-Forward |
Switch Fabric |
16Gbps/non-blocking |
Switch Throughput@64Bytes |
11.9Mpps |
Address Table |
8K entries |
Shared Data Buffer |
4.1 megabits |
Flow Control |
IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex |
Jumbo Frame |
10K bytes |
Port Mirroring |
TX/RX/both, Many-to-1 monitor |
VLAN |
802.1Q tagged-based VLAN, Up to 256 VLAN groups, out of 4094 VLAN IDs |
|
802.1ad Q-in-Q tunneling, Voice VLAN, Protocol VLAN, Private VLAN (Protected port), GVRP |
Link Aggregation |
IEEE 802.3ad LACP and static trunk, Supports 8 trunk groups with 8 ports per trunk |
Spanning Tree Protocol |
STP, IEEE 802.1D Spanning Tree Protocol, RSTP, IEEE 802.1w Rapid Spanning Tree Protocol, MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
IGMP Snooping |
IGMP (v2/v3) snooping, IGMP querier, Up to 256 multicast groups |
MLD Snooping |
MLD (v1/v2) snooping, up to 256 multicast groups |
QoS |
8 mapping ID to 8 level priority queues |
|
- Port number, 802.1p priority, 802.1Q VLAN tag, DSCP field in IP packet |
|
Traffic classification based, strict priority and WRR |
Ring |
Supports ERPS, and complies with ITU-T G.8032 |
Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL |
Port Security |
IEEE 802.1X – Port-based authentication, Built-in RADIUS client to cooperate with RADIUS server |
|
RADIUS/TACACS+ user access authentication |
MAC Security |
IP-MAC port binding, MAC filter, Static MAC address |
Enhanced Security |
DHCP Snooping and DHCP Option82, STP BPDU guard, BPDU filtering and BPDU forwarding, DoS attack prevention, ARP inspection, IP source guard |
Basic Management Interfaces |
Web browser, Telnet, SNMP v1, v2c |
Secure Management Interfaces |
SSHv2, TLS v1.2, SNMP v3 |
System Management |
Firmware upgrade by HTTP/TFTP protocol through Ethernet network, LLDP protocol, SNTP, PLANET Smart Discovery Utility, PLANET NMS System/CloudViewer |
Event Management |
Remote/Local Syslog, System log |
SNMP MIBs |
RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RFC 2737 Entity MIB (Version 2), RFC 2819 RMON (1, 2, 3, 9), RFC 2863 Interface Group MIB, RFC 3635 Ethernet-like MIB |
Regulatory Compliance |
FCC Part 15 Class A, CE |
Stability Testing |
IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration) |
Standards Compliance |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3az Energy Efficient Ethernet (EEE), RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, RFC 3810 MLD version 2, ITU G.8032 ERPS Ring |
Operating Environment |
Temperature: -40 ~ 75 degrees C, Relative Humidity: 5 ~ 95% (non-condensing) |
Storage Environment |
Temperature: -40 ~ 75 degrees C, Relative Humidity: 5 ~ 95% (non-condensing) |
