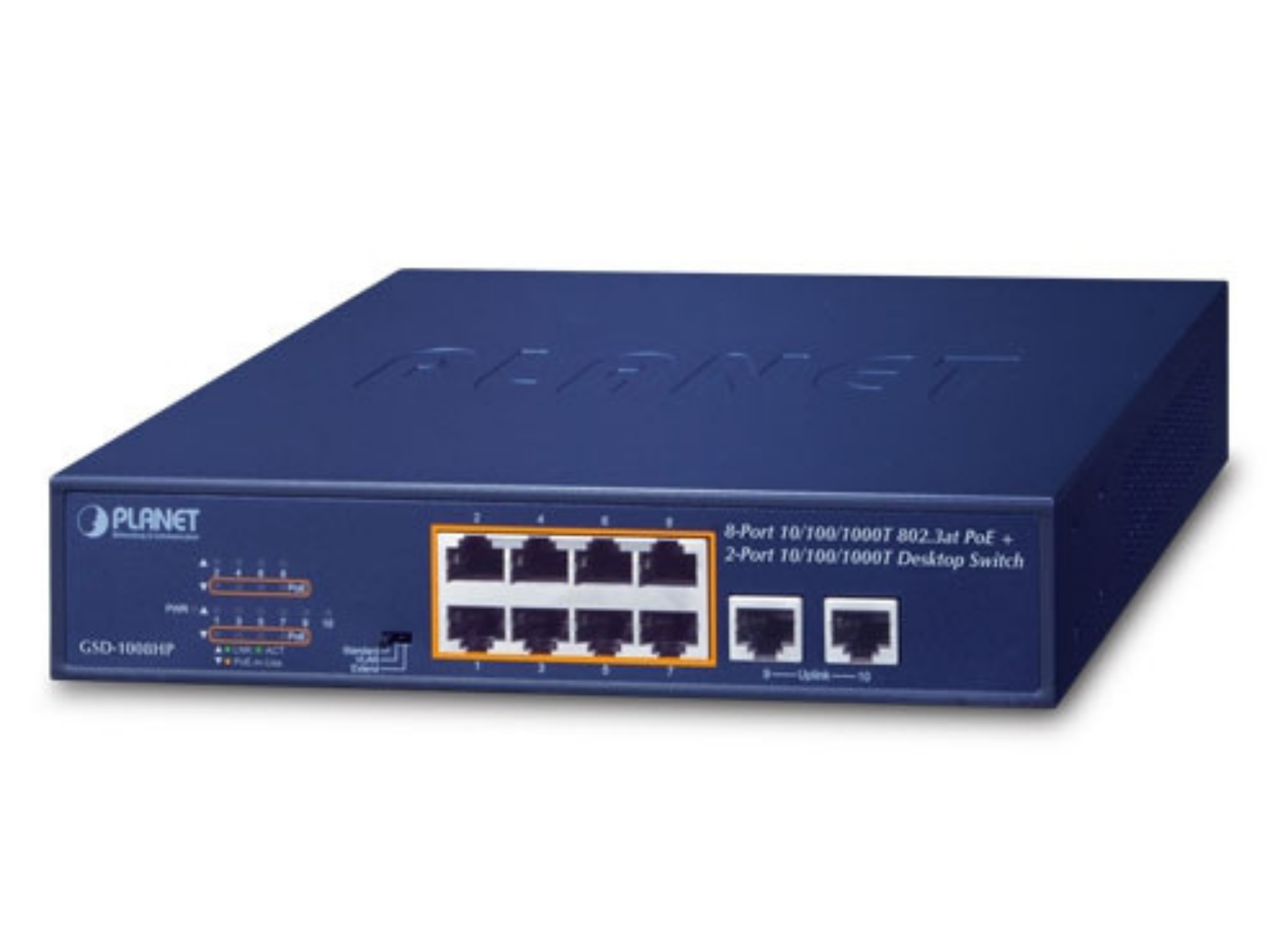

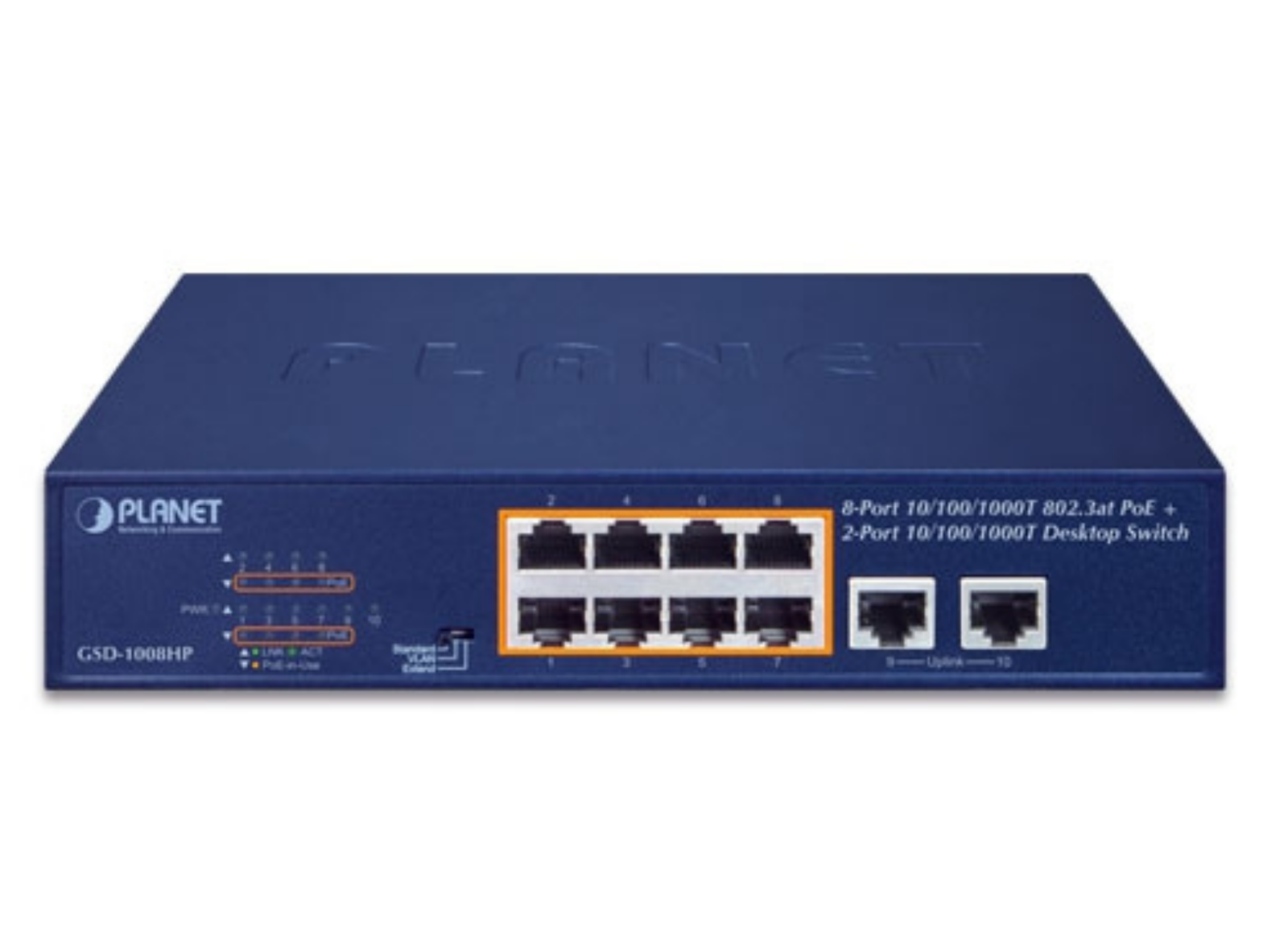

Planet 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch | GSD-1008HP

SKU: GSD-1008HP
Part Number: GSD-1008HP
Condition: Brand New
Purchase Orders Accepted
Save £32.53 Save £32.53
Original price £155.90
Inc. VAT
Original price £155.90 - Original price £155.90
Original price £155.90

£102.81 (Excl. VAT)

Current price - £123.37 Inc. VAT
£123.37 - £123.37
Current price- - £123.37
(Inc. VAT )
Availability:
32 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch | GSD-1008HP

    Flexible, Extendable and Centralized Power Distribution
    PLANET GSD-1008HP provides eight 10/100/1000T ports featuring 32-watt 802.3at PoE+, a total 120-watt PoE budget and extra two uplink ports to fulfill the demand of sufficient PoE power for HD IP surveillance and Wi-Fi system in a small-scale but high-performance network. With the same desktop-sized and compact metal housing, it makes the placement of the unit convenient and provides a quick and easy PoE PDs deployment with power feeding.


    Ethernet Data Transmission Distance Extension

    The built-in solid DIP switch provides “Standard”, “VLAN” and “Extend” operation modes. The GSD-1008HP operates as a normal IEEE 802.3at PoE+ switch in the “Standard” operation mode.

    The “VLAN” operation mode features port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.

    In the “Extend” operation mode, the GSD-1008HP operates on a per-port basis at 10Mbps duplex operation but supports 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GSD-1008HP provides an additional solution for 802.3at PoE+ distance extension, thus saving the cost of Ethernet cable installation. Furthermore, its VLAN isolation function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the “Extend” operation mode.


    Two Gigabit Uplink Ports

    The GSD-1008HP comes with two uplink ports with 1000Mbps transfer rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the eight PoE+ ports can be used to their full potential.

    Powered Device Alive Check
    The GSD-1008HP adopts not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status.

    The PD alive check feature is applied in Standard, VLAN and Extend modes. After the PoE of the port is powered on, the device starts to detect whether the port is transmitting data. If the port does not transmit data and the duration exceeds a specific time, PoE will automatically power off and then re-power. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

    Easy Cable Connection
    With data switching and power over Ethernet integrated into one unit, the GSD-1008HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 8 PoE interfaces, the GSD-1008HP is ideal for small businesses and workgroups making the deployment of the PoE facility including wireless access points, IP-based surveillance camera and IP phones in any places easier, more efficient and more cost-effective.

  • Category Specification
    Hardware Specifications
    Copper Port 10 10/100/1000BASE-T MDI/MDIX Ports
    PoE Injector Port 8-port with 802.3af/at PoE injector function with Port-1 to Port-8
    LED Indicators
    System Power (Green)
    10/100/1000BASE-T RJ45 interfaces 10/100/1000Mbps LNK/ACT (Green)
    PoE interfaces PoE-in-Use (Amber)
    DIP Switch Selectable operation mode: Standard, VLAN, Extend
    Dimensions (W x D x H) 220 x 150 x 43 mm (1U height)
    Enclosure Metal
    Weight 1205 g

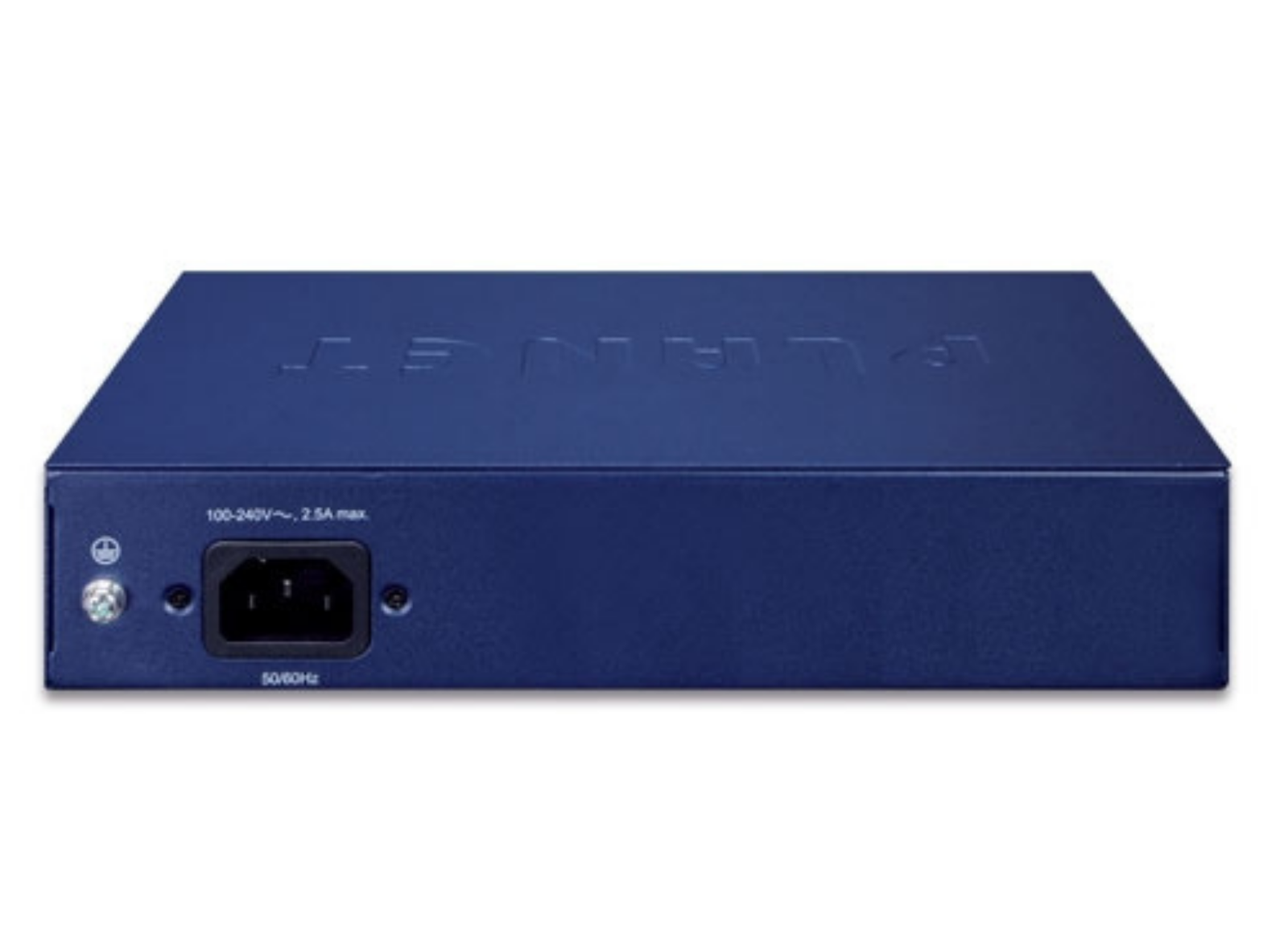

    Power Requirements AC 100~240V, 50/60Hz, 2.5A max.
    Power Consumption/Dissipation System On: Max. 4.1 watts/13.9 BTU; PoE Full Loading: Max. 124 watts/423.1 BTU
    ESD Protection Contact discharge of 6KV DC; Air discharge of 8KV DC
    Thermal Fan 1
    Switching Specification
    Switch Architecture Store-and-Forward
    Switch Fabric 20Gbps
    Switch Throughput@64 bytes 13.4Mpps@64 bytes
    Flow Control IEEE 802.3x pause frame for full-duplex; Back pressure for half-duplex
    MAC Address Table 2K entries, automatic source address learning and aging
    Maximum Frame Size 9K bytes
    Buffer Memory 1Mbits
    Power over Ethernet
    PoE Standard IEEE 802.3af Power over Ethernet/PSE; IEEE 802.3at Power over Ethernet Plus/PSE
    PoE Power Supply Type End-span
    PoE Power Output Per port 54V DC, 600mA. max. 32 watts
    Power Pin Assignment 1/2 (+), 3/6 (-)
    PoE Power Budget 120 watts
    Max. Number of Class 2 PDs 8
    Max. Number of Class 3 PDs 8
    Max. Number of Class 4 PDs 4
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab Gigabit 1000BASE-T; IEEE 802.3x Flow control and back pressure; IEEE 802.3af Power over Ethernet; IEEE 802.3at Power over Ethernet Plus; IEEE 802.3az Energy Efficient Ethernet (EEE)
    Environment
    Operating Temperature: 0 ~ 50 degrees C; Relative Humidity: 5 ~ 95% (non-condensing)
    Storage Temperature: -10 ~ 70 degrees C; Relative Humidity: 5 ~ 95% (non-condensing)
