Planet 8-Port Gigabit 802.3bt PoE++ Managed Injector Hub (400 watts) | UPOE-800G

SKU: UPOE-800G
Part Number: UPOE-800G
Condition: Brand New
Purchase Orders Accepted
Save £40.23 Save £40.23
Original price £690.90
Inc. VAT
Original price £690.90 - Original price £690.90
Original price £690.90

£542.23 (Excl. VAT)

Current price - £650.67 Inc. VAT
£650.67 - £650.67
Current price- - £650.67
(Inc. VAT )
Availability:
Only 3 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet 8-Port Gigabit 802.3bt PoE++ Managed Injector Hub (400 watts) | UPOE-800G

    PLANET’s newly-improved UPOE-800G, a high-density, rack-mountable managed and quick PoE++ solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3bt Power over Ethernet Plus Plus network system without replacing the existing Ethernet Switch. The UPOE-800G’ management functions have been enhanced to include TLSv1.2 and TLSv1.3 protocols to improve cybersecurity, PLANET NMS system, PLANET CloudViewer app, PLANET DDNS/Easy DDNS service, and more.


    A Perfect Managed PoE++ Injector Hub with Full Power Budget

    The UPOE-800G, a high-density, rack-mountable managed IEEE 802.3bt PoE++ injector hub, features PLANET intelligent PoE functions through web user interface for remote management. It provides 8 10/100/1000BASE-T Ethernet ports featuring 802.3bt type-4 PoE++ injector with a total PoE budget of 400 watts. Each PoE port can deliver up to 95-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

    The UPOE-800G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and effective Power over Ethernet network solution for small businesses and enterprises.


    802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

    As the UPOE-800G adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

    PoE PTZ speed dome cameras
    Network devices
    Thin clients
    AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
    Remote digital signage displays
    PoE lightings


    802.3bt PoE++ and Advanced PoE Power Output Mode Management

    To meet the demand of various powered devices consuming stable PoE power, the UPOE-800G supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, and  4-pair legacy and force modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

    95W 802.3bt PoE++ Power Output Mode
    36W End-span 802.3at PoE+ Power Output Mode
    36W Mid-span 802.3at PoE+ Power Output Mode

    Quick and Easy 802.3bt/at PoE Network Deployment

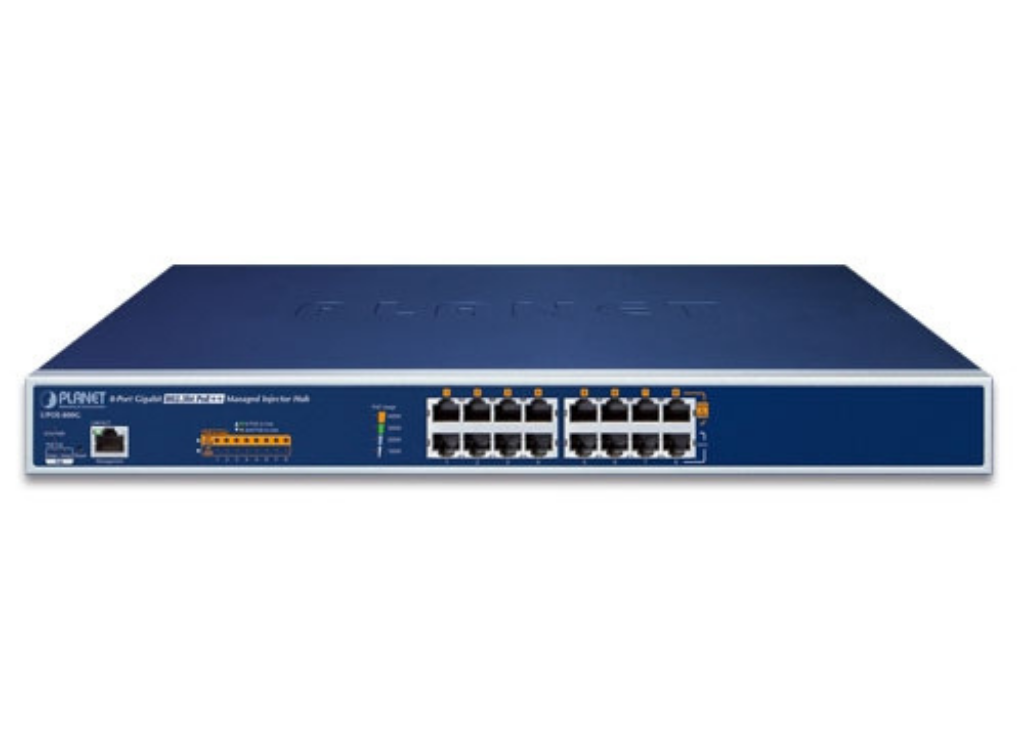

    The UPOE-800G is installed between a regular Ethernet Switch and the PDs. There are totally 16 RJ45 STP ports on the front panel of the UPOE-800G, of which the 8 ports are on the lower stack functioned as "Data input" while the other 8 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.

    With data and Power over Ethernet from one unit, the UPOE-800G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

    Built-in Unique PoE Functions for Powered Device Management
    As it is the Managed PoE++ Injector Hub for surveillance, wireless and VoIP networks, the UPOE-800G features the following special PoE management functions:

    PoE schedule
    PD alive check
    Scheduled power recycling
    PoE usage monitoring

    Intelligent Powered Device Alive Check
    The UPOE-800G can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the UPOE-800G will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


    PoE Schedule for Energy Savings

    Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the UPOE-800G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.


    Scheduled Power Rebooting

    The UPOE-800G can be scheduled to reboot at a specified time like every minute, every hour, every day to reduce the chance of PD device crash resulting from buffer overflow.

    Intelligent LED Indicator for Real-time PoE Usage
    The UPOE-800G helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the UPOE-800G has four green LEDs indicating 100W, 200W, 300W and 400W of PoE power usage.

    PoE Usage Monitoring
    Via the power usage chart in the web management interface, the UPOE-800G enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

    High Power Budget for PoE Extension
    With up to 95-watt PoE output capability, the UPOE-800G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET 802.3bt PoE++ Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

    Smart Fan Design for Silent Operation
    The UPOE-800G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability, with low speed and high speed smart fan status display on web interface. The UPOE-800G is able to operate reliably, stably and quietly in any environment without affecting its performance.

    Cybersecurity Network Solution to Minimize Security Risks
    The cybersecurity feature included to protect the UPOE-800G management in a mission-critical network virtually needs no effort and cost to install. Both TLSv1.2 and TLSv1.3 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

    User-friendly Web Management Interface
    To efficiently manage the PDs, the UPOE-800G provides simple Web management interface in which administrators can control the system and PoE functions for PDs. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.

    Remote Management Solution
    PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.

  • Category Specification
    Hardware
    Interface Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
    “Data” Input Ports: 8 x RJ45
    “Data + Power” Output Ports: 8 x RJ45
    Data Rate 10/100/1000Mbps
    Power Requirements 100-240V AC, 50/60 Hz, 6.5A
    Power Consumption 450 watts/1535 BTU
    Ventilation Smart Fan x 3
    Dimensions (W x D x H) 440 x 300 x 44.5mm
    Weight 4.1kg
    Reset Button < 5 sec: System reboot, > 5 sec: Factory default
    LED System: SYS PWR x 1 (Green), PoE Failure x 1 (Red), Fan Failure x 2 (Red)
    Management port x 1: LNK/ACT (Green)
    Per PoE Port: 802.3bt/UPoE PoE-in-use x 1 (Green), 802.3at/af PoE-in-use x1 (Amber)
    PoE Power Usage LED x4 100W/200W/300W/400W: (Green)
    Network Cable 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
    100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
    1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft), EIA/TIA- 568 100-ohm STP (100m)
    Power over Ethernet
    PoE Standard 802.3bt PoE++ PSE, Backward compatible with IEEE 802.3at PoE PSE
    PoE Power Supply Mode 802.3bt, End-span, Mid-span
    PoE Power Output Per port 54V DC, 802.3bt mode: maximum 95 watts, End-span mode: maximum 36 watts, Mid-span mode: maximum 36 watts
    Power Pin Assignment 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-), End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-)
    PoE PD Type Standard, Legacy, Force
    PoE Power Budget 400 watts
    Number of 95W 802.3bt Type-4 PDs 4
    Number of 60W 802.3bt Type-3 PDs 6
    Number of 802.3at PDs 8
    PoE Management Power limit by consumption and classification, PoE function enable/disable, Per port PoE function enable/disable, Per port PoE power schedule, Power feeding priority, PD alive check, PD classification detection, Current per port usage and status, Total power consumption
    Security
    Firewall SPI Firewall Protection
    Filtering MAC Filtering
    Certificates System CA Certificate for HTTPS
    Management Functions
    Management Interface HTTP/HTTPs Web user interface
    Secure Management Interface TLSv1.2, TLSv1.3
    Management Feature IPv4 and IPv6 dual stack management, Web interface for remote management, PLANET DDNS and Easy DDNS, Supports Network Time Protocol (NTP)
    System Maintenance Firmware upload via HTTP, Configuration upload/download via HTTP, Reboot button for system reboot, Reset button for system reset to factory default, PLANET Smart Discovery utility, PLANET NMS system and CloudViewer for deployment management, Scheduled System Power Rebooting
    Network Diagnostic ICMPv6/ICMPv4 Remote Ping, Trace Route
    SNMP Management SNMP v1, v2c and v3 for system status monitoring, SNMP trap for alarm notification of events
    Event Management Local system event log, Remote syslog
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3bt Power over Ethernet Plus Plus, RFC 768: UDP, RFC 791: IP, RFC 2068 HTTP, RFC 1157: SNMP v1, RFC 1902: SNMP v2c, RFC 2273: SNMPv3, RFC 5424: Syslog
    Environments
    Operating Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 90% (non-condensing)
    Storage Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 90% (non-condensing)
