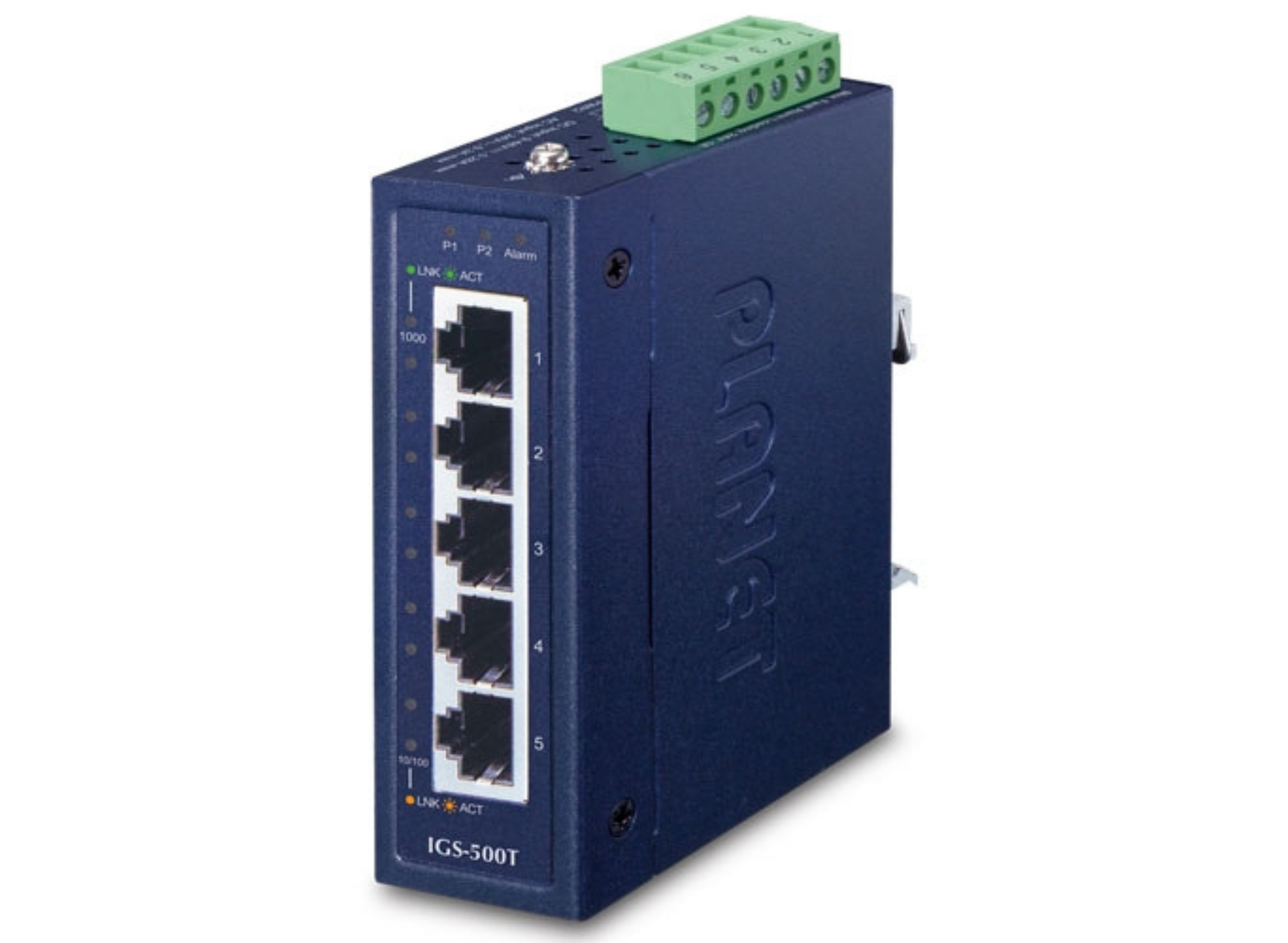

Planet Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch | IGS-500T

SKU: IGS-500T
Part Number: IGS-500T
Condition: Brand New
Purchase Orders Accepted
Save £12.68 Save £12.68
Original price £119.90
Inc. VAT
Original price £119.90 - Original price £119.90
Original price £119.90

£89.35 (Excl. VAT)

Current price - £107.22 Inc. VAT
£107.22 - £107.22
Current price- - £107.22
(Inc. VAT )
Availability:
28 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch | IGS-500T

    Compact Size for More Practicability and Convenience
    PLANET IGS-500T Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch, suitable for industrial use, features 5 1000Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (9~48V DC or 24V AC). The IGS-500T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.


    As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGS-500T is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.

    Low Power Consumption for Green Networking
    The IGS-500T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the IGS-500T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

    With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the IGS-500T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.

    Dual Power Input for High Availability Network System
    The IGS-500T features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-500T via power supply 2 alternatively without any loss of operation.


    High Switch Performance

    The IGS-500T offers high-performance switch architecture. With the 5 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 2K MAC address table, the IGS-500T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the IGS-500T to provide fast and reliable data transfer.

    Plug and Play
    All of the RJ45 copper interfaces in the IGS-500T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

    Flexible and Easy Installation with Limited Space
    The compact sized IGS-500T is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.

  • Category Specification
    Hardware Specifications
    Hardware Version 2
    Copper Ports 5 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiation

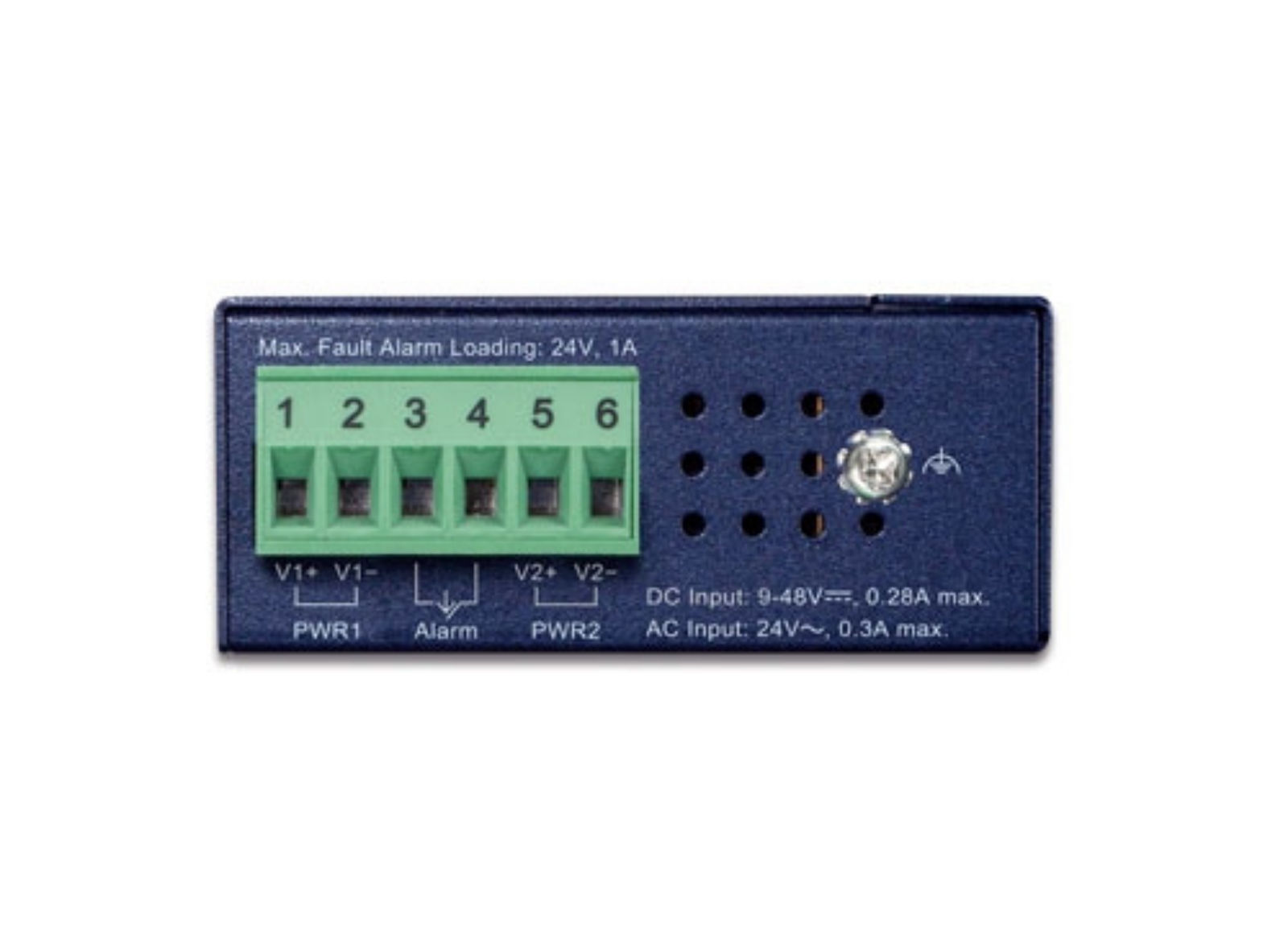

    Connector Removable 6-pin terminal block: Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
    Alarm Provides one relay output for power failure; Alarm relay current carry ability: 1A@DC 24V
    LED
    System and Power 3 x LED: Green: DC Power 1; Green: DC Power 2; Red: Power Alarm

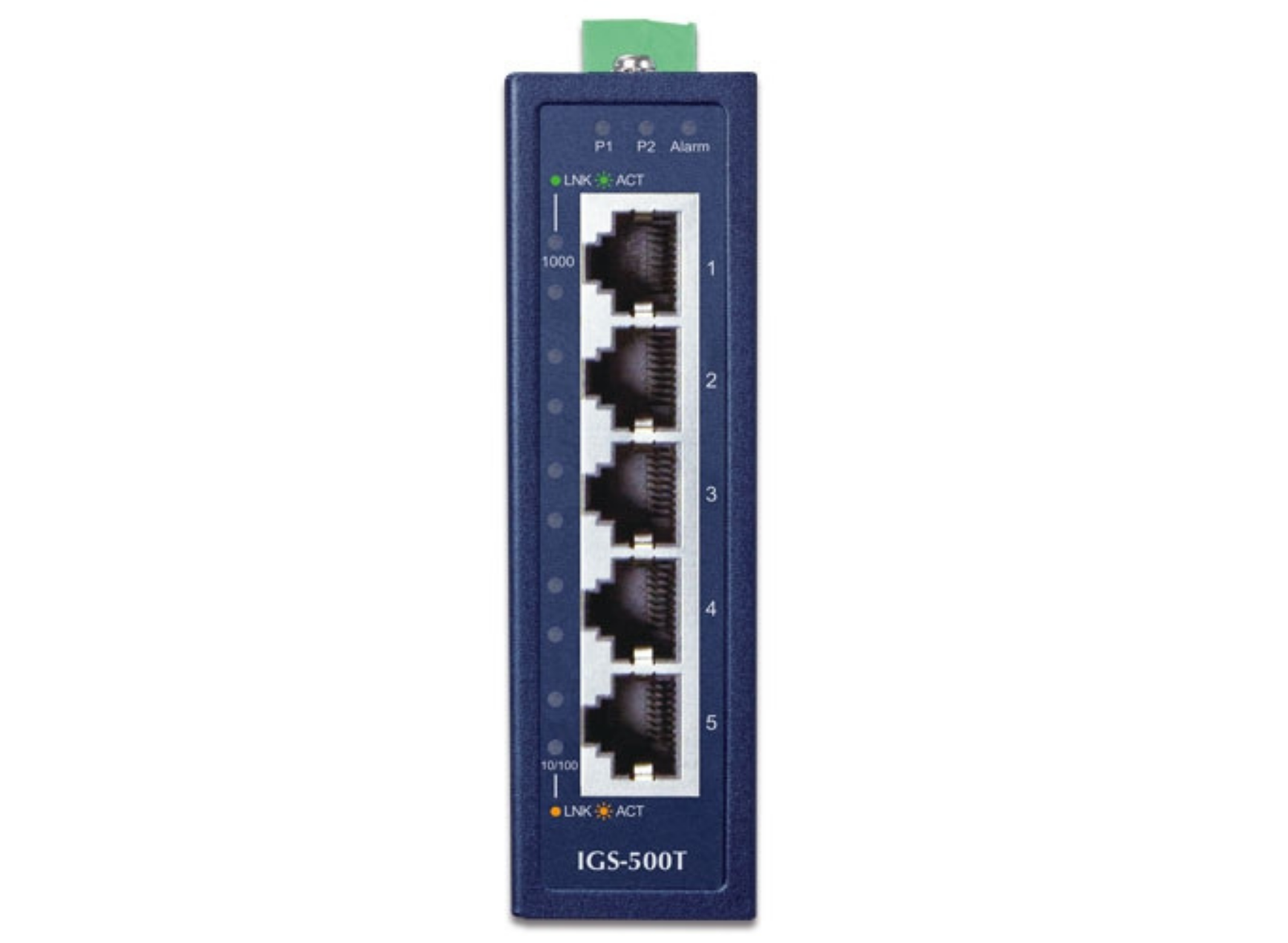

    Copper Port 2 x LED for each port: Green: 1000Mbps LNK/ACT; Amber: 10/100Mbps LNK/ACT
    ESD Protection 6KV
    EFT Protection 6KV
    Power Requirements 9~48V DC, redundant power with polarity reverse protection function, 24V AC power support
    Power Consumption / Dissipation 1.2 watts/4.09BTU
    Installation DIN-rail kit and wall-mount ear
    Enclosure IP30 metal case
    Dimensions (W x D x H) 30 x 70 x 104 mm
    Weight 264g
    Switch Specifications
    Switch Processing Scheme Store-and-Forward
    Address Table 2K entries
    Buffer Memory 4M bits on-chip buffer memory
    Flow Control Back pressure for half duplex; IEEE 802.3x pause frame for full duplex
    Switch Fabric 10Gbps
    Throughput (packet per second) 7.4Mpps@64bytes
    Jumbo Frame 9K
    Network Cables 10/100/1000BASE-T: Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters); EIA/TIA-568 100-ohm STP (max. 100 meters)
    Standards Conformance
    Standards Compliance IEEE 802.3 Ethernet; IEEE 802.3u Fast Ethernet; IEEE 802.3ab Gigabit Ethernet; IEEE 802.3x Full-Duplex Flow Control; IEEE 802.3az Energy Efficient Ethernet; IEEE 802.1p Class of Service
    Regulatory Compliance FCC Part 15 Class A, CE
    Stability Testing IEC 60068-2-32 (free fall); IEC 60068-2-27 (shock); IEC 60068-2-6 (vibration)
    Environment
    Temperature Operating: -4075 degrees C; Storage: -4075 degrees C
    Humidity Operating: 590%, Storage: 590% (non-condensing)
