Perfectly Designed for FTTx Applications

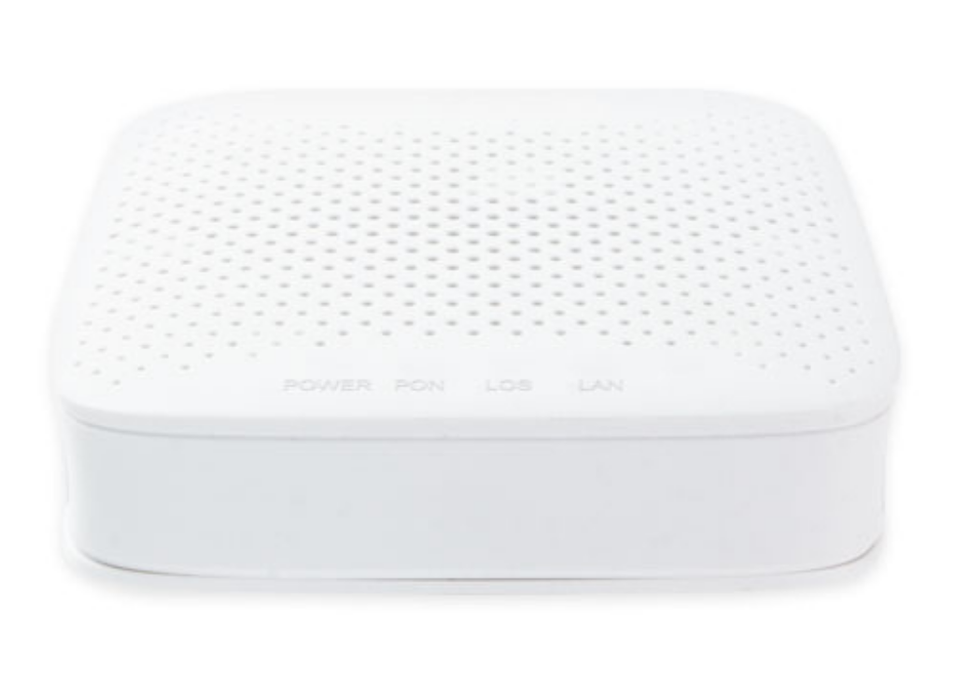

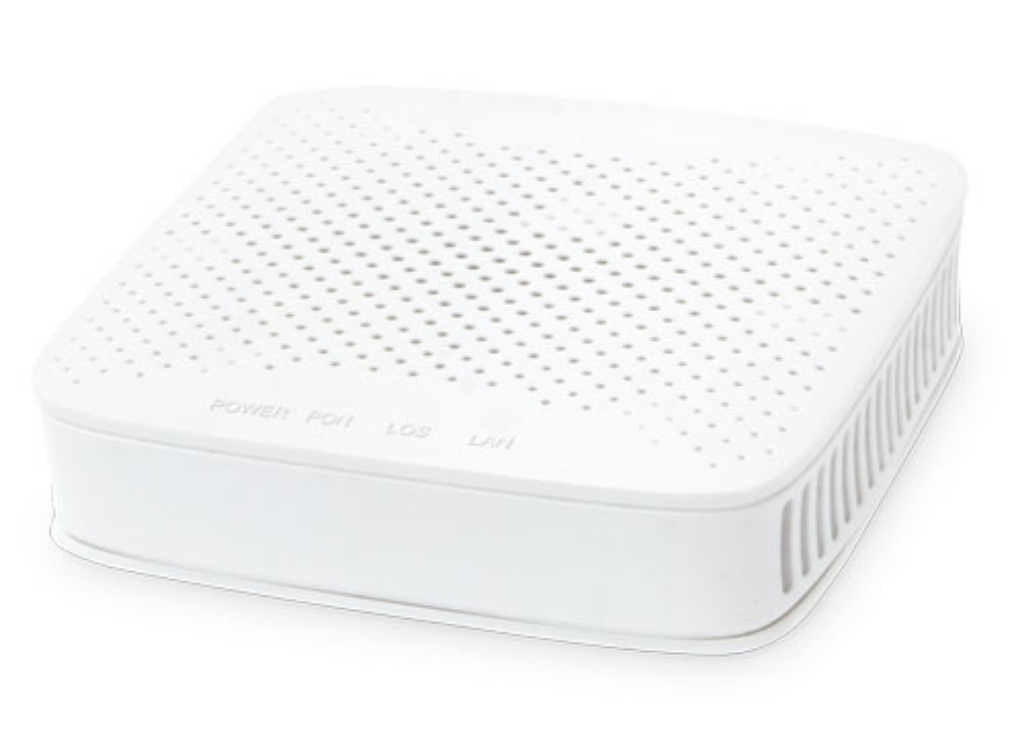

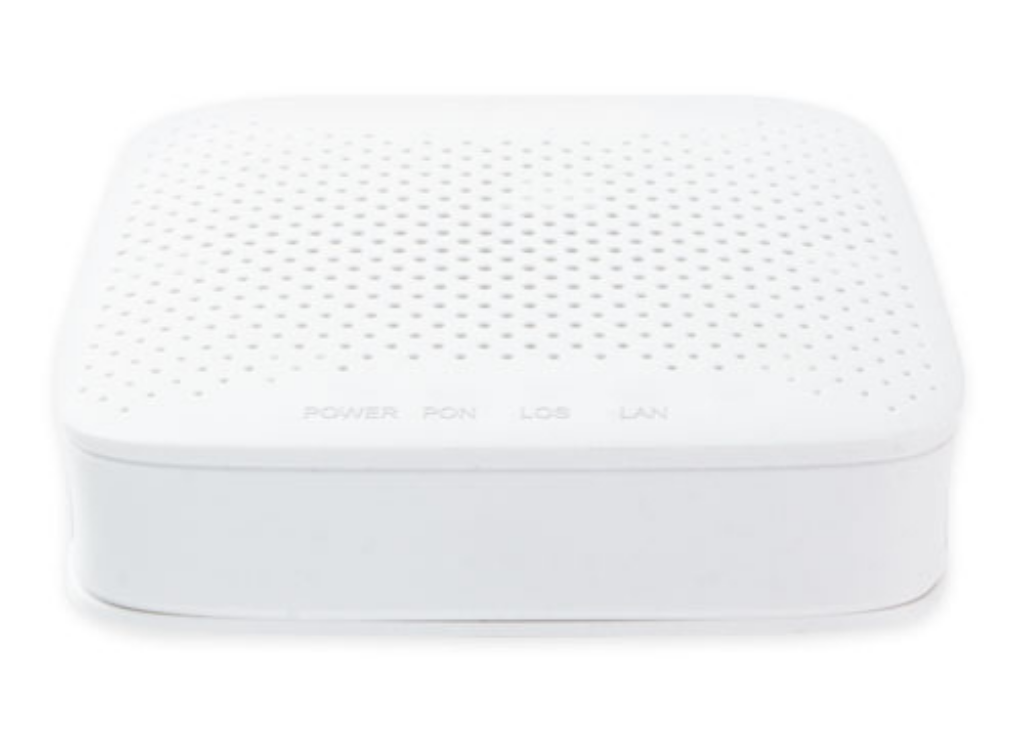

PLANET GPN-100 is a GPON Optical Network Terminal (ONT) equipped with one GPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GPON Optical line Terminal (OLT), the GPN-100 provides highly-effective GPON solutions for FTTx and multi-service networks. The GPN-100 complies with GPON ITU-T G.984/G.988 standards and PRC communications industrial standards for GPON Access technology requirements. With Plug and Play design, it’s easy for the installation and maintenance of GPON deployment.
Excellent Access Capacity
The GPN-100 supports PON downstream and upstream transmission rates of 2.5Gbps and 1.25Gbps, respectively. Connected with PLANET GPON OLT – GPL-8000, it can realize 1:128 split ratio. The covering radius of the network can reach up to 20km.
High-service Control Capability
The GPN-100 supports advanced DBA (dynamic bandwidth allocation), rate limit and accurate bandwidth limit, which enable users to share 2.5Gbps bandwidth resource appropriately. It also supports QoS function, which guarantees a reliable service quality and service priority.
Advanced Energy-saving Technique
PLANET GPN-100, adopting the advanced green networking technology, consumes very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
Passive Optical Network Connection Solution
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for broadband communication has grown quickly. PON is the most promising NGN (next generation networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, PON technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of long distance of up to 20km between equipment nodes, and most importantly, offer of much greater bandwidth
Applications
High Scalability and Flexibility in Multiple Applications
PLANET GPN-100 provides ultra-high-speed Internet connection with PLANET OLT via the new GPON technology. The downstream transmission speed provided is up 2.5Gbps and upstream transmission speed provided is up to 1.25Gbps, and its maximum distance can be 20km.
Through the PON technology, the GPN-100 can receive and deliver high-speed voice, and data and video services. It offers long-term service, lower operating costs, easy Installation and maintenance, and more stable bandwidth. The GPN-100 is the perfect solution when working with PLANET OLT that offers cost-effectiveness, scalability and flexibility for network deployments.
Key Features
GPON Port
1 SC type GPON port
Up to 2.5Gbps downstream and 1.25Gbps upstream
Maximum distance of up to 20km
Compliant with ITU-T G.984/988 standards
LED indicators for link status
Physical Hardware
One 10/100/1000Mbps Gigabit port
GPN-100 Features
AES128 algorithm encryption
Dynamic bandwidth allocation (DBA) support
Service level agreement (SLA) support
Four priority queues
WRR, strict priority and FIFO queue schedule algorithms
Supports IEEE 802.3x flow control
| Category | Specifications |
|---|---|
| Transmission Speed | Downstream: 2.5 Gbps, Upstream: 1.25 Gbps |

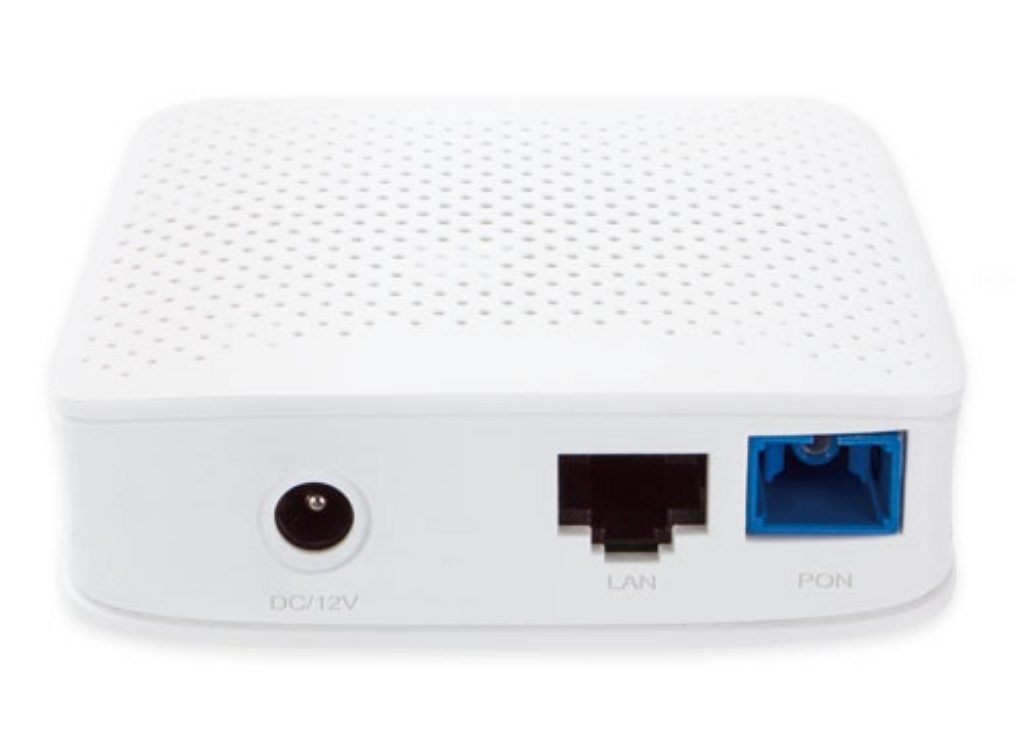

| Ports | 1 x PON Port, SC/UPC; 1 x RJ45 (10/100/1000BASE-T) |
| Fiber Maximum Distance | 20km |
| Optic Wavelength | TX: 1310mm, RX: 1490mm |
| Optical Receive Sensitivity | -28 dBm |
| Optical TX Power | 0.5~5 dBm |
| LED Indicators | Power, PON, LOS, LAN Link |
| ONT Features | MAC address learning, IGMP snooping, 64 MAC addresses support, SLA support, ACL and MAC filtering, Remote loop-back test, IEEE 802.3ah FEC |
| Dimensions | 79.95 x 74.86 x 25.19mm |
| Weight | 100g |
| Power Input | 12V DC, 0.5A |
| Temperature | Operating: 0 ~ 50°C, Storage: -40 ~ 85°C |
| Humidity | Operating: 10 ~ 85% non-condensing, Storage: 5 ~ 95% non-condensing |
| Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, ITU-T G.984/G.988, ITU-T Y.1291 |
| Safety | CE |
