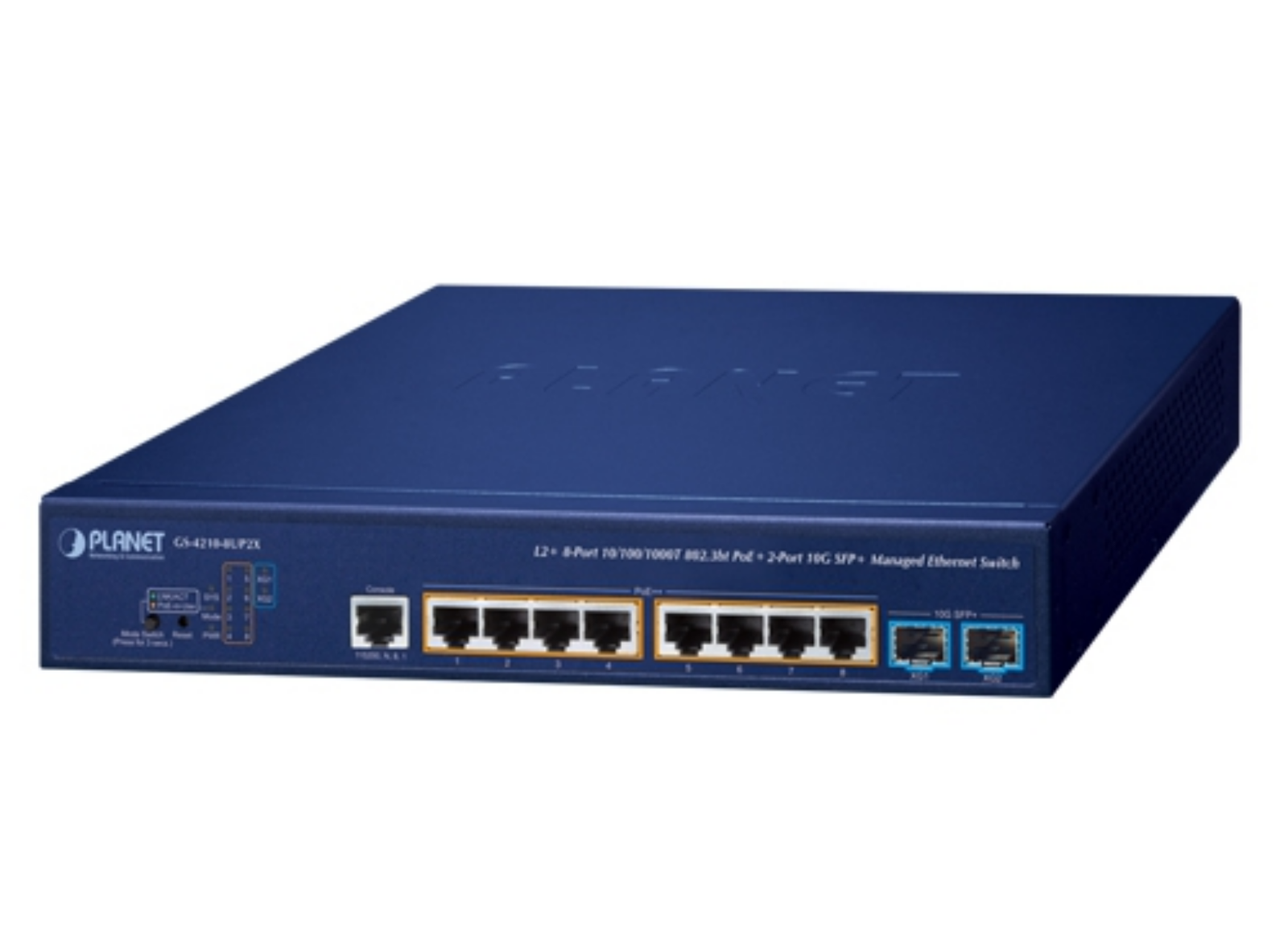

Planet GS-4210-8UP2X 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10G SFP+ Managed Ethernet Switch

Enterprise 802.3bt PoE++ Networking

Perfect Managed PoE++ Switch with Advanced L2+ Switching and Security

PLANET GS-4210-8UP2X Gigabit 802.3bt PoE++ Managed Switch features intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and a built-in L2+ Gigabit switching engine. The GS-4210-8UP2X includes 8 10/100/1000BASE-T 802.3bt PoE++ ports and 2 10 Gigabit fiber ports, with a total power budget of 240 watts. It offers a quick, safe and cost-effective PoE++ network solution for small businesses and enterprises.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity features protect switch management in mission-critical networks. SSHv2 and TLSv1.3 provide strong protection against advanced threats.

Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-8UP2X supports ITU-T G.8032 ERPS and Spanning Tree Protocol to enhance reliability and uptime.

802.3bt PoE++ 95-Watt Power over 4-Pair UTP Solution

The GS-4210-8UP2X supports IEEE 802.3bt PoE++ and can deliver up to 95 watts per port over standard Cat5e/6 cabling for high-power devices such as PTZ cameras, network devices, thin clients, POS systems, kiosks, digital signage displays and PoE lighting.

802.3bt PoE++ and Advanced PoE Power Output Mode Management

The GS-4210-8UP2X supports 95W 802.3bt Type-4 PoE++ mode and 4-pair legacy mode for non-standard PoE devices. It also supports 36W end-span 802.3at PoE+ output mode.

Built-in Unique PoE Functions for Powered Devices Management

The GS-4210-8UP2X includes PD Alive Check, Scheduled Power Recycling, PoE Schedule, PoE Usage Monitoring and PoE Extension.

Intelligent Powered Device Alive Check

The switch can monitor connected powered devices in real time via ping. If a device stops responding, the switch can restart PoE power on that port to bring the device back online.

Scheduled Power Recycling

Connected PoE IP cameras or wireless access points can be rebooted at a scheduled time each week to reduce crashes caused by buffer overflow.

PoE Schedule for Energy Savings

PoE scheduling allows power feeding to be enabled or disabled during specified time intervals, helping reduce energy use and improve security during non-business hours.

PoE Usage Monitoring

The web management interface allows administrators to monitor power usage of connected powered devices in real time.

802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

In Extend mode, the switch supports 10Mbps duplex operation with up to 50W PoE output over distances up to 250 meters.

Environment-Friendly Smart Fan Design for Silent Operation

The GS-4210-8UP2X features a rack-mount metal housing, low-noise design and smart fan technology to control fan speed automatically.

IPv6/IPv4 Dual Stack Management

The switch supports both IPv6 and IPv4 protocols for flexible network deployment.

Robust Layer 2 Features

The GS-4210-8UP2X supports dynamic link aggregation, 802.1Q VLAN, Q-in-Q VLAN, MSTP, loop and BPDU guard, IGMP snooping, MLD snooping and LLDP.

Efficient Traffic Control

QoS and traffic management features include storm control, per-port bandwidth control, IP DSCP QoS priority and remarking.

Powerful Security

The switch supports Layer 2 to Layer 4 ACL, 802.1x authentication and private VLAN to enhance network security.

Advanced IP Network Protection

DHCP Snooping, IP Source Guard and Dynamic ARP Inspection help prevent spoofing and invalid ARP traffic.

Efficient Management

The GS-4210-8UP2X supports command line, Web and SNMP management interfaces, plus Telnet and console access.

Flexibility and Long-Distance Extension Solution

The switch supports Gigabit RJ45 copper interfaces and 100BASE-FX, 1000BASE-SX/LX, 2.5G and 10G SFP fiber transceivers for long-distance uplinks.

Intelligent SFP Diagnosis Mechanism

SFP-DDM allows administrators to monitor real-time SFP parameters, including optical power, temperature, laser bias current and transceiver voltage.

PLANET CloudNMS – Cloud-Based Universal Network Management

PLANET CloudNMS and mobile app allow IT staff to remotely manage network devices and powered devices in real time, with centralized monitoring, fault detection and instant alerts.

Key Features

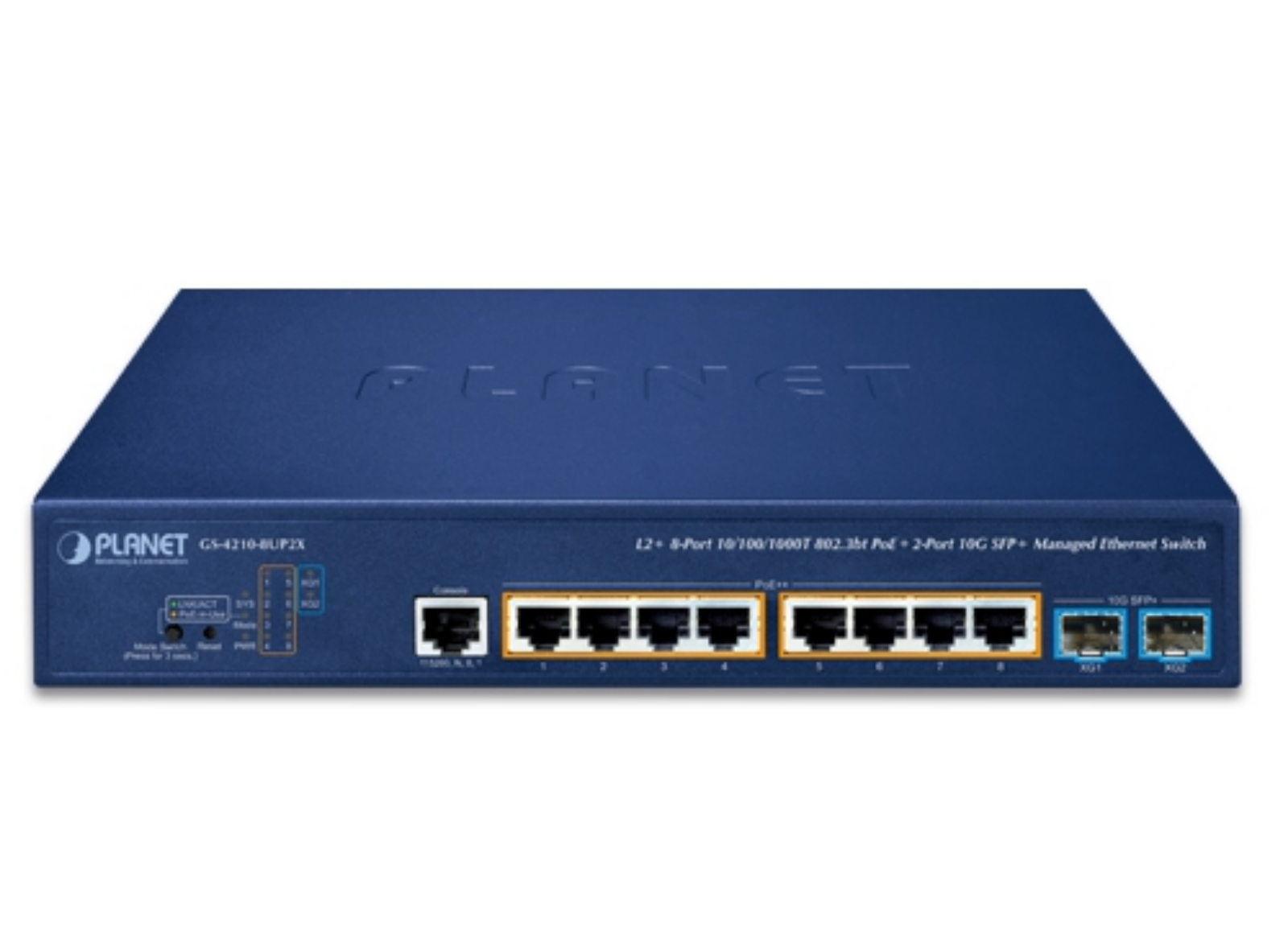

Physical Port:
8 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function
2 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers
RJ45 to DB9 console interface for switch management and setup

Switching:
Hardware-based 10/100Mbps half/full duplex and 1000Mbps full duplex
Auto-negotiation and auto MDI/MDI-X
IEEE 802.3x flow control
Back pressure for half duplex operation
16K MAC address table
12K jumbo frame
Automatic address learning and aging

Power over Ethernet:
IEEE 802.3bt PoE++ compliant
8 ports supporting up to 95 watts each
240W total PoE power budget
Automatic PD detection
Circuit protection
Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
Total PoE power budget control
Per-port PoE enable/disable
PoE priority and power limitation
PD classification detection
PD Alive Check
PoE Schedule
Scheduled Power Recycling

Layer 2 Features:
IEEE 802.1Q tagged VLAN
Q-in-Q VLAN
Protocol VLAN
Private VLAN
Management VLAN
GVRP
STP, RSTP and MSTP
BPDU Guard, BPDU Filtering and BPDU Forwarding
LACP
Static trunk
Port mirror
Loop protection
ERPS
LLDP

Quality of Service:
Ingress and egress rate limit
Storm control
Broadcast, unknown unicast and unknown multicast control
IEEE 802.1p CoS
TOS, DSCP and IP precedence
Strict Priority
WRR

Multicast:
IPv4 IGMP snooping v2/v3
IPv6 MLD snooping v1/v2
IGMP querier mode
IGMP snooping port filtering
MLD snooping port filtering

Security:
RADIUS client
RADIUS/TACACS+ login authentication
DHCP Option 82
IPv4/IPv6 IP-based ACL and ACE
MAC-based ACL and ACE
MAC security
Static MAC
MAC filtering
Port security
DHCP Snooping
Dynamic ARP Inspection
IP Source Guard
DoS attack prevention

Management:
IPv4 and IPv6 dual stack management
Web management
Console and Telnet CLI
SNMP v1/v2c/v3
SSHv2 and TLSv1.3
RMON
SNMP trap
User privilege control
TFTP client
Static and DHCP IP assignment
Firmware upload/download via HTTP/TFTP
Configuration upload/download via HTTP/TFTP
Dual images
Hardware reset button
SNTP
SFP-DDM
Cable diagnostics
ICMPv4/ICMPv6 remote ping
LLDP and LLDP-MED
Remote syslog
PLANET Smart Discovery Utility
PLANET NMS and CloudNMS
