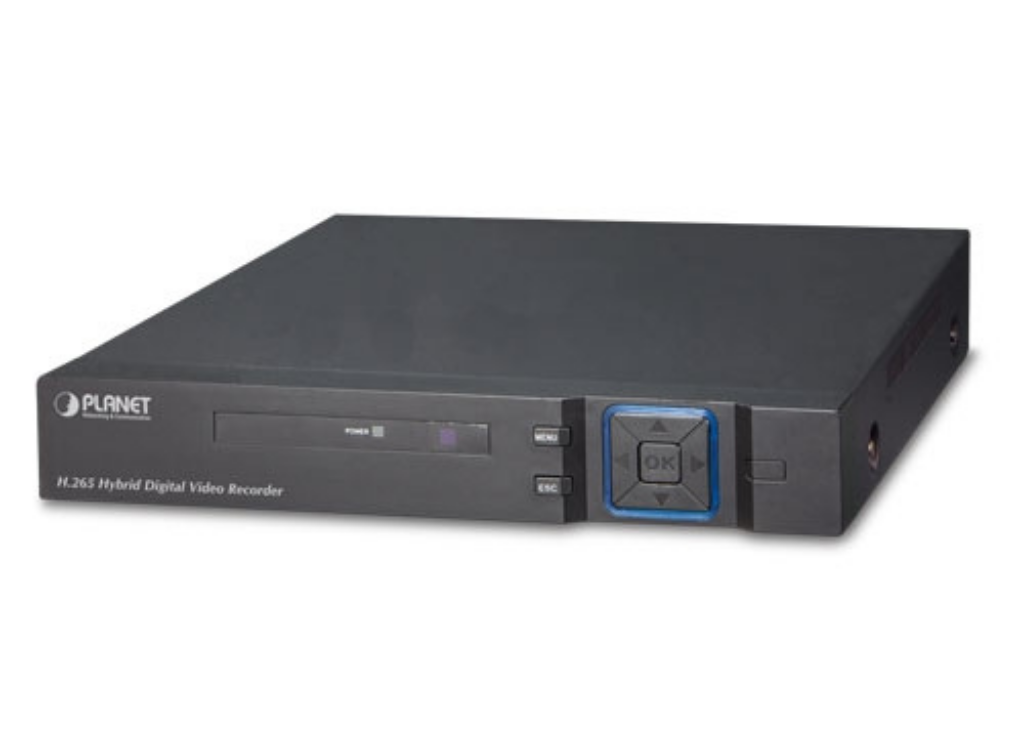

Planet H.265 4-ch 5-in-1 Hybrid Digital Video Recorder | HDVR-435

Efficient Solution for All Video Formats
PLANET HDVR-435 is a H.265 Hybrid DVR Recorder which is able to record video and data from traditional AHD (analog high definition), HD-CVI (high definition composite video interface), HD-TVI (high definition transport video interface) and Network IP security cameras. The advantage of a hybrid DVR recorder is that it lets you use currently installed analog security equipment along with newer network IP technology. This enables you to upgrade your surveillance system to IP equipment at your own pace, according to your budget.

The HDVR-435 4-channel embedded system is equipped with HDMI/VGA local display and features recording, live view, playback and backup functions, etc. With the easy-to-remember DDNS feature, the HDVR can be placed either in LAN or WAN for easy installation. Besides, designed for various surveillance applications via RS485 interface, the HDVR is capable of controlling most types of protocols. For the purpose of general monitoring, the HDVR-435 offers app viewer, Web browser and CMS (central management software) for multi-platform remote access, thus making it an ideal solution for various applications, such as retail stores, communities, SMBs, supermarkets, restaurants and schools.

Bandwidth Saving
With H.265 compression technology, the HDVR-435 offers over 30% more of recording capacity than systems employing H.264 compression. This advance gives users larger storage space for longer durations of video recording.

Hybrid Integration
The HDVR-435 allows each of its 4 channels to be connected to either an analog camera or an IP camera. If you already have analog cameras and want to add on a few IP cameras, the HDVR-435 is definitely your ideal choice. In addition, as the HDVR complies with ONVIF, it is interoperable with any third-party IP cameras, thus omitting compatibility issue and allowing you to add more cameras.

High Resolution Local Display
The HDVR-435 provides HDMI and VGA video output interfaces for dual local displays, which can be connected to HDMI monitor or VGA monitor for live view monitoring with a maximum video output of 1920 x 1080 resolutions. Due to local display, it can eliminate the need for a separate PC to view video from the unit. Besides, it also can be operated with the USB mouse to configure and monitor all the system easily.

Real-time Remote Monitoring
Video from the HDVR system can be accessed with Web browsers and mobile devices. With remote monitoring, you can view live and recorded video, allowing for easier monitoring of your video deployments, and the ability to react quickly to alarms and events.

Central Management System (CMS)
Not just for small-scale applications such as retail stores and SMBs, the HDVR system is expandable for multi-site management with the bundled CMS software. The CMS software is able to manage up to 64 channels of cameras simultaneously. With user-friendly graphic interface, users can control any cameras or HDVRs easily and make a quick response when an event is triggered. With CMS support, users are able to make surveillance more efficient.

Applications

Advanced Event Management
The HDVR-435 is equipped with a smart alarm-triggering mechanism and supports various alerts and abnormal events. When it comes to a critical event, having a smart and responsive event management in place is essential for video surveillance system. This feature greatly strengthens the security and management efficiency of PLANET HDVR system.

Perfect for Indoor Surveillance Applications
PLANET HDVR system can be controlled and monitored both in the local LAN and the remote site via Internet. Users can also log in from their mobile phones to check the monitoring screen anywhere, anytime. It is especially perfect for indoor surveillance in such places as retail stores, communities, restaurants, etc.

Key Features

Hardware
Embedded, highly-reliable standalone HDVR
Supports 4-ch BNC connectors
Supports VGA/HDMI dual local display
Supports 3.5" SATA x 1 HDD
Supports RS485 for PTZ control

Video and Audio
Supports H.265 and H.264 compressions
Video resolution up to 1080p (analog mode) and 1080p (IP mode)
Supports hybrid mode for combination of IP, traditional analog, TVI, CVI and AHD cameras
2-way audio support with enhanced audio quality

Video Recording / Backup
Simultaneous recording and live video streams
Manual or scheduled recording of 4 cameras simultaneously
Video recycling function 24/7 for easy inquiry of suspicious events
Exports recorded video file in H.26X or AVI format to USB device
Instant Event Notification

Network Service
Easy access with PLANET Dynamic DNS and built-in NTP Server
Supports PPPoE, DHCP and manual settings
Supports P2P cloud function for remote viewing
Supports dropbox for recording channels

Easy Installation and Management
ONVIF compliant for interoperability
Supports multiple languages
Automatically discovered by management software
Web-based and management utility for easy configuration
Up to 64 channels with the central management software
Supports two USB2.0 ports for mouse control and backup
Supports mobile phone remote viewer, Web UI and CMS
