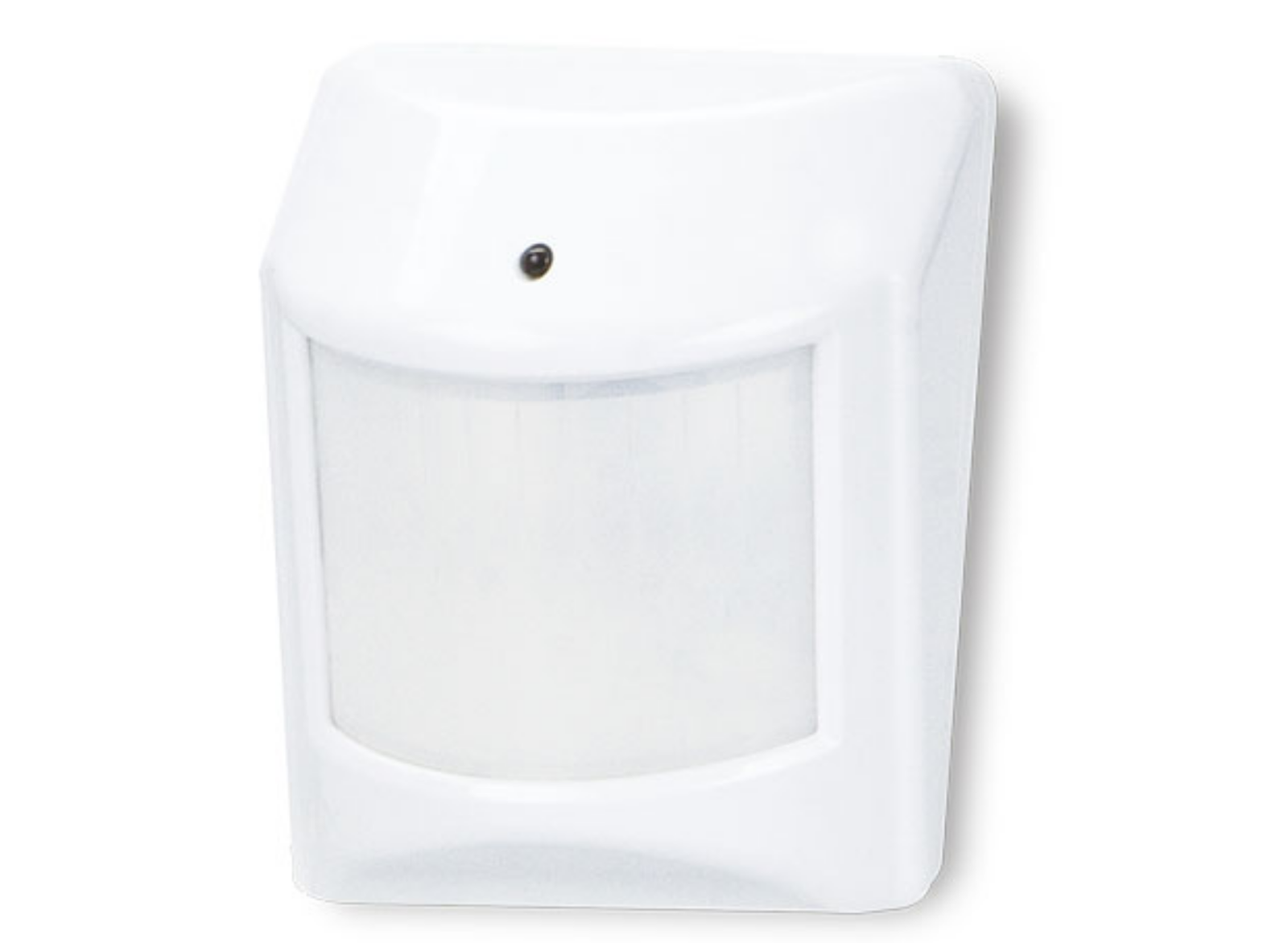

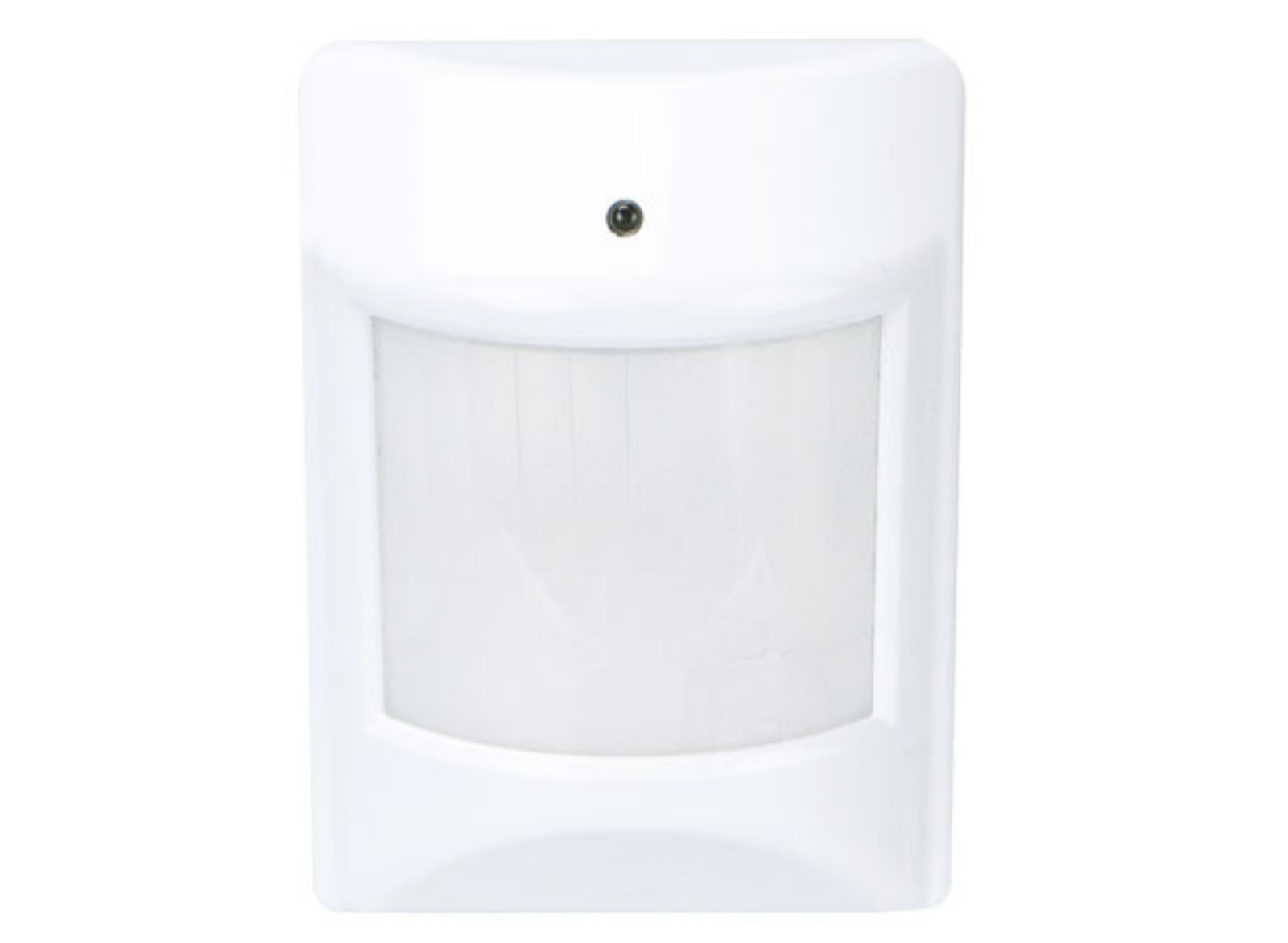

Planet HZS-100A Z-Wave Wall-mount Motion Sensor
SKU: HZS-100A
£25.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Smart Motion and Temperature Detection for Home Automation
Home Automation and Smart Home Control
The HZS (Z-Wave Sensing Device) series of PLANET Home Automation product family, based on Z-Wave technology, provides the advanced security system that protects your home and family 24/7. Easy operation and flexible configuration are the attractive features of our system; the simple one-touch button lets you program your regular settings according to your preference and operation mode. Worked with PLANET HAC-1000 Z-Wave Home Automation Control Gateway, you get the all-round and reliable home security services that we offer. Our full range of product lines ensure that you get all the devices you need for your home security system.
Motion and Temperature Detection
PLANET HZS-100 is a Z-Wave wall-mount PIR motion sensor that monitors movement and sends Z-Wave™ signal when movement is detected. With its built-in temperature sensor feature, the HZS-100 will send the signal out when temperature inside the building changes.
Getting Started is as Easy as 1-2-3Via the Cloud Home App (including Home Automation Controller Pad and Control Gateway): Press Inclusion/Exclusion to include/exclude Z-Wave device.
On the Z-Wave device: Press the Pair button to establish a connection with the control gateway.
Users can enjoy and manage Z-Wave network right away.
Real-time Alarm
Alerts like use of electricity, home alarms and more can be brought to your notice without delays by way of cloud hosting. From now on, you can maintain your home security no matter where you are.
Key Features
Z-Wave 500 series module inside
Wall mount mechanism
Auto switch-off delay time settings
120-degree motion detection
Detects changes in movement via infrared technology
Tamperproof protection
Low-power consumption for long battery life
Battery capacity detection (with the HAC-1000 Control Gateway)
Temperature report (with the HAC-1000 Control Gateway)
App and control pad alerts for any situation (with App Cloud Home and HTS-1000P Control Pad) -
Z-Wave Frequency America: 908.42MHz; Europe: 868.42MHz Installation Height About 2 meters PIR Detecting Distance 3~10 meters PIR Detecting Angle 120 degrees coverage LED Indicators Movement detected (red) Operating Range Up to 30 meters in open space Delay Time Adjustment 1~255 minutes Installation Wall mount, indoor use Power Requirements CR123A 3V Operating Temperature -15 ~ 40 degrees C Operating Humidity 0 ~ 90% (non-condensing) Weight 75g Dimensions (W x D x H) 84 x 62 x 50 mm Emission CE, FCC -
Description Downloads Datasheet Download
