Planet Industrial 1-Port BNC/RJ11 to 4-Port Gigabit Ethernet Extender | IVC-234GT

High-Speed Ethernet Extension up to 1.2km

High Performance Industrial Gigabit Ethernet Extender
To fulfill the needs of long distance and higher speed required Ethernet over Coaxial or 2-wired UTP applications, PLANET Technology offers a new Industrial Ethernet Extender, IVC-234GT. It features one BNC port and one RJ11 port for long-distance connection with the VDSL2 (Very-high-bit-rate Digital Subscriber Line 2) technology, and 4 10/100/1000BASE-T RJ45 Ethernet ports. Its slim-sized metal housing makes the placement of the unit convenient. Working well with a pervasive coaxial or RJ11 network, the IVC-234GT provides an excellent bandwidth of up to a total duplex data rate of 300Mbps which can extend a maximum distance up to 1.2km.

If the IP network that consists of HD IP camera, wireless access point, NVR and digital signage display requires an extension of beyond the 100-meter distance, the IVC-234GT will be the best option as it can transmit data over the coaxial cable or telephone wire. A 100-meter distance can only be extended on an UTP cable.

Superior Upstream and Downstream Transmission
The design of the IVC-234GT is based on the two-core networking technology, Gigabit Ethernet and VDSL2. The IVC-234GT offers a stable yet high-speed point-to-point network access up to a duplex data transmission of 300Mbps. It provides 2 selective transmission modes -- asymmetric mode or symmetric mode -- for the transmission of upstream and downstream signals.

Asymmetric mode – downstream up to 200Mbps and upstream up to 100Mbps

Symmetric mode – downstream up to 150Mbps and upstream up to 150Mbps

The symmetric mode provides the similar transmission rate on both downstream and upstream while the asymmetric mode performs higher transmission quality in short range. In all, when the IVC-234GT is in the symmetric mode, it provides a better upstream performance, and when it is in the asymmetric mode, it gives a better downstream performance.

Ethernet over Long Distance Existing Coaxial or RJ11 Cable

The IVC-234GT is also a Long Reach Ethernet (LRE) solution which provides a quick replacement and smooth migration solution from the existing analog system to full digital system.  It features two types of transmission, the coaxial or RJ11. A normal UTP cable can only be extended up to 100 meters, but with the IVC-234GT, the distance for Ethernet networking can be extended up to 1,200 meters (3,937ft.), which is ideal for the following network applications:

Long-distance IP network devices

IP digital signage

Cable TV to IPTV

Distance video education

Electronic billboards

Other applications

If you have coaxial or RJ11 cable in your existing environment, you can install a pair of the IVC-234GT very simply without the need to build additional network wires, thus saving costs for network construction.

Easy and Flexible Installation
The IVC-234GT offers two operation modes, the client-side CPE and central-side CO, making any network applications easy and flexible. The CPE or CO mode can be adjusted by using the built-in DIP switch. For point-to-point connection, one IVC-234GT in CPE mode and the other one in CO mode must be set up as a pair of converters to perform the connection. This enables the administrator to efficiently manage the network over coaxial cable, making long-distance transmission better.

ADSL2+ Fallback
For ISPs  providing ADSL broadband services, the IVC-234GT can support a downstream rate of up to 24Mbps and an upstream rate of 1Mbps with the ADSL2+ technology. The IVC-234GT can also be directly switched over to VDSL2 after the network upgrade.

Applications

Point-to-Point Application -- LAN to LAN Connection
One set of the IVC-234GT could be used to link two local Area networks that are located in different places. Through the coaxial cable, it could set up a 200/100Mbps asymmetric backbone, but one IVC-234GT must be Master (CO mode) and the other one is Slave (CPE mode).

Community/Campus Surveillance and Security over IP
To take advantage of digital surveillance system and keep the benefits of coaxial cable/RJ11 of the IVC-234GT, communities, campuses and enterprises can upgrade their analog camera system to IP camera surveillance system without using additional new wires. As the IVC-234GT comes with one RJ45 port and one BNC Ethernet over Coaxial port, just plug in the UTP cable of IP camera to the Ethernet port and the existing coaxial cable to the BNC connector to easily deploy and extend the distance with signal conversion by transmitting the Ethernet data from the standard coaxial cable.

Key Features

Long Reach Ethernet
ITU-T G.993.5 G.Vectoring and G.INP
Upstream/Downstream bandwidth up to 200/100Mbps

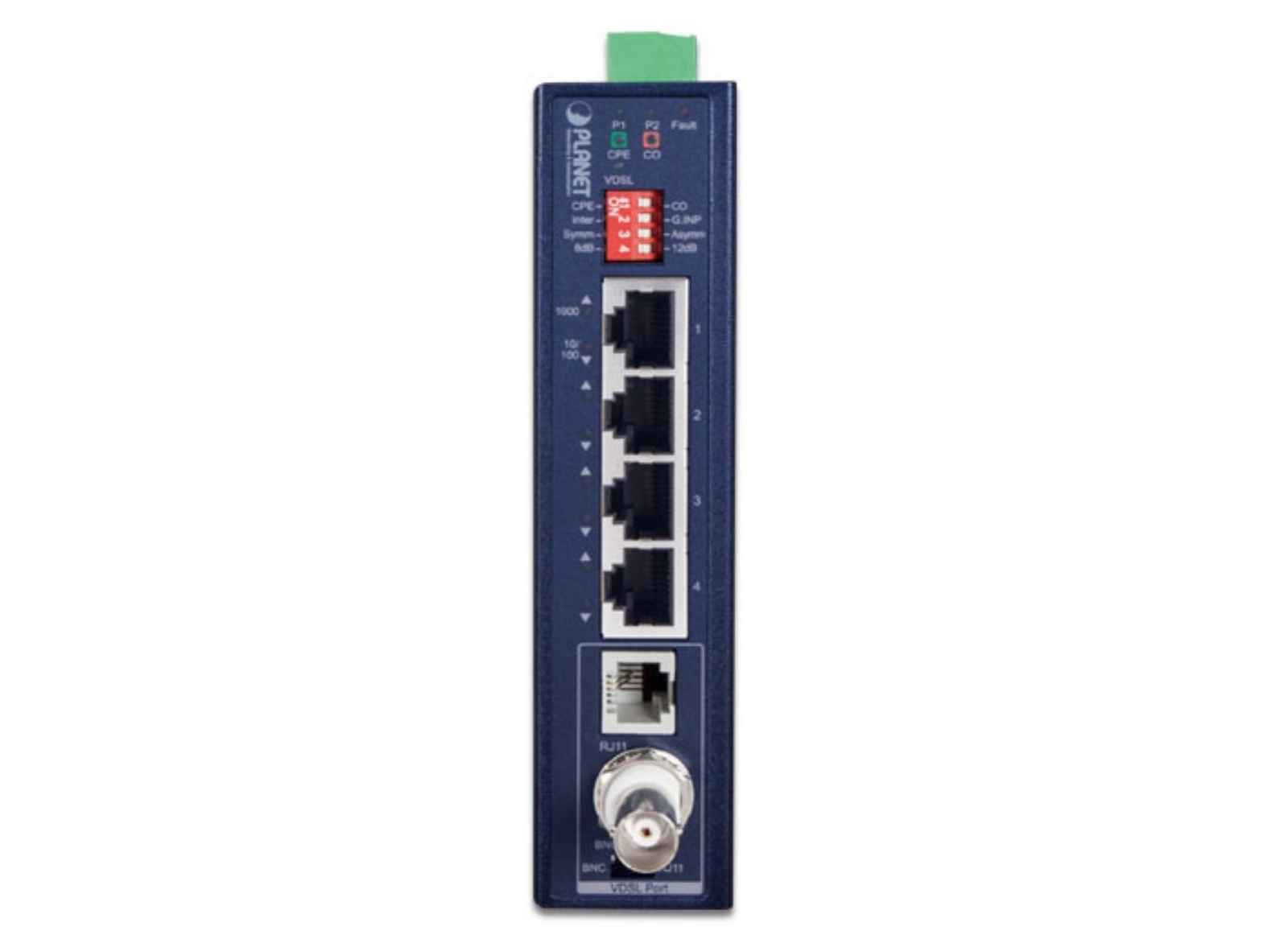

CO/CPE mode selectable via DIP switch
Selectable target band plan and SNR margin
One BNC/RJ11 connector for VDSL connection
Uses existing RG59/RG6 coaxial cable
Used in pairs to extend Point-to-Point connection up to 1.2km
Supports IEEE 802.1Q VLAN tag transparency

Industrial Case and Installation

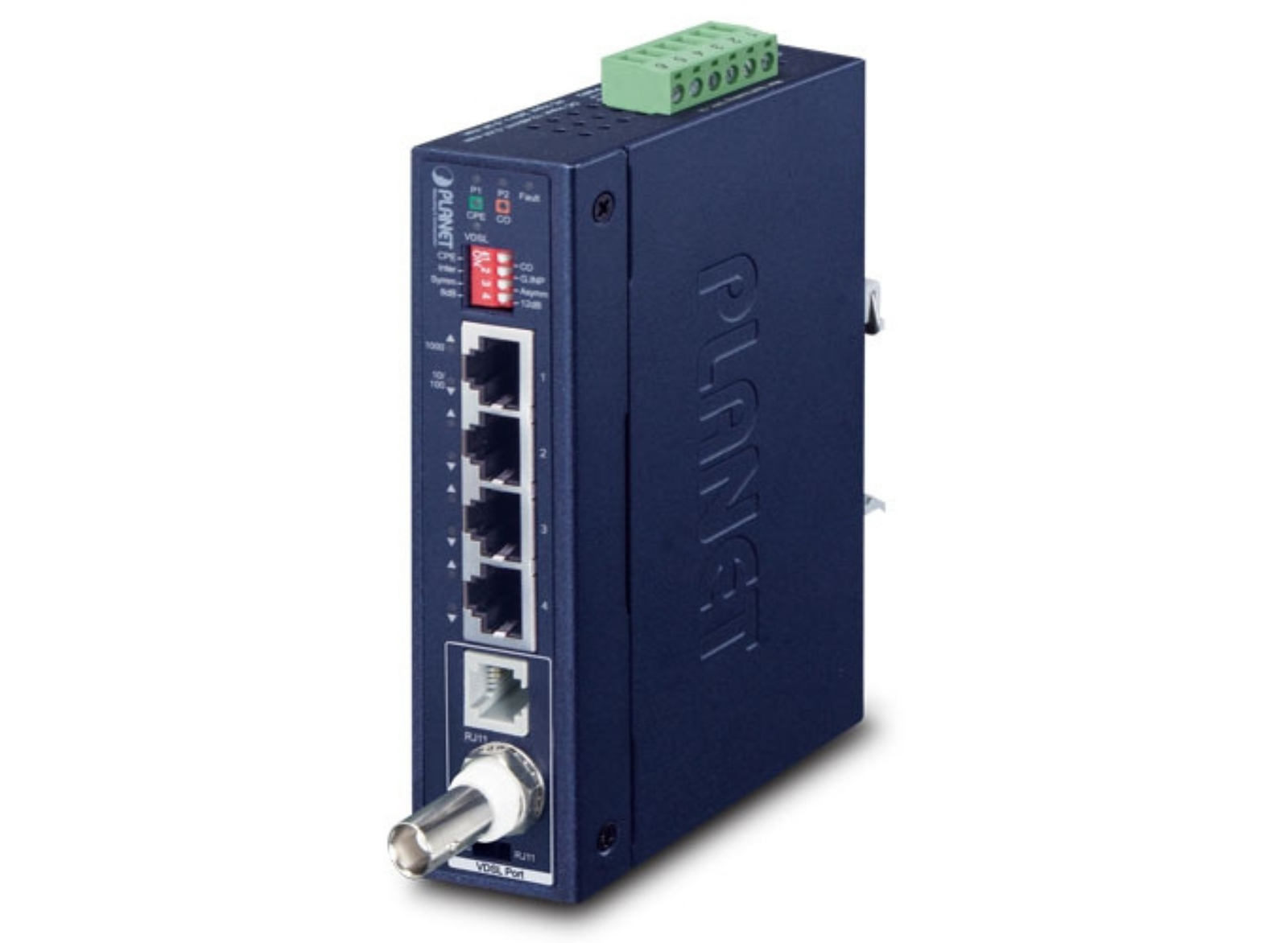

Slim-type IP30 metal case
DIN rail and wall-mount design

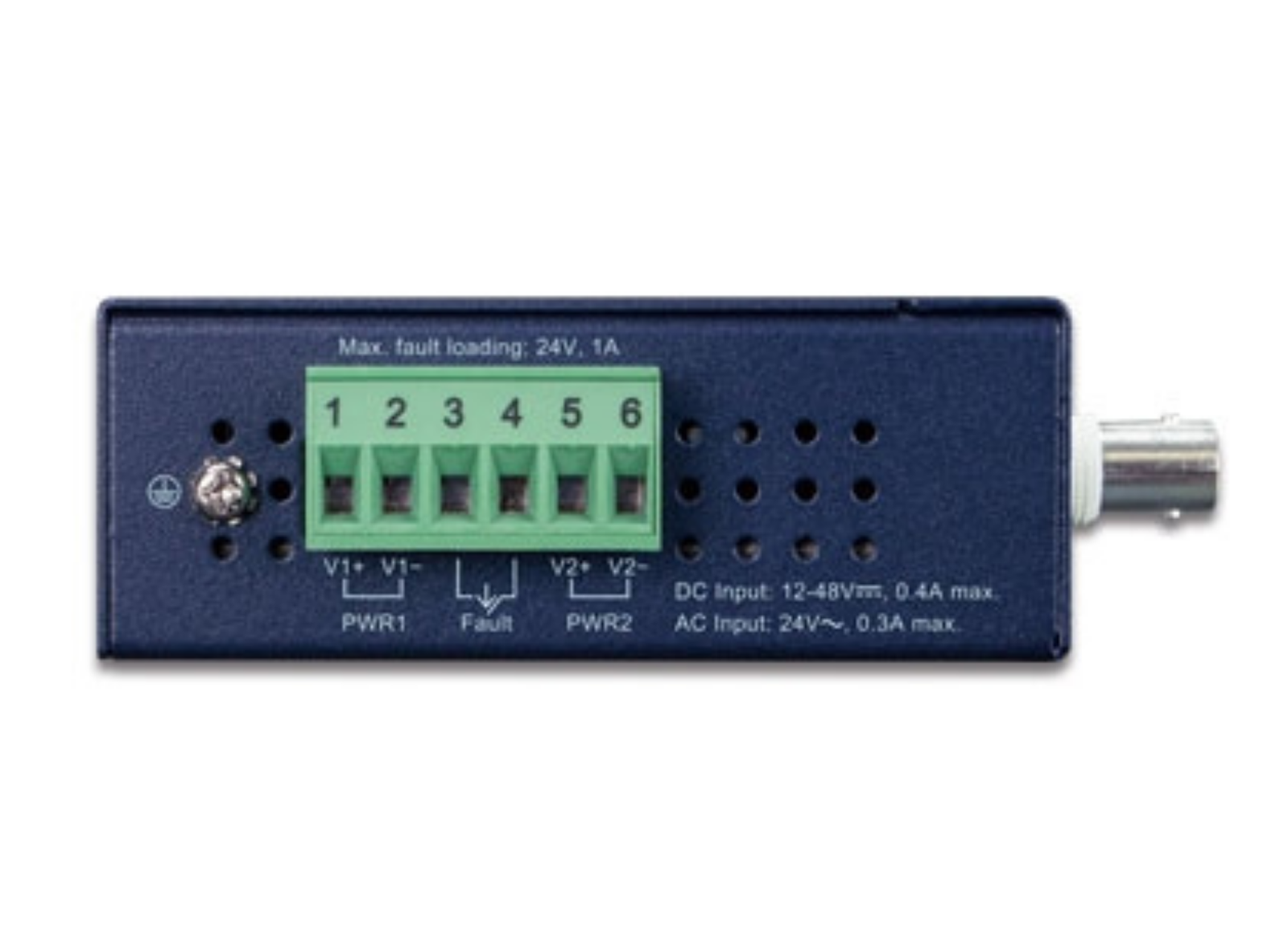

12 to 48V DC, redundant power with polarity reverse protect function
AC 24V power adapter acceptable
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Minimum installation time (Simply by Plug and Play)
Supports extensive LED indicators for network diagnosis
