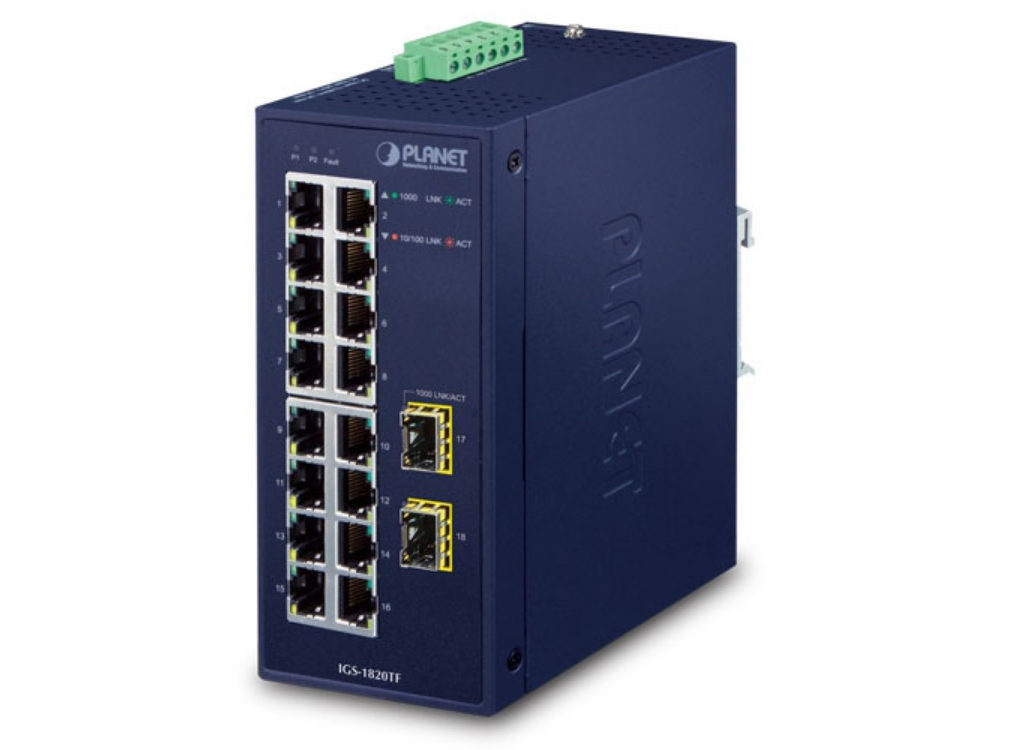

Planet Industrial 16-Port 10/100/1000T + 2-Port 1000X SFP Ethernet Switch | IGS-1820TF

Reliable Industrial Ethernet Networks with Plug and Play Configuration
PLANET’s new IGS-1820TF comes with high-density 16 10/100/1000BASE-T ports, 2 1000BASE-X SFP interfaces and redundant power system, it’s designed for heavy industrial demanding environments. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy. With the IP30-rated rugged but compact-sized case, it can operate stably under the temperature range from -40 to 75 degrees C and can be installed in any difficult environment without space limitation.

Long-distance Fiber Uplink for Extension the Environment
The two additional SFP slots built in the IGS-1820TF support 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Environmentally Hardened Design
With the IP30-rated rugged metal case, PLANET IGS-1820TF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1820TF can be placed in almost any difficult environment.  The IGS-1820TF also allows either DIN-rail or wall mounting for efficient use of cabinet space.

Robust Protection
The IGS-1820TF provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Energy Savings
The IGS-1820TF, integrated with advanced green networking technologies and IEEE 802.3az Energy Efficient Ethernet (EEE) protocol based power savings, is able to provide power savings of up to 50% but maintain high performance efficiently.

Link Down power savings
The Link Down power savings goes beyond IEEE specifications to automatically lower power consumption for a given port when it is not linked. With the Link Down power saving technology, the IGS-1820TF will automatically adjust power usage of the ports that are shut down or not connected to network device.

Intelligent power scale based on cable length
Intelligent power scale is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the IGS-1820TF is connected with Ethernet cable shorter than 20m, a device can obtain maximum power savings because the IGS-1820TF would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy savings.

Dual Power Input for High Availability Network System

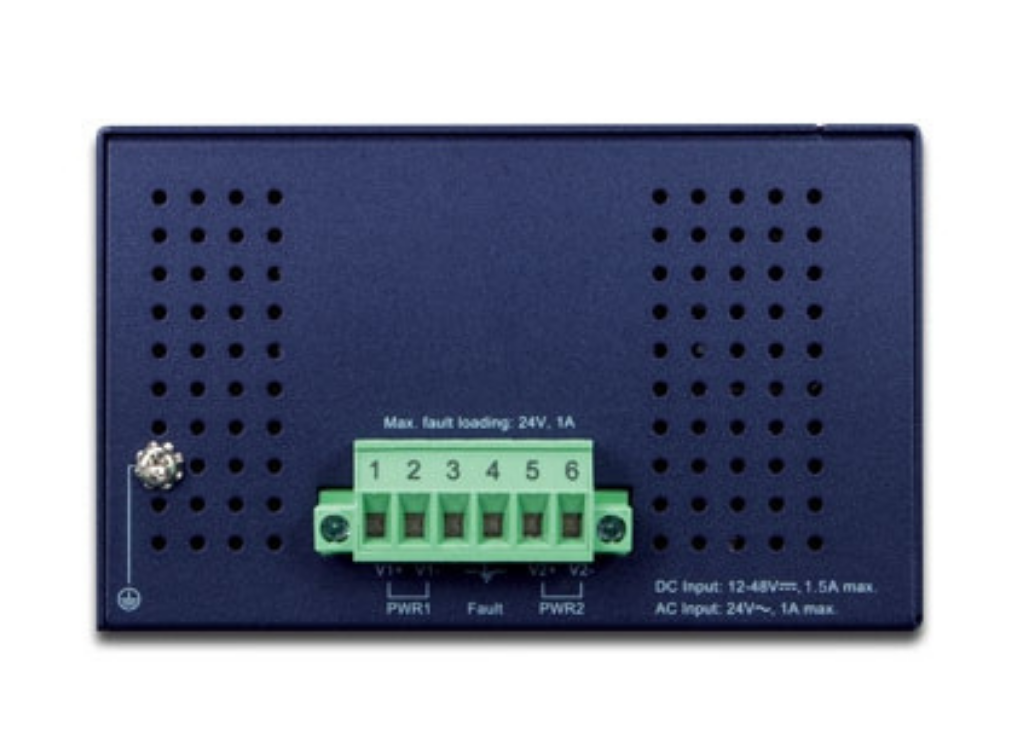

The IGS-1820TF features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1820TF via power supply 2 alternatively without any loss of operation.

Industrial-grade Switch for Building Automation and Security
The IGS-1820TF’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. Suitable for buildings where security is strictly enforced, the IGS-1820TF, with sixteen Gigabit Ethernet interfaces, can easily build an IP phone system, IP surveillance system, security control system and wireless AP group in the harsh Industrial environment.

FTTX Solutions for MAN Application
To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises, the various distances of SFP and Bidi (WDM) transceivers are optional for customers. With two Gigabit-speed SFP slots built in, the deployment distance of the IGS-1820TF can be extended up to 120 kilometers (single-mode fiber), which provides a high-performance edge service for FTTx solutions. The IGS-1820TF is the ideal solution for service providers such as ISPs and telecoms to build Metropolitan Area Network (MAN) based on the fiber technology.

Fiber-Optic Link Capability Enables Extension of Network Deployment
With its additional 2-port 1000BASE-SX/LX SFP fiber optic Ethernet link capability, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Key Features

Physical Port

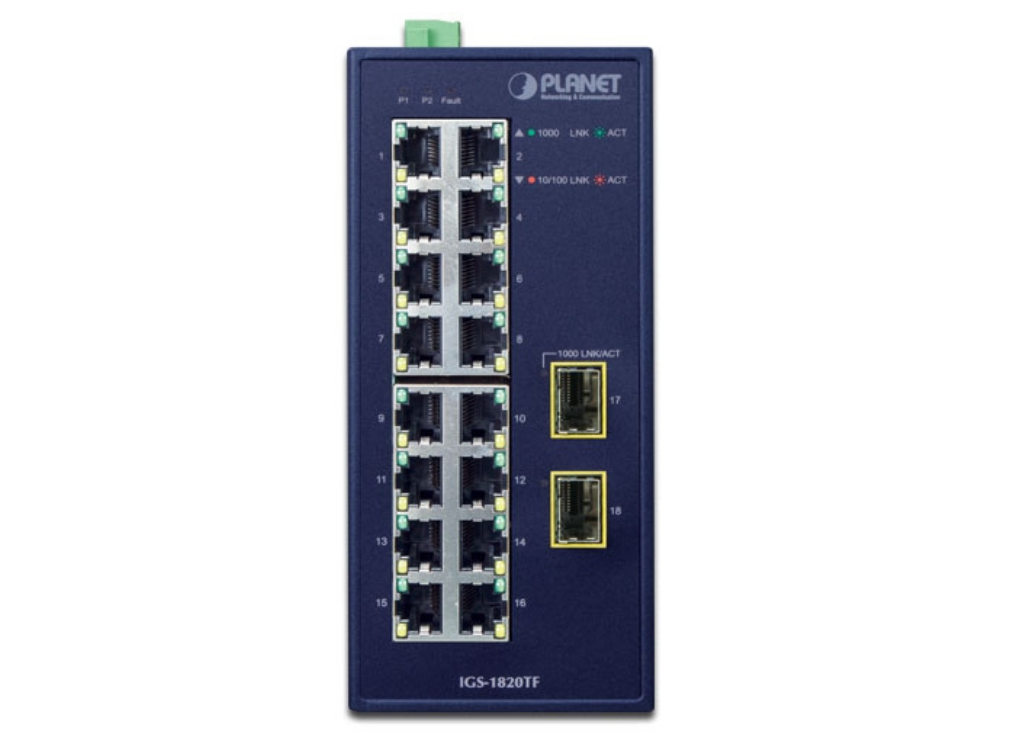

16 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X function
2 SFP interfaces, supporting 1000BASE-X SFP transceiver

Layer 2 Features
Supports auto-negotiation and 10/100/1000Mbps half/full duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.1p CoS
Supports 8K MAC address
Automatic address learning and address aging

Industrial Case and Installation
IP30 metal case
DIN-rail and wall-mount designs
12 to 48V DC, redundant power with reverse polarity protection
24V AC power input
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Free fall, shock-proof and vibration-proof for industries
