Planet Industrial 16-Port 10/100TX Fast Ethernet Switch | ISW-1600T

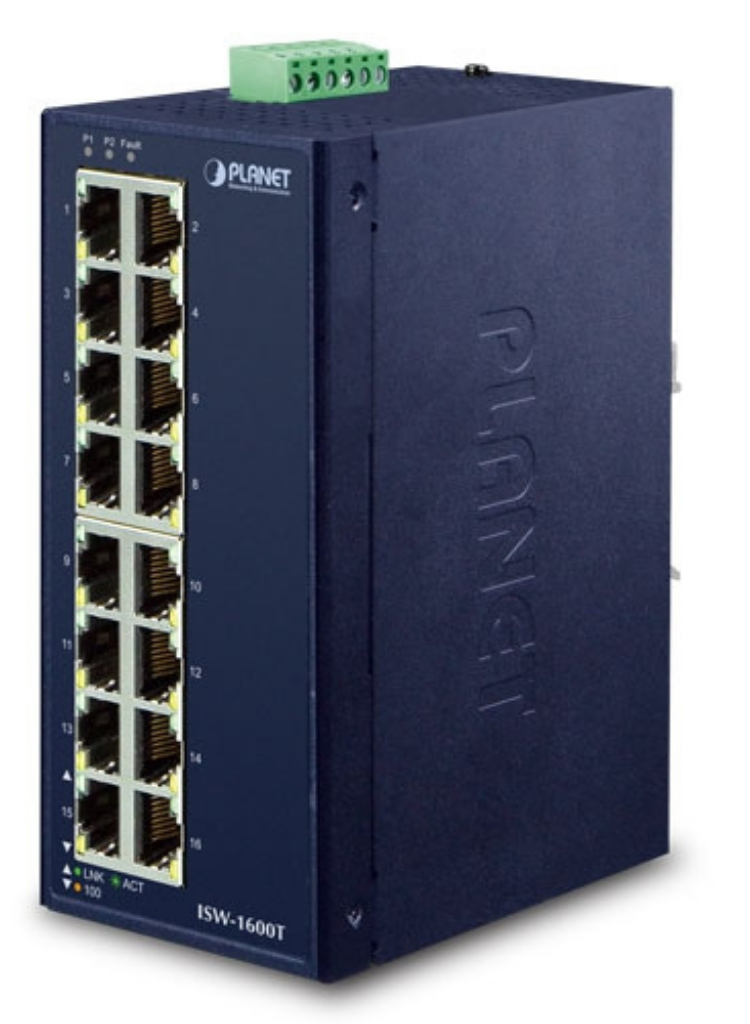

PLANET ISW-1600T Industrial high-density 16-port 10/100TX Fast Ethernet Switch is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the ISW-1600T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.
Environmentally Hardened Design
The ISW-1600T possesses an integrated power supply source with a wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under wide temperature range from -40 to 75 degrees C, the ISW-1600T can be placed in almost any difficult environment. The ISW-1600T also allows either DIN rail or wall mounting for efficient use of cabinet space.
Robust Protection
The ISW-1600T provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Energy Saving
The ISW-1600T, integrated with advanced green networking technologies and IEEE 802.3az protocol based power saving, is able to provide power savings of up to 50% but maintain high performance efficiently.
Link Down power saving
The Link Down power saving goes beyond IEEE specifications to automatically lower power consumption for a given port when it is not linked. With the Link Down power saving technology, the ISW-1600T will automatically adjust power usage of the ports that are shut down or not connected to network device.
Intelligent power scale based on cable length
Intelligent power scale is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the ISW-1600T is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the ISW-1600T would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.
-
| Specification |
Details |
| Fast Ethernet Copper Ports |

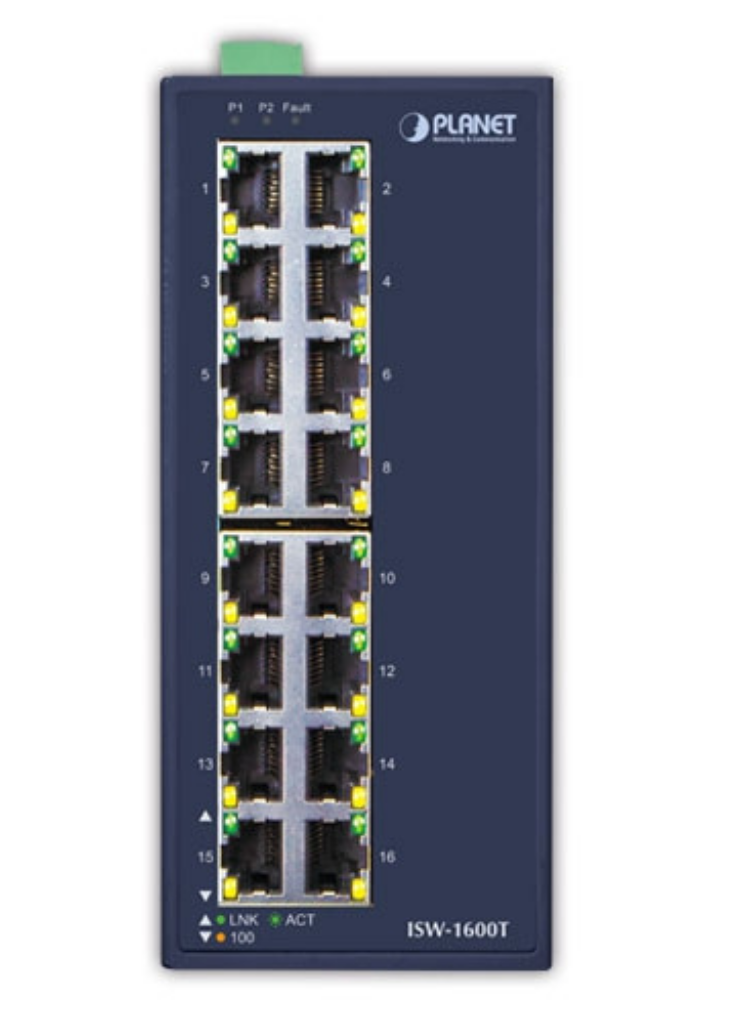

16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
3.2Gbps (non-blocking) |
| Throughput (packet per second) |
2.38Mpps@ 64 bytes |
| Address Table |
16K entries, automatic source address learning and aging |
| Jumbo Packet Size |
16K |
| Shared Data Buffer |
4Mbits |
| Flow Control |
IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex |
| ESD Protection |
6KV DC |
| Enclosure |
IP30 metal case |
| Installation |
DIN-rail kit and wall-mount kit |
| Connector |

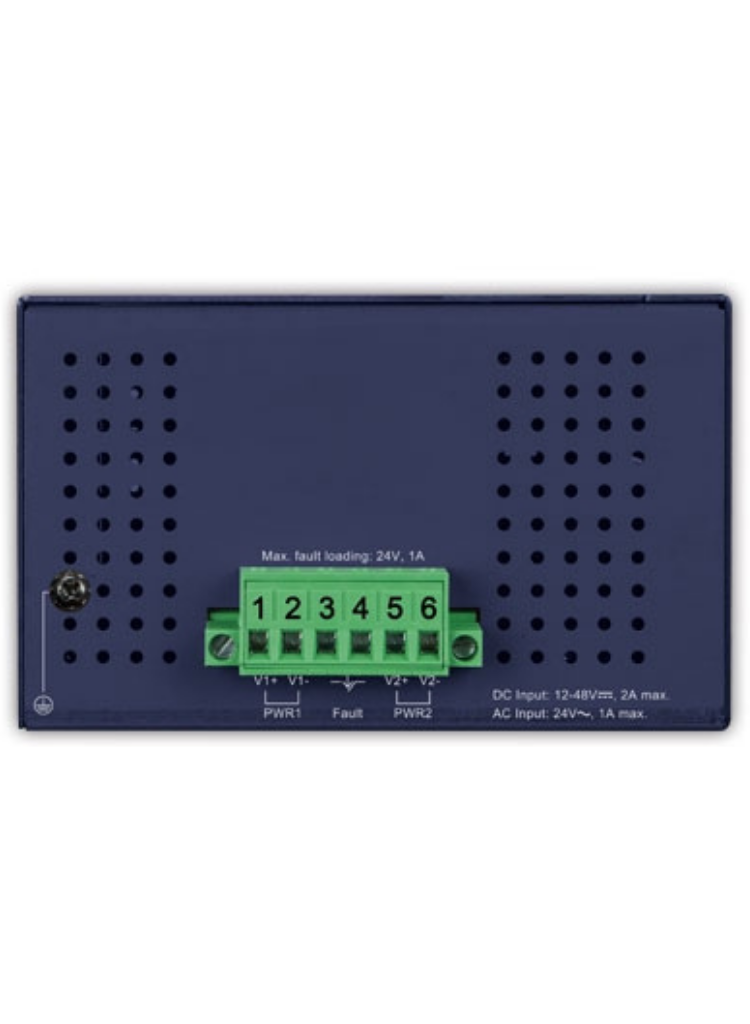

Removable 6-pin terminal block for power input |
| Power Pin Assignment |
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) |
66 x 107 x 152 mm |
| Weight |
750g |
| Power Requirements |
Dual 12~48V DC, 24V AC |
| Power Consumption |
Max. 5.3 watts/18BTU (Ethernet full loading) |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x flow control and back pressure, IEEE 802.1p Class of Service, IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
-
