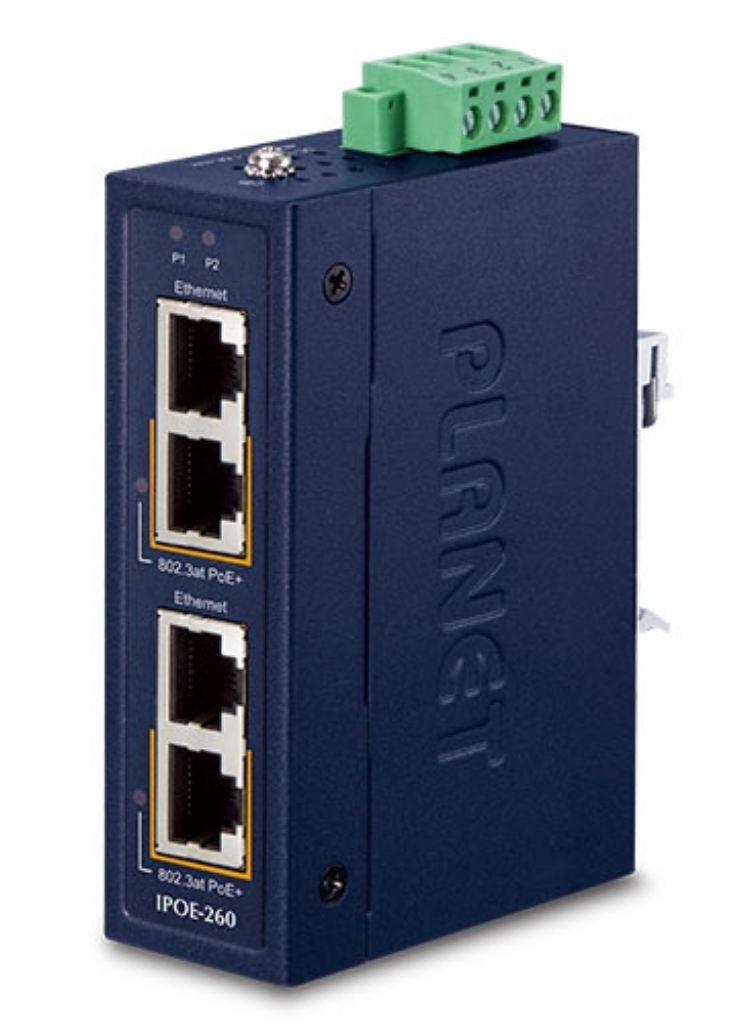

Model |
IPOE-260, IPOE-260-12V |
Hardware Specifications |
|

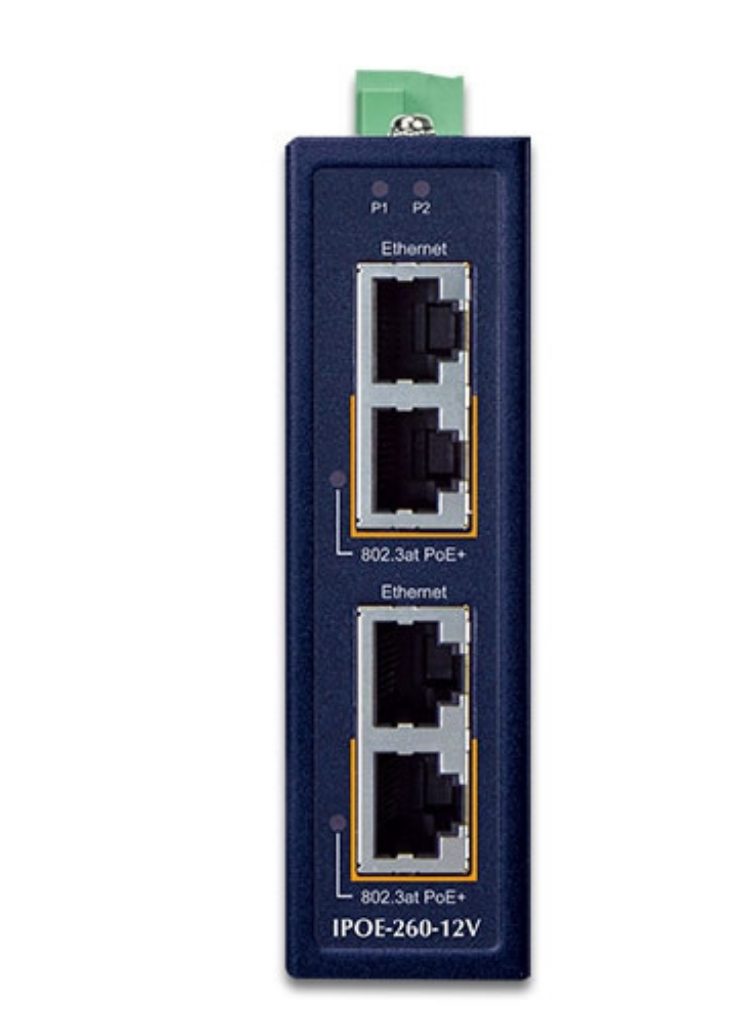

Copper Ports |
2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports: |
|
Data input port 1 and PoE output port 1 |
|
Data input port 2 and PoE output port 2 |

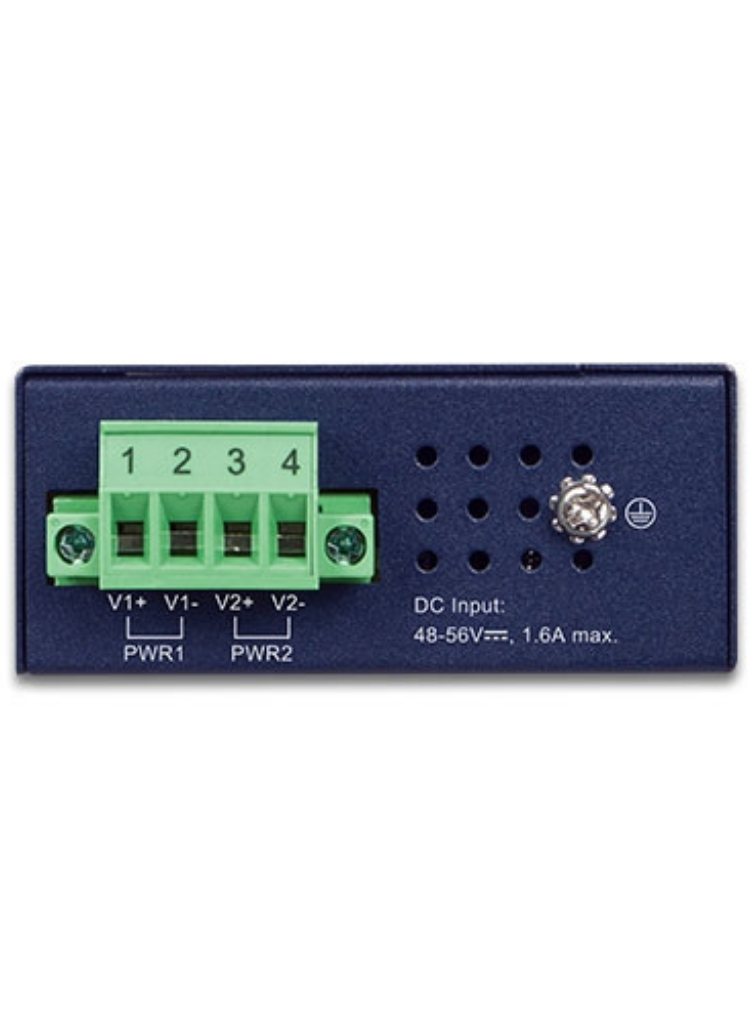

Connector |
Removable 4-pin terminal block |
|
Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
LED Indicator |
System: Power 1 (Green), Power 2 (Green) |
|
PoE Port: 802.3at PoE+ x 1 (Green + Orange) |
Network Cable |
Twisted-pair cable up to 100 meters (328ft) |
|
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 |
|
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 |
|
1000BASE-T: 4-pair UTP Cat. 5e, 6 |
Data Rate |
10/100/1000Mbps |
Power Requirements |
IPOE-260: 48~56V DC, redundant power with reverse polarity protection function. |
|

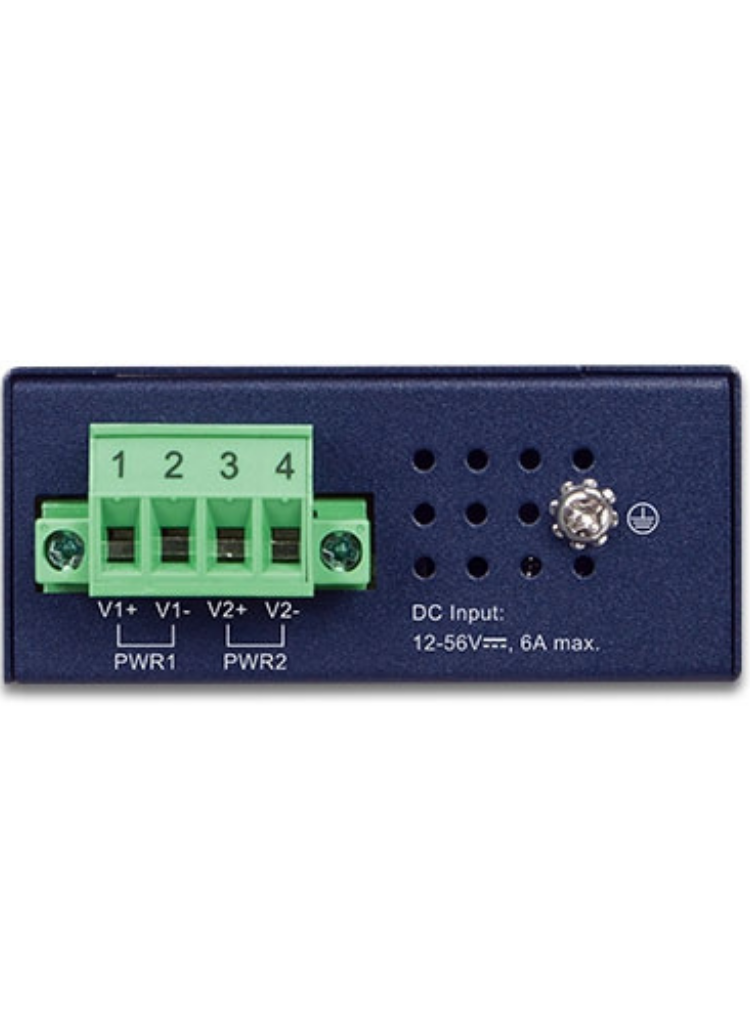

IPOE-260-12V: 12~56V DC, redundant power with reverse polarity protection function. |
Power Consumption (Ethernet Full Loading) |
|
IPOE-260 |
IPOE-260-12V |
Max. 2 watts/6.8 BTU (Power on without any connection) |
Max. 4 watts/13.6 BTU (Power on without any connection) |
Max. 80 watts/272.9 BTU (Full loading with PoE function) |
Max. 80 watts/272.9 BTU (Full loading with PoE function) |
Dimensions (W x D x H) |
30 x 70 x 105 mm |
Weight |
280g |
Enclosure |
IP30 metal case |
Installation |
DIN-rail, wall-mount or side wall-mount design |
ESD Protection |
6KV |
EFT Protection |
6KV |
Power over Ethernet |
|
PoE Standard |
IEEE 802.3at Power over Ethernet Plus / mid-span PSE |
PoE Power Output |
IPOE-260: 48V DC input: Per PoE port max. 32 watts, 56V DC input: Per PoE port max. 36 watts |
|
IPOE-260-12V: Per port 54V DC, max. 36 watts |
PoE Power Supply Type |
Mid-span |
Power Pin Assignment |
4/5 (+), 7/8 (-) |
PoE Power Budget (max.) |
IPOE-260: 72 watts@48~56V DC input |
|
IPOE-260-12V: 60W @1223V DC input, 72W @2456V DC input |
Number of devices that can be powered |
2 |
Standards Conformance |
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
Stability Testing |
IEC 60068-2-32 (free fall) |
|
IEC 60068-2-27 (shock) |
|
IEC 60068-2-6 (vibration) |
Standards Compliance |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
IEEE 802.3ab Gigabit Ethernet |
|
IEEE 802.3af Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
Environment |
|
Temperature |
Operating: -40~75 degrees C |
|
Storage: -40~75 degrees C |
Humidity |
Operating: 5~90% (non-condensing) |
|
Storage: 5~90% (non-condensing) |
