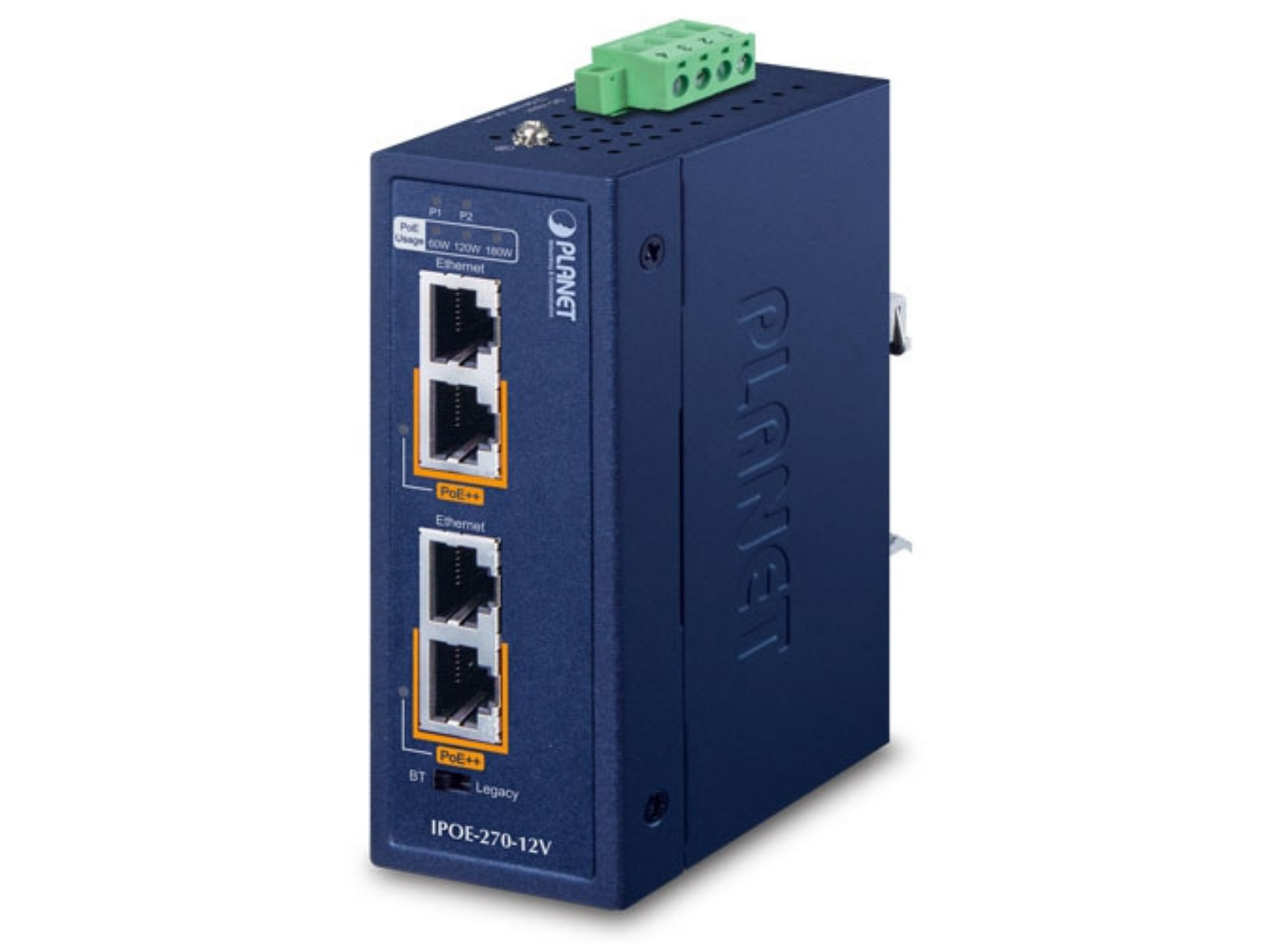

Planet Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub | IPOE-270-12V

SKU: IPOE-270-12V
Part Number: IPOE-270-12V
Condition: Brand New
Purchase Orders Accepted
Save £36.43 Save £36.43
Original price £319.90
Inc. VAT
Original price £319.90 - Original price £319.90
Original price £319.90

£236.23 (Excl. VAT)

Current price - £283.47 Inc. VAT
£283.47 - £283.47
Current price- - £283.47
(Inc. VAT )
Availability:
Only 1 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub | IPOE-270-12V

    Compact and Robust Industrial 802.3bt PoE++ Network Solution
    PLANET IPOE-270 2-port industrial IEEE 802.3bt PoE++ injector hub series features two 10/100/1G/2.5G/5GBASE-T 95-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 180 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).


    The IPOE-270 series provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

    The IPOE-270 series includes two models: IPOE-270 and IPOE-270-12V.

    802.3bt PoE++ Meets High Power Demands of Powered Devices
    As the IPOE-270 series adopts the IEEE 802.bt PoE++ standard, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

    PoE PTZ speed dome cameras
    Network devices
    Thin clients
    AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
    Remote digital signage displays
    PoE lightings


    DIP Switch for PoE BT and Legacy mode Option

    The IPOE-270 series provides power to those powered devices which do not fully follow the IEEE 802.3af/at/bt standard. The BT and Legacy mode provide the PD with 95 watts of power output voltage.

    BT mode: Powered devices that fully support IEEE 802.3 bt standards with per port output budget of 95W.
    Legacy Mode: PD devices that support capacitive or resistance electronic tag with per port output budget of 95W.


    Quick and Easy 802.3bt/at PoE Network Deployment

    The IPOE-270 series is installed between a regular Ethernet Switch and the PDs. Two ports are network (Ethernet) ports for data input while the other two ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.

    With data and Power over Ethernet from one unit, the IPOE-270 series can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

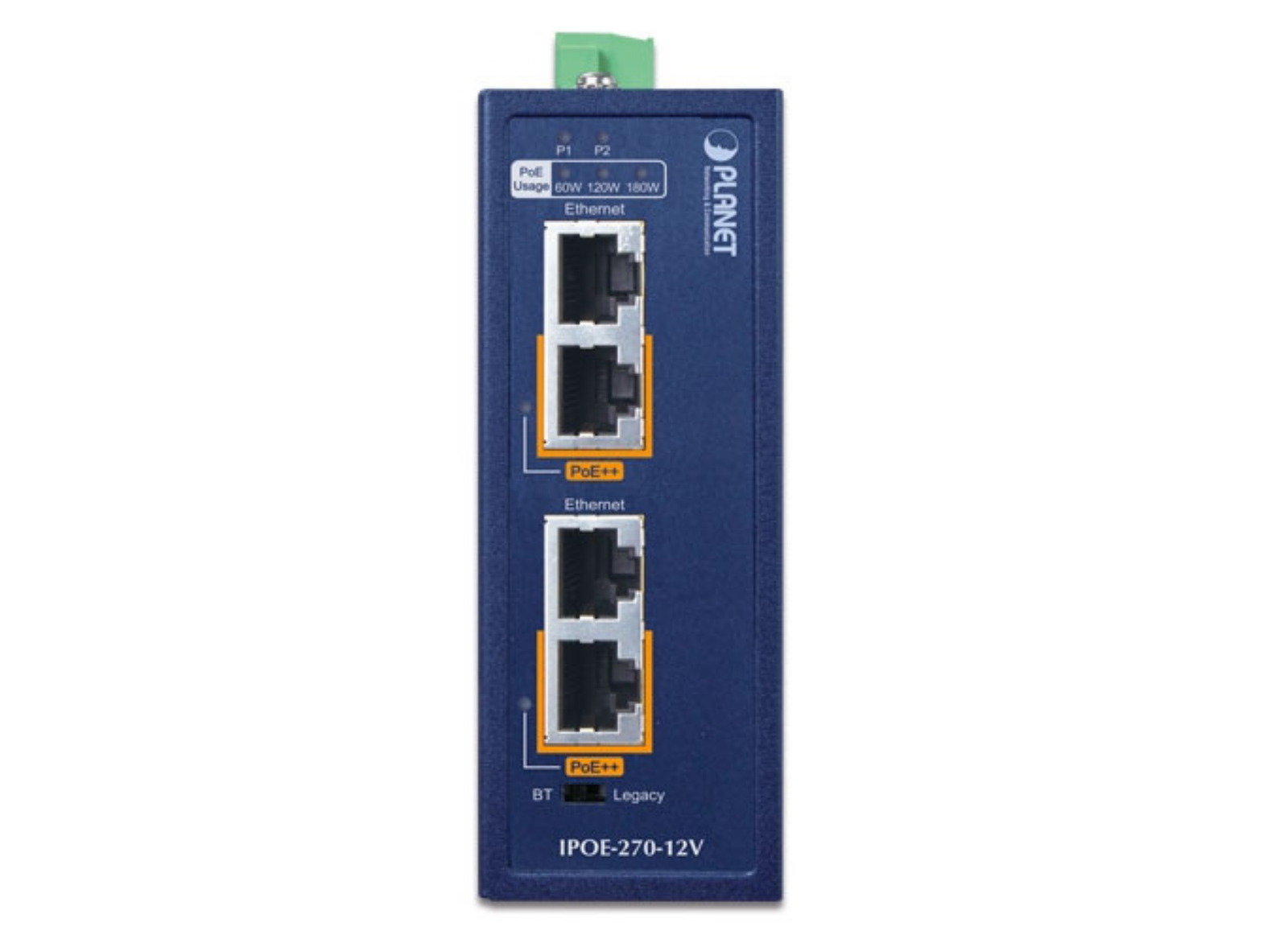

    Intelligent LED Indicator for Power Input and Real-time PoE Usage

    The IPOE-270 series helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. The “Power Input” allows user to know the status of dual DC power input. The “PoE Usage” displayed on the panel of the IPOE-270 series has three amber LED indicators of different power usages indicating 60W, 120W and 180W. Via the power usage LED, the IPOE-270 series enables the administrator to monitor the status of the power usage of the connected PDs in real time.


    Convenient and Reliable Power System

    To facilitate the 802.3bt PoE++ usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the IPOE-270-12V adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.


    High Power Budget for PoE Extension

    With up to 95-watt PoE output capability, the IPOE-270 series can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.


    Stable Operating Performance under Difficult Environments

    Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-270 series provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets.


    The IPOE-270 series can be easily installed by way of Plug and Play and operates stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network.


    The IPOE-270 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for space-limited environment.


  • Category Specification
    Hardware Specifications
    Copper Ports 2-pair 10/100/1G/2.5G/5GBASE-T RJ45: Data input port 1 and PoE output port 1; Data input port 2 and PoE output port 2

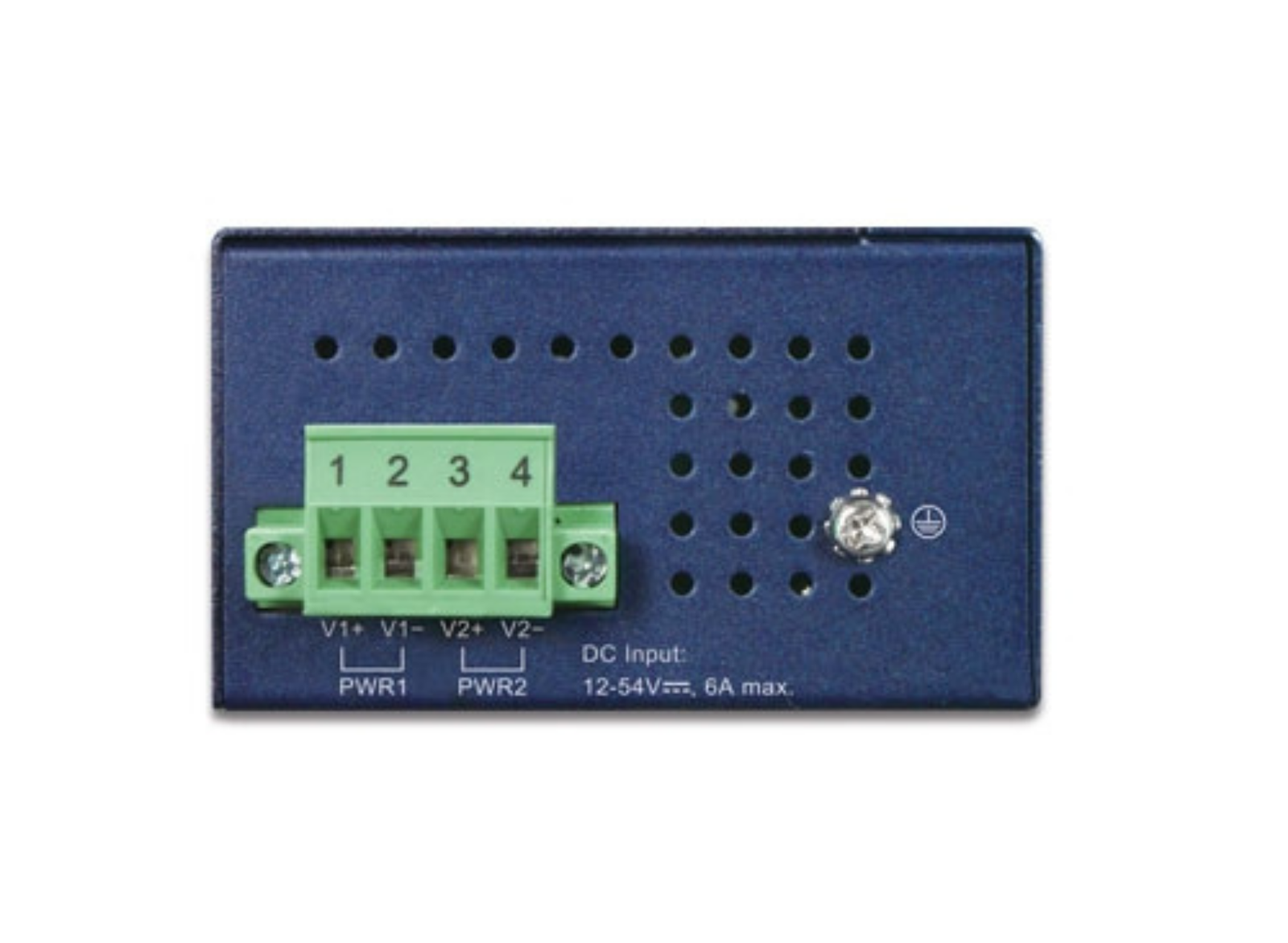

    Connector Removable 4-pin terminal block: Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2
    LED Indicator System: Power 1 (Green), Power 2 (Green); PoE Usage: 60W/120W/180W (Amber); 802.3bt PoE++ Port: PoE-in-use x 1 (Green: bt, Amber: at)
    Network Cable Twisted-pair cable up to 100 meters (328ft): 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6; 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6; 1000BASE-T: 4-pair UTP Cat. 5e, 6; 2.5G/5GBASE-T: 4-pair UTP Cat.6, 6A, 7
    Data Rate 10/100/1000/2500/5000Mbps
    Power Requirements IPOE-270: 4854V DC, redundant power with reverse polarity protection; IPOE-270-12V: 1254V DC, redundant power with reverse polarity protection
    Power Consumption (Ethernet Full Loading) IPOE-270: System ON without loading: 48V DC: 1.4 watts/4.7BTU, 52V DC: 1.5 watts/5.1BTU, 54V DC: 1.6 watts/5.4BTU; Full loading with PoE: 48V DC (120W PoE budget): 128 watts/436BTU, 52V DC (180W PoE budget): 177 watts/603BTU, 54V DC (180W PoE budget): 187 watts/638BTU
    IPOE-270-12V: System ON without loading: 12V DC: 1.8 watts/6.1BTU, 24V DC: 2.4 watts/8.1BTU, 48V DC: 2.4 watts/8.1BTU, 52V DC: 2.6 watts/8.8BTU, 54V DC: 2.1 watts/7.1BTU; Full loading with PoE: 12V DC (60W PoE budget): 60 watts/204BTU, 24V DC (120W PoE budget): 124 watts/423BTU, 48V DC (120W PoE budget): 120 watts/409BTU, 52V DC (180W PoE budget): 188 watts/641BTU, 54V DC (180W PoE budget): 188 watts/641BTU
    Dimensions 41 x 70 x 115 mm (W x D x H)
    Weight IPOE-270: 284g; IPOE-270-12V: 387g
    Enclosure IP30 metal case
    Installation DIN-rail kit and wall-mount kit
    ESD Protection Contact discharge of ±6KV DC; Air discharge of ±8KV DC
    Surge Protection ±6KV
    Power over Ethernet
    PoE Standard IEEE 802.3bt PoE++, 4-pair PSE; Compatible with IEEE 802.3at PoE+ PSE
    PoE Power Supply Type End-span + Mid-span
    Power Pin Assignment End-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-)
    Per PoE Port Output Power 95 watts
    PoE Power Budget (max.) IPOE-270: 120W@48V DC input, 180W@52V/54V DC input; IPOE-270-12V: 60W@12V DC input, 120W@24V/48V DC input, 180W@52V/54V DC input
    PoE DIP Switch DIP switch for the following operation modes: BT mode (Default), Legacy and Force modes
    Number of devices that can be powered 2
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Stability Testing IEC 60068-2-32 (free fall); IEC 60068-2-27 (shock); IEC 60068-2-6 (vibration)
    Standards Compliance IEEE 802.3 Ethernet; IEEE 802.3u Fast Ethernet; IEEE 802.3ab Gigabit Ethernet; IEEE 802.3bz 2.5G/5GBASE-T; IEEE 802.3at Power over Ethernet Plus; IEEE 802.3bt Power over Ethernet Plus Plus
    Environment
    Temperature Operating: -4075 degrees C; Storage: -4075 degrees C
    Humidity Operating: 590% (non-condensing); Storage: 590% (non-condensing)
