Copper Ports |
8 x M12, 4-pin D-coded female connector |
|
10/100BASE-TX auto-MDI/MDI-X |
IEEE 802.3at PoE+ Ports |
8, port 1 to port 8 |

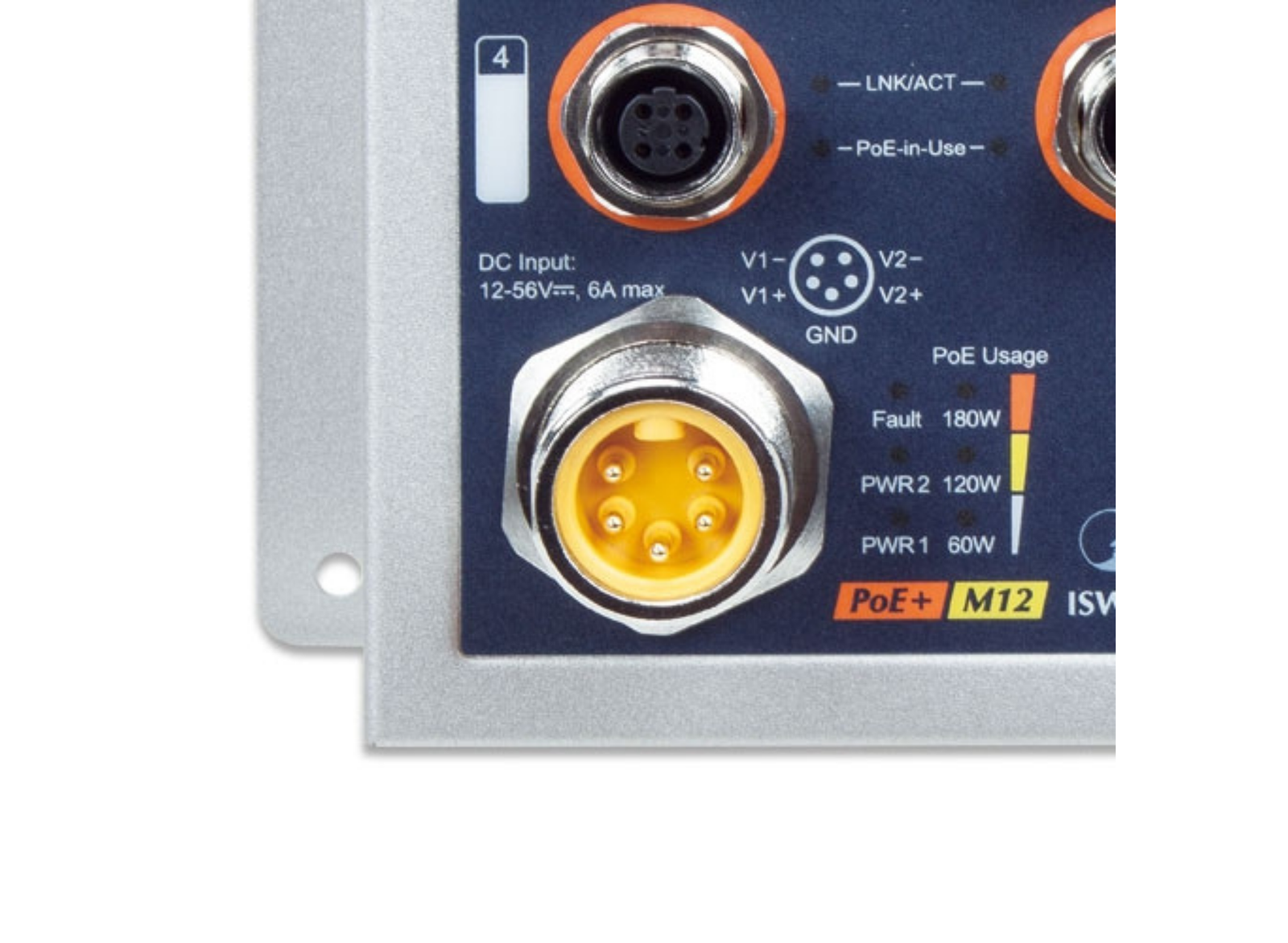

Power Connector |
1 x M23, 5-pin A-coded male connector |
Enclosure |
IP50 metal case |
Dimensions (W x D x H) |
132 x 75 x 160mm |
Weight |
952g |
Installation |
Wall-mount and DIN-rail kit |
Power Requirements |
Dual 12~54V DC |
Power Consumption |
DC 12V: 75.6 watts/257 BTU |
|
DC 24V: 129.3 watts/441 BTU |
|
DC 48V: 190.1 watts/648 BTU |
|
DC 54V: 191.7 watts/654 BTU |
ESD Protection |
6KV DC |
Surge Protection |
6KV DC |
Switch Specifications |
Switch Processing Scheme: Store-and-Forward |
|
Address Table: 2K entries |
|
Flow Control: Back pressure for half duplex |
|
IEEE 802.3x pause frame for full duplex |
|
Switch Fabric: 1.6Gbps |
|
Throughput (packet per second): 1.19Mpps |
|
Maximum Transmit Unit: 1536 bytes |
|
Network Cables: |
|
10BASE-T: 2-pair UTP Cat.3, 4, 5 up to 100m (328ft) |
|
100BASE-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m (328ft) |
|
EIA/TIA-568 100-ohm STP (100m, max.) |
Power over Ethernet |
PoE Standard: IEEE 802.3at Power over Ethernet Plus / PSE |
|
PoE Power Supply Type: End-span |
|
PoE Power Output: 54V DC per port with maximum of 36 watts |
|
Power Pin Assignment: 1/2(+), 3/6(-) |
|
PoE Budget: |
|
180 watts@48-56V DC input |
|
120 watts@24~48V DC input |
|
60 watts@12~23V DC input |
Standards Conformance |
Regulatory Compliance: FCC Part 15 Class A, CE |
|
Standards Compliance: |
|
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
IEEE 802.3x Full-Duplex Flow Control |
|
IEEE 802.3af Power over Ethernet |
|
IEEE 802.3at Power over Ethernet plus |
|
Stability Testing: |
|
IEC60068-2-32 (free fall) |
|
IEC60068-2-27 (shock) |
|
IEC60068-2-6 (vibration) |
|
Railway Traffic: EN50155 |
Environments |
Operating: |
|
Temperature: -40 ~ 75 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
|
Storage: |
|
Temperature: -40 ~ 80 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
Ordering Information |

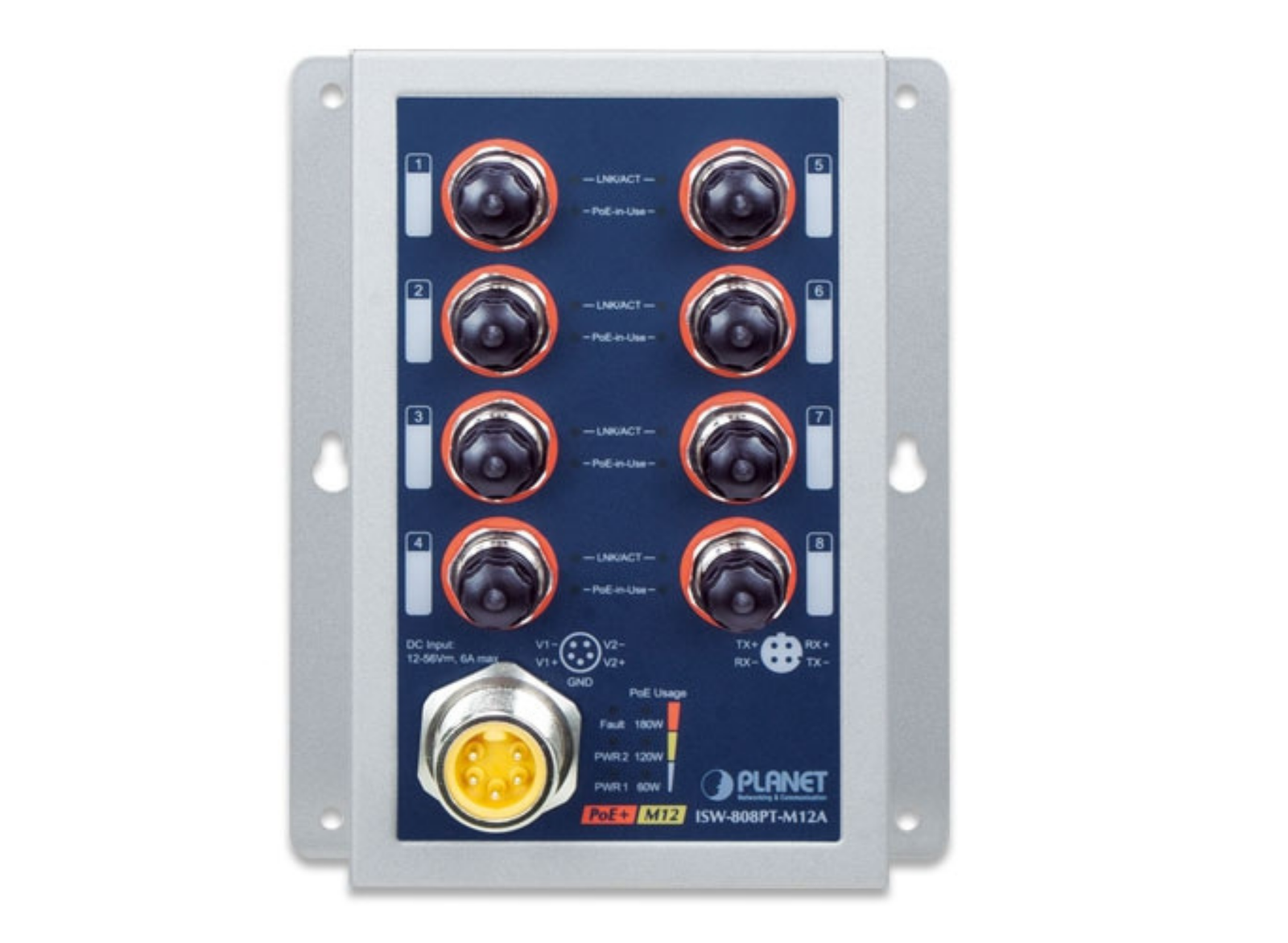

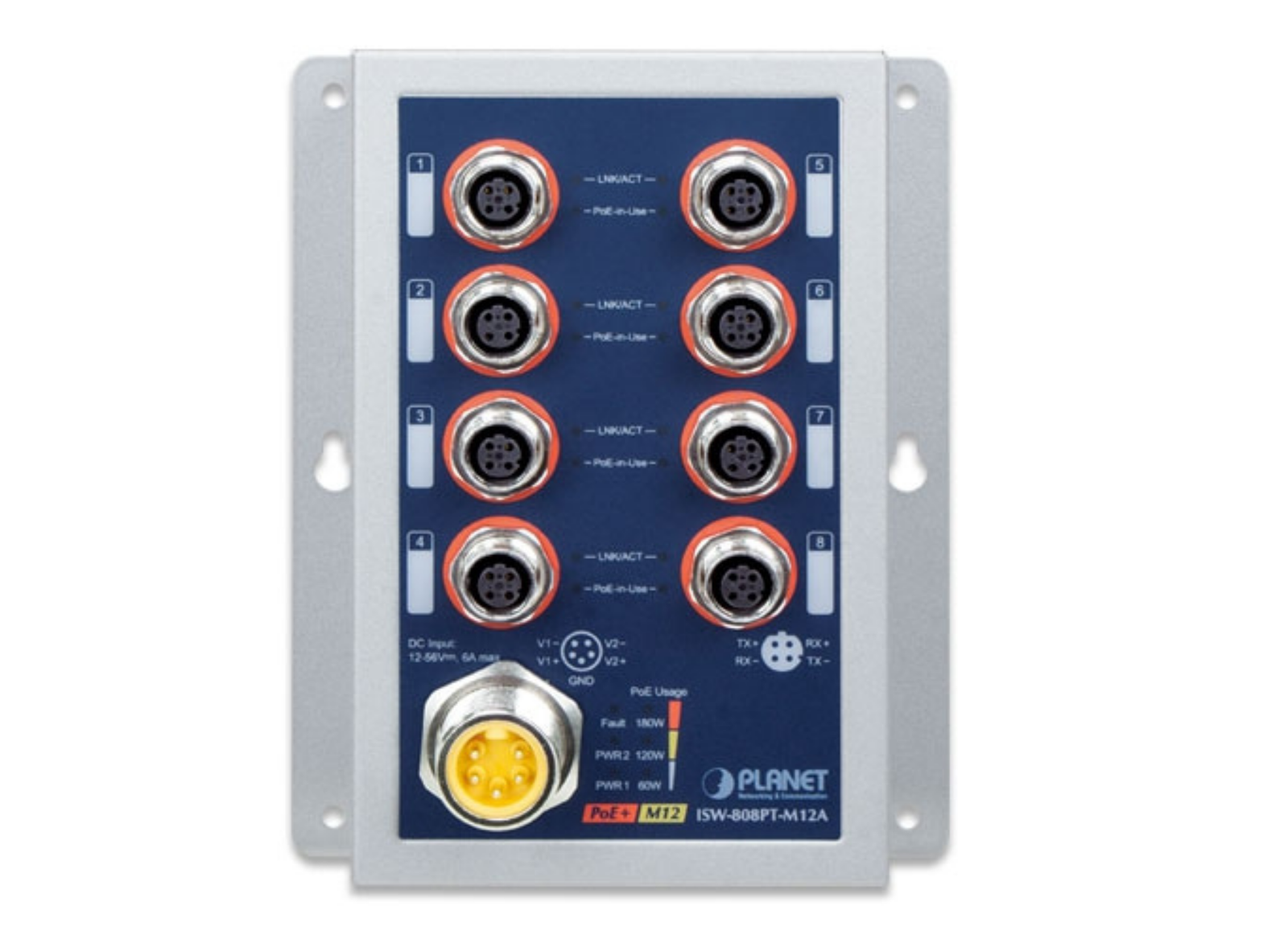

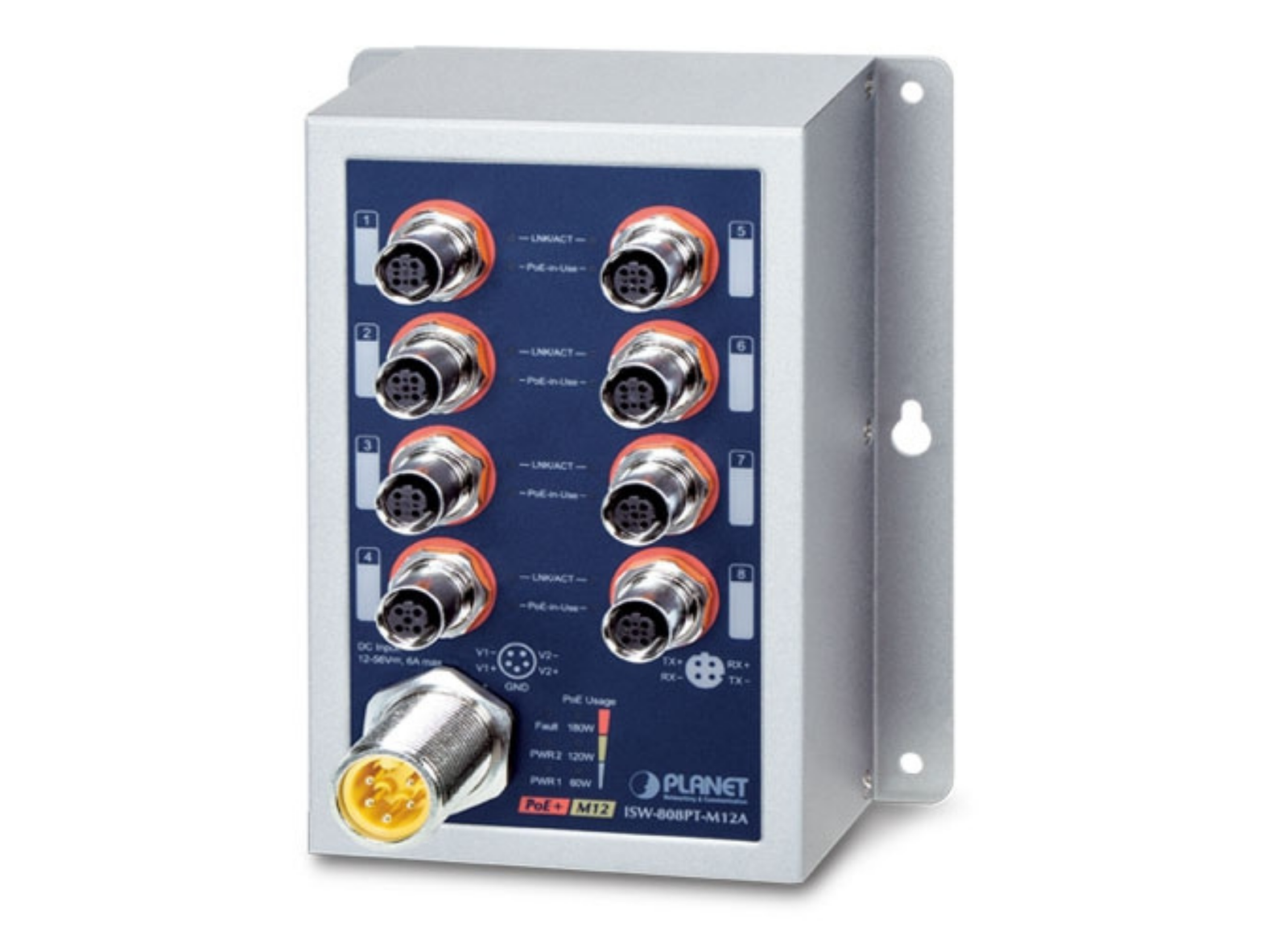

ISW-808PT-M12A: Industrial 8-Port 10/100TX M12 802.3at PoE+ Switch (-40~75 degrees C) |
Accessories |
CB-M23F5F-120: 5-pin M23 Female to Bare End Power Cable (1.2 meters) |
|
CB-M12D4MRJ-120: 4-pin D-coded M12 Male to RJ45 Ethernet Cable (1.2 meters) |
|
CB-M12D4MRJ-1000: 4-pin D-coded M12 Male to RJ45 Ethernet Cable (10 meters) |
|
CB-M12D4MD4F-1000: 4-pin D-coded M12 Male to D-coded M12 Female Ethernet Cable (10 meters) |
