Compact Size for More Practicability and Convenience

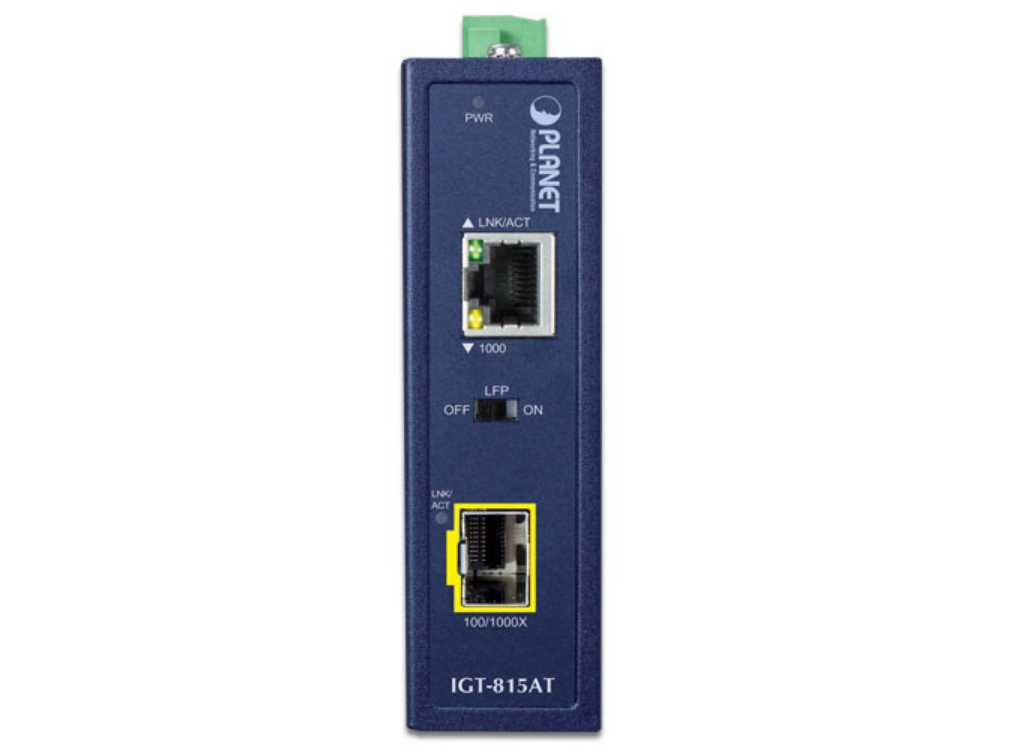

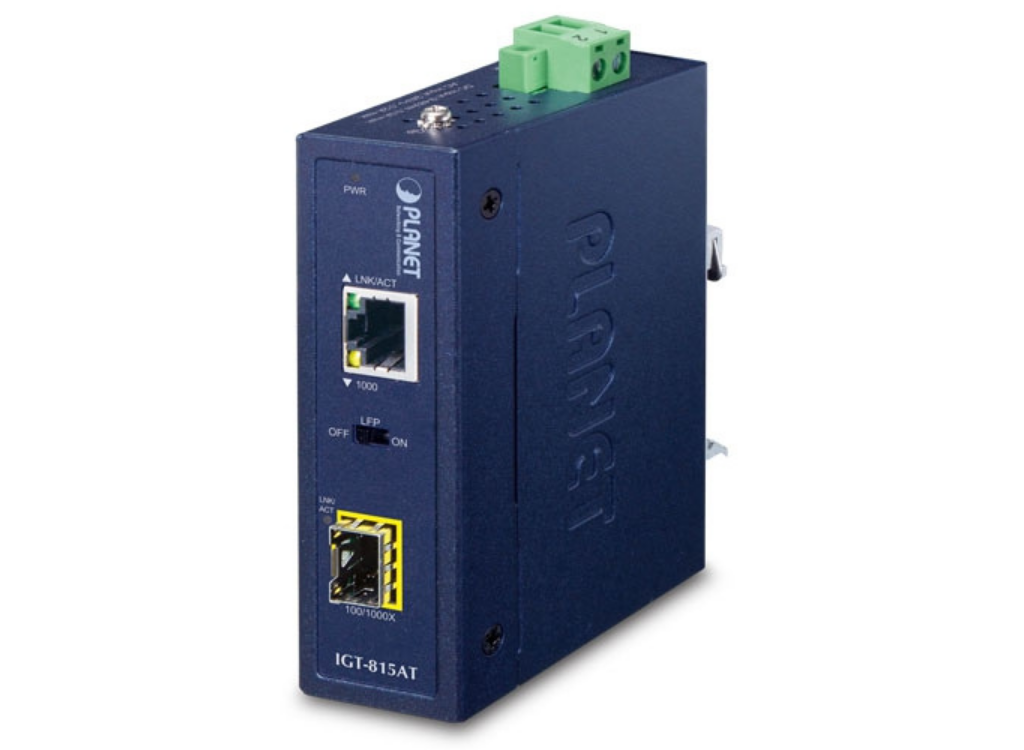

PLANET IGT-815AT is an Industrial-grade Gigabit Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGT-815AT provides reliable, stable and continuous long-range data transmission, and can be installed in any harsh environment without taking space into consideration.
As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGT-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data transmission.
Fiber-optic Link Capability Extends the Range of Network Deployment
The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the IGT-815AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.
Interactive Network Detection
The IGT-815AT can support LFP (Link Fault Passthrough) function via its built-in DIP switch. The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR):
LLCF means when a device is connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission.
LLR means when a device is connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission.
The administrator will be immediately alerted about the above two issues and the solutions can be solved by closely monitoring the network without having to go the actual site.
Environmentally Hardened Design
The IGT-815AT is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the IGT-815AT is ideal for service providers, campuses and public areas to deploy outdoor wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.
Robust Protection
The IGT-815AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Flexible and Easy Installation with Limited Space
The compact-sized IGT-815AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.
Wide Range of Power Usages
The IGT-815AT supports a wide range of voltages for worldwide operation. It also offers a reverse polarity input of 9V DC to 48V DC for high availability applications.
Applications
High Reliability and Security
PLANET IGT-815AT Industrial Gigabit Media Converter offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as transportations, factories, outdoors and places where extremely low or high temperatures can be experienced. Moreover, the IGT-815AT is also compatible with 100Mbps and 1000Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.
Fiber-optic Networking for ISPs, Enterprises, and Homes
With stable performance of data transmission and easy installation, the IGT-815AT Industrial Media Converter can build an ISP network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs, or FTTB (Fiber to the Building) for enterprises with small office network environment.
| Category | Specification |
|---|---|
| Hardware Specifications | |
| Copper Port | 10/100/1000BASE-T Ethernet TP interface, Max 100m |
| Auto-negotiation, auto MDI/MDI-X | |
| SFP Port | 1000BASE-SX/LX/BX SFP interface |
| Compatible with 100BASE-FX SFP | |
| Flow Control | Back pressure for half duplex mode |
| IEEE 802.3x pause frame for full duplex mode | |
| Maximum Frame Size | 9K |
| LED Indicators | System: Power (Green) |
| Fiber 100/1000BASE-X: LNK/ACT (Green) | |
| TP 10/100/1000BASE-T: LNK/ACT (Green), 1000 LNK/ACT (Amber) | |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 221g |

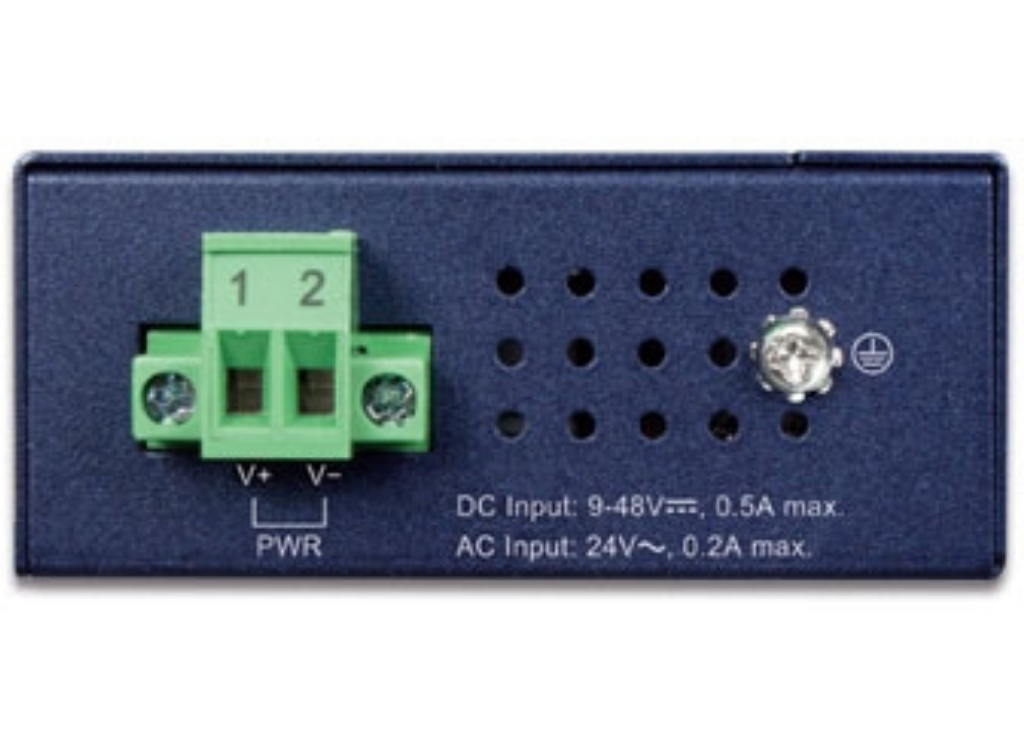

| Power Requirements | DC 9~48V, supports reverse polarity protection |
| AC 24V | |
| Power Consumption | System ON without loading |
| DC 9V: 0.55W/1.87BTU | |
| DC 12V: 0.54W/1.84BTU | |
| DC 24V: 0.52W/1.77BTU | |
| DC 36V: 0.5W/1.7BTU | |
| DC 48V: 0.52W/1.77BTU | |
| AC 24V: 0.5W/1.7BTU | |
| Full loading | |
| DC 9V: 1.76W/6BTU | |
| DC 12V: 1.77W/6BTU | |
| DC 24V: 1.63W/5.56BTU | |
| DC 36V: 1.65W/5.62BTU | |
| DC 48V: 1.68W/5.73BTU | |
| AC 24V: 2.8W/9.5BTU | |
| DIP Switch | Off: LFP (Link Fault Passthrough) disable |
| On: LFP (Link Fault Passthrough) enable | |
| FEF (Far End Fault) works with LFP to prevent data loss | |
| The DIP switch is turned off by default. | |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| Cables | |
| 10/100/1000BASE-T | 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) |
| EIA / TIA-568 100-ohm STP (maximum 100 meters) | |
| 100BASE-FX/1000BASE-SX/LX | Multi-mode: 50/125μm or 62.5/125μm optical fiber |
| Single-mode: 9/125μm optical fiber | |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet over Fiber Optic, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Stability Testing | IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C |
| Storage: -40~85 degrees C | |
| Humidity | Operating: 5~90% (non-condensing) |
| Storage: 5~90% (non-condensing) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
