Planet Industrial EtherCAT Media Converter | IECC-210R

Powering the Digital Transformation with EtherCAT

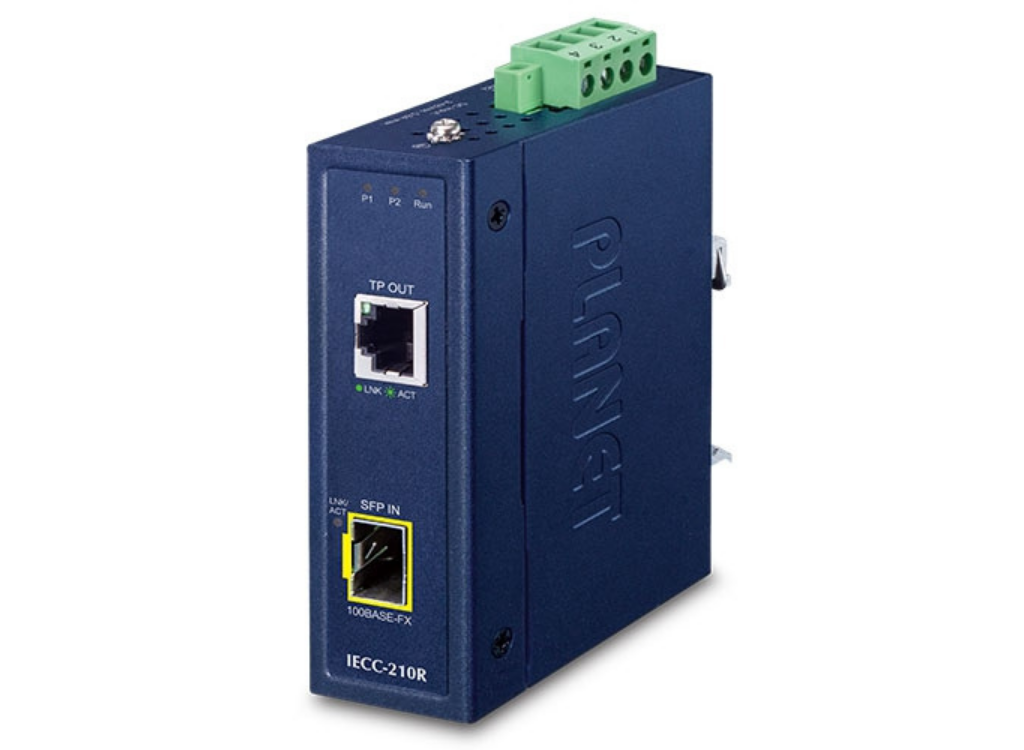

PLANET IECC-210R is an industrial EtherCAT Media Converter equipped with the EtherCAT protocol for today's distributed industrial applications. The EtherCAT-capable IECC-210R for Industrial EtherCAT serves as media converter from optical fiber to copper. It can transmit EtherCAT protocol through IECC-201T or IECJ-410FT fiber ports. With the advantage of fiber optic cabling, the data transmission distance of the IECC-210T/IECJ-410FT and the IECC-210R can be extended to 60km (Depending on the ability of SFP module). Their compact size and DIN-rail mounting make installation in a cabinet easy. Pluggable terminal blocks and LED indicator help users to maintain and set up their system.

Flexible Installation

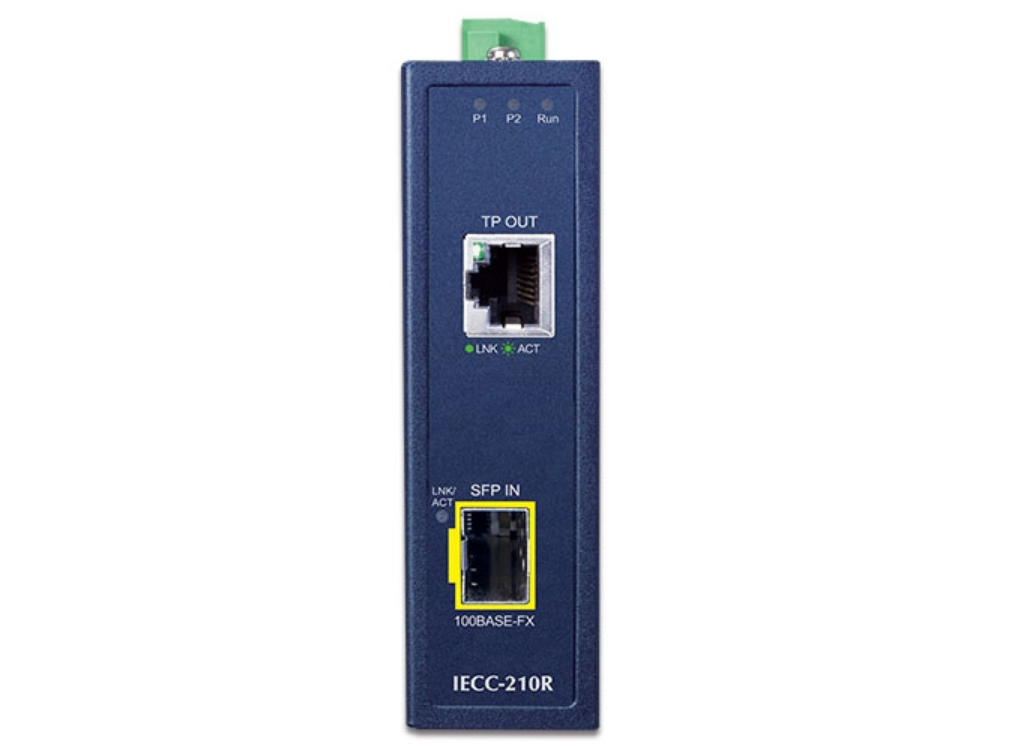

The IECC-210R is an ideal media converter solution which provides quick installation, real-time connection status monitoring, wide-ranging power input and wide operating temperature to improve work efficiency, making them suitable for the harsh environment. Besides, it comes with one 100BASE-TX RJ45 port and one 100BASE-FX SFP port. Through the EtherCAT technology, a network of up to 65,535 devices can be supported without the limitation of the type of topology -- line, bus, tree, star or any arrangement - -being used.

Synchronization
An EtherCAT slave is an electronic device that carries out cyclical sequences of calculations and/or data copying tasks at a certain interval (cycle). The EtherCAT slave working cycle (e.g. in the range of a few µs up to several ms) can be derived from different sources. EtherCAT node can measure time difference between leaving and returning frame. With distributed clocks, EtherCAT can realize a precise synchronization time of <1us between each slave module.

Convenient and Reliable Power System

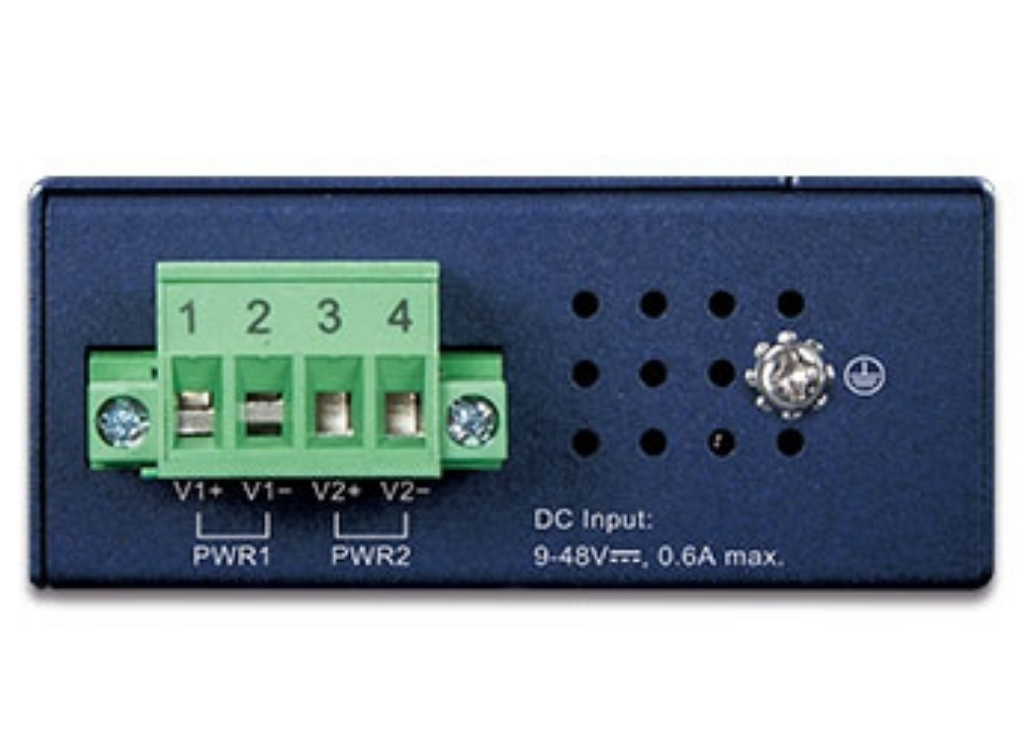

The IECC-210R is equipped with one 4-pin DC power input connector with screws for power supply installation. With power magnetic protection design, it can avoid the device burnout due to wrong wiring. In addition, it also possesses an integrated power supply source with wide-ranging voltages (9 to 48V DC) for worldwide high availability applications.

Environmentally Hardened Design
With the IP30 metal industrial case, the IECC-210R provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IECC-210R can be placed in almost any difficult environment.

Industrial-grade EtherCAT Media Converter for Factory Automation
IECC-210R is an EtherCAT Media Converter for distributed industrial applications. The kit with fiber optic can extend distance for data transmission and provides powerful features in a compact size. DIN-rail design and daisy-chain wiring powered by EtherCAT technology make it easy to install the modules in the field. With the standard ESI file, users can always find suitable I/O modules for their high-speed EtherCAT-based applications.

Key Features

1 x 100BASE-TX RJ45 bus interface
1 x 100BASE-FX SFP interface
LED indicators for the input status
9 ~ 48V DC wide input voltage range
Supports EtherCAT Distributed Clock (DC) mode
EtherCAT conformance test tool verified
