Planet Industrial IP67 Rated 8-Port 10/100Mbps M12 Fast Ethernet Switch with Wide Operating Temperature | ISW-800T-M12

In the last few years, PLANET has launched various IP67 protected industrial products which can be deployed and provide stable Ethernet performance under difficult Industrial environments. To further satisfy some specific industrial environments, PLANET has released the ISW-800T-M12, a new series of Industrial Solutions, to provide higher level protection ability with the following features:
　　• Industrial Protected IP67 Metal Case
　　• Robust M12 Ethernet Connector
　　• Waterproof / Dustproof
　　• Wide Temperature Support

Industrial IP67 Metal Case and Robust M12 Ethernet Connector Interface

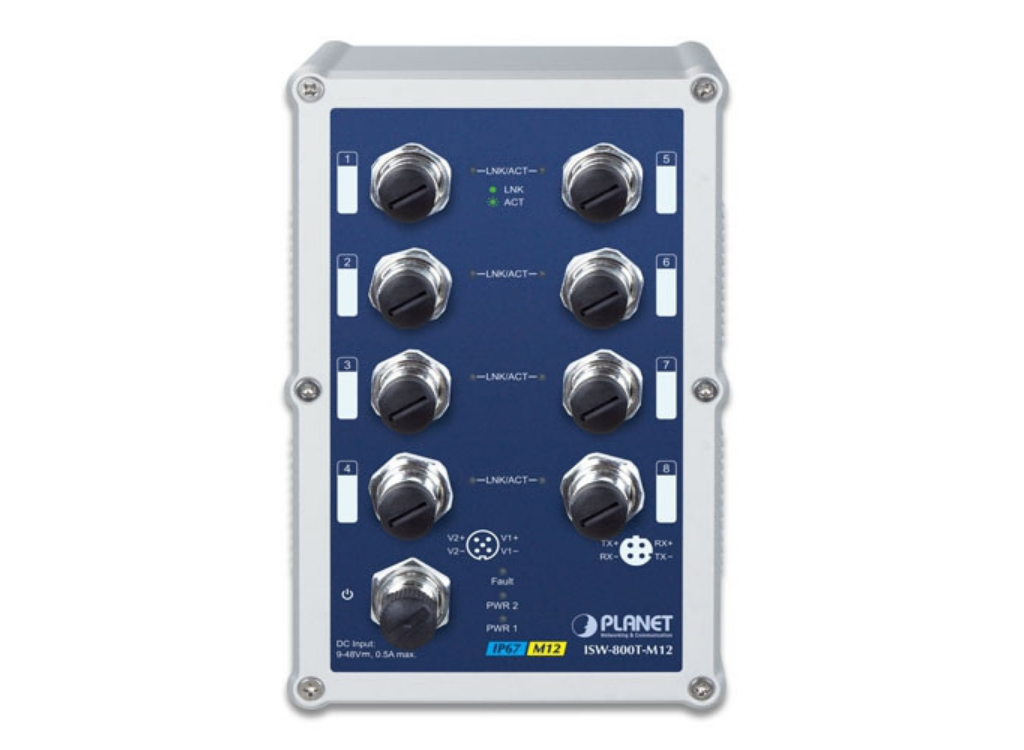

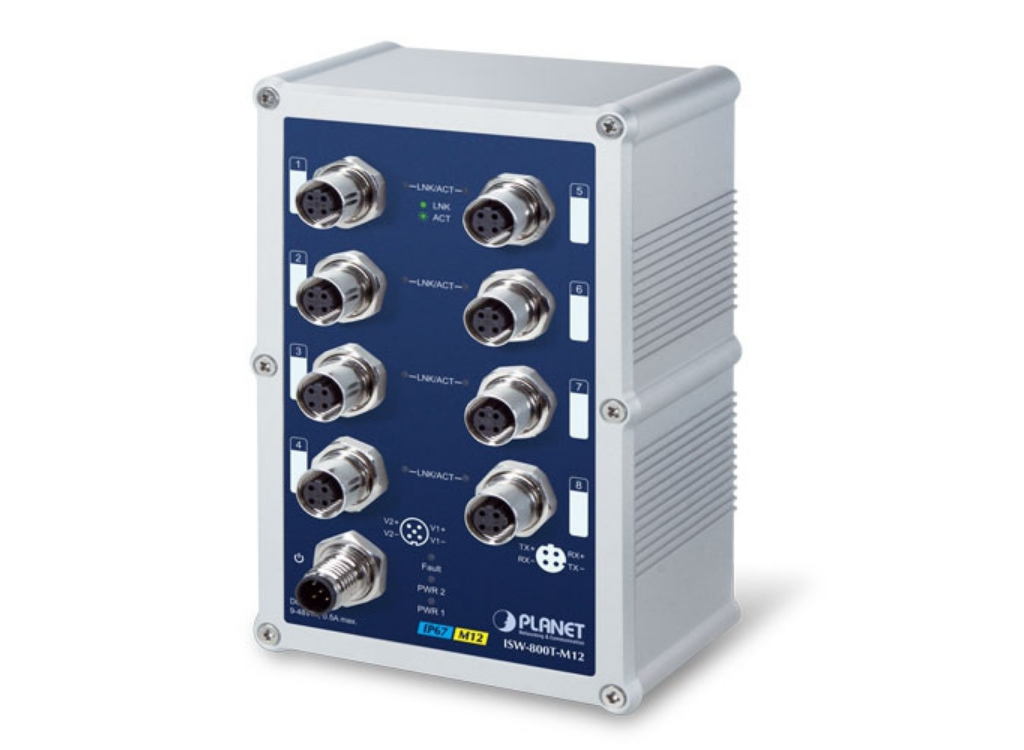

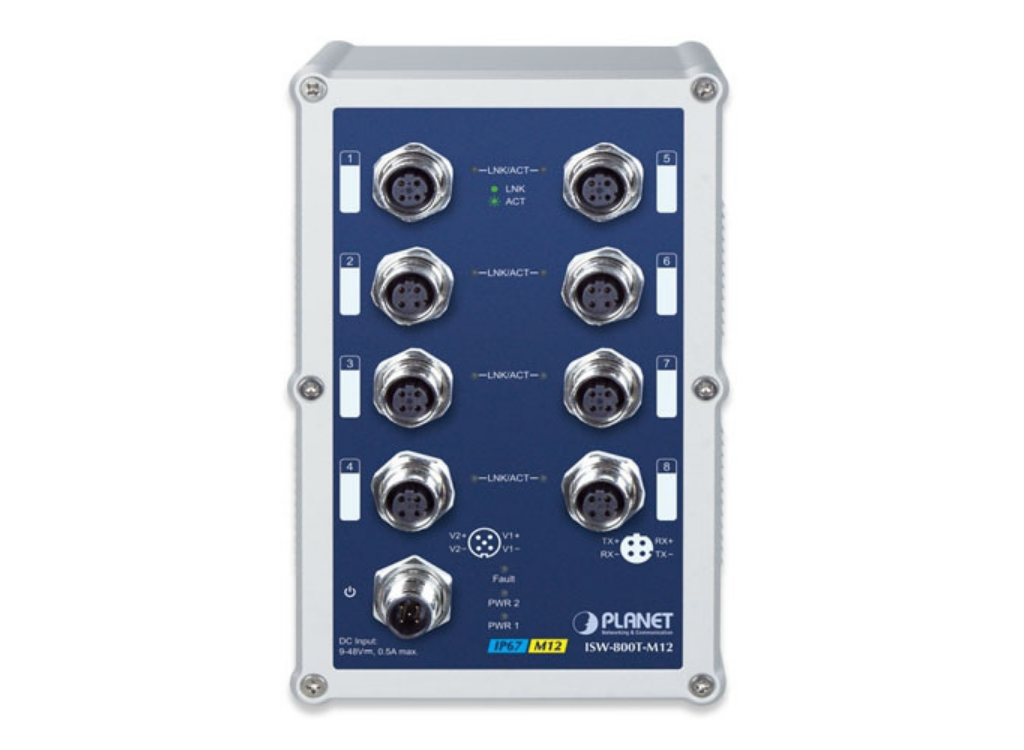

The ISW-800T-M12, the Industrial 8-Port 10/100Mbps M12 Fast Ethernet Switch, is designed with the IP67 industrial case, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The compact, IP67 standard metal case of the ISW-800T-M12 allows either DIN rail or wall mounting installation for efficient use of cabinet space.

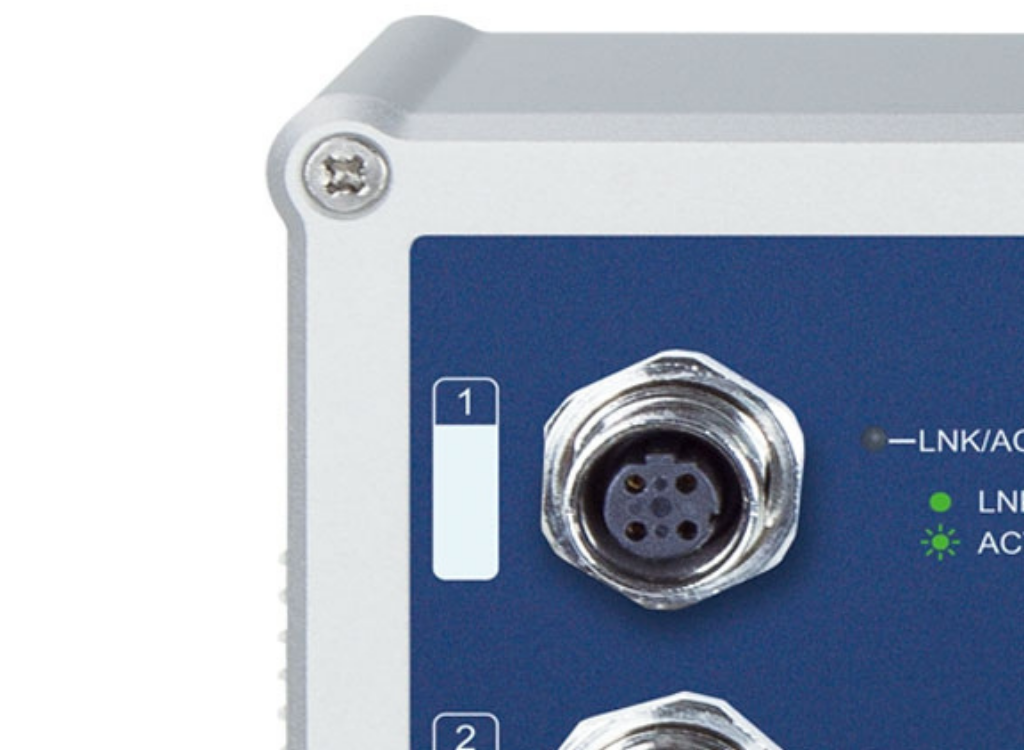

The ISW-800T-M12 is equipped with eight 10/100Base-TX auto-negotiation ports and M12 connector interfaces. The M12 connector provides tightly, strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment.

Stable Operating Performance under Difficult Environments
Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-800T-M12 can be placed in almost any difficult environment. The ISW-800T-M12 also possesses an integrated power supply source with wide range of voltages (9 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.

Robust Switch Performance
The ISW-800T-M12 has 2K MAC address table and offers wire-speed packets transfer performance without risk of packet loss; the high data throughput of the device makes it ideal for most Fast Ethernet environments. With a 1.6Gbps internal switching fabric and featuring auto negotiation support in each of the eight Fast Ethernet ports, the ISW-800T-M12 can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.

The flow control function enables the ISW-800T-M12 to provide fast and reliable data transfer. All of the M12 RJ-45 copper interfaces in the ISW-800T-M12 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4, 5, 5e, 6 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Applications

Public Construction for Data Collection and Forwarding
The ISW-800T-M12 is equipped with eight 10/100Base-TX auto-negotiation ports and M12 connector interfaces, and offers 1.6Gbps non-blocking switch fabric and the 2K MAC Address table. It can perform wire-speed packets transfer without risk of packet loss. The M12 connector provides tightly, strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment such as public Transmission System and Railway Transmission.

Key Features

Physical Port
　　• 8-port 10/100Mbps M12 connector with IP67 protection
Layer 2 Features
　　• Supports auto negotiation and 10/100Mbps half / full duplex mode
　　• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
　　• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
　　• Backplane (Switching Fabric): 1.6Gbps
　　• Integrated address look-up engine, supports 2K absolute MAC addresses
　　• Automatic address learning and address aging
　　• CSMA/CD Protocol

Industrial Case / Installation
　　• IP67 aluminum metal case protection
　　• DIN rail and wall mount design
　　• Waterproof / dustproof design
　　• 9 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
　　• Supports EFT protection 6000 VDC for power line
　　• Supports 6000 VDC Ethernet ESD protection
　　• -40 to 75 degrees C operating temperature
