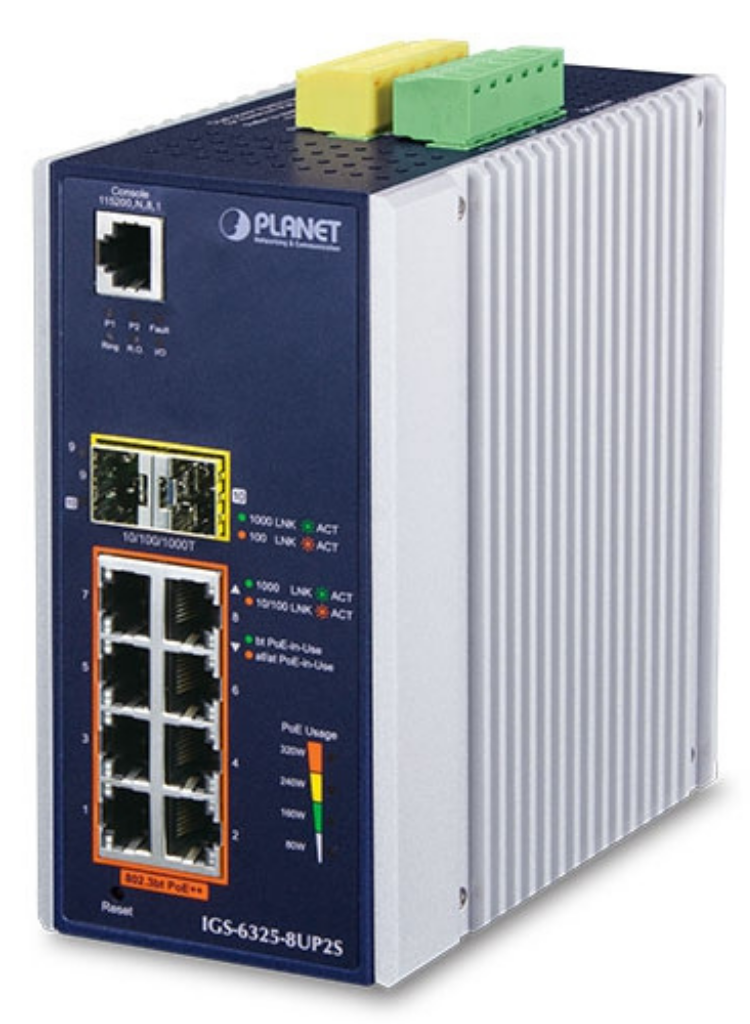

Planet Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + Managed Ethernet Switch | IGS-6325-8UP2S

Outstanding 802.3bt PoE++ Solution for Hardened Environment
Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET IGS-6325-8UP2S2X L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6325 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6325 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.

802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution
As the IGS-6325 PoE++ Series adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

PoE PTZ speed dome cameras
Network devices
Thin clients
AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
Remote digital signage displays
PoE lightings

802.3bt PoE++ and Advanced PoE Power Output Mode Management
To meet the demand of various powered devices consuming stable PoE power, the IGS-6325 PoE++ Switch series provides five different PoE power output modes for selection.

90W 802.3bt PoE++ Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
95W UPOE/PoH Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
30W End-span PoE Power Output Mode (Pins 1, 2, 3, 6)
30W Mid-span PoE Power Output Mode (Pins 4, 5, 7, 8)
60W Force Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)

Convenient and Smart ONVIF Devices with Detection Feature
PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-6325 PoE++ Switch series GUI, clients just need one click to search and show all of the ONVIF devices via network application.

In addition, clients can upload floor plans to the switch, allowing to locate surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and also allows cameras PoE reboot control from GUI.

Intelligent Alive Check for Powered Device
The IGS-6325 PoE++ Series can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-6325 PoE++ Series will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-6325 PoE++ Series can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Scheduled Power Recycling
The IGS-6325 PoE++ Series allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

Layer 3 Routing Support
The IGS-6325 Series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-6325 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.

Network with Cybersecurity Helps Minimize Security Risks
The IGS-6325 Series comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data and offering over 95-watt PoE output to customer's critical equipment in a business network, the cybersecurity feature of the IGS-6325 Series protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.

Modbus TCP Provides Flexible Network Connectivity for Factory Automation
With the supported Modbus TCP/IP protocol, the IGS-6325 Series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

1588 Time Protocol for Industrial Computing Networks
The IGS-6325 Series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

SMTP/SNMP Trap Event Alert
The IGS-6325 Series provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

Effective Alarm Alert for Better Protection
The IGS-6325 Series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.

Digital Input and Digital Output for External Alarm
The IGS-6325 Series supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the I IGS-6325 Series’ port shows link down, link up or power failure.

Robust Layer 2 Features
The IGS-6325 Series can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-6325 Series allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.

Efficient Management
For efficient management, the IGS-6325 Series is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port.
For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Powerful Network Security
The IGS-6325 Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Advanced IP Network Protection
The IGS-6325 Series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Flexible and Extendable Fiber Optic Ethernet Solution
With its additional 2-port 1000BASE-SX/LX SFP fiber optic Ethernet link capability, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325 Series provides broad bandwidth and powerful processing capacity.

Intelligent SFP Diagnosis Mechanism
The IGS-6325 Series supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Hardware Specifications	Details

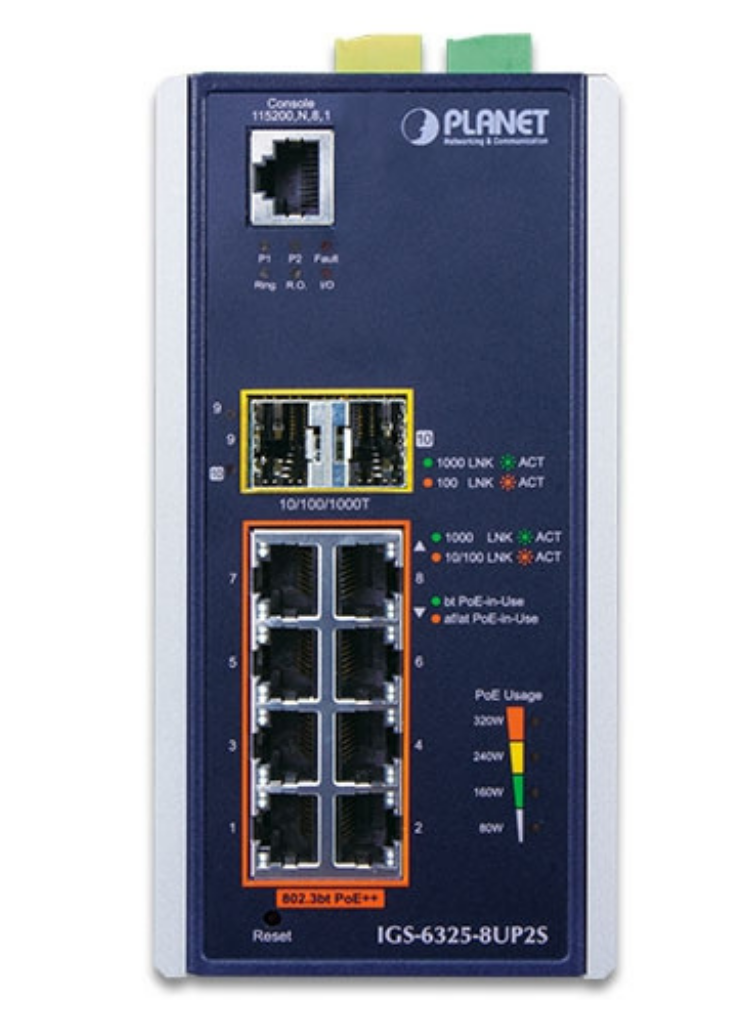

Copper Ports	8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports	2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10), Compatible with 100BASE-FX SFP and 2500BASE-X SFP
SFP+ Ports	N/A
PoE Injector Ports	8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps/non-blocking
Throughput (packet per second)	14.8Mpps@ 64 bytes packet
Address Table	32K entries, automatic source address learning and aging
Shared Data Buffer	32Mbits
Jumbo Frame	10Kbytes
SDRAM	512Mbytes
Flash Memory	64Mbytes
Flow Control	IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
Reset Button	< 5 sec: System reboot, > 5 sec: Factory default

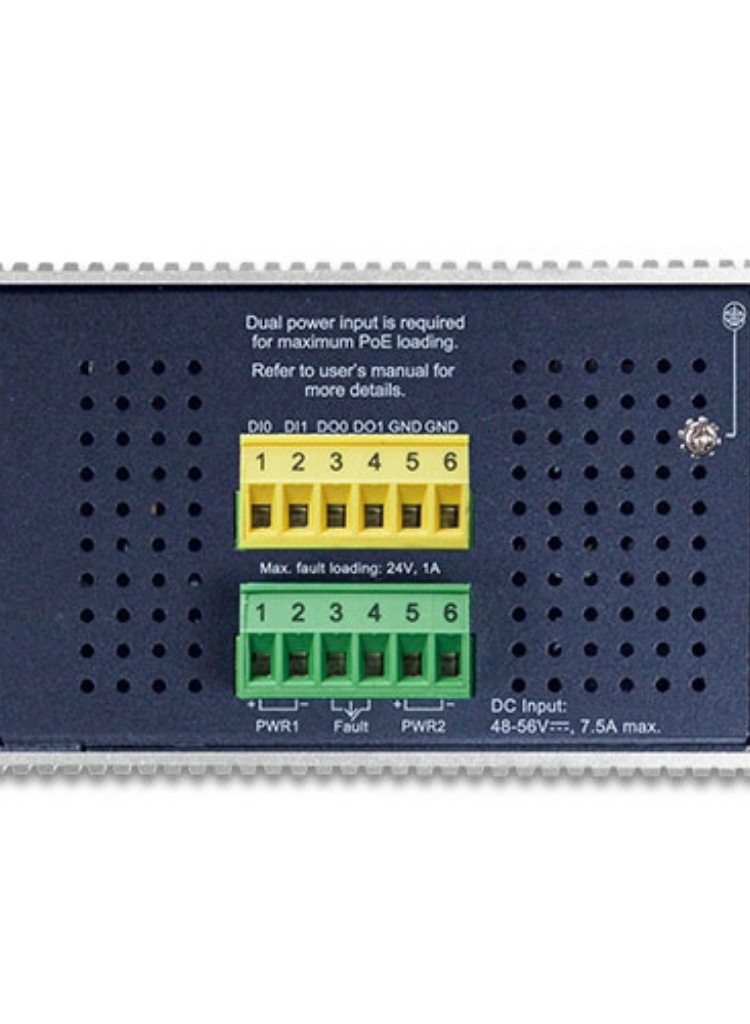

Connector	Removable 6-pin terminal block for power input: Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
DI/DO Interface	Removable 6-pin terminal block for DI/DO interface: Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)	2 digital input: Level 0: -24~~2.1V (±0.1V), Level 1: 2.1~~24V (±0.1V), Input load to 24V DC, 10mA max.
Digital Output (DO)	2 digital output: Open collector to 24VDC, 100mA
Enclosure	IP30 aluminum case
Installation	DIN-rail or wall mounting
Dimensions (W x D x H)	76 x 107 x 152 mm
Weight	1,138g
Power Requirements	Dual DC 48~56V, 7.5A max. (>52V DC for 802.3bt PoE++ output recommended)
Power Consumption	Max. 27 watts/92.13BTU@56V DC input (System on), Max. 395 watts/1,347.80BTU@56V DC input (Full loading with 802.3bt PoE++ function)
ESD Protection	Air 8KV DC, Contact 6KV DC
Surge Protection	4KV DC
LED Indicator	System: Power 1 (Green), Power 2 (Green), Fault Alarm (Red), Ring (Green), Ring Owner (Green), DIDO (Red)
	Per 10/100/1000T RJ45 PoE++ Port: 1000Mbps LNK/ACT (Green), 10/100Mbps LNK/ACT (Amber), 802.3bt PoE++-in-use x 1 (Green), 802.3at/af PoE-in-use x 1 (Amber)
	Per SFP Interface: 1000 LNK/ACT (Green), 100 LNK/ACT (Amber)
PoE Standard	IEEE 802.3bt PoE++ Type-4 PSE, Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type	802.3bt, UPOE/POH, End-span, Mid-span, Force
PoE Power Output	802.3bt PoE++: Per port 52V~~56V DC (depending on the power supply), max. 90 watts, UPoE(PoH): Per port 52V~~56V DC (depending on the power supply), max. 95 watts, IEEE 802.3at Standard: Per port 52V~~56V DC (depending on the power supply), max. 36 watts, Force: Per port 52V~~56V DC (depending on the power supply), max. 60 watts
Power Pin Assignment	End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Budget	360W maximum (depending on power input)
PoE Ability	PD @ 12.5 watts: 8 units, PD @ 25 watts: 8 units, PD @ 51 watts: 6 units, PD @ 71 watts: 4 units
PoE Management Functions	Active PoE device alive detects, PoE Power Recycle (daily or predefined schedule), PoE Schedule (4 schedule profiles), PoE Extend Mode (max. 160 to 200 meters), PoE System Management (System PoE Admin control, Total PoE power budget control, Auto power input and PoE budget control, PoE Legacy mode, Over-temperature threshold alarm, PoE usage threshold alarm), PoE Port Management (Port Enable/Disable/Schedule, PoE mode control (802.3bt, UPoE, 802.3at End-span, 802.3at Mid-span, Force mode), Port Priority)
Layer 2 Functions	Port Configuration: Port disable/enable, Auto-negotiation 10/100/1000Mbps full and half duplex mode selection, Flow control disable/enable, Port link capability control
	Port Status: Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
	Port Mirroring: TX/RX/both, Many-to-1 monitor
	VLAN: 802.1Q tagged VLAN, Q-in-Q tunneling, Private VLAN Edge (PVE), MAC-based VLAN, Protocol-based VLAN, Voice VLAN, MVR (Multicast VLAN Registration), GVRP, Up to 256 VLAN groups, out of 4095 VLAN IDs
	Link Aggregation: IEEE 802.3ad LACP/static trunk, Supports 3 trunk groups with 4 ports per trunk group
	Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol
	IGMP Snooping: IPv4 IGMP (v1/v2/v3) snooping, IPv4 IGMP querier mode support, Supports 255 IGMP groups
	MLD Snooping: IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support, Supports 255 MLD groups
	Access Control List: IP-based ACL/MAC-based ACL, ACL based on: MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority, Up to 256 entries
	Bandwidth Control: Per port bandwidth control, Ingress: 500Kb~~1000Mbps, Egress: 500Kb~~1000Mbps
	QoS: Traffic classification based, strict priority and WRR, 8-level priority for switching: Port number, 802.1p priority, 802.1Q VLAN tag, DSCP/TOS field in IP packet
	Synchronization: IEEE 1588v2 PTP(Precision Time Protocol): Peer-to-peer transparent clock, End-to-end transparent clock
Layer 3 Functions	IP Interfaces: Max. 128 VLAN interfaces, Routing Table: Max. 128 routing entries, Routing Protocols: IPv4 hardware static routing, IPv6 hardware static routing, OSPFv2 dynamic routing
Management	Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c, Secure Management Interfaces: SSHv1/SSHv2, TLS, SSL, SNMP v3
	System Management: Firmware upgrade by HTTP protocol through Ethernet network, Configuration upload/download through HTTP, Remote Syslog, System log, LLDP protocol, NTP, PLANET Smart Discovery Utility
SNMP MIBs	RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2819 RMON MIB (Group 1, 2, 3 and 9), RFC 2737 Entity MIB, RFC 2618 RADIUS Client MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-Frameworks-MIB, RFC 4292 IP Forward MIB, RFC 4293 IP MIB, RFC 4836 MAU-MIB, IEEE 802.1X PAE, LLDP
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE: EN55032, EN55035
Stability Testing	IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3z Gigabit SX/LX, IEEE 802.3ab Gigabit 1000T, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1X Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3bt Power over Ethernet Plus Plus, IEEE 802.3ah OAM, IEEE 802.1ag Connectivity Fault Management (CFM), RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP v1, RFC 2236 IGMP v2, RFC 3376 IGMP v3, RFC 2710 MLD v1, FRC 3810 MLD v2, RFC 2328 OSPF v2, ITU-T G.8032 ERPS Ring, ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
