Planet Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector | IPOE-171-95W

SKU: IPOE-171-95W
Part Number: IPOE-171-95W
Condition: Brand New
Purchase Orders Accepted
Save £25.24 Save £25.24
Original price £299.90
Inc. VAT
Original price £299.90 - Original price £299.90
Original price £299.90

£228.88 (Excl. VAT)

Current price - £274.66 Inc. VAT
£274.66 - £274.66
Current price- - £274.66
(Inc. VAT )
Availability:
28 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector | IPOE-171-95W

    Advanced Industrial Multi-Gigabit and 802.3bt PoE++ Network Solution
    PLANET IPOE-171-95W is a Single-Port, Industrial 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.


    It is designed specifically to meet the demand for growing higher power required network equipment such as:
    Lighting
    All-in-one touch PC
    Remote digital signage display
    Other network devices that need higher power to work normall


    The IPOE-171-95W delivers the Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the IPOE-173S, will separate the digital data and the power into three optional outputs (12V/24V DC) with distance up to 100 meters.

    Convenient and Reliable Power System
    To facilitate the 802.3bt PoE++ usage with commonly used 12~54V DC power input for transportation and industrial-level applications, the IPOE-171-95W adopts 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The IPOE-171-95W provides an integrated power solution with a wide range of voltages (12~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~54V DC power supply inputs for high availability applications.


    95 watts of Power over 4-pair UTP

    Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), the IPOE-171-95W provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling.


    Intelligent LED Indicator for Power Input and Real-time PoE Usage

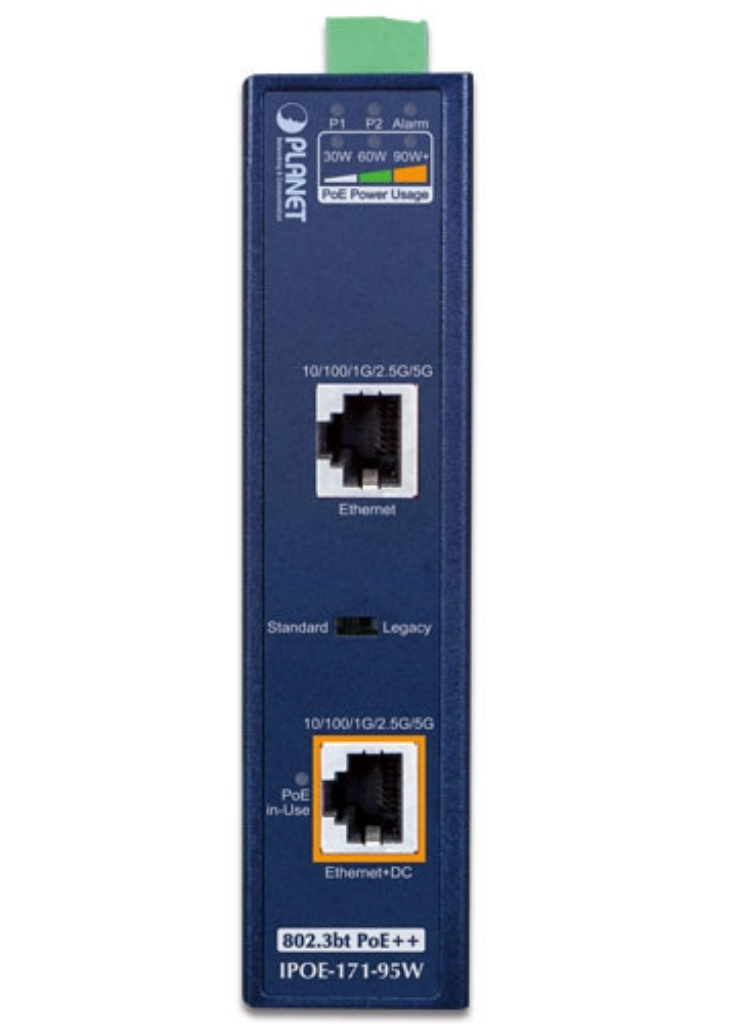

    The IPOE-171-95W helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. “Power Input” allows user to know the status of power input. “PoE Power Usage” displayed on the panel of the IPOE-171-95W has three LED indicators of different power usages. Via the power usage LED, the IPOE-171-95W enables the administrator to monitor the status of the power usage of the connected PDs in real time.


    High Compatibility and Compact Size Design

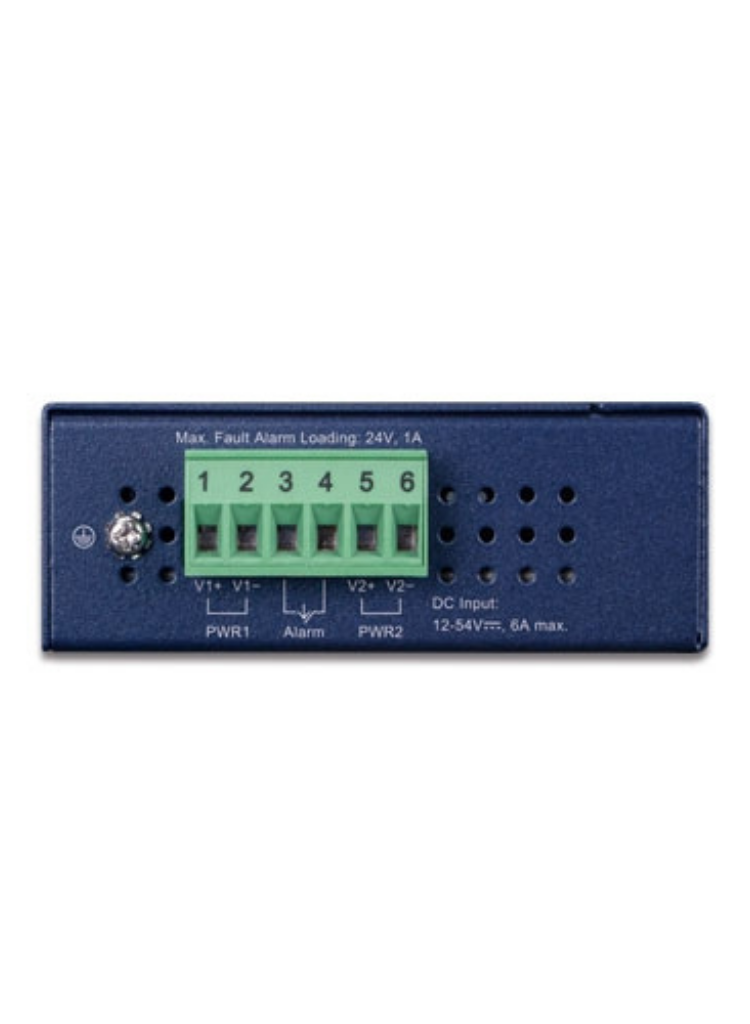

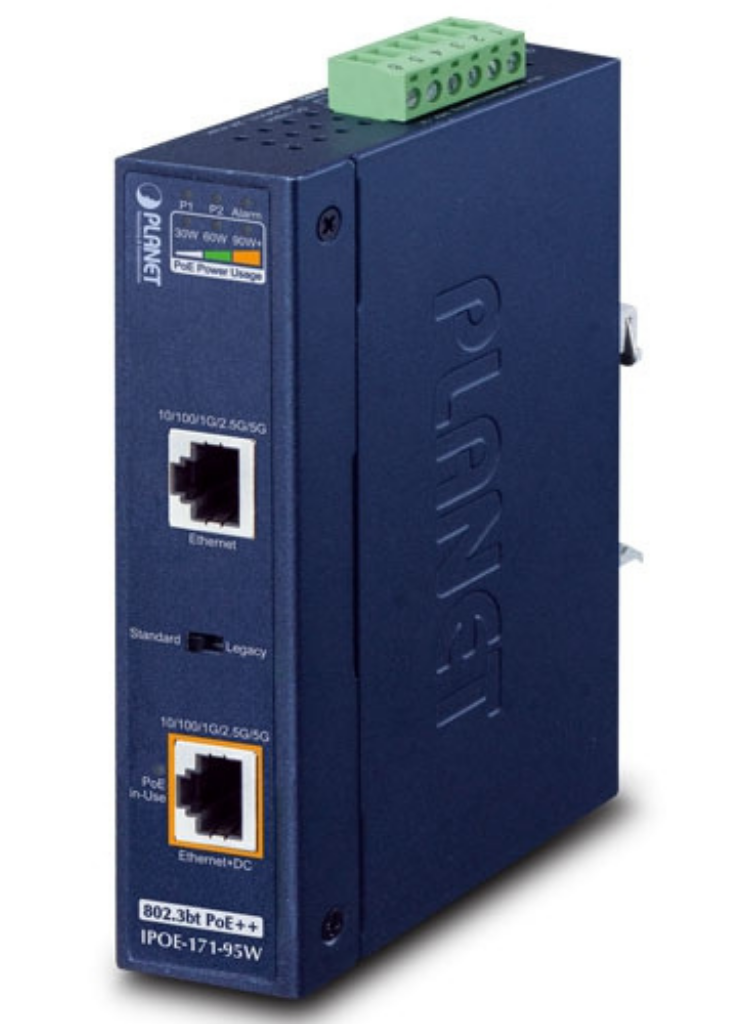

    It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Besides, the IPOE-171-95W comes in compact housing, and provides two DC redundant power inputs, two power LEDs, fault LED and PoE-in-Use LED. Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the front panel.

    Moreover, the IPOE-171-95W, when switched to the Legacy mode and Force mode, provides power to those PD devices which do not fully follow the IEEE 802.3at/bt standard. It is helpful to enhance the compatibility of IPOE-171-95W with other PDs.

    Simply plug in the Ethernet cables and DC power wire, and the IPOE-171-95W is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software configuration.

    Quick and Easy Cabling Installation for PoE Network Deployment
    Backward compatible with both 802.3at PoE standards, the IPOE-171-95W allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The IPOE-171-95W frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.


    Stable Operating Performance under Difficult Environments

    Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-171 series will be one of the ideal solutions that provide a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb side traffic control cabinets. The IPOE-171 series can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-171 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for efficient use of cabinet space.

  • Category Specification
    Interface Input Port: 1 x RJ45 STP (Data In) <br> Output Port: 1 x RJ45 STP (PoE (Data + Power) Out) <br> Input Power Terminal Block: 1
    Network Cable Twisted-pair cable up to 100 meters (328ft) <br> 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A <br> 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A <br> 1G/2.5G: 4-pair UTP Cat. 5e, 6, 6A <br> 5G: 4-pair UTP Cat. 6, 6A
    LED Indicators System: Power 1 (Green), Power 2 (Green), Fault (Red) <br> PoE Port: PoE-in-Use x 1 (Amber) <br> PoE Usage: PoE Usage x 3 (Amber)
    Data Rate 10M/100M/1G/2.5G/5Gbps
    ESD Protection 6KV DC
    Enclosure Metal case
    Dimensions (W x D x H) 135 x 87.8 x 32 mm
    Weight 443g
    Power Requirements DC 12~54V, 6A max.
    Unit Output Voltage DC 54V
    Power Consumption 120 watts max.
    No. of Devices Powered 1
    Installation DIN-rail kit or wall-mount ear
    Alarm Provides one relay output for power failure <br> Alarm Relay Current Carry Ability: 1A @ DC 24V
    Enclosure IP30 slim type metal case
    PoE Standard IEEE 802.3at/bt PSE
    PoE Power Output Budget DC 54V / 95-watt PoE via 4-pair <br> DC 54V / 36-watt PoE via 2-pair
    PoE Power Output DC 24V~54V input: <br> Max. 89.5W@1m cable <br> Max. 75W@100m cable <br> DC 12V input: <br> Max. 60W@1m cable <br> Max. 52W@100m cable
    PoE Power Supply Type End-span + Mid-span
    Power Pin Assignment Pair 1 End-span: 1/2 (-), 3/6 (+) <br> Pair 2 Mid-span: 4/5 (+), 7/8 (-)
    PoE Mode Standard mode, Legacy and Force mode
    Standards Compliance IEEE 802.3 10BASE-T Ethernet <br> IEEE 802.3u 100BASE-TX Fast Ethernet <br> IEEE 802.3ab 1000BASE-T Gigabit Ethernet <br> IEEE 802.3bz 2.5G/5GBASE-T <br> IEEE 802.3bt 4-pair Power over Ethernet Plus Plus <br> IEEE 802.3at Power over Ethernet Plus
    Regulatory Compliance FCC Part 15 Class A, CE
    Operating Temperature -40 ~ 75 degrees C
    Storage Temperature -40 ~ 85 degrees C
    Operating Humidity 5 ~ 90%, relative humidity, non-condensing
    Storage Humidity 5 ~ 90%, relative humidity, non-condensing
    Standard Accessories Package Contents: IPOE-171-95W, User's manual, Wall-mount kit, Dust cap
