Planet IPOE-176S Industrial Single-Port 10Gbps 802.3bt PoE++ Splitter

Highly Convenient, Advanced Multi-Gigabit and Robust Industrial PoE++ Splitter

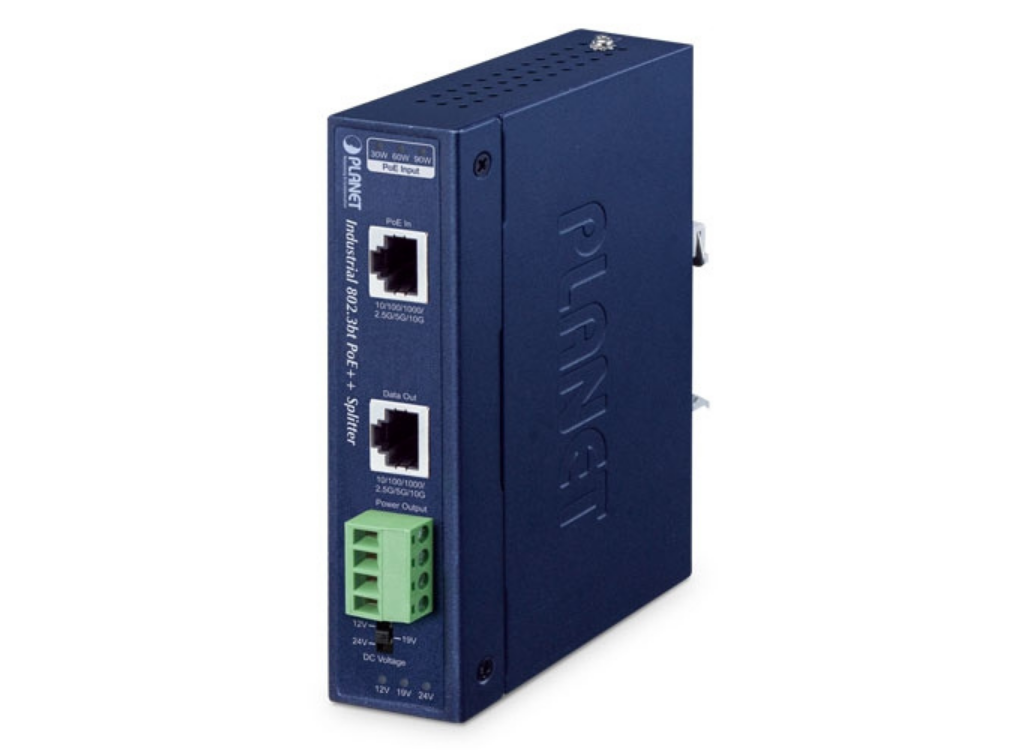

PLANET IPOE-176S is an Industrial-grade 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ type-4 PSE (power source equipment) over an UTP cable. It comes with a selectable 12V/19V/24V DC DIP switch, enabling to deliver a maximum of 70-watt power output to a non-PoE device. It is also equipped with two 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission. To fulfill the growing industrial applications, the IPOE-176S is designed to work under the operating temperature range from -40 to 75 degrees C. The IPOE-176S is an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

Quick and Easy 802.3bt PoE++ Network Deployment
If the existing network deployment consists of non-PoE powered devices that require high power to function, the IPOE-176S, powered by an ultra PoE power sourcing equipment, is able to feed the PDs with 802.3bt PoE++  as the splitter can split the data and power into two streams. The PDs gets their power through the splitter’s DC jack and the RJ45 interface accepts only Ethernet data. The following non-PoE PDs can be turned into an PoE++ environment with the IPOE-176S:

PTZ speed dome camera
Thin client
AIO (All-in-One) touch PC
Remote digital signage display
Non-PoE network devices that need higher power to work normally

The POE-176S frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.

Innovative, Selectable DC Power Output Voltage

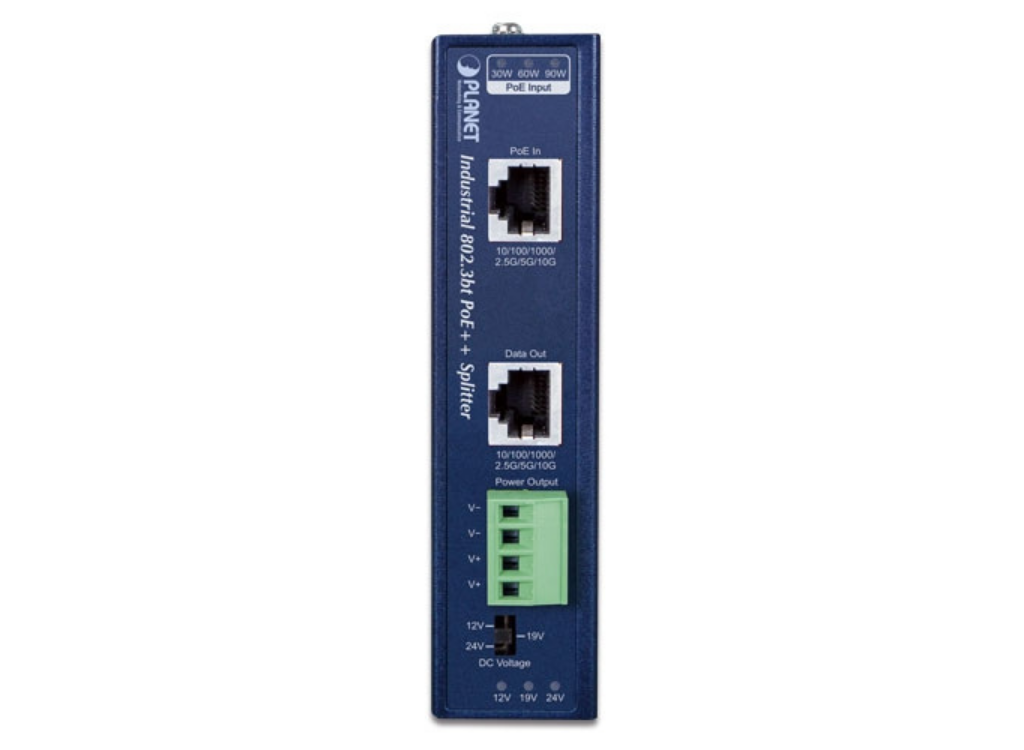

Via the innovative 12/19/24 volt DIP switch on the front panel, the IPOE-176S can supply 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications.

Dual Power Output Capability
The IPOE-176S shares its 70-watt output power with not only one power-hungry device but also two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source:

IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)
IP camera (Power 1) + Pan and tilt motor (Power 2)
Analog camera (Power 1) + IP video server (Power 2)

Environmentally Hardened Design
With the compact, slim-type IP30 industrial case, the space-saving industrial 802.3bt PoE++ splitter IPOE-176S can be placed in almost any difficult environment. It allows either DIN-rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-176S is the ideal product for co-working with industrial 802.3bt PoE++ type-4 injector which can feed the power to non-PoE devices while also supporting Multi-Gigabit connection speeds.

Applications

802.3bt PoE++ Switch and Splitter Installation
For a place which is hard to find the power inlet or a matching connection speed, the IPOE-176S separates digital data with Multi-Gigabit speed (10M/100M/1G/2.5G/5G/10Gbps) and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as 4K Industrial HMI, 5G-NR ODU points and other network devices at distance up to 100 meters.

Key Features

Interface
2 Multi-Gigabit Speed RJ45 interfaces
1-port Data + Power input
1-port Data output
2 DC output (4-pin terminal block)
1 12V/19V/24V DC DIP switch

Power over Ethernet
Complies with 802.3bt PoE++ Power over Ethernet end-span + mid-span PSE
Backward compatible with 802.3at PoE+
Splits the PoE power over RJ45 Ethernet cable into 12V/19V/24V DC output
Supports power output up to 70 watts
Remote power feeding up to 100 meters

Hardware
IP30 slim metal case
DIN-rail or wall-mount design
Supports high surge/ESD protection
-40 to 75 degrees C operating temperature
