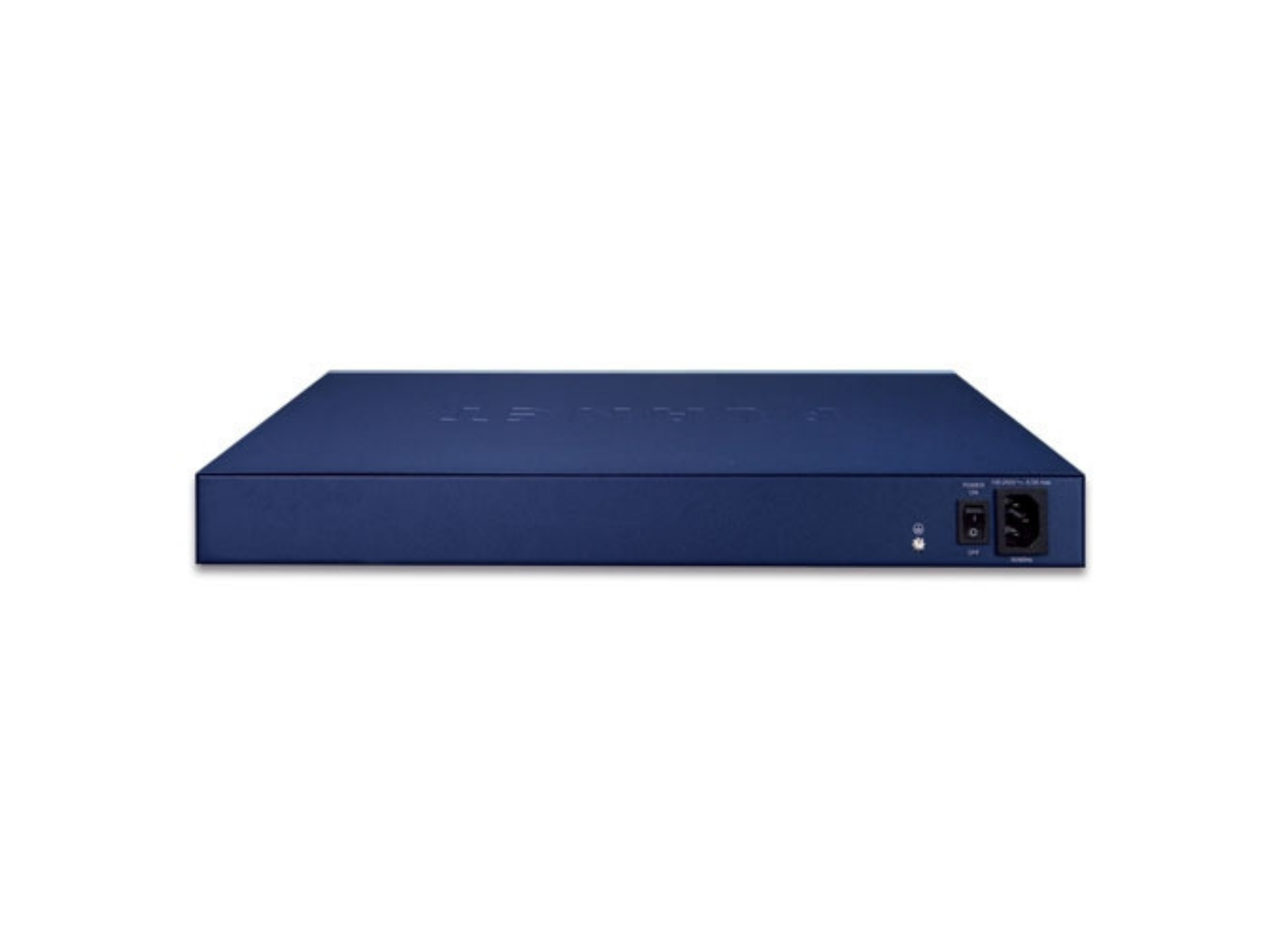

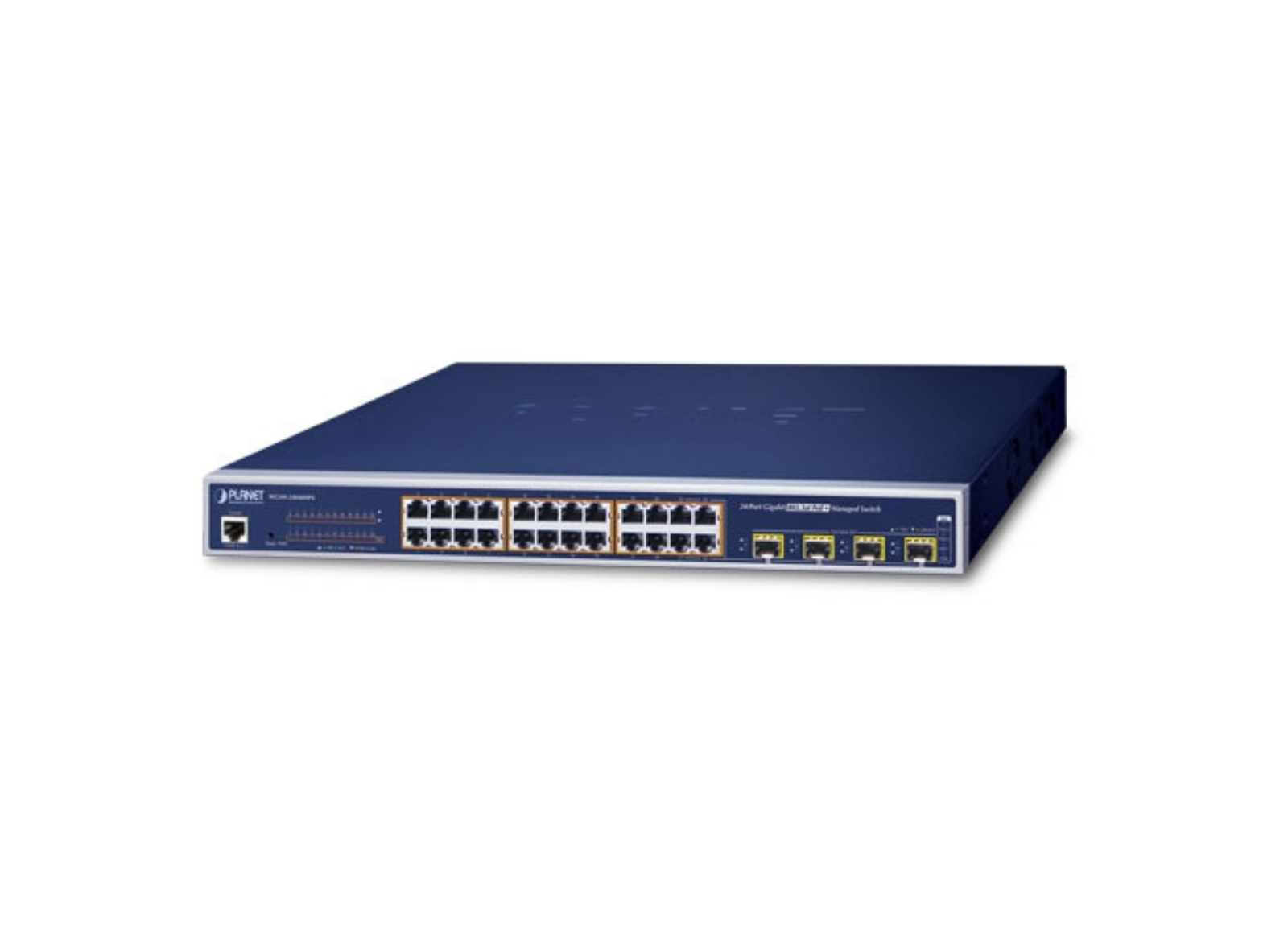

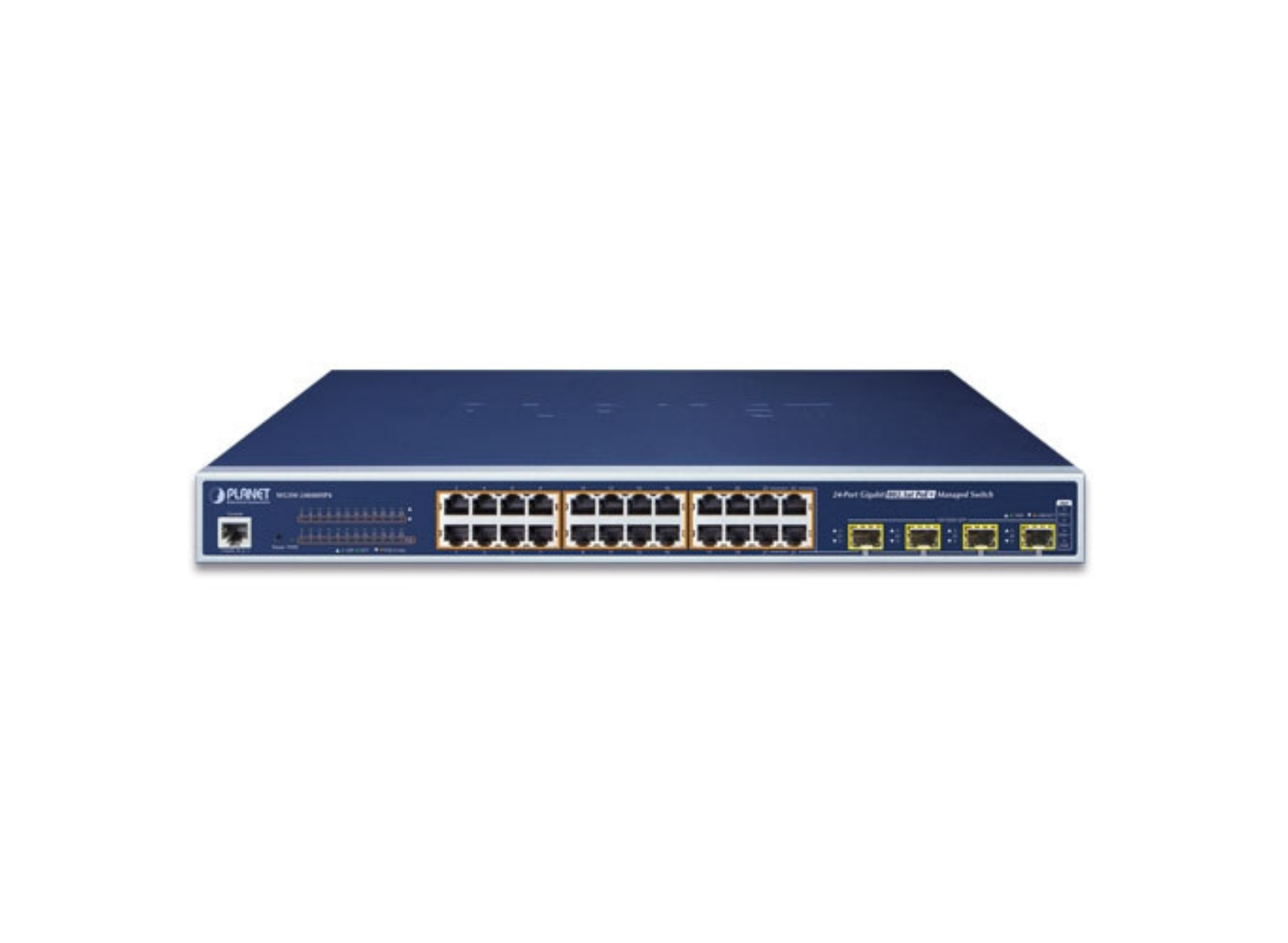

Planet L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch | WGSW-24040HP4

SKU: WGSW-24040HP4
Part Number: WGSW-24040HP4
Condition: Brand New
Purchase Orders Accepted
Save £64.00 Save £64.00
Original price £680.90
Inc. VAT
Original price £680.90 - Original price £680.90
Original price £680.90

£514.08 (Excl. VAT)

Current price - £616.90 Inc. VAT
£616.90 - £616.90
Current price- - £616.90
(Inc. VAT )
Availability:
11 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch | WGSW-24040HP4

    Perfect Managed PoE+ Switch with L2+/L4 Switching and Security
    PLANET WGSW-24040HP4 Layer 2 Managed Gigabit Switch supports both IPv4 and IPv6 protocols and Layer 3 static routing, and provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 100/1000BASE-X SFP+ fiber slots. Each of the 24 Gigabit ports provides 36 watts of power, with a total power budget of up to 440 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.


    Network with Cybersecurity Helps Minimize Security Risks
    The WGSW-24040HP4 comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks, it supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the WGSW-24040HP4 protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.

    Built-in Unique PoE Functions for Surveillance Management
    As a managed PoE Switch for surveillance network, the WGSW-24040HP4 features the following intelligent PoE management functions:

    PoE Schedule
    PD Alive Check
    Scheduled Power Recycling
    SMTP/SNMP Trap Event Alert

    PoE Schedule for Energy Saving
    Besides being used for IP surveillance, the WGSW-24040HP4 is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the WGSW-24040HP4 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.


    Intelligent Powered Device Alive Check

    The WGSW-24040HP4 can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the WGSW-24040HP4 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.


    Scheduled Power Recycling

    The WGSW-24040HP4 allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.


    SMTP/SNMP Trap Event Alert

    Though most NVR or camera management software offers SMTP email alert function, the WGSW-24040HP4 further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.


    Convenient and Smart ONVIF Devices with Detection Feature

    PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for cooperating with video IP surveillances. From the WGSW-24040HP4 GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and remotely monitor what is going on in the production line. Moreover, you can get real-time surveillance’s information and online/offline status, and can have PoE reboot control from GUI.

    Solution for IPv6 Networking
    With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the WGSW-24040HP4 is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.


    IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

    To help customers stay on top of their businesses, the WGSW-24040HP4 not only provides ultra high transmission performance and excellent layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

    Robust Layer 2 Features
    The WGSW-24040HP4 can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220-8P2T2S allows the operation of a high-speed trunk combining multiple ports. Supporting 12 trunk groups, it enables a maximum of up to 4 ports per trunk and supports connection fail-over as well.


    Powerful Security

    The WGSW-24040HP4 offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

    Enhanced Security and Traffic Control
    The WGSW-24040HP4 also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.

    User-friendly Secure Management
    For efficient management, the WGSW-24040HP4 is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the WGSW-24040HP4 offers an easy-to-use, platform independent management and configuration facility. The WGSW-24040HP4 supports SNMP and it can be managed via any management software based on the standard SNMP v1 and v2 protocols. For reducing product learning time, the WGSW-24040HP4 offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the WGSW-24040HP4 offers remote secure management by supporting SSH, TLS and SNMPv3 connection which can encrypt the packet content at each session.


    Flexible and Extendable Solution

    The 4 mini-GBIC SFP slots built in the WGSW-24040HP4 support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

    Intelligent SFP Diagnosis Mechanism
    The WGSW-24040HP4 supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

  • Category Specification
    Copper Ports 24 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
    10/100/1000Mbps/SFP Combo Interfaces 4 x 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24
    PoE Injector Port 24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
    Console 1 x RJ45 serial port (115200, 8, N, 1)
    Reset Button < 5 sec: System reboot, > 5 sec: Factory Default
    Smart Fan 3
    Power Requirements 100~240V AC, 50/60Hz, 6.5A
    Power Consumption (Full Loading) 521 watts/1777 BTU
    ESD Protection 6KV DC
    Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U high
    Weight 4.2 kg
    LED Indicators System: Power (Green), Alert: FAN 1 (Red), FAN 2 (Red), FAN 3 (Red), PWR (Red)
    PoE Ethernet Interfaces (Port 1 to Port 24): LNK/ACT (10/100/1000Mbps, Green), PoE-in-Use (Amber)
    100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): 1000 (Green), LNK/ACT (Amber)
    Switch Architecture Store-and-Forward
    Switch Fabric 48Gbps/non-blocking
    Throughput 35.7Mpps @ 64Bytes
    Address Table 8K entries, automatic source address learning and ageing
    SDRAM 256Mbits
    Flash 64Mbytes
    Flow Control IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
    Jumbo Frame 9K bytes
    PoE Standard IEEE 802.3at/802.3af Power over Ethernet
    PoE Power Supply Type End-span
    PoE Power Output Per port 54V DC, 590mA. max. 36 watts
    Power Pin Assignment 1/2(+), 3/6(-)
    PoE Power Budget 440 watts max. @25 degrees C, 380 watts max. @50 degrees C
    PoE Ability PD @ 7 watts: 24 units
    PD @ 15.4 watts: 24 units
    PD @ 30.8 watts: 14 units
    Active POE Device Alive Detection Yes
    PoE Power Recycling Yes, daily or predefined schedule
    PoE Schedule 4 schedule profiles
    PoE System Management System PoE admin control, Total PoE power budget control, Auto power input and PoE budget control, PoE Legacy mode, Over-temperature threshold alarm, PoE usage threshold alarm
    IP Interface Max. 8 VLAN interfaces
    Routing Table Max. 32 routing entries
    Routing Protocols IPv4 software static routing, IPv6 software static routing
    Port Configuration Port disable/enable, Auto-negotiation 10/100/1000Mbps full and half duplex mode selection, Flow Control disable/enable
    Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
    Port Mirroring TX/RX/Both, Many-to-1 monitor
    VLAN 802.1Q tag-based VLAN, Q-in-Q tunneling, Private VLAN Edge (PVE), MAC-based VLAN, Protocol-based VLAN, VLAN Translation, Voice VLAN, MVR (Multicast VLAN Registration), GVRP, Up to 4K VLAN groups, out of 4094 VLAN IDs
    Link Aggregation IEEE 802.3ad LACP (static trunk), Supports 12 trunks groups with 4 ports per trunk group
    Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol
    QoS Traffic classification based, strict priority and WRR, 8-Level priority for switching: Port Number, 802.1p priority, 802.1Q VLAN tag, DSCP/TOS field in IP packet
    IGMP Snooping IPv4 IGMP Snooping (v1/v2/v3), IPv4 IGMP Querier mode support, Up to 255 multicast groups
    MLD Snooping IPv6 MLD Snooping (v1/v2), IPv6 MLD Querier mode support, Up to 255 multicast groups
    Bandwidth Control Per port bandwidth control, Ingress: 10Kbps3276Mbps, Egress: 10Kbps3276Mbps
    Access Control List IP-based ACL/MAC-based ACL, ACL based on: MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority, Up to 256 entries
    Security Port security, IP source guard, Dynamic ARP inspection, Command line authority control based on user level
    AAA RADIUS client, TACACS+ client
    Network Access Control IEEE 802.1x port-based network access control, MAC-based authentication, Local/RADIUS authentication
    Basic Management Interfaces Console; Telnet; Web Browser; SNMP v1, v2c
    Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
    System Management Firmware upgrade by HTTP protocol through Ethernet network, Configuration upload/download through HTTP, Remote Syslog, System log, LLDP protocol, NTP, PLANET Smart Discovery Utility
    Event Management Remote Syslog, Local System log, SMTP
    ONVIF ONVIF device discovery, ONVIF device monitoring, Floor Map
    SNMP MIBs RFC 1213 MIB-II, RFC 2863 IF-MIB, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2737 Entity MIB, RFC 2819 RMON MIB (Groups 1, 2, 3 and 9), RFC 2618 RADIUS Client MIB, RFC 3411 SNMP-Frameworks-MIB, IEEE 802.1X PAE, LLDP, MAU-MIB, Power over Ethernet MIB
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3z 1000BASE-SX/LX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree protocol, IEEE 802.1w Rapid Spanning Tree protocol, IEEE 802.1s Multiple Spanning Tree protocol, IEEE 802.1p Class of service, IEEE 802.1Q VLAN tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet PLUS, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, RFC 3810 MLD version 2
    Operating Environment Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
    Storage Environment Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
