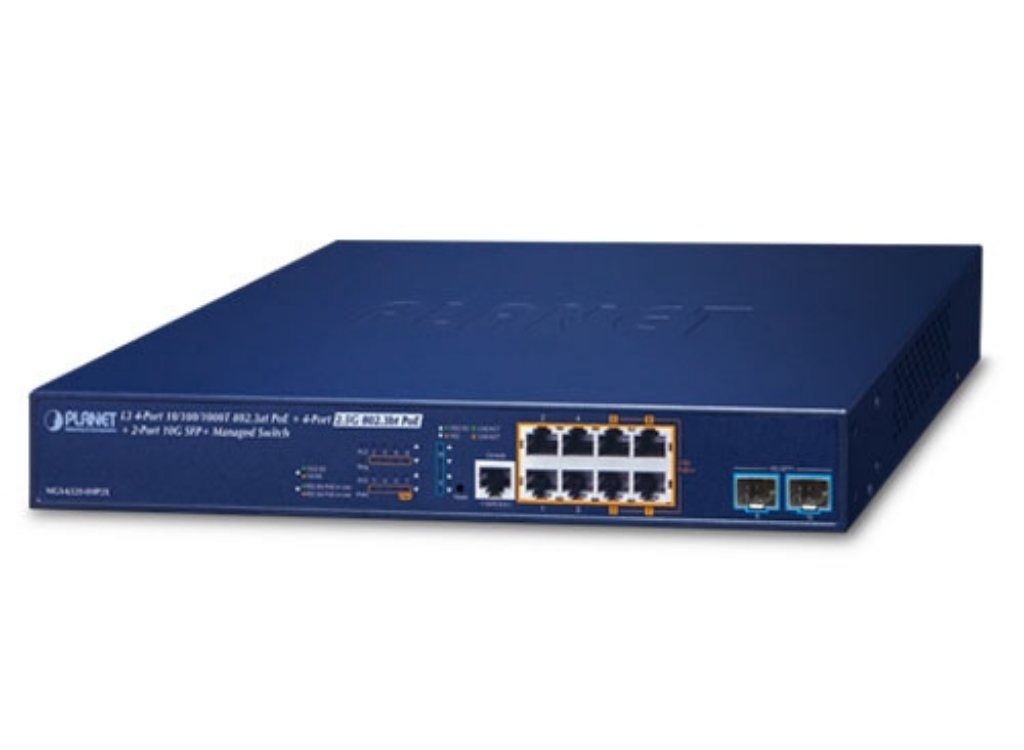

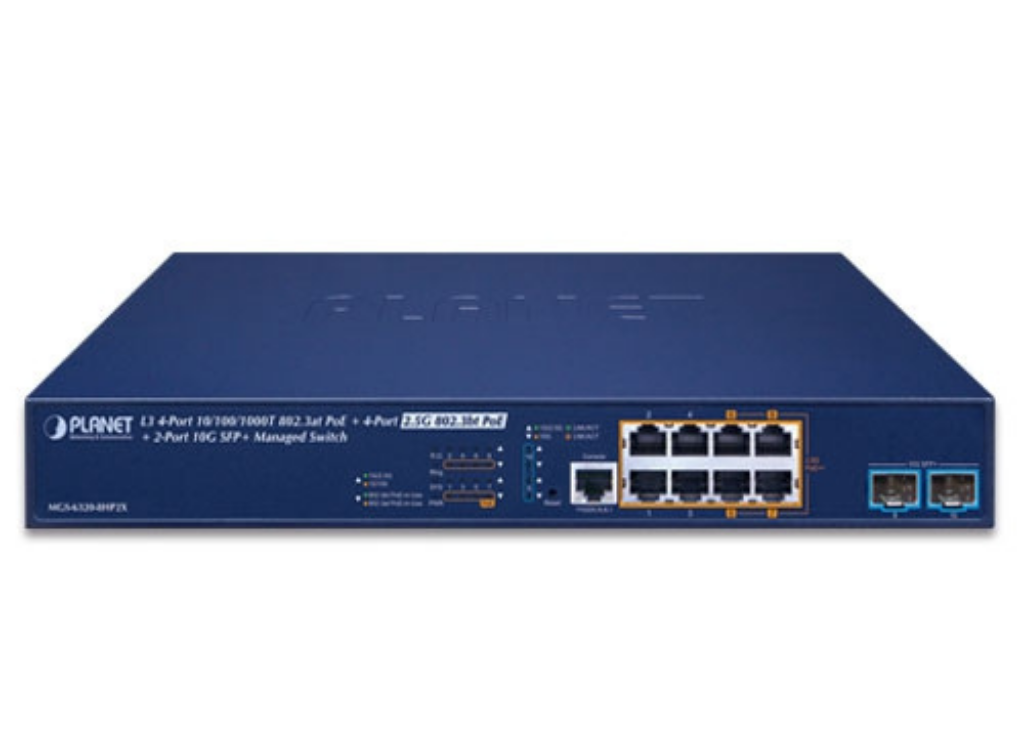

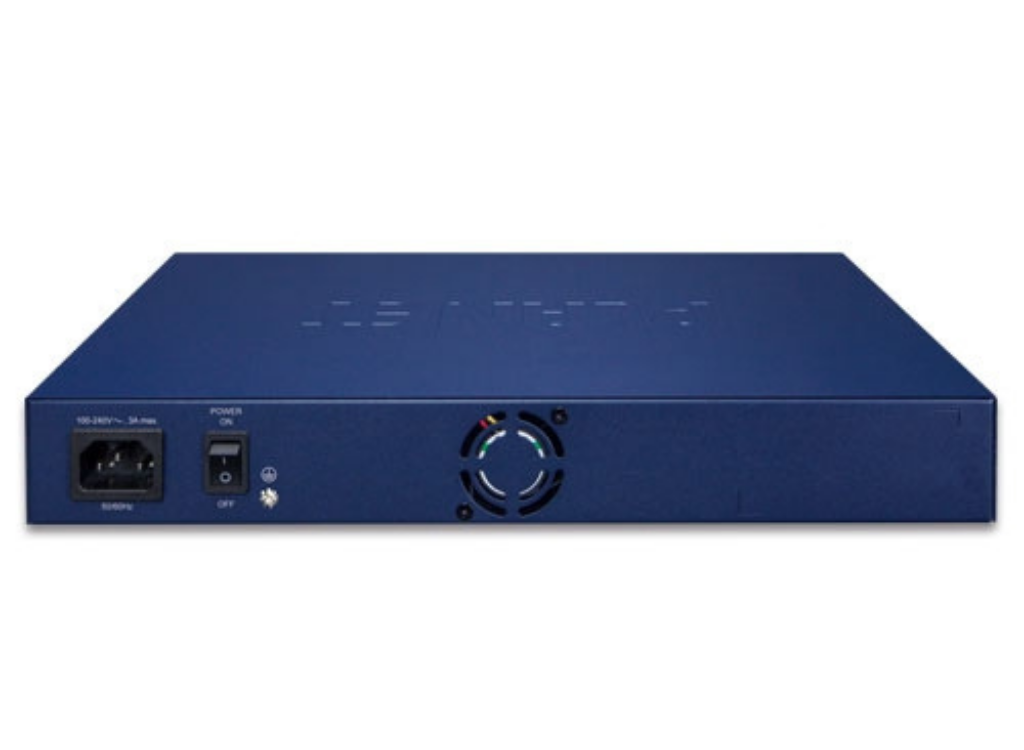

Planet L3 4-Port 10/100/1000T 802.3at PoE + 4-Port 2.5G 802.3bt PoE + 2-Port 10G SFP+ Managed Switch | MGS-6320-8HP2X

Perfect Managed Multigigabit PoE Switch with L3/L2 Switching and Security
PLANET MGS-6320-8HP2X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data rate and 802.3bt PoE++ over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6 802.11ax wireless AP, NAS, workstation and those with 2.5GBASE-T interfaces. It features 4 10/100/1000BASE-T copper ports with 802.3at PoE+ injector function, 4 100/1000/2500BASE-T copper ports with 802.3bt PoE++ injector function, a total PoE power budget of up to 240 watts and 2 extra 1G/2.5G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance. With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 and Layer 4 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, it helps to accelerate the deployment of the next-generation IoT and wireless network for enterprises and smart cities.

2.5Gbps Capability for Diversified Bandwidth Applications
With the terminal access rates of 802.11ac wireless APs reaching as high as 1.2Gbps to 2.6Gbps, Gigabit ports have been unable to satisfy the demand. Supporting both 1Gbps and 2.5Gbps capability and 802.3af/at and 802.3bt PoE output, the MGS-6320-8HP2X can deliver not only data to 802.11ac wireless APs, but also power with the existing CAT5e Ethernet cables to other powered devices such as APs and IP cameras. It can definitely give you the speed you demand and its Plug and Play makes installation easy

Redundant Ring, Fast Recovery for Critical Network Applications
The MGS-6320-8HP2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.

Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

Flexible and Extendable 10Gb Ethernet Solution
10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the MGS-6320-8HP2Xsupports triple speed and 10GBASE-SR/LR or 2500BASE-X and 1000BASE-SX/LX. With its 2-port,10G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGS-6320-8HP2X provides broad bandwidth and powerful processing capacity.

Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for  variety networks, the MGS-6320-8HP2X features the following intelligent PoE management functions:

PD Alive Check
Scheduled Power Recycling
SMTP/SNMP Trap Event Alert
PoE Schedule
PoE Usage Monitoring
PoE Extension

Intelligent Powered Device Alive Check
The MGS-6320-8HP2X can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the MGS-6320-8HP2X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.

Scheduled Power Recycling
The MGS-6320-8HP2X allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

PoE Schedule for Energy Savings
Besides being used for IP surveillance, the MGS-6320-8HP2X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the MGS-6320-8HP2X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.

SMTP/SNMP Trap Event Alert
Though most NVR or camera management software offers SMTP email alert function, the MGS-6320-8HP2X further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.

Convenient and Smart ONVIF Devices with Detection Feature
PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for cooperating with video IP surveillances. From the MGS-6320-8HP2X GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and remotely monitor what is going on in the production line. Moreover, you can get real-time surveillance’s information and online/offline status, and can have PoE reboot control from GUI.

Solution for IPv6 Networking
With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the MGS-6320-8HP2X is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 edge network.

Layer 3 Routing Support
The MGS-6320-8HP2X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP(Routing Information Protocol) or OSPF(Open Shortest Path First) settings automatically.

The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.

The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Robust Layer 2 Features
The MGS-6320-8HP2X can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer2/4 QoS, bandwidth control and IGMP/MLD snooping. The MGS-6320-8HP2X allows the operation of a high-speed trunk combining multiple ports. Supporting 4 trunk groups, it enables a maximum of up to 10 ports per trunk and supports connection fail-over as well.

Powerful Network Security
The MGS-6320-8HP2X offers comprehensive layer2 to layer4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Advanced IP Network Protection
The MGS-6320-8HP2X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.

Efficient Management
For efficient management, the MGS-6320-8HP2X is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port.
For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Intelligent SFP Diagnosis Mechanism
The MGS-6320-8HP2X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Layer 3 VLAN Static Routing and PoE Application
With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the MGS-6320-8HP2X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 1K routing entries. The MGS-6320-8HP2X is certainly a cost-effective and ideal solution for enterprises.

Providing up to 4 Gigabit PoE+ ports and 4 Gigabit PoE++ ports and in-line power interface, the MGS-6320-8HP2X PoE Managed Switch can easily build a centrally-controlled power network shared by wireless Gigabit AP, IP phone system, or mega-pixel IP camera system group for the enterprises.

PoE Wi-Fi Hotspot Solution with Extended Network Infrastructure for Public Spaces
The MGS-6320-8HP2X comes with non-blocking design, desktop size and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing four 1000BASE-T PoE+ ports in-line power interfaces and four 1000/2500BASE-T PoE++ ports in-line power interfaces and two 10 Gigabit SFP interfaces, the MGS-6320-8HP2X can easily build a Networking Authentication on Wireless LAN Controllers system for the enterprises. For instance, it can work with the Wireless Controller and RADIUS Server to perform comprehensive security for wireless user authentication with powered APs.

Key Features

Physical Port
4-Port 10/100/1000BASE-T with 36W 802.3at PoE+ injector function (Port-1 to Port-4)
4-Port 10/100/1000/2500BASE-T with 90W 802.3bt PoE++ injector function (Port-5 to Port-8)
2-port 10GBASE-X SFP+, backward compatible with 1000BASE-X and 2500BASE-X SFP transceivers
RJ45 type RS232 console interface for switch basic management

Power over Ethernet
4 PoE ports with 802.3at PoE+ inject built-in (Port-1 to Port-4)
4 PoE ports with 802.3bt PoE++ inject built-in (Port-5 to Port-8)
Provides up to 95W to 802.3bt/PoH powered devices
Maximum 240-watt PoE budget
Auto detects powered device(PD)
Remote power feeding up to 100M
PoE Isolation
Circuit protection prevents power interference between ports
PoE Management
PoE admin-mode control
PoE usage threshold
Temperature threshold
PoE Port Status monitoring
PD classification detection
Per port PoE function enable/disable
Per PoE port power limit
PoE Port Power feeding priority
PoE extend mode control to support power feeding up to a distance of up to 200 meters
Intelligent PoE features
Temperature threshold control
PoE usage threshold control
PD alive check
PoE schedule

Layer 3 IP Routing Features
IP dynamic routing protocol supports RIPv2, OSPFv2 and OSPFv3
IPv4/IPv6 hardware static routing
Routing interface provides per VLAN routing mode

Layer 2 Features
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
GVRP(GARP VLAN Registration Protocol)
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol(LACP)
Cisco ether-channel (static trunk)
Maximum 4 trunk groups, up to 10 ports per trunk group
Up to 40Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Link Layer Discovery Protocol (LLDP)
Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Supports G.8032 ERPS (Ethernet Ring Protection Switching)

Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP Precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing on the switch port
DSCP remarking

Multicast
Supports IPv4 IGMP Snooping v1, v2 and v3
Supports IPv6 MLD Snooping v1 and v2
Querier mode support
IPv4 IGMP Snooping port filtering
IPv6 MLD Snooping port filtering
Multicast VLAN Registration (MVR) support

Security
Authentication
IEEE 802.1x Port-based/MAC-based network access authentication
Built-in RADIUS client to co-operate with the RADIUS servers
TACACS+ login users access authentication
RADIUS/TACACS+ users access authentication
Access Control List
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC/IP address binding
DHCP Snooping to filter un-trusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
IP address access management to prevent unauthorized intruder

Management
IPv4 and IPv6 dual stack management
Switch Management Interfaces
Web switch management
Console and Telnet Command Line Interface
SNMP v1 and v2c switch management
SSHv2, TLSv1.2 and SNMPv3 secure access
SNMP Management
Four RMON groups (history, statistics, alarms and events)
SNMP trap for interface Linkup and Linkdown notification
IPv6 IP Address/NTP/DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP/TFTP
Reset button for system reboot or reset to factory default
Dual Images
DHCP Relay
DHCP Option82
User Privilege levels control
NTP (Network Time Protocol)
Network Diagnostic
ICMPv6/ICMPv4 Remote Ping
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
SFP-DDM (Digital Diagnostic Monitor)
SMTP, Syslog and SNMP trap remote alarm
System Log
PLANET Smart Discovery Utility for deployment management
PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management
Provides ONVIF for co-operating with PLANET video IP surveillances
