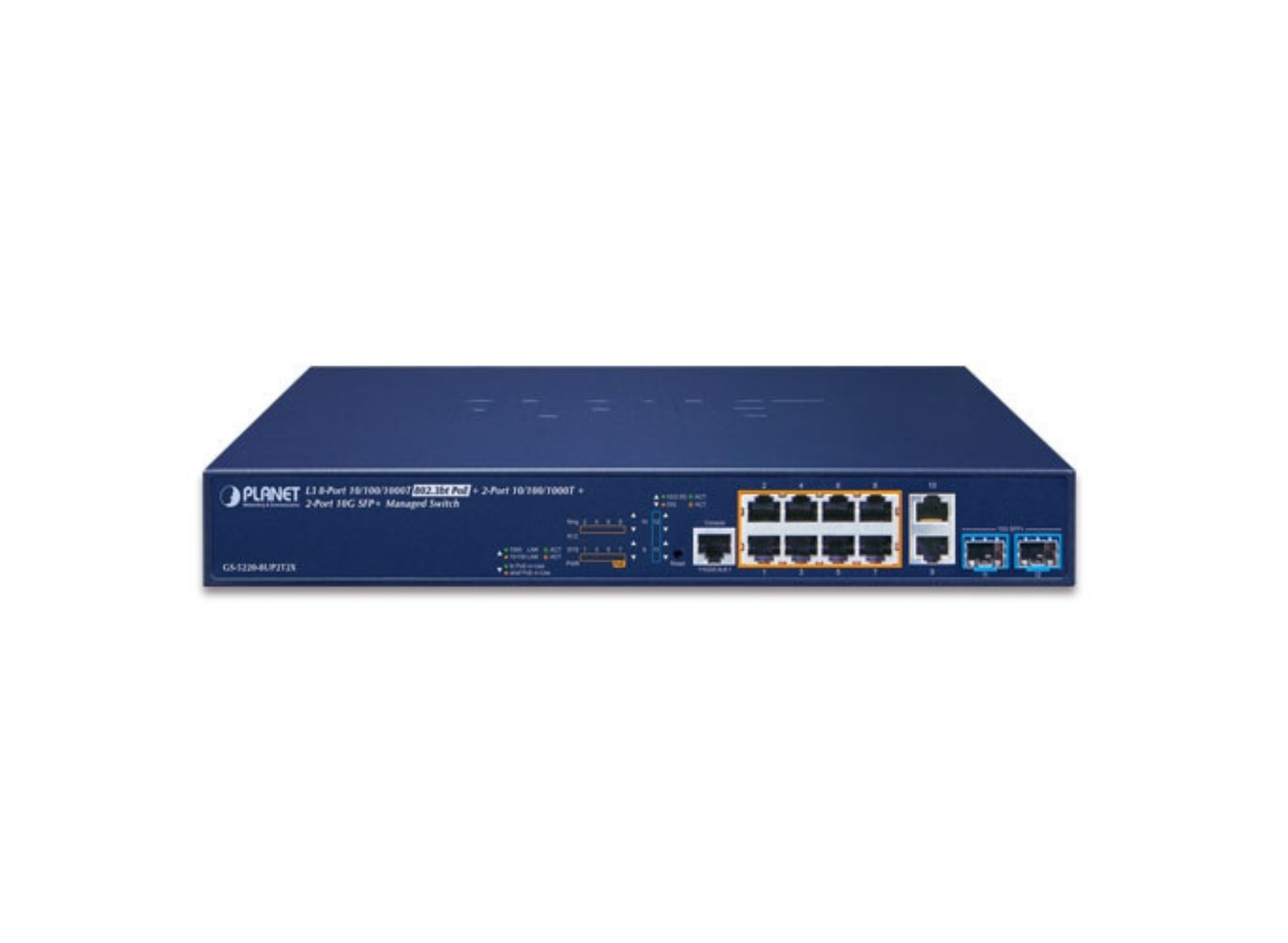

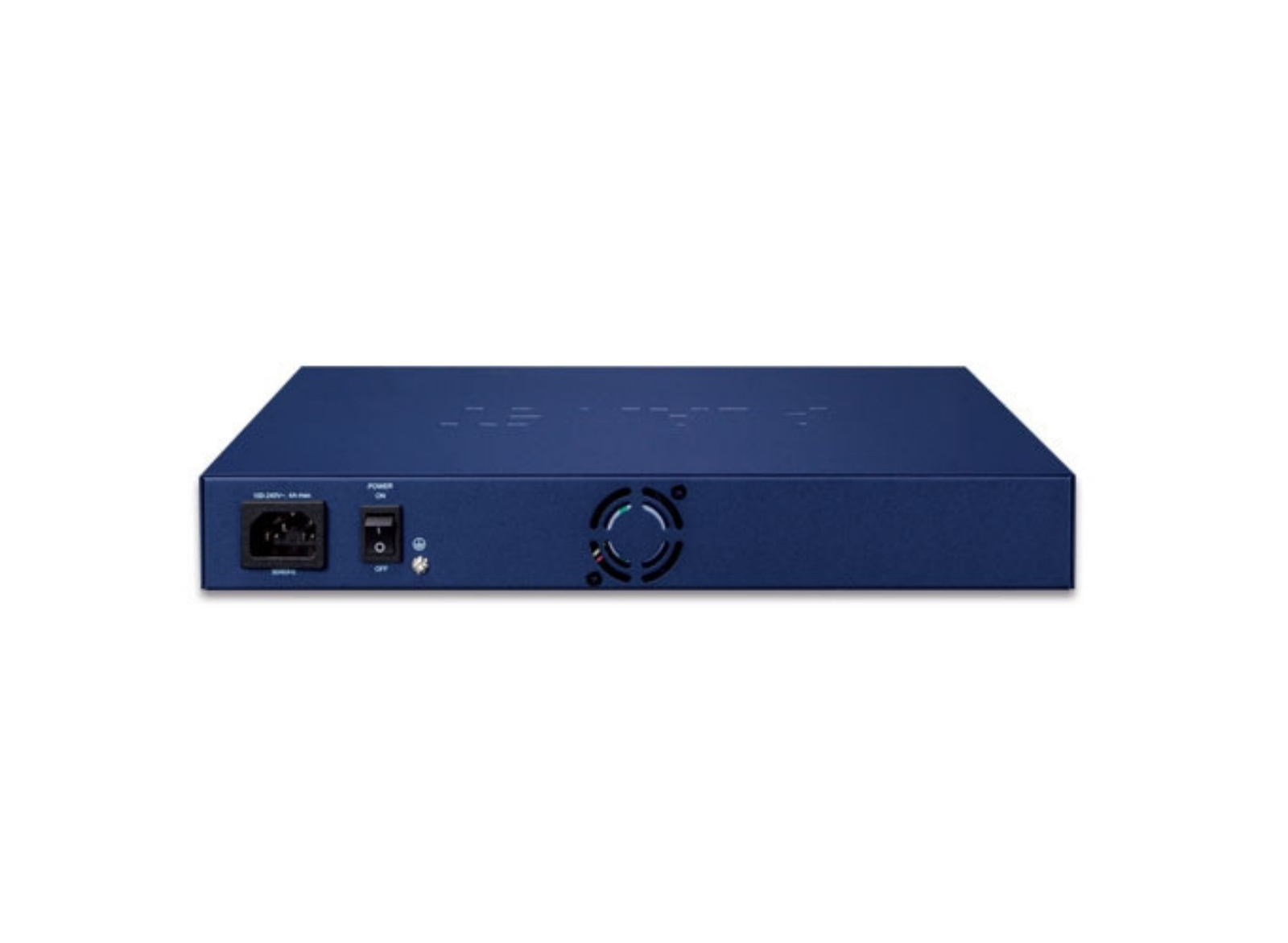

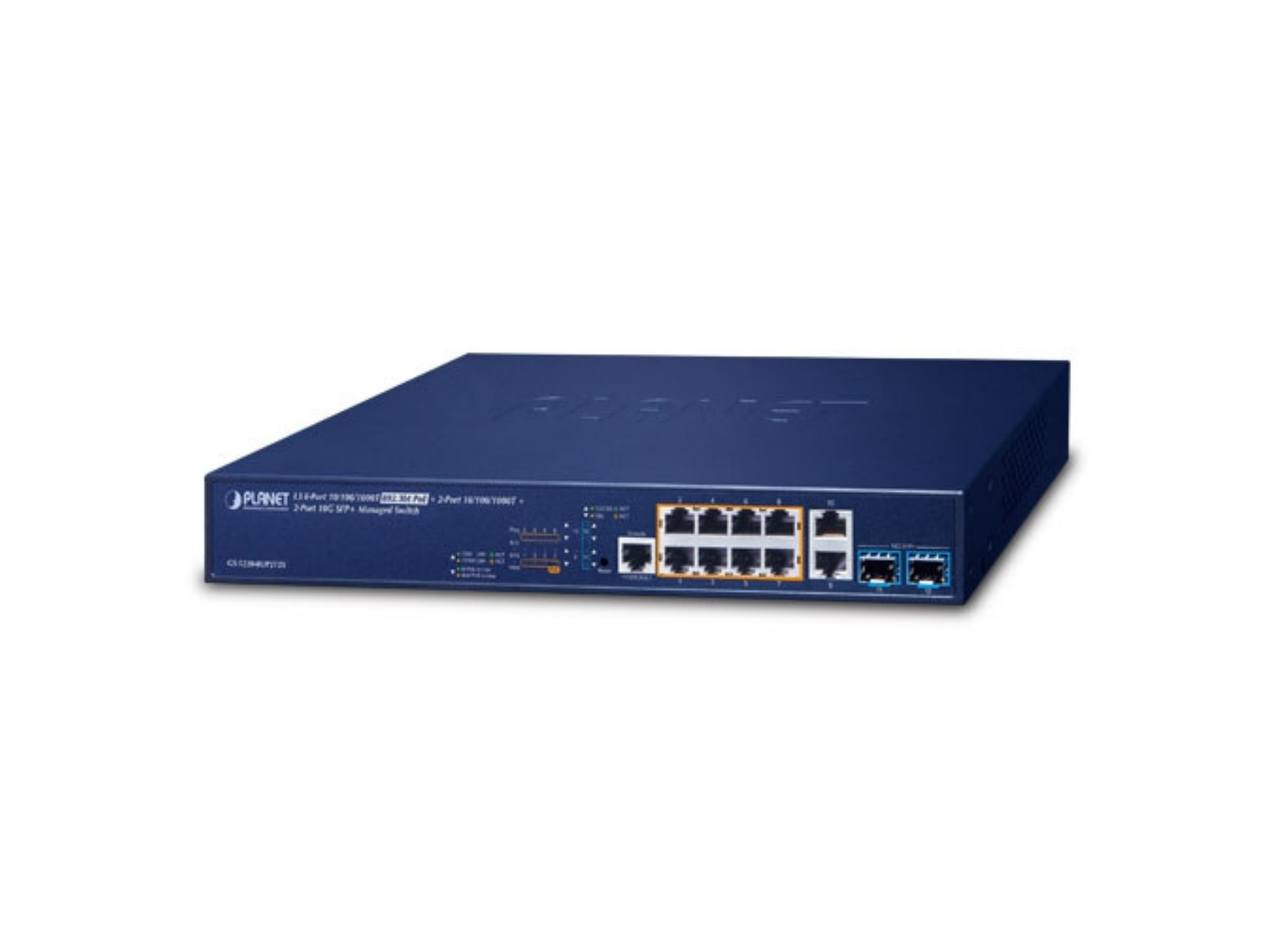

Planet L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 10G SFP+ Managed Switch | GS-5220-8UP2T2X

SKU: GS-5220-8UP2T2X
Part Number: GS-5220-8UP2T2X
Condition: Brand New
Purchase Orders Accepted
Save £55.10 Save £55.10
Original price £389.90
Inc. VAT
Original price £389.90 - Original price £389.90
Original price £389.90

£279.00 (Excl. VAT)

Current price - £334.80 Inc. VAT
£334.80 - £334.80
Current price- - £334.80
(Inc. VAT )
Availability:
Only 5 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Planet L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 10G SFP+ Managed Switch | GS-5220-8UP2T2X

    Perfect 802.3bt PoE++ Managed Switch with L2+/L4 Switching and Security
    PLANET GS-5220-8UP2T2X Layer 3 Managed Gigabit Switch supports both IPv4 and IPv6 protocols and Layer 3 OSPFv2 dynamic routing and static routing, and provides 8 10/100/1000BASE-T ports featuring 95-watt 802.3bt PoE++, 2 additional Gigabit copper ports and another 2 extra 1/2.5/10 Gigabit BASE-X SFP+ fiber slots. Each of the eight Gigabit ports provides 95 watts of power, with a total power budget of up to 240 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.


    95 Watts of Power over 4-pair UTP

    Adopting the IEEE 802.3bt standard, instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), the GS-5220-8UP2TX 802.3bt PoE++ switch provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. It can offer more PoE applications, such as:

     PoE lighting
     PoE PTZ speed dome camera
     Any network device that needs higher PoE power to work normally
     Thin-client
     AIO (All-in-One) touch PC
     Remote digital signage display


    Redundant Ring, Fast Recovery for Critical Network Applications
    The GS-5220-8UP2T2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.


    Cybersecurity Network Solution to Minimize Security Risks

    The cybersecurity feature that virtually needs no effort and cost to have includes the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and TLS protocols are utilized to provide strong protection against advanced threats.

    Flexible and Extendable 10Gb Ethernet Solution
    10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the GS-5220-8UP2T2X supports triple speed and 10GBASE-SR/LR or 2500BASE-X and 1000BASE-SX/LX. With its 2-port,10G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The GS-5220-8UP2T2X provides broad bandwidth and powerful processing capacity.

    Built-in Unique PoE Functions for Surveillance Management
    As a managed PoE Switch for surveillance network, the GS-5220-8UP2T2X features the following intelligent PoE management functions:

     PD Alive Check
     Scheduled Power Recycling
     PoE Schedule
     PoE Usage Monitoring
     PoE Extension

    Intelligent Powered Device Alive Check
    The GS-5220-8UP2T2X can be configured to monitor a connected PD  status in real time via ping action. Once the PD stops working and it is without response, the GS-5220-8UP2T2X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.


    Scheduled Power Recycling

    The GS-5220-8UP2T2X allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.


    PoE Schedule for Energy Saving

    Besides being used for IP surveillance, the GS-5220-8UP2T2X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the GS-5220-8UP2T2X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.


    PoE Usage Monitoring

    Via the power usage chart in the web management interface, the GS-5220-8UP2T2X enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

    802.3bt PoE++ Power and Ethernet Data Transmission Distance Extension
    In the “Extend” operation mode, the GS-5220-8UP2T2X operates on a per-port basis at 10Mbps duplex operation but can support 95-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-5220-8UP2T2X provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.


    SMTP/SNMP Trap Event Alert

    Though most NVR or camera management software offers SMTP email alert function, the GS-5220-8UP2T2X further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.


    Convenient and Smart ONVIF Devices with Detection Feature

    PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From the GS-5220-8UP2T2X GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and remotely monitor what is going on in the production line. Moreover, you can get real-time surveillance’s information and online/offline status, and can have PoE reboot control from GUI.

    Solution for IPv6 Networking
    With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the GS-5220-8UP2T2X is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.


    Layer 3 Routing Support

    The GS-5220-8UP2T2X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

    Robust Layer2 Features
    The GS-5220-8UP2T2X can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220-8UP2T2X allows the operation of a high-speed trunk combining multiple ports. Supporting 6 trunk groups, it enables a maximum of up to 8 ports per trunk and supports connection fail-over as well.

    Powerful Security
    The GS-5220-8UP2T2X offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

    Enhanced Security and Traffic Control
    The GS-5220-8UP2T2X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.

    User-friendly Secure Management
    For efficient management, the GS-5220-8UP2T2X is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, theGS-5220-8UP2T2X offers an easy-to-use, platform independent management and configuration facility. The GS-5220-8UP2T2X supports SNMP and it can be managed via any management software based on the standard SNMP v1 and v2 protocols. For reducing product learning time, the GS-5220-8UP2T2X offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the GS-5220-8UP2T2X offers remote secure management by supporting SSHv2, TLSv1.2 and SNMPv3 connection which can encrypt the packet content at each session.


    Intelligent SFP Diagnosis Mechanism

    The GS-5220-8UP2T2X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

  • Hardware Specifications Details
    Copper Ports 10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X interface with Port-1 to Port-10
    SFP/mini-GBIC Slots 2 x 1G/2.5G/10G BASE-X SFP interfaces with Port-11 to Port-12
    PoE Injector Port 8 ports with 802.3bt/at/af PoE injector function with Port-1 to Port-8
    Console 1 x RJ45 serial port (115200, 8, N, 1)
    Reset Button < 5 sec: System reboot; > 5 sec: Factory default
    Power Requirements 100~240V AC, 50/60Hz
    Power Consumption (Full Loading) 284 watts/969BTU (max.)
    ESD Protection 6KV DC
    Dimensions (W x D x H) 330 x 200 x 43.5 mm, 1U height
    Weight 2.1kg
    LED Indicators System: Ring (Green), R.O (Green), SYS (Green), PWR (Green); 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 10): 1000Mbps LNK/ACT (Green), 10/100Mbps LNK/ACT (Orange), 802.3bt PoE-in-Use (Green) (Port 1 to Port 8), 802.3at/af PoE-in-Use (Orange) (Port 1 to Port 8); 1G/2.5G/10G Mbps SFP Interfaces (Port 11 to Port 12): 1G/2.5G LNK/ACT (Green), 10G Mbps (Orange)
    Switching Specifications
    Switch Architecture Store-and-Forward
    Switch Fabric 60Gbps/non-blocking
    Throughput 44.642Mpps@ 64Bytes packet
    Address Table 16K entries, automatic source address learning and aging
    Shared Data Buffer 16Mbits
    Flow Control IEEE 802.3x pause frame for full-duplex; Back pressure for half-duplex
    Jumbo Frame 9KB
    Power over Ethernet
    PoE Standard 802.3bt PoE++ PSE; Backward compatible with IEEE 802.3at PoE PSE
    PoE Power Supply Type 802.3bt, UPoE, End-span, Mid-span, Force
    PoE Power Output Per port 52V DC; 802.3bt mode, Port-1 to Port-8: maximum 90 watts; UPoE mode, Port-1 to Port-8: maximum 95 watts; Force mode, Port-1 to Port-8: maximum 60 watts; End-span mode: maximum 36 watts; Mid-span mode: maximum 36 watts
    Power Pin Assignment 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-); UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-); End-span: 1/2(-), 3/6(+); Mid-span: 4/5(+), 7/8(-)
    PoE Power Budget 240 watts (max.) @ 25 degrees C; 200 watts (max.) @ 50 degrees C
    Number of 90W 802.3bt Type-4 PDs 2
    Number of 60W 802.3bt Type-3 PDs 4
    Number of 802.3at PDs 8
    PoE Functions
    PoE System Management System PoE Admin control; PoE Legacy mode; Over-temperature threshold alarm; PoE usage threshold alarm
    PoE Port Management Port Enable/Disable/Schedule; PoE mode control: 802.3bt, UPoE, 802.3at End-span, 802.3at Mid-span, Force mode; Port Priority
    PoE Extend Mode Per PoE port, max. 160 to 250 meters
    PoE Device Live Detection Per port remote PD IP address; 4 actions: None, PD reboot, PR reboot and alarm, Alarm
    PoE Power Recycle Yes, daily or predefined schedule
    PoE Schedule 4 schedule profiles
    Layer 2 Functions
    Port Configuration Port disable/enable; Auto-negotiation 10/100/1000Mbps full and half duplex mode selection; Flow Control disable/enable; Port Status: Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
    Port Mirroring TX/RX/Both; Many-to-1 monitor
    VLAN 802.1Q tagged based VLAN, up to 4K VLAN groups; Q-in-Q tunneling; Private VLAN Edge (PVE); MAC-based VLAN; Protocol-based VLAN; Voice VLAN; MVR (Multicast VLAN Registration); GVRP; Up to 4K VLAN groups, out of 4094 VLAN IDs
    Link Aggregation IEEE 802.3ad LACP/Static Trunk; Supports 6 trunk groups with 4 ports per trunk
    QoS Traffic classification based, strict priority and WRR; 8-level priority for switching: Port number, 802.1p priority, 802.1Q VLAN tag, DSCP/TOS field in IP packet
    IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping; IPv4 IGMP querier mode support; Supports 255 IGMP groups
    MLD Snooping IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support; Supports 255 MLD groups
    Access Control List IP-based ACL/MAC-based ACL; ACL based on: MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority; Up to 256 entries
    Bandwidth Control Per port bandwidth control: Ingress: 10Kbps13000Mbps; Egress: 10Kbps13000Mbps
    Layer 3 Functions
    IP Interfaces Max. 128 VLAN interfaces
    Routing Table Max. 128 routing entries
    Routing Protocols IPv4 OSPFv2 dynamic routing; IPv4 hardware static routing; IPv6 hardware static routing
    Management
    Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
    Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3
    Management Functions Firmware upgrade by HTTP/TFTP protocol through Ethernet network; Remote syslog and local system log; LLDP protocol; SNTP; PLANET Smart Discovery Utility
    ONVIF ONVIF device discovery; ONVIF device monitoring; Floor Map
    SNMP MIBs RFC 1213 MIB-II; RFC 2863 IF-MIB; RFC 1643 Ethernet MIB; RFC 2863 Interface MIB; RFC 2665 Ether-Like MIB; RFC 2737 Entity MIB; RFC 2819 RMON MIB (Groups 1, 2, 3 and 9); RFC 2618 RADIUS Client MIB; RFC 3411 SNMP-Frameworks-MIB; RFC 3621 Power Ethernet MIB; IEEE 802.1X PAE; LLDP; MAU-MIB
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3z 1000BASE-SX/LX; IEEE 802.3ab 1000BASE-T; IEEE 802.3ae 10Gb/s Ethernet; IEEE 802.3x flow control and back pressure; IEEE 802.3ad port trunk with LACP; IEEE 802.1D Spanning Tree Protocol; IEEE 802.1w Rapid Spanning Tree Protocol; IEEE 802.1s Multiple Spanning Tree Protocol; IEEE 802.1p Class of Service; IEEE 802.1Q VLAN tagging; IEEE 802.1x Port Authentication Network Control; IEEE 802.1ab LLDP; IEEE 802.3af Power over Ethernet; IEEE 802.3at Power over Ethernet Plus; IEEE 802.3bt 4-pair Power over Ethernet Plus Plus; RFC 768 UDP; RFC 793 TFTP; RFC 791 IP; RFC 792 ICMP; RFC 2068 HTTP; RFC 1112 IGMP v1; RFC 2236 IGMP v2; RFC 3376 IGMP v3; RFC 2710 MLD v1; FRC 3810 MLD v2; RFC 2328 OSPF v2
    Environments
    Operating Temperature: 0 ~ 50 degrees C; Relative Humidity: 5 ~ 95% (non-condensing)
    Storage Temperature: -10 ~ 70 degrees C; Relative Humidity: 5 ~ 95% (non-condensing)
