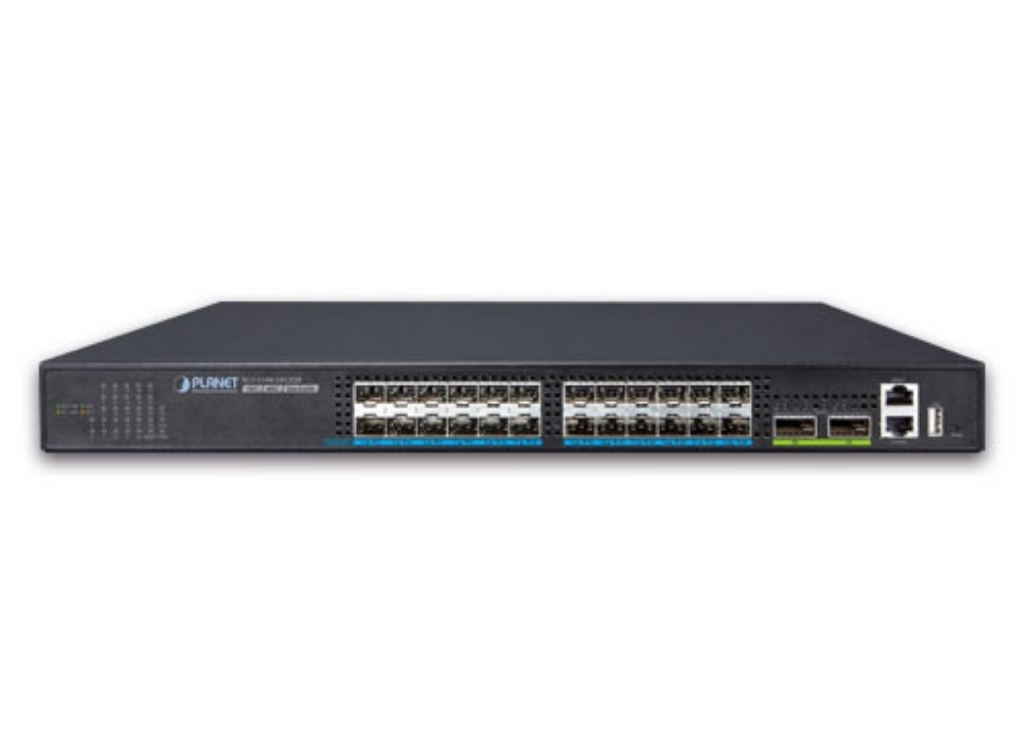

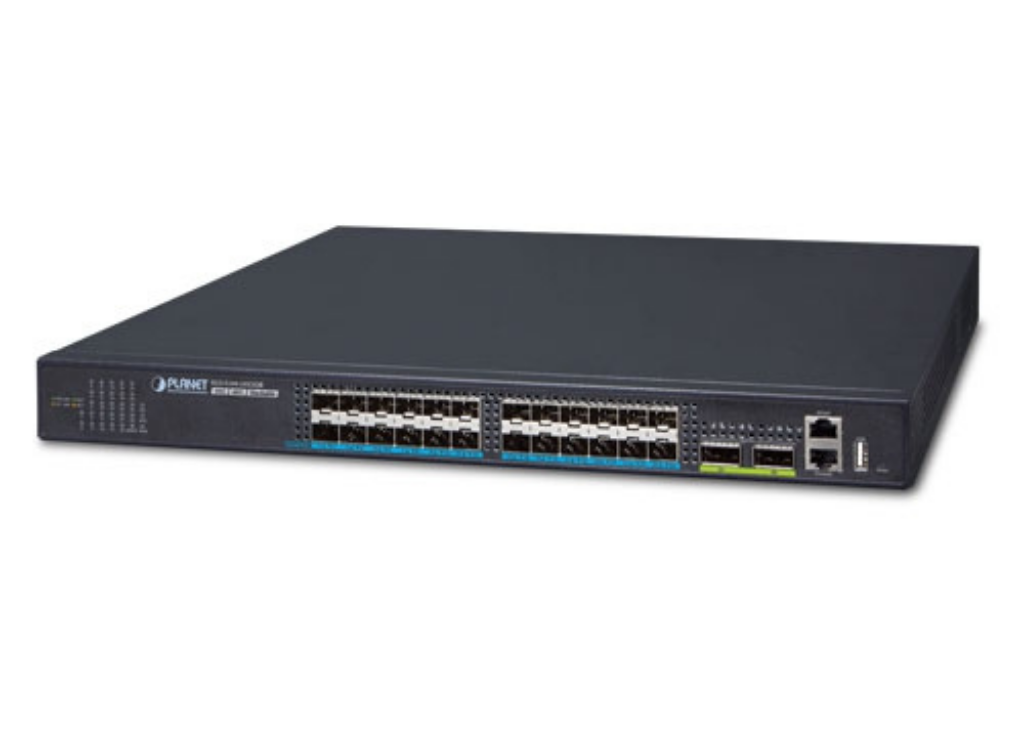

Planet Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch

Powerfully-combined 40Gbps Solution for High-capacity Networks
PLANET XGS-5240-24X2QR is a high performance Layer 2+ Stackable Managed Switch that meets the next generation Metro, Data Center, Campus and Enterprise network requirements. It supports IPv4/IPv6 Layer 3 static routing capability and abundant L2/L4 switching engine, and provides high-density 24 10G SFP+ and 2 40G QSFP+ fiber interfaces delivered in a 1U rugged case. Up to 4 switches with a total of 96 10G SFP+ slots can be stacked up, making the management of a high-capacity network and all-purpose applications easier and more flexible.

Totaling 640Gbps Switching Capacity
The XGS-5240-24X2QR provides twenty-four 10Gbps SFP+ and two 40Gbps QSFP+ fiber interfaces. Each of the SFP+ slots supports Dual Speed, 10GBASE-SR/LR or 1000BASE-SX/LX and each of the QSFP+ slots supports native 40GBASE-SR/LR and four 10GBASE-SR/LR Ethernet modes.

The administrator can flexibly choose the suitable transceivers according to the transmission distance or the transmission speed required extending the 1G/10G/40G networks efficiently. Besides, with 640Gbps switching capacity, the XGS-5240-24X2QR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers where audio, video streaming and multicast applications are utilized.

Centralized IP Stacking Management
Positioned as the distribution or aggregation layer switch for large networks, the XGS-5240-24X2QR supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP stacking technology groups the XGS-5240-24X2QR switches together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network.

High Reliability Hardware Stacking
Using two user specified QSFP+ ports or SFP+ ports to connect up to 4 switches in the same series and build a virtually logical facility, the XGS-5240-24X2QR gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The stack redundancy of the XGS-5240-24X2QR ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

AC and DC Redundant Power to Ensure Continuous Operation

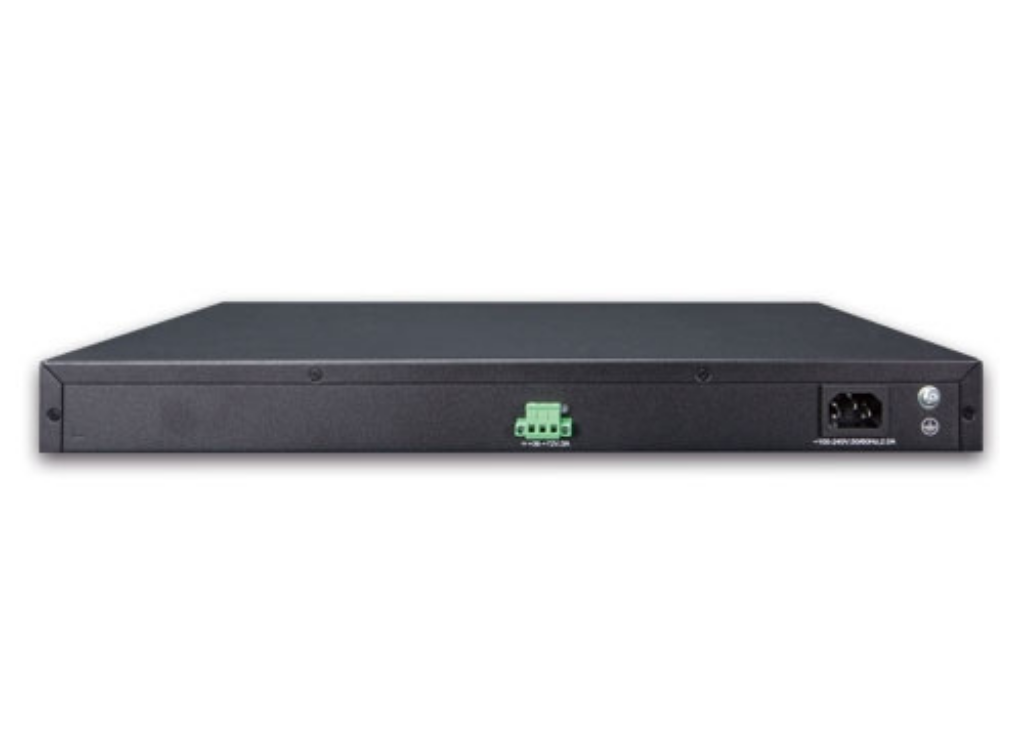

The XGS-5240-24X2QR is equipped with one 100~240V AC power supply unit and one additional 36-72V DC power supply unit for redundant power supply. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
To help customer stay on top of business, the XGS-5240-24X2QR not only offers ultra-high transmission performance, but also IPv4/IPv6 VLAN routing feature which allows to cross over different VLAN groups and IP addresses for the purpose of having a highly-secure, flexible management.

Robust Layer 2 Features
The XGS-5240-24X2QR can be programmed for basic switch management functions such as dynamic port aggregation, Multiple Spanning Tree Protocol (MSTP), L2/L4 QoS bandwidth control, IPv4 IGMP snooping and IPv6 MLD snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. By supporting port aggregation, the XGS-5240-24X2QR allows the operation of a high-speed trunk combined with multiple ports.

Efficient and Secure Management
For efficient management, the XGS-5240-24X2QR is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS-5240-24X2QR offers an easy-to-use, platform-independent management and configuration facility. For reducing product learning time, the XGS-5240-24X2QR offers Cisco-like command via Telnet or console port so that users do not need to learn new command.

The XGS-5240-24X2QR supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. Moreover, the XGS-5240-24X2QR offers secure remote management by supporting SNMPv3, SSH and SSL connection which encrypts the packet content at each session.

Enhanced Security
The XGS-5240-24X2QR offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network application. Their protection mechanism also comprises 802.1x Port-based and MAC-based customer and device authentication. As to private VLAN function, communications between edge ports can be protected to ensure customer privacy. The XGS-5240-24X2QR also provides functions of DHCP snooping, Option 82 and ARP guard, and Anti-ARP scanning so as to prevent IP from attacking and discarding ARP packets with invalid MAC address. The network administrators can now construct a highly-secure corporate network with considerably less time and effort than before.

Intelligent SFP Diagnosis Mechanism
The XGS-5240-24X2QR supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP+, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Applications

High Availability Mesh Networking Solution for Big Data System
By means of improving the technology of optical fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the XGS-5240-24X2QR offers up to 640Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km (single-mode fiber). The XGS-5240-24X2QR features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Multiple Spanning Tree Protocol (802.1s MSTP) into customer’s automation network to enhance system reliability and uptime. The XGS-5240-24X2QR is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

Triple Play Service of Backbone Network Solution
In telecommunications, triple play service is a marketing term for the provisioning over a single broadband connection of more bandwidth-intensive services, such as broadband Internet access, television and the latency-sensitive telephone. The XGS-5240-24X2QR provides up to 640Gbps bandwidth to exchange data, voice and video packets via fiber patch cable. It’s the suitable aggregation switch for ISPs and Telcos that builds a heavy traffic backbone network infrastructure.

Layer 3 VLAN Routing and 40G Uplink Application
With the built-in Layer 3 static routing ability, the XGS-5240-24X2QR ensures reliable routing between VLANs and network segments. The XGS-5240-24X2QR, the ideal solution for enterprises, offers greater security, control and bandwidth conservation, and high-speed uplink.

Key Features

Physical Port
24 10GBASE-SR/LR SFP+ ports, compatible with 1000BASE-SX/LX/BX SFP
2 QSFP+ slots with each supporting native 40G and four 10 Gigabit Ethernet modes.
1 10/100/1000BASE-T RJ45 in-band management port
1 USB2.0 interface for configuration and firmware storage
RJ45 console interface for switch basic management and setup

Stacking Features
Hardware Stacking
- Virtualized multiple XGS-5240-24X2QR switches into one logical device
- Connects with stack member via assigned 10G SFP+ interfaces or 40G QSFP+ interfaces
- Single IP address stack management, supporting up to 4 switches stacked together
- Stacking architecture supports redundancy Ring mode
IP Stacking
- Connects with stack member via both SFP+ and QSFP+ interfaces
- Single IP address management, supporting up to 24 units stacked together

IP Routing Features
IP routing protocol supports
Routing interface provides per VLAN routing mode
Supports route redistribution

Layer 2 Features
Prevents packet loss flow control
- IEEE 802.3x pause frame flow control in full-duplex mode
- Back-pressure flow control in half-duplex mode
High performance Store-and-Forward architecture, broadcast storm control and port loopback detection
32K MAC address table, automatic source address learning and aging
Supports VLAN
- IEEE 802.1Q tag-based VLAN
- GVRP for dynamic VLAN management
- Up to 256 VLANs groups, out of 4041 VLAN IDs
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- Private VLAN Edge (PVE) supported
- GVRP protocol for Management VLAN
- Protocol-based VLAN
- MAC-based VLAN
- IP subnet VLAN
Supports Link Aggregation
- Maximum 12 trunk groups, up to 8 ports per trunk group
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Cisco ether-channel (static trunk)
Supports Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
- Supports BPDU and root guard
Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
Provides port mirror (many-to-1)

Quality of Service
8 priority queues on all switch ports
Support for strict priority and WRR (Weighted Round Robin) CoS policies
Traffic classification
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
Strict priority and WRR CoS policies

Multicast
Supports IPv4 IGMP snooping v1, v2 and v3
Supports IPv6 MLD v1 and v2 snooping
Querier mode support
Supports Multicast VLAN Register (MVR)

Security
IEEE 802.1x port-based network access authentication
MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
TACACS+ login users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Supports DHCP snooping
Supports ARP inspection
IP Source Guard prevents IP spoofing attacks
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

Management
Management IP for IPv4 and IPv6
Switch Management Interface
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c, and v3 switch management
- SSH/SSL secure access
BOOTP and DHCP for IP address assignment
Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
SNTP (Simple Network Time Protocol) for IPv4 and IPv6
User privilege levels control
Syslog server for IPv4 and IPv6
Supports DDM
OAM EFM; OAM CFM
Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
Supports sFlow
Supports ULDP
Supports ULPP (Uplink Protection Protocol)
Supports ULSM (Uplink State Monitor Protocol)
Supports LLDP/LLDP MED
Supports DHCP Option82
IPv4/IPv6 DHCP Client
IPv4/IPv6 DHCP Relay
IPv4/IPv6 DHCP Snooping
IPv4/IPv6 DHCP Server
Supports ping, trace route function for IPv4 and IPv6

Redundant Power System
Redundant 100~240V AC/36-72V DC dual power
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
