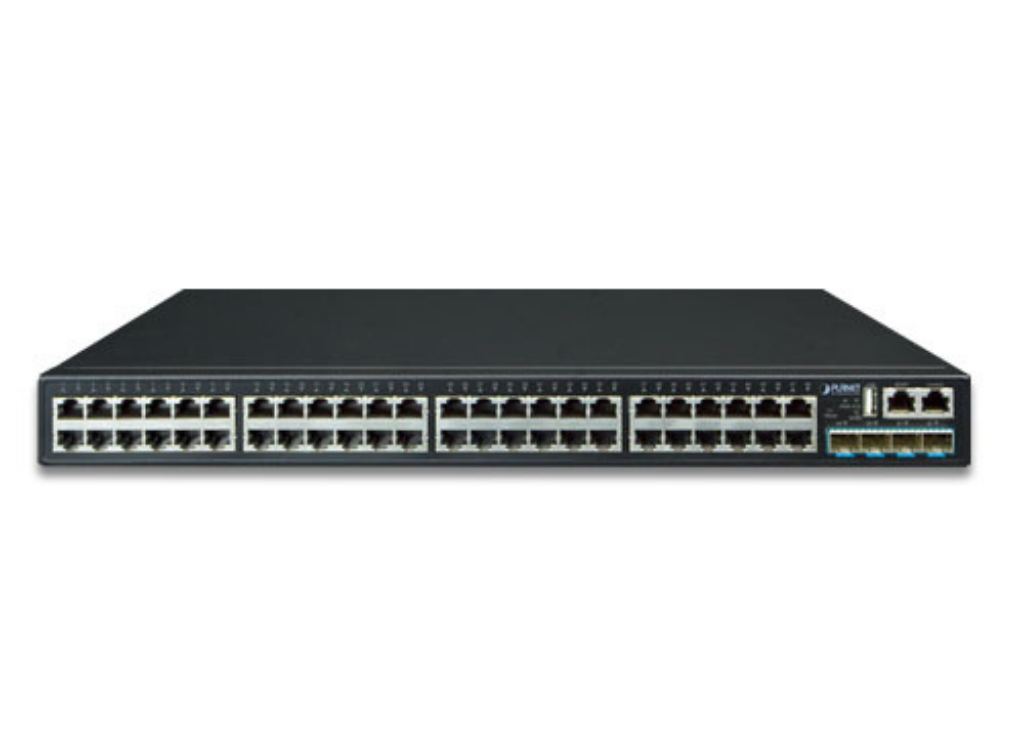

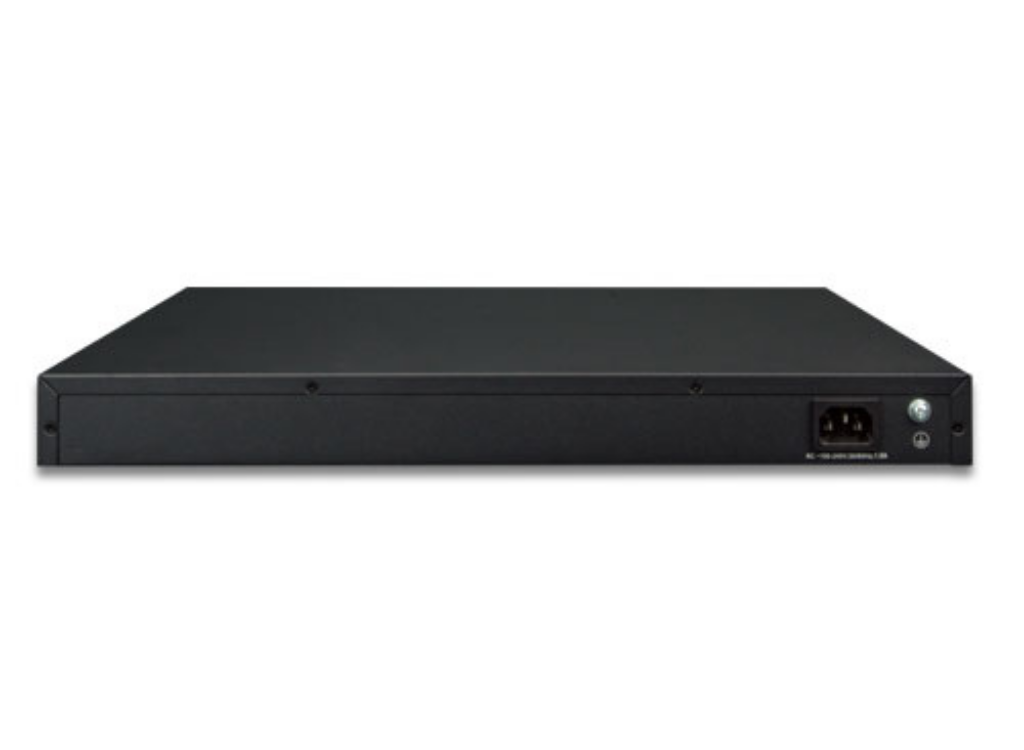

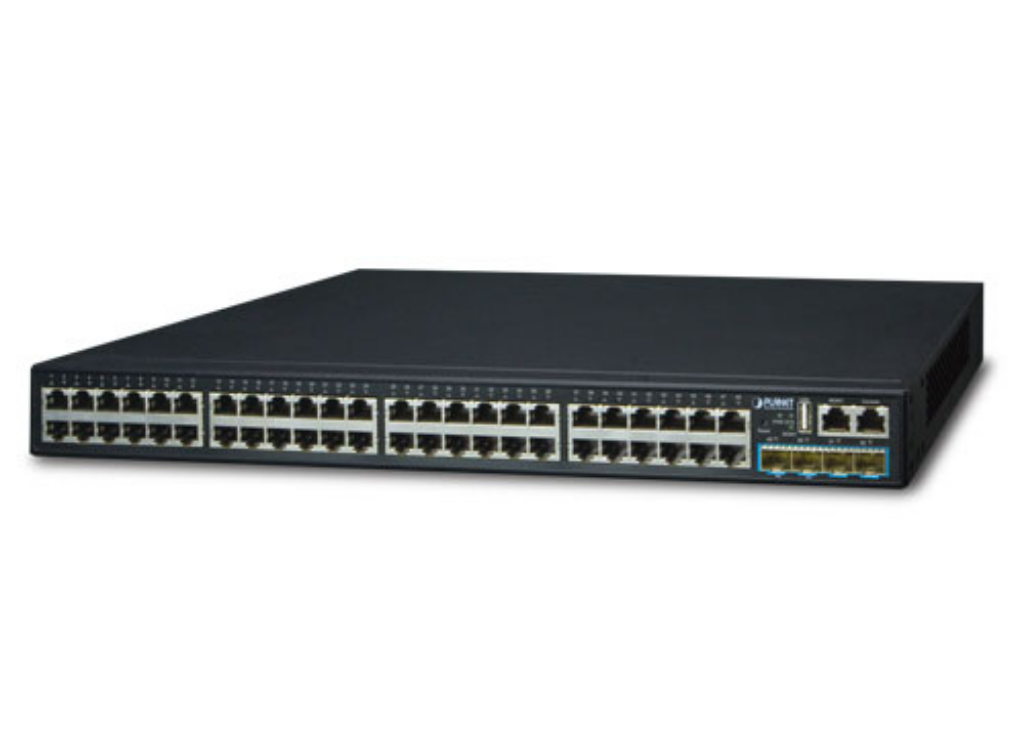

Planet Layer 3 48-Port 10/100/1000T + 4-Port 10G SFP+ Stackable Managed Switch | SGS-6341-48T4X

SKU: SGS-6341-48T4X
Part Number: SGS-6341-48T4X
Condition: Brand New
Purchase Orders Accepted
Save £80.13 Save £80.13
Original price £890.90
Inc. VAT
Original price £890.90 - Original price £890.90
Original price £890.90

£675.64 (Excl. VAT)

Current price - £810.77 Inc. VAT
£810.77 - £810.77
Current price- - £810.77
(Inc. VAT )
Availability:
Only 2 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet Layer 3 48-Port 10/100/1000T + 4-Port 10G SFP+ Stackable Managed Switch | SGS-6341-48T4X

    Powerful Layer 3 Routing Solution for Enterprise and Data Center Networks
    PLANET SGS-6341-48T4X is a Layer 3 Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 176Gbps switching fabric and 4 10Gbps uplink ports, the SGS-6341-48T4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The powerful WRR (Weighted Round Robin) and network security features make the SGS-6341-48T4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.


    High Performance 10Gbps Ethernet Capacity

    The four SFP+ slots built in the SGS-6341-48T4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 176Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

    IP Stacking Management
    The SGS-6341-48T4X supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP Stacking technology groups PLANET SGS-6341 switch series together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network.


    Layer 3 Routing Support

    The SGS-6341-48T4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, and the RIP or OSPF settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

    Full IPv6 Support
    The SGS-6341-48T4X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.

    Robust Layer 2 Features
    The SGS-6341-48T4X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the SGS-6341-48T4X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 16 groups for trunking with a maximum of 8 ports for each group.


    Excellent Layer 2 to Layer 4 Traffic Control

    The SGS-6341-48T4X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.

    Powerful Security
    The SGS-6341-48T4X supports ACL policies comprehensively. The traffic can be classified by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic.
    The SGS-6341-48T4X also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users.

    Efficient and Secure Management
    For efficient management, the SGS-6341-48T4X Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the SGS-6341-48T4X offers an easy-to-use, platform-independent management and configuration facility. The SGS-6341-48T4X supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software.
    For reducing product learning time, the SGS-6341-48T4X offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the SGS-6341-48T4X offers secure remote management by supporting SSH connection which encrypts the packet content at each session.


    Intelligent SFP Diagnosis Mechanism

    The SGS-6341-48T4X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

  • Category Specification
    Hardware Specifications
    Copper Ports 48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
    SFP+ Slots 4 10GBASE-SR/LR SFP+ interface (port-49 to port-52), Compatible with 1000BASE-SX/LX/BX SFP transceiver
    Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
    Switch Architecture Store-and-forward
    Switch Fabric 176Gbps/non-blocking
    Switch Throughput 130.95Mpps
    Address Table 16K MAC address table with auto learning function
    Shared Data Buffer 1.5MB
    Flow Control Back pressure for half-duplex, IEEE 802.3x pause frame for full-duplex
    Jumbo Frame 10KB
    LED System: PWR/MGMT/SYS, Ports: 10/100/1000T RJ45 Port: LNK/ACT, 1/10G SFP+ slot: LNK/ACT
    Dimensions (W x D x H) 440 x 240 x 43.6 mm, 1U height
    Weight 3471g
    Power Consumption 46.4 watts/158.22 BTU
    Power Requirements AC 100~240V, 50/60Hz
    Management Function
    System Configuration Console, Telnet, SSHv2, Web browser, SSL, SNMP v1, v2c and v3
    Management Supports both IPv4 and IPv6 addressing
    Supports the user IP security inspection for IPv4/IPv6 SNMP
    Supports MIB and TRAP
    Supports IPv4/IPv6 FTP/TFTP
    Supports IPv4/IPv6 NTP
    Supports RMON 1, 2, 3, 9 four groups
    Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
    Supports IPv4/IPv6 SSH
    The right configuration for users to adopt RADIUS server’s shell management
    Supports CLI, console, Telnet
    Supports SNMP v1, v2c and v3
    Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
    Supports Syslog server for IPv4 and IPv6
    Supports TACACS+
    Supports G.8032 ERPS (Ethernet Ring Protection Switching)
    IPv4 Layer 3 functions
    IP Routing Protocol Static route, RIPv1/v2, OSPFv2, BGPv4, Policy-based routing (PBR), LPM routing (MD5 authentication)
    Multicast Routing Protocol IGMP v1/v2/v3, DVMRP, PIM-DM/SM, PIM-SSM
    Layer 3 Protocol VRRP v1/v3, ARP, ARP Proxy
    IPv6 Layer 3 functions
    IP Routing Protocol RIPng, OSPFv3, BGPv4+, IPv6 LPM Routing, IPv6 Policy-based Routing (PBR), IPv6 VRRPv3, IPv6 URPF, IPv6 RA
    Multicast Routing Protocol PIM-SM/DM for IPv6, MLD for IPv6 (v1), MLDv1/v2, MLD Snooping, 6to4 Tunnels, IPv6 Any Cast RP, Multicast receive control, Illegal multicast source detect
    Layer 3 Protocol Configured Tunnels, ISATAP, GRE Tunnel
    Other ICMPv6, ND, DNSv6
    Layer 2 Function
    Port Configuration Port disable/enable, Auto-negotiation 10/100/1000Mbps full and half duplex mode selection, Flow control disable/enable, Bandwidth control on each port, Port loopback detect, Port Status: Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
    VLAN 802.1Q tagged based VLAN, up to 256 VLAN groups, 802.1ad Q-in-Q (VLAN stacking), GVRP for VLAN management, Private VLAN Edge (PVE) supported, Protocol-based VLAN, MAC-based VLAN, IP subnet VLAN
    Bandwidth Control TX/RX/Both
    Link Aggregation IEEE 802.3ad LACP/static trunk, Supports 128 groups with 8 ports per trunk group
    QoS 8 priority queues on all switch ports, Supports strict priority and Weighted Round Robin (WRR) CoS policies, Traffic classification: IEEE 802.1p CoS/ToS, IPv4/IPv6 DSCP, Port-based WRR
    Ring Supports ITU-G G.8032 ERPS
    Multicast IGMP v1/v2/v3 snooping, Querier mode support, MLD v1/v2 snooping, Multicast VLAN Register (MVR), Up to 4K multicast groups (IPv4 + IPv6)
    Access Control List Supports Standard and Expanded ACL, IP-based ACL/MAC-based ACL, Time-based ACL, Up to 512 entries
    Security Supports MAC + port binding, IPv4/IPv6 + MAC + port binding, IPv4/IPv6 + port binding, Supports MAC filter, ARP scanning prevention
    Authentication IEEE 802.1x port-based network access control, AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
    SNMP MIBs RFC 1213 MIB-II, RFC 1215 Internet Engineering Task Force, RFC 1271 RMON, RFC 1354 IP-Forwarding MIB, RFC 1493 Bridge MIB, RFC 1643 Ether-like MIB, RFC 1907 SNMP v2, RFC 2011 IP/ICMP MIB, RFC 2012 TCP MIB, RFC 2013 UDP MIB, RFC 2096 IP forward MIB, RFC 2233 if MIB, RFC 2452 TCP6 MIB, RFC 2454 UDP6 MIB, RFC 2465 IPv6 MIB, RFC 2466 ICMP6 MIB, RFC 2573 SNMP v3 notify, RFC 2574 SNMP v3 vacm, RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB), RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
    Standard Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z Gigabit 1000BASE-SX/LX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3ae 10Gb/s Ethernet, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1X port authentication network control, IEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP v1, RFC 2236 IGMP v2, RFC 3376 IGMP v3, RFC 2710 MLD v1, FRC 3810 MLD v2, RFC 2328 OSPF v2, RFC 1058 RIP v1, RFC 2453 RIP v2
    Environment
    Operating Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 90% (non-condensing)
    Storage Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 90% (non-condensing)
