Build a Smart IoT Environment with Fabulous LoRaWAN sensor

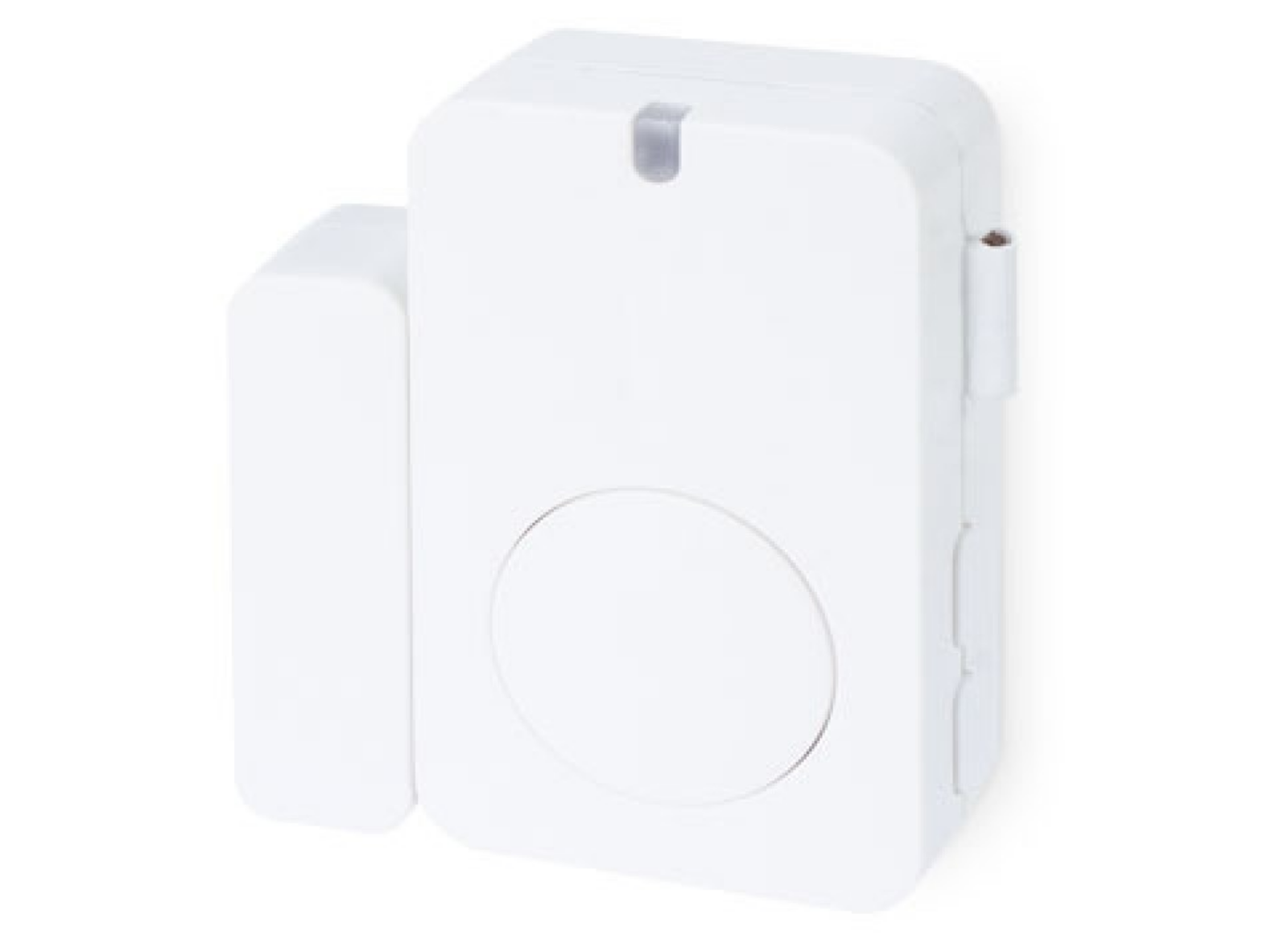

PLANET LS100-DW IP30 LoRaWAN Indoor Occupancy Sensor, which offers an elegant solution for real-time monitoring of building entrances. Apart from enhanced security measures, it contributes to energy management by providing data support. Through LoRaWAN connectivity, this sensor delivers real-time status updates on doors and windows, improving energy efficiency and access control.
Key Features
Door and Window contact Sensor
IP30 rating
LoRaWAN™ Class A compatible
| Technology | LoRaWAN | Frequency | LS100-DW-EU868: 863–870 MHz; LS100-DW-US915: 902–928 MHz |
| TX Power | EU868: 16dbm; IN865: 20dbm optional; US915: 20dbm; AS923: 16dbm optional; AU915: 20dbm optional; KR920: 14dbm optional | Rx Sensitivity | -136dBm LoRa SF12 293bps; -121dBm FSK 5kHz 1.2kbps |
| Work Mode | OTAA/ABP Class A | Power Supply | 2x 3.0V CR2450 button battery (Battery not included) |
| Operating Voltage | DC 2.4V～3V | Battery Life Time | 3 years (25C, 15-minute reports, TxPower=20dBm, SF10) |
| Standby Current | 12uA | Wake-up Current | 120mA/11mA typical value |
| Low Battery Threshold | 2.4V | Dimensions | 57 x 38.05 x 15.2 mm; 42.5 x 13 x 12 mm (Magnet) |
| Weight | 43.8g | Ingress Protection | IP30 |
| Operating Temperature | -20°C to 55°C | Relative Humidity | <90% RH (non-condensing) |
| Storage Temperature | -40°C ~ 85°C | Regulatory Compliance | FCC PART 15B |
| Description | Downloads |
|---|---|
| Datasheet | Download |
