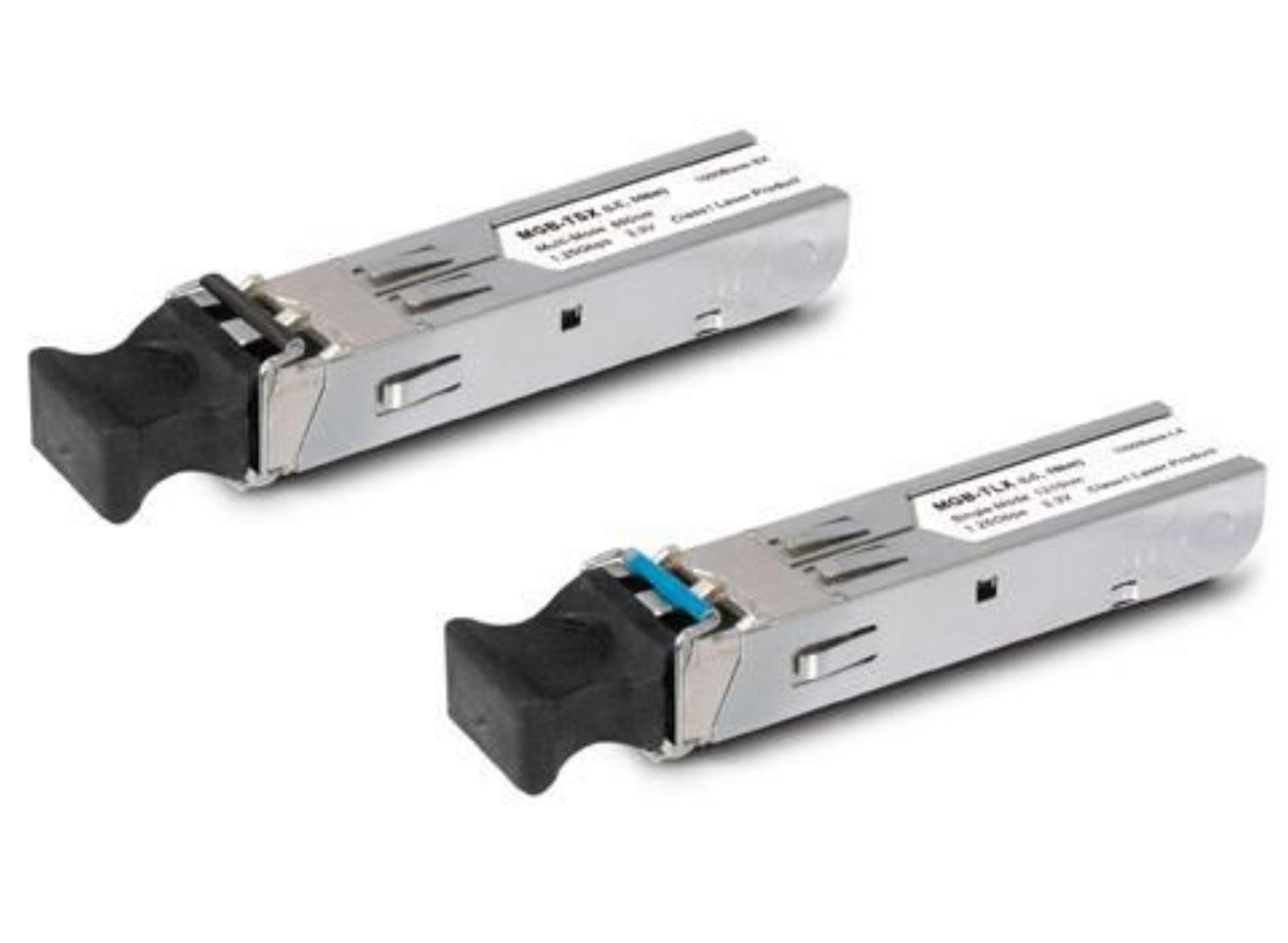

Planet MGB-LA20 SFP Module, 1000BASE-BX, 20km, 1310nm WDM, LC
SKU: MGB-LA20
£17.55 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Gigabit BX SFP Module for Long-Range Fiber Transmission (20km)
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.
The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).
To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.
-
Hot-Plug support Yes Plug and Play Yes Country of Origin Taiwan EU ECCN Code N/A Tariff No. 8517620000 UNSPSC Code 43201553 US ECCN Code 5A992 Operating temperature (T-T) 0 - 60 °C Depth (package,cm) 41 cm Gross Weight (Package, kg) 0.06 kg Height (package,cm) 28 cm Width (package,cm) 31.5 cm Fiber optic connector LC Interface type SFP Maximum data transfer rate 1000 Mbit/s Maximum transfer distance 20000 m Multi-mode fiber (MMF) supported No Networking standards IEEE 802.3ah SFP transceiver standard BX SFP transceiver type Fiber optic Single-mode fiber (SMF) supported Yes Wavelength 1310 nm Wavelength-division multiplexing (WDM) Yes Net Weight (Product, kg) 0.01 kg Product Depth 1.34 cm Product Height 1.5 cm Product Width 7 cm Brand Name Planet Warranty 3 Year(s) -
Description Downloads Datasheet Download
