Quick and Easy Gigabit High Power PoE Network Deployment
PLANET POE-171S Gigabit ultra Power over Ethernet splitter delivers the Ethernet digital data with DC 56V power over the twisted pair cables as an IEEE 802.3at/af Gigabit high Power over Ethernet splitter, and it separates the digital data and the power into three optional outputs (12V / 19V /24V DC) and distance up to 100 meters. If the POE-171S co-works with PLANET POE-171 (60-watt IEEE 802.3at PoE injector), it can offer more PoE applications, such as:
PoE PTZ Speed Dome
Other Network devices that need higher PoE power to work normally
Thin-client
AIO(All-in-One) touch PC
Remote digital signage display
The POE-171S frees the device deployment from restrictions due to power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time.
50 watts of Power over 4-Pair UTP
The POE-171S and POE-171 ultra PoE solution use cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-span (Pin 1,2,3 and 6) or Mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 50 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.
Cost-effective and Easy Cabling Installation
In the IEEE 802.3at Gigabit high Power over Ethernet devices installed, the system administrator only has to connect one single RJ-45 Ethernet cable to carry both power and data from an IEEE 802.3at/af PoE injector to POE-171S, and then the POE-171S splits data and DC power to any of IP networking devices. Besides, to connect through IEEE 802.3at Power over Ethernet injector and POE-171S, you can also have the benefits of cost saving, easy networking planning and higher reliability. Upon the completion of the installation of IEEE 802.3at compliant devices, the POE-171S, when functioning with the POE-171, can make the connection while migrating or splitting the power and the Ethernet digital packets, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other Network devices that need 50-watt high power to work normally.
Applications
Ultra PoE Splitter and Injector Installation:
For a place which is hard to find the power inlet, the POE-171S and PLANET Ultra PoE Injector - POE-171 or POE-173, operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-171S separates digital data and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as laptops, PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
Key Features
Interface

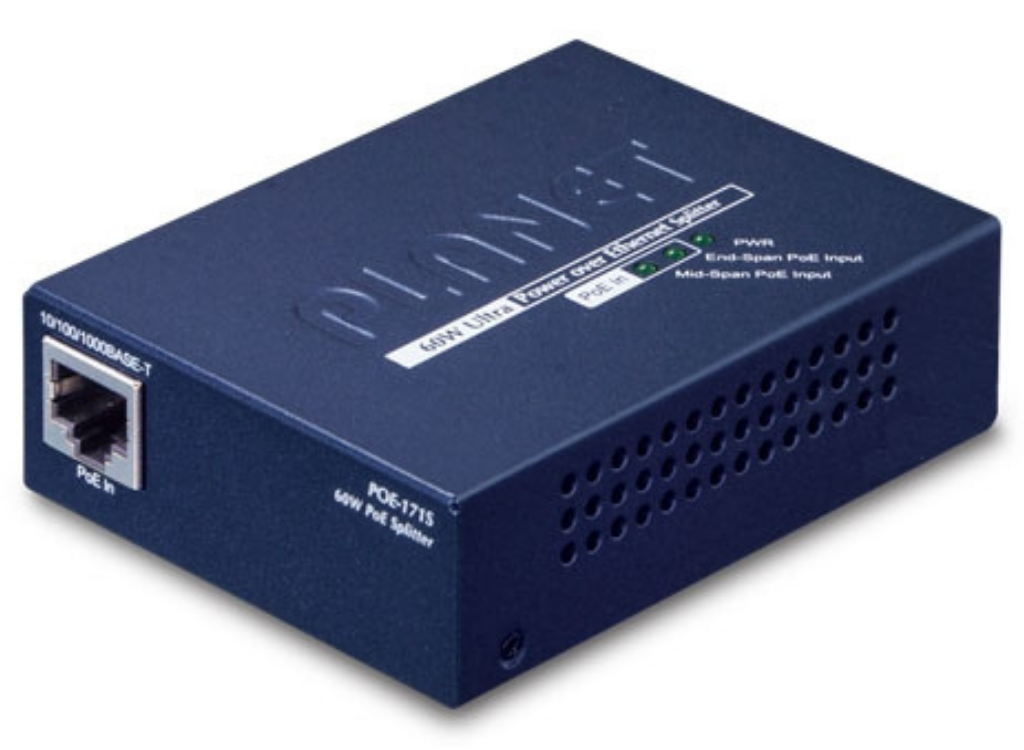

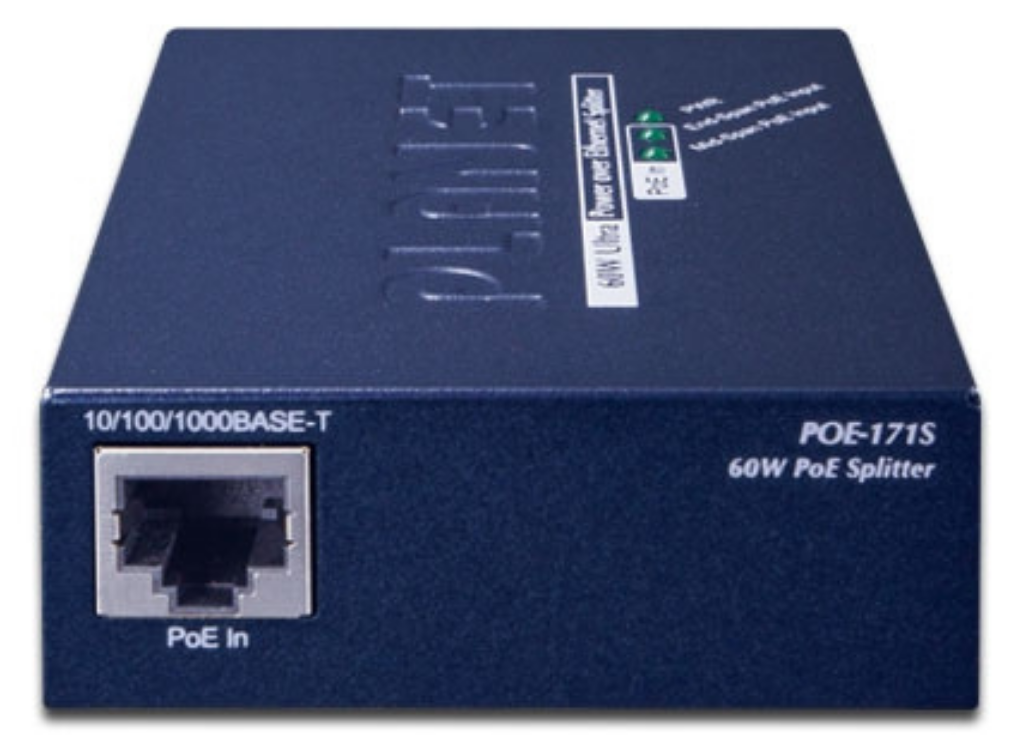

2-Port RJ-45 interfaces
- 1-Port Data + Power input
- 1-Port Data output

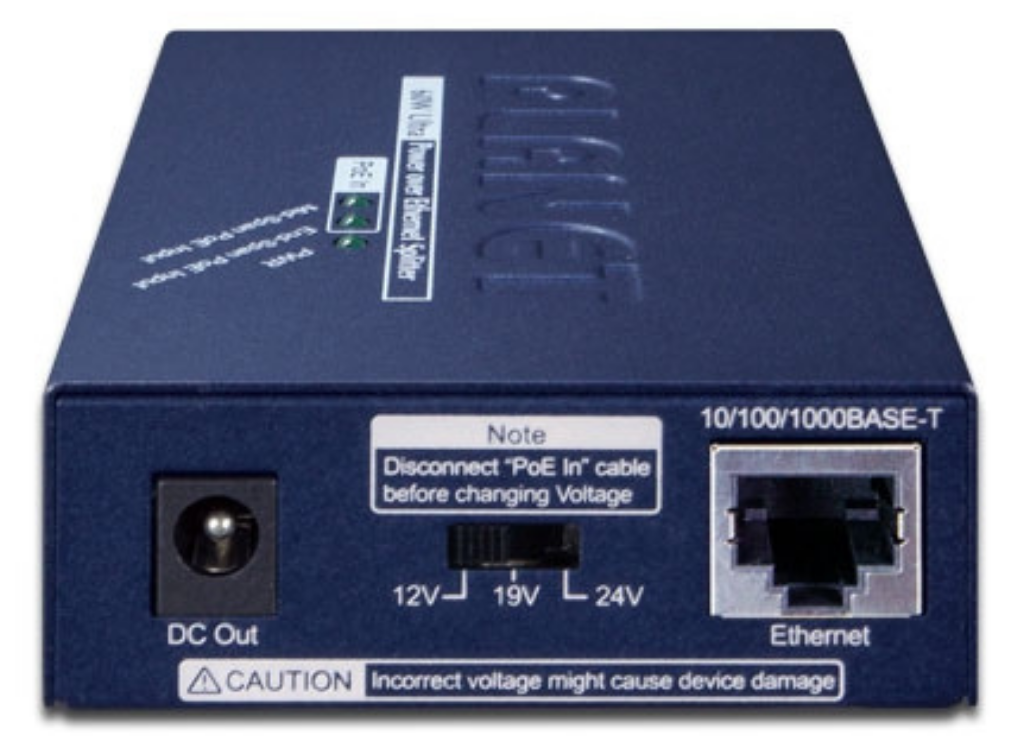

1-Port DC output power socket
1 DC 12V/19V/24V DIP switch
Power over Ethernet
Ultra Power over Ethernet End-Span / Mid-Span PSE
IEEE 802.3at/af PoE standard compliant
Compatible with All IEEE 802.3at/af Powered Devices
Supports 56VDC, 50pwatt PoE power output
Splits the 56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V output
Remote power feeding up to 100 meters
Hardware
Metal case
All-in-one compact size design

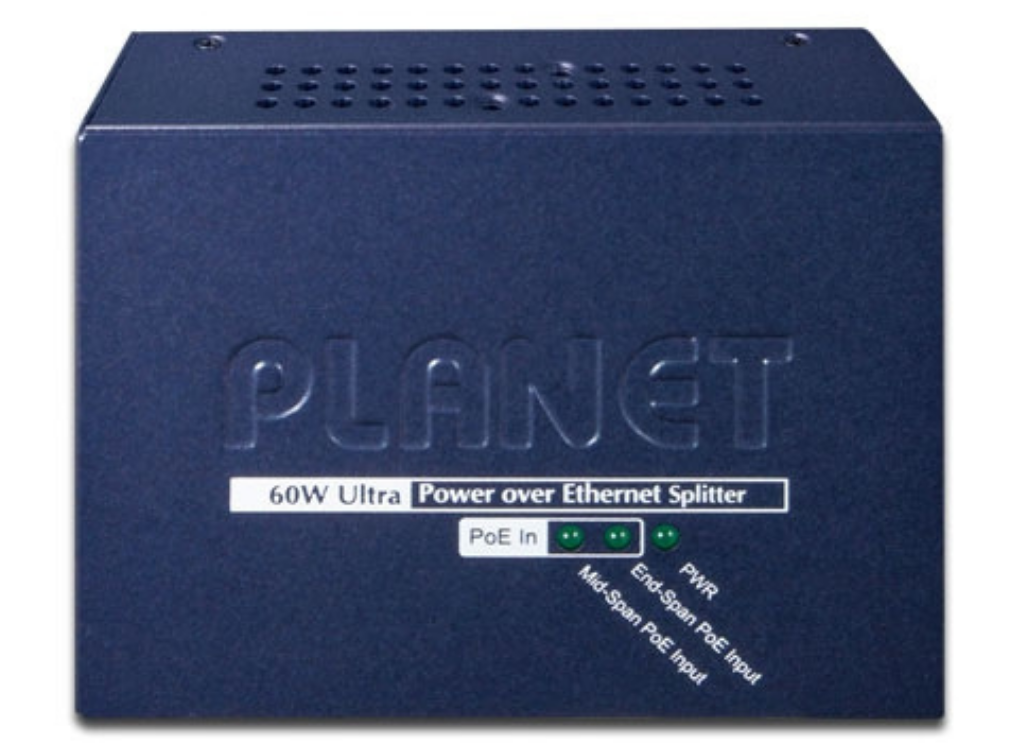

LED indicators for Power LED and POE input
Three-mode DC output DIP switch for 12V/19V/24V
Standard Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, CE
| Specification | Details |
|---|---|
| Interface | Input Port: 1 x RJ-45 STP (PoE In) |
| Output Port: 1 x RJ-45 STP (Data Out) | |
| DC Socket | DC Out |
| DIP-Switch | 12V DC/19V DC/24V DC output voltage |
| LED Indicator | Power x 1 (Green) |
| Network Cable | Ultra PoE (60W): 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) |
| 802.3af/at PoE (15W/30W): 2-Pair UTP Cat. 3, 5, 5e, 6 | |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 300g |
| Power Requirements | 52 ~ 56V DC |
| Power Consumption | 50 watts (maximum) |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -10 ~ 70°C |
| Humidity | 5 ~ 95% (Non-condensing) |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| Power Output | DC 12V/19V/24V by DIP switch control |
| DC Plug Connectors | 5.5/2.5mm to 5.5/2.5mm, 5.5/2.5mm to 5.5/2.1mm |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1: 1/2(-), 3/6(+), Pair 2: 4/5(+), 7/8(-) |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3at High Power over Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
