Planet POE-173S Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

Quick and Easy Gigabit 802.3bt PoE++ Network Deployment
PLANET POE-173S Gigabit 802.3bt Power over Ethernet splitter, which delivers the Ethernet digital data and PoE power from an 802.3bt type-4 PoE++ PSE (power source equipment) over an UTP cable, comes with a selectable 12V, 19V or 24V DC DIP switch, enabling to deliver a maximum of 60-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.

The POE-173S, when working with PLANET 802.3bt type-4 PoE++ switches or injectors, offers more network applications to client devices, such as:

PTZ speed dome camera
Thin client
AIO (All-in-One) touch PC
Remote digital signage display
Non-PoE network devices that need higher power to work normally

The POE-173S frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.

Innovative, Selectable DC Power Output Voltage

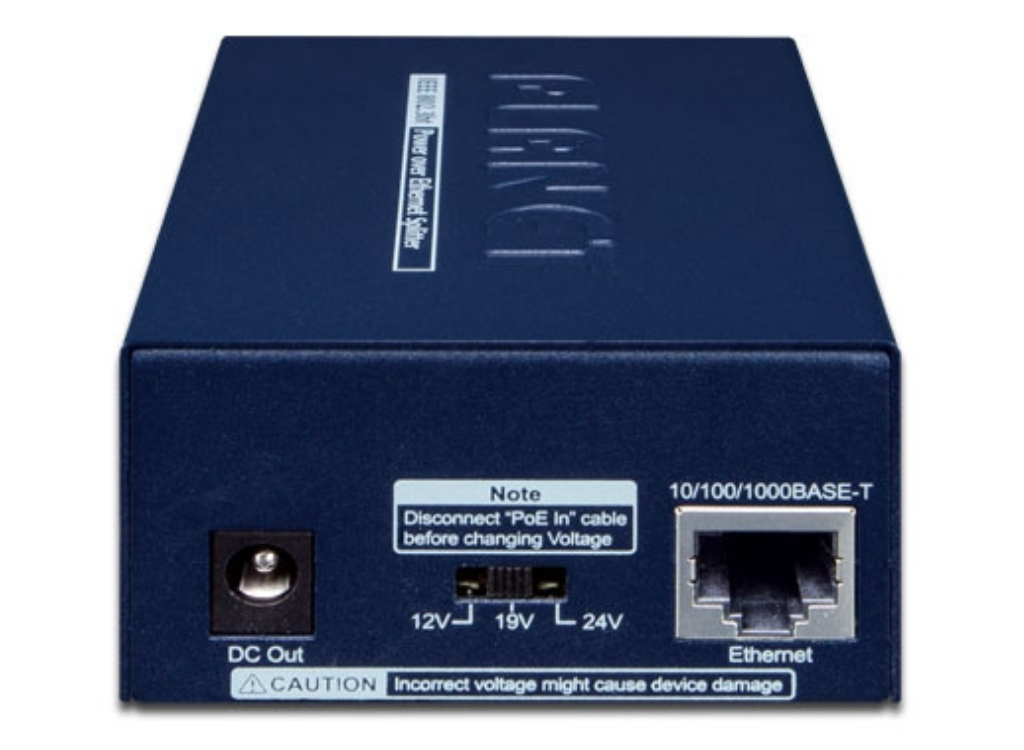

Via the innovative 12V/19V/24V DIP switch on the front panel, the POE-173S can supply either 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications.

802.3bt PoE++ Power over 4-pair UTP Cable
The POE-173S and 802.3bt type-4 PoE++ switches use cables that meet the IEEE 802.3bt standard. Instead of delivering power over 2-pair twisted UTP cable – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat. 5e/6 Ethernet cabling.

Environment-friendly Structure

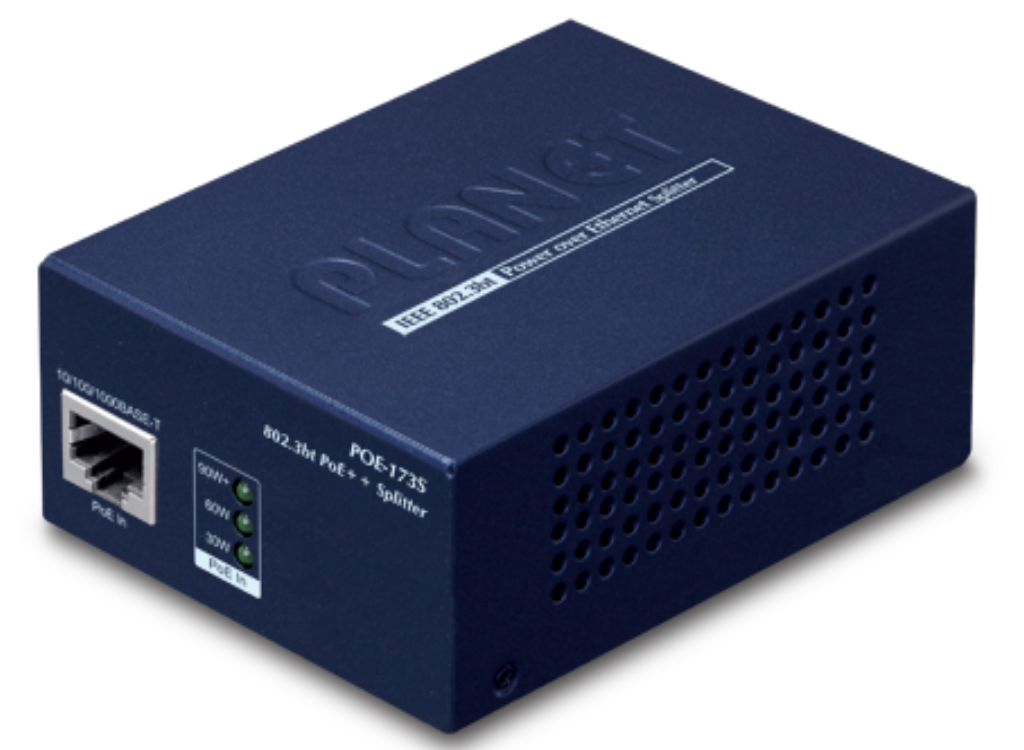

The POE-173S comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-173S is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done.

Intelligent LED Indicator for Power Budget

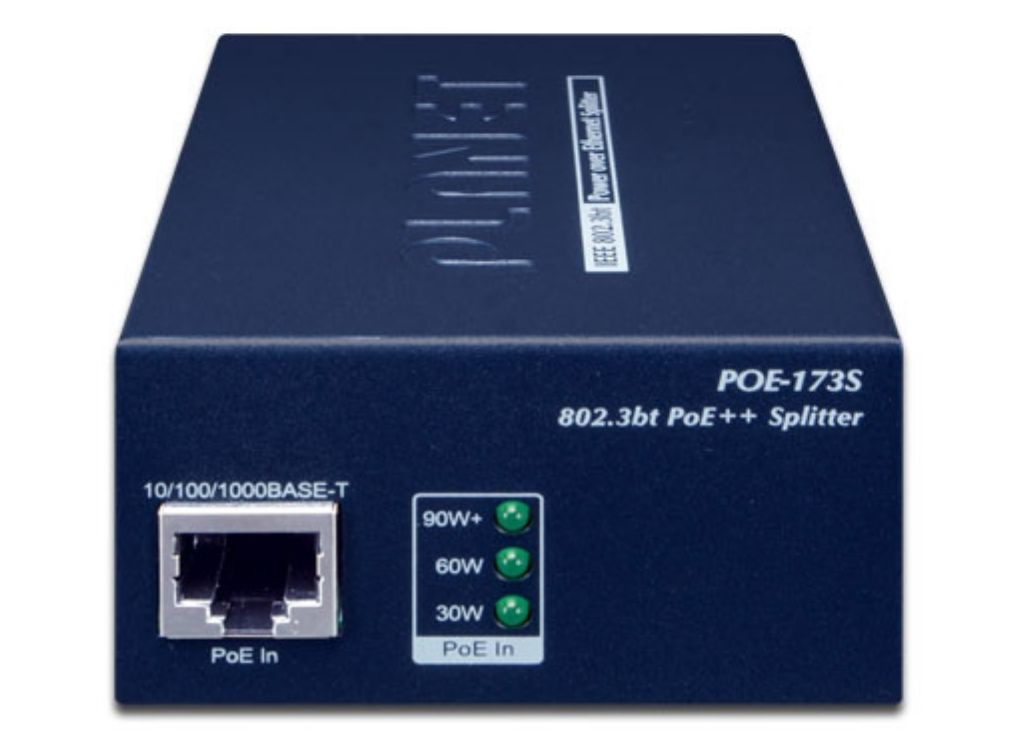

The POE-173S helps users to know the current status of PoE power input from remote PSE easily by its advanced LED indication. The POE-173S has three LEDs indicating 30, 60 and 90 watts of PoE power input. With these LED indications, you can efficiently control how much PoE power is getting from PSE and how much output power of the POE-173S is going to a non-PoE device.

Applications

802.3bt PoE++ Splitter and Injector Installation
For a place which is hard to find the power inlet, the POE-173S and PLANET 802.3bt PoE++ switches or injectors operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-173S separates digital data and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as laptops, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.

Key Features

Interface
2 RJ45 interfaces
1-port data + power input
1-port data output
1-port DC plug-in
1 12V/19V/24V DC DIP switch

Power over Ethernet
Complies with 802.3bt Power over Ethernet end-span / mid-span PSE
Compatible with IEEE 802.3bt PoE++
Backward compatible with 802.3at PoE+ with up to 30-watt power output
Splits the PoE power over RJ45 Ethernet cable into 12V/19V/24V DC output
Distance up to 100 meters

Hardware
Metal case
All-in-one compact size design
LED indicator for PoE in
Three-mode (12V/19V/24V) DC output DIP switch
Supports high Surge/ESD protection
Desktop, wall-mount or DIN-rail (optional) design
