Planet POE-175-95 One-Port 10/100/1000Mbps 802.3bt PoE++ Injector

Advanced 802.3bt PoE Network Solution
PLANET POE-175-95 is a 1-Port 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables.

It is designed specifically to meet the demand for growing higher power required network equipment such as:

PTZ speed dome camera
All-in-one touch PC
Remote digital signage display
Other network devices that need higher power to work normally

The POE-175-95 delivers the Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-173S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

95 Watts of Power over 4-pair UTP
Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1,2,3 and 6) or mid-span (Pins 4,5,7 and 8), it provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat.5e/Cat. 6 Ethernet cabling.

Dip Switch for PoE BT / UPoE / Legacy BT mode, built-in PoE Injector
The POE-175-95 provides power to those powered devices which do not fully follow the IEEE 802.3 af/at/bt standard. The UPoE and Legacy bt mode provide the PD with 60 to 95 watts power output voltage.

BT mode: Powered devices that fully support IEEE 802.3 bt standards with output budget of 90W.
UPoE mode: Powered devices that support Cisco UPoE standards or PoH standards with output budget 95W.
Legacy BT Mode: PD devices that support capacitive or resistance electronic tag with output budget of 90W.

All-in-One and Compact Size Design

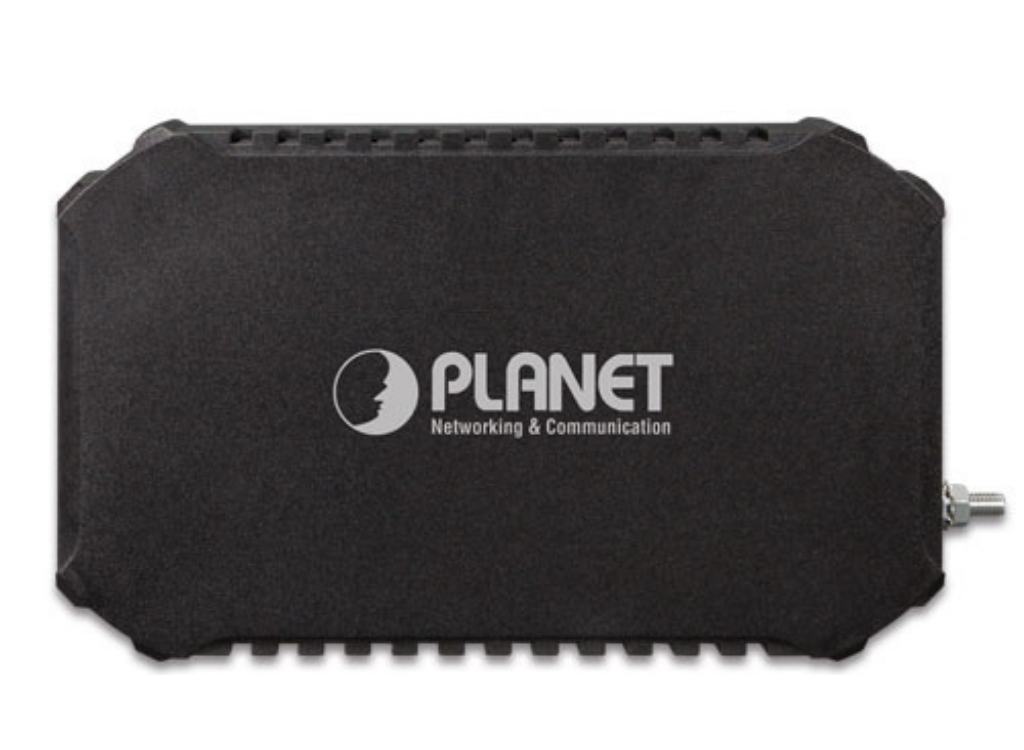

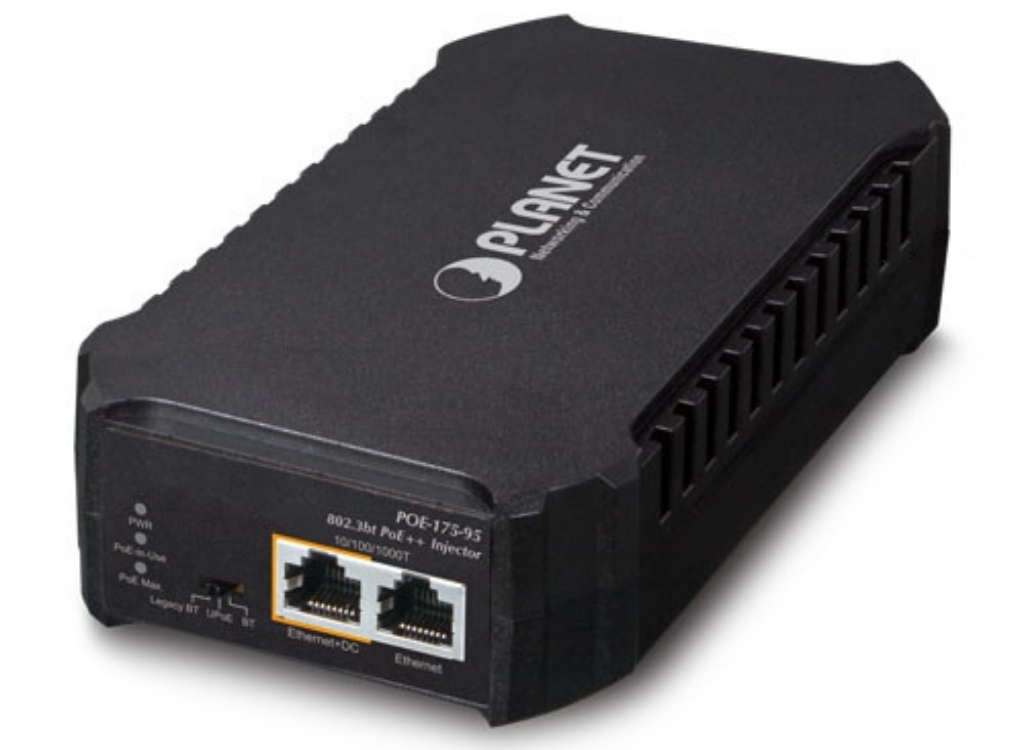

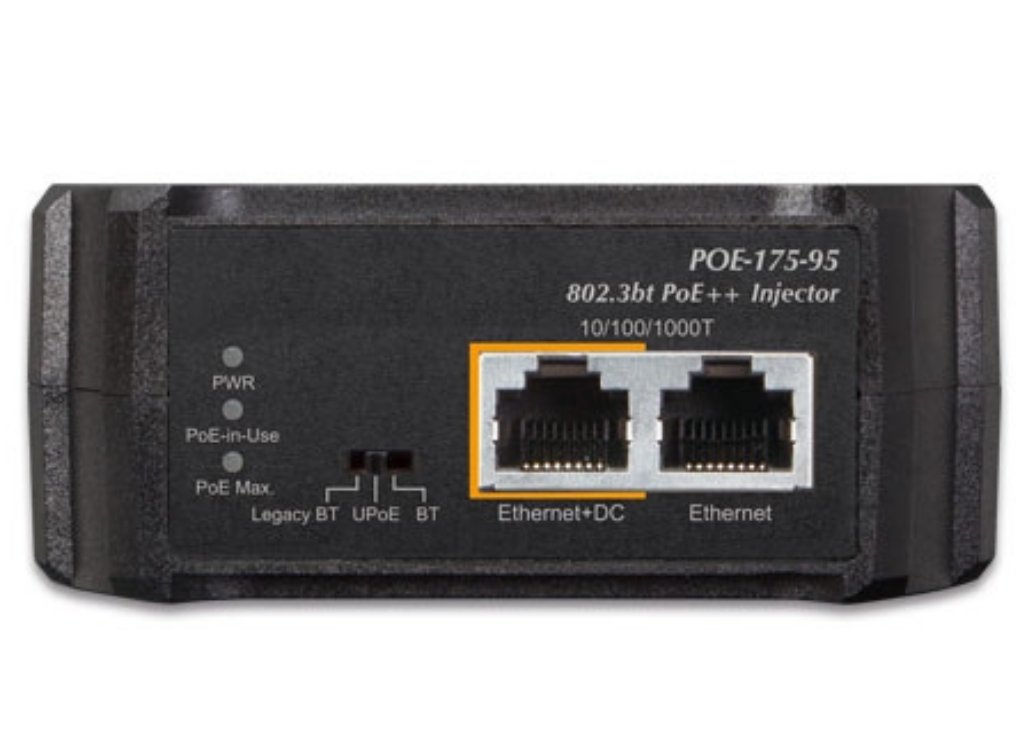

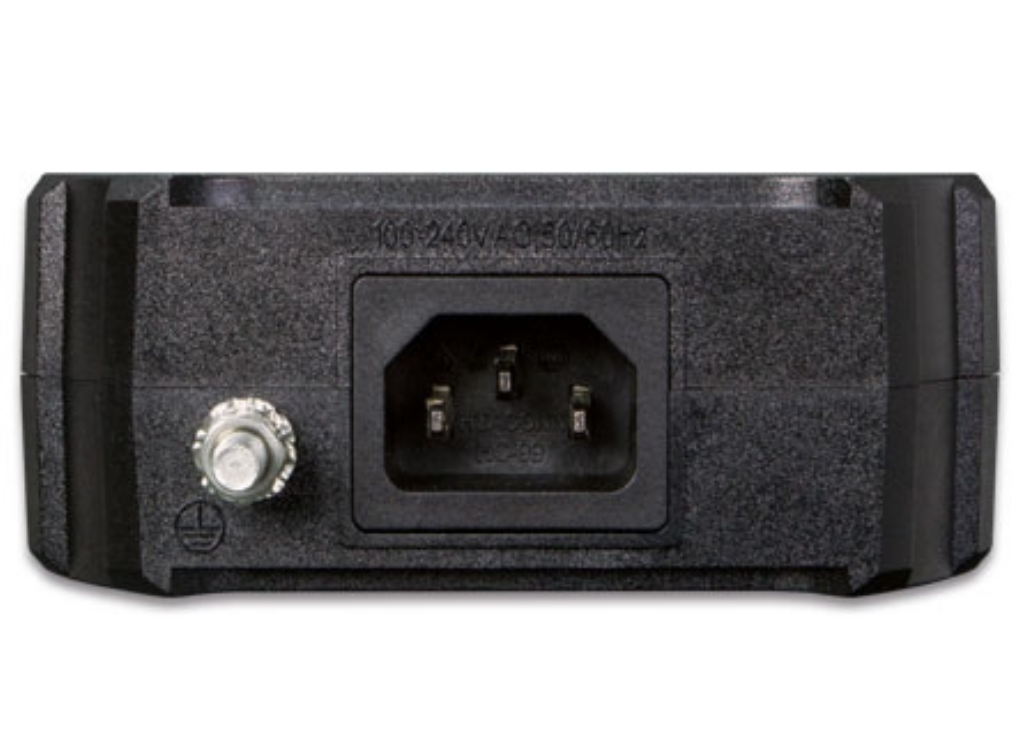

It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Besides, the POE-175-95 comes in compact housing, and has a built-in internal power supply. On the side panel of the POE-175-95 features one 100-240V AC input socket, real-time LEDs (Power LED, PoE-in-Use LED and PoE Max LED) and two RJ45 ports -- Ethernet port and Ethernet+DC port. Simply plug in the Ethernet cables and AC power cord, and the POE-175-95 is ready to provide high-speed network communication and the 802.3bt PoE++ injector functions simultaneously with no need of software configuration.

Quick and Easy Cabling Installation for PoE Network Deployment
Backward compatible with both 802.3 af/at PoE standards, the POE-175-95 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-175-95 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.

Applications

Installation of 802.3bt PoE Injector
Due to the backward capability of IEEE 802.3af/at/bt PoE standard, the POE-175-95 can directly connect with any IEEE 802.3af/at end nodes, such as PTZ (pan, tilt & zoom) speed dome network cameras, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.

Installation of 802.3bt PoE Injector and Splitter
For a place which is hard to find the power inlet, the POE-175-95 and POE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise office or home.

Extended Installation of IEEE802.3bt Injector and PoE Network
Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the POE-175-95 and PLANET PoE Extender, IPOE-E172, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-175-95. The POE-175-95 delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.

Key Features

Interface
2 RJ45 interfaces
1-port Data + Power output
1-port Data input
1 AC100~240V input power socket
1 dip switch for selection of BT, UPoE or Legacy BT.

Power over Ethernet
Complies with IEEE 802.3 at/bt PoE end-span/mid-span PSE
Supports PoE power up to 95 watts for PoE port
Auto-detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
Monitor the status of the total PoE usage in real time
Remote power feeding up to 100m

Hardware
All-in-one compact size design
Internal power supply
LED indicators for Power LED, PoE-in-Use LED and PoE Max. LED
Wall-mount design
