Powerful 10Gbps and Layer 3 Routing Solution for Enterprise Backbone and Data Center Networking

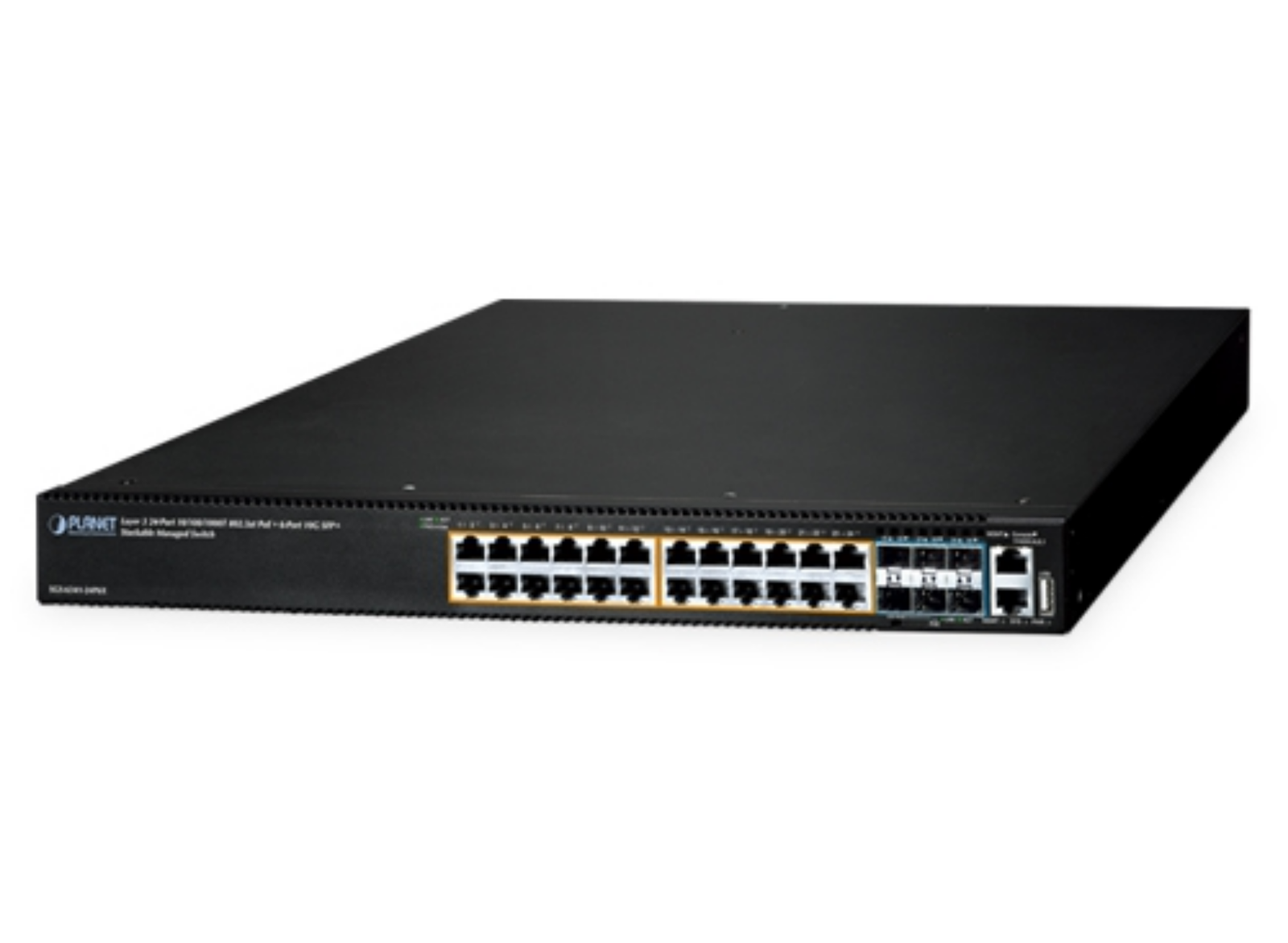

PLANET SGS-6341-24P6X Layer 3 PoE Stackable Managed Gigabit Switch provides high-density performance, Layer 3 static routing, RIP and OSPF. With 168Gbps switching fabric, the SGS-6341-24P6X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful WRR and Network Security features make the SGS-6341-24P6X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. The SGS-6341-24P6X has 24 IEEE 802.3at PoE+ ports and a PoE budget up to 370 watts for medium to large-scale VoIP or IP surveillance networks at a competitive cost.
High Performance 10Gbps Ethernet Capacity
The six SFP+ slots built in the SGS-6341 series support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX. With 10Gbps uplink interfaces, the SGS-6341 series provides non-blocking switch fabric and wire-speed throughput up to 168Gbps, simplifying LAN upgrades for increasing bandwidth demands.
Central IP Stacking Management
The SGS-6341 series supports IP stacking, allowing network managers to configure up to 8 switches via one single IP address instead of setting each unit individually.
Centralized Hardware Stacking Management
Up to 8 SGS-6341-24P6X units can be stacked as one logical switch. The ring-based stacking design provides redundancy, and switches can be hot-swapped without service interruption.
PoE Schedule for Energy Savings
The SGS-6341-24P6X supports PoE scheduling, allowing PoE power feeding to be enabled or disabled for each port during specified time intervals, helping save energy and reduce operating costs.
Redundant Ring, Fast Recovery for Critical Network Applications
The SGS-6341 Series supports ITU-T G.8032 ERPS and Spanning Tree Protocol for enhanced reliability, with recovery time of less than 50ms in certain ring networks.
Layer 3 Routing Support
The SGS-6341 series supports Layer 3 static routing, RIP and OSPF to improve network efficiency and routing performance.
Rich Multi-layer Networking Protocols
The SGS-6341-24P6X supports RIP, RIPng, OSPFv2, OSPFv3, BGP and BGP4+, making it suitable for traditional and virtualized data center networks.
Strong Multicast
The SGS-6341-24P6X supports IPv4 IGMPv1/v2/v3 snooping, IPv6 MLD v1/v2 snooping, MVR, PIM-DM, PIM-SM and PIM-SSM.
Full IPv6 Support
The SGS-6341 series provides IPv6 management and secure features such as SSH, ACL, WRR and RADIUS authentication.
Robust Layer 2 Features
The SGS-6341-24P6X supports port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control, IGMP snooping, 802.1Q VLAN, Q-in-Q, voice VLAN and GVRP.
Excellent Layer 2 to Layer 4 Traffic Control
The SGS-6341 series includes traffic management and WRR features for VoIP, video conferencing, telecom and enterprise applications.
Powerful Security from Layer 2 to Layer 4
The SGS-6341-24P6X supports ACL policies, IEEE 802.1x port-based authentication and RADIUS integration for secure network access.
Efficient and Secure Management
The SGS-6341-24P6X includes console, Web and SNMP management interfaces, Cisco-like command via Telnet or console port, and secure remote management via SSHv1/v2 and TLSv1.3.
Intelligent SFP Diagnosis Mechanism
The SGS-6341 series supports SFP-DDM, allowing administrators to monitor real-time SFP and SFP+ transceiver parameters.
Key Features
Physical Ports:
24 10/100/1000BASE-T RJ45 copper ports
6 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
RJ45 to DB9 console interface for basic management and setup
MGMT port for HTTP server access
USB port
Stacking Features:
IP Stacking
Single IP address management, supporting up to 8 IP units
Hardware Stacking
Single IP address stack management, supporting up to 8 hardware units
Redundant Ring stacking architecture
Power over Ethernet:
IEEE 802.3at PoE+ compliant
Backward compatible with IEEE 802.3af
Up to 24 PoE ports
Up to 32 watts per PoE port
370W PoE budget
PD auto detection
Circuit protection
Remote power feeding up to 100 meters
PoE management and scheduling
IPv4 Features:
Static Routing
RIP v1/v2
OSPF
BGP
Policy Routing
BFD for OSPF and BGP
IPv6 Features:
ICMPv6
DHCPv6
ACLv6
IPv6 Telnet
IPv6 Neighbor Discovery
Path MTU Discovery
MLD and MLD Snooping
IPv6 Static Routing
RIPng
OSPFv3
BGP4+
Manual Tunnel
ISATAP Tunnel
6-to-4 Tunnel
Multicast Routing Features:
PIM-DM
PIM-SM
PIM-SSM
IGMP v1/v2/v3
Layer 2 Features:
Auto-MDI/MDI-X
IEEE 802.3x flow control
Back-pressure flow control
32K MAC address table
IEEE 802.1Q VLAN
Q-in-Q VLAN
Private VLAN Edge
Protocol-based VLAN
MAC-based VLAN
Link Aggregation
STP, RSTP, MSTP
Port mirroring
G.8032 ERPS
Quality of Service:
8 priority queues
Strict Priority
WRR
IEEE 802.1p CoS/ToS
IPv4/IPv6 DSCP
Port-based WRR
Security:
IEEE 802.1x authentication
RADIUS/TACACS+ authentication
ACL
DHCP Snooping
Dynamic ARP Inspection
IP Source Guard
Management:
IPv4 and IPv6 dual stack management
Console and Telnet CLI
HTTP web management
SNMP v1/v2c/v3
SSHv2, SSLv3, TLSv1.3
RMON
TFTP client
BOOTP and DHCP
Firmware upload/download via HTTP
Reset button
Dual images
DHCP Relay
DHCP Option 82
DHCP Server
NTP
SFP-DDM
Ping and trace route for IPv4 and IPv6

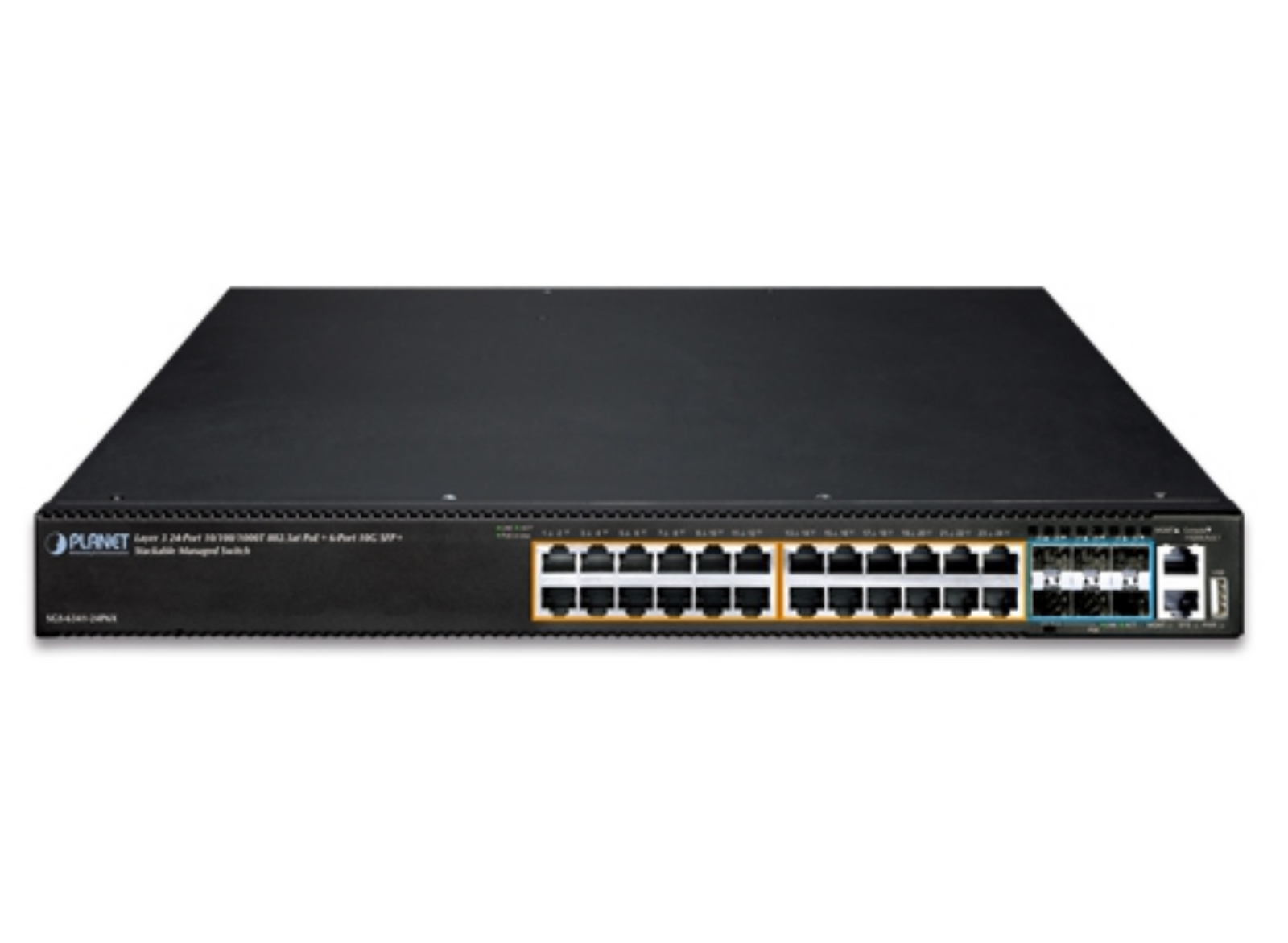

| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (ports 1 to 24) | 10G SFP+ Ports | 6 10GBASE-SR/LR SFP+ ports (ports 25 to 30); backward compatible with 1000BASE-SX/LX/BX SFP transceiver |
| MGMT | 1 x 10/100BASE-T RJ45 port | Console | 1 x RJ45-to-DB9 serial port (115200, 8, N, 1) |
| USB | 1 x USB 2.0 | LED Indicator | System: PWR, SYS, MGMT Green; Ports: RJ45 LNK/ACT and PoE-in-Use Green; SFP+ LNK/ACT Green |
| Dimensions (W x D x H) | 440 x 380 x 43.6 mm, 1U height | Weight | 5180g |
| Power Consumption | System on: 24.8 watts/84.5 BTU max; Full loading: 434 watts/1479.9 BTU max | Power Requirements | AC 100~240V, 50/60Hz |

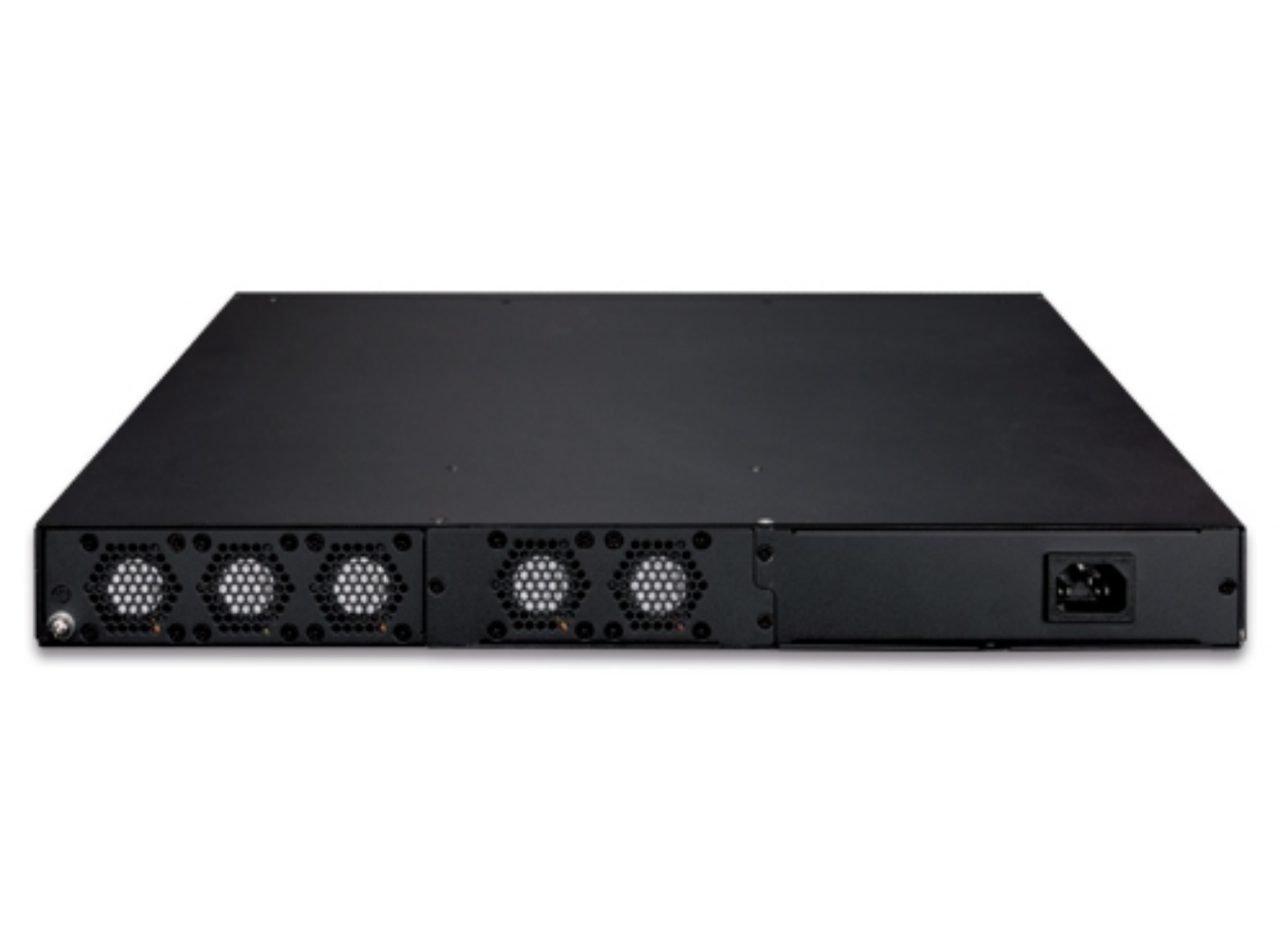

| Fan | 5 Smart FAN | ESD / Surge Protection | ESD: 6kV; Surge: 6kV |
| Switch Architecture | Store-and-forward | Switch Capacity | 168Gbps / non-blocking |
| Switch Throughput | 125Mpps | Address Table | 32K MAC address table with auto learning function |
| ARP Table | 1K | Routing Table | 1K |
| VLAN Interface | 1K | IP Interface | 4096 |
| ACL Table | 3K | Routing Entries | 1K |
| Shared Data Buffer | 8MB | Jumbo Frame | 12KB |
| Flow Control | Back pressure for half duplex; IEEE 802.3x pause frame for full duplex | PoE Standard | IEEE 802.3at PoE+ PSE; backward compatible with 802.3af PoE |
| PoE Power Supply Type | End-span | PoE Power Output | Per port 54V DC, 32 watts max. |
| Power Pin Assignment | 1/2(+), 3/6(-) | PoE Power Budget | 370 watts max. |
| PoE Ability PD @ 9W | 24 units | PoE Ability PD @ 15W | 24 units |
| PoE Ability PD @ 30W | 12 units | IPv4 IP Routing Protocol | RIPng, OSPFv3, VRRPv3, URPF, RA, BGP4+ |
| Multicast Routing Protocol | PIM-DM, PIM-SM, PIM-SSM | VRRP | Configure VRRP in interface VLAN; VRRP priority; VRRP standby; VRRP track |
| Routing Features | VRRP, policy routing, load balance through equal-cost routing, BFD for OSPF and BGP | DHCP | DHCP client, DHCP server, default route, DHCP relay |
| IPv6 IP Routing Protocol | OSPFv3, VRRPv3, URPF, RA, BGP4+ | IPv6 Routing Features | Manual tunnel, ISATAP tunnel, Configured Tunnel, GRE Tunnel, 6-to-4 tunnel |
| IPv6 Functions | ICMPv6, DHCPv6, ACLv6, IPv6 Telnet, IPv6 Neighbor Discovery, Path MTU Discovery, ND, DNSv6, IPv6 LPM Routing, IPv6 Policy-based Routing (PBR) | Port Configuration | Port disable/enable, flow control disable/enable, bandwidth control on each port, port loopbacks detect |
| Port Status | Displays each port’s speed duplex mode, link status, flow control status and auto negotiation status | VLAN | IEEE 802.1Q tag-based VLAN up to 4K VLAN entries; IEEE 802.1ad Q-in-Q VLAN stacking/tunneling; GVRP; PVE; protocol-based VLAN; MAC-based VLAN; IP subnet VLAN |
| Spanning Tree Protocol | IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, BPDU protection, root protection | IPv4 IGMP Snooping | IPv4 IGMP v1/v2/v3 snooping, IGMP Fast Leave, IPv4 Querier mode, IGMP Filtering, IGMP Throttling, IGMP Proxy reporting |
| IPv6 MLD Snooping | IPv6 MLD v1/v2 snooping, Multicast VLAN Register (MVR) | Bandwidth Control | Ingress and Egress; at least 64Kbps stream |
| Ring | Supports ITU-T G.8032 ERPS | Link Aggregation | IEEE 802.3ad LACP/static trunk; supports 32 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports; traffic supervision and shaping; WRR, SP, SP+WRR; policy-based ingress and egress QoS; 802.1p and DSCP priority remark | Traffic Classification | IEEE 802.1p CoS, DSCP, DiffServ, Precedence, TOS, VLAN ID, IP ACL, MAC ACL, Port ACL |
| Access Control List | Supports Standard and Expanded ACL; IP-based, MAC-based, Port-based and Time-based ACL; up to 1K entries | Security | Port isolation, port security, IP + MAC + port binding, L2/L3/L4 ACL filtering, DOS/TCP attack defence, packet suppression, DHCP Snooping, DHCP Option 82, user-level command authority |
| Authentication | IEEE 802.1x port-based network access control; AAA authentication via TACACS+ and IPv4/IPv6 over RADIUS | AAA | TACACS+ and IPv4/IPv6 over RADIUS |
| Network Access Control | IEEE 802.1x port-based network access control | System Configuration | Console and Telnet, Web browser, SNMP v1/v2c |
| Secure Management Interfaces | SSHv2, SSLv3 TLS v1.3 and SNMPv3; maximum 8 SSH and Telnet sessions | System Management | IPv4/IPv6 protocols, IP security inspection, MIB/TRAP, TFTP, FTP, NTP, RMON 1/2/3/9, RADIUS Telnet authentication, COA, CLI, console, Telnet, Security IP safety net, TACACS+, SPAN, RSPAN |
| Stacking Management | IP Stacking and Hardware Stacking; 8 members max.; 2 software-defined ports as Stacking Up and Down interfaces; identical firmware required | Event Management | Supports syslog server for IPv4 and IPv6 |
| SNMP MIBs | RFC 1066, 1213, 1215, 1757, 1354, 1493, 1643, 1907, 2011, 2012, 2013, 2096, 2233, 2452, 2454, 2465, 2466, 2573, 2574, 2674 | Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3ae, 802.3at, 802.3x, 802.3ad, 802.1D, 802.1w, 802.1s, 802.1p, 802.1Q, 802.1X, 802.1ab | RFC Standards | RFC 768, 783, 791, 792, 2068, 1112, 2236, 3376, 2710, 3810, 2328, 1058, 2453, 5176 |
| Operating Environment | Temperature: 0 ~ 50°C; Relative Humidity: 10 ~ 85% non-condensing | Storage Environment | Temperature: -40 ~ 80°C; Relative Humidity: 5 ~ 95% non-condensing |
| Description | Downloads |
|---|---|
| Datasheet | Download |
