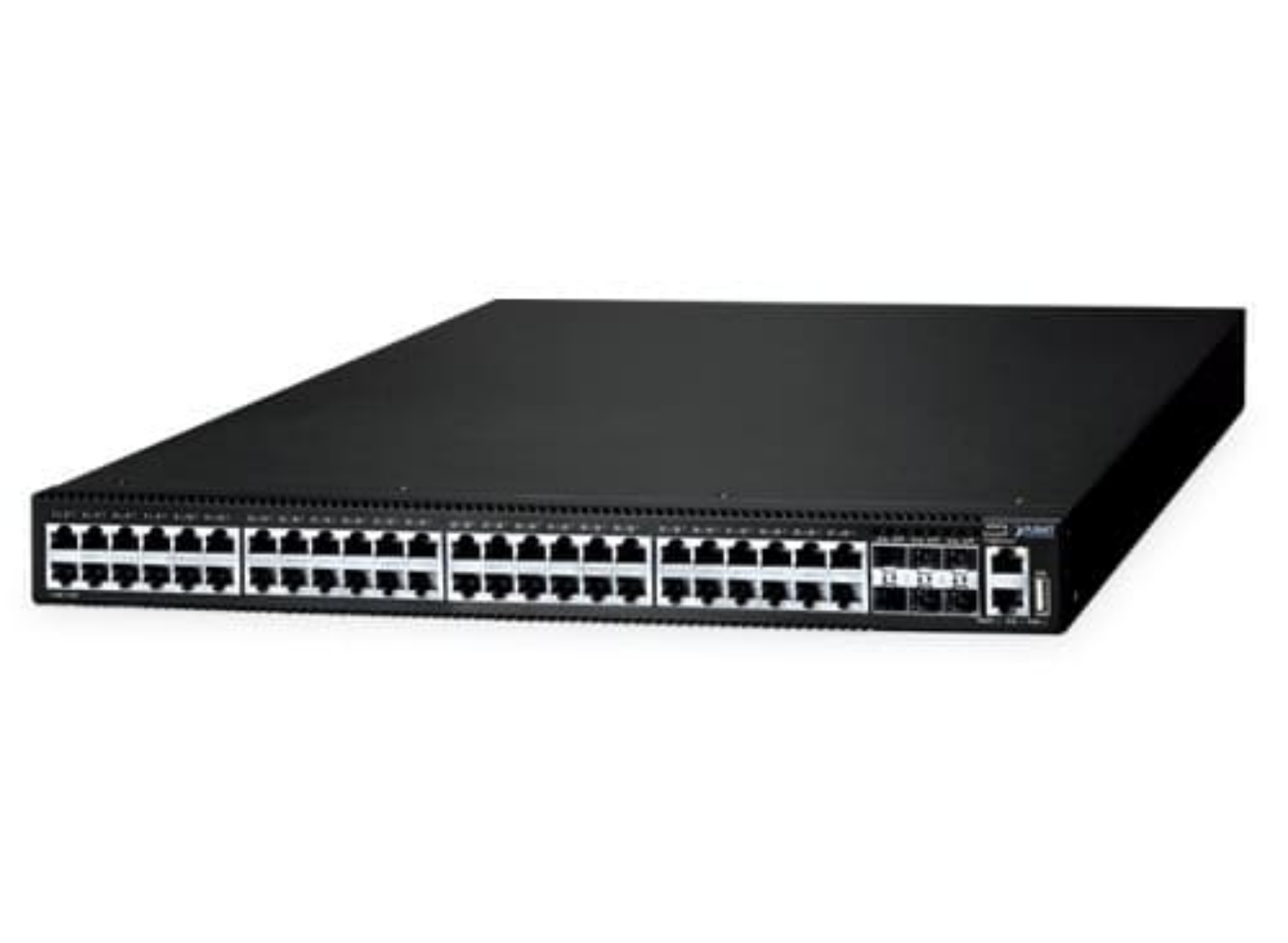

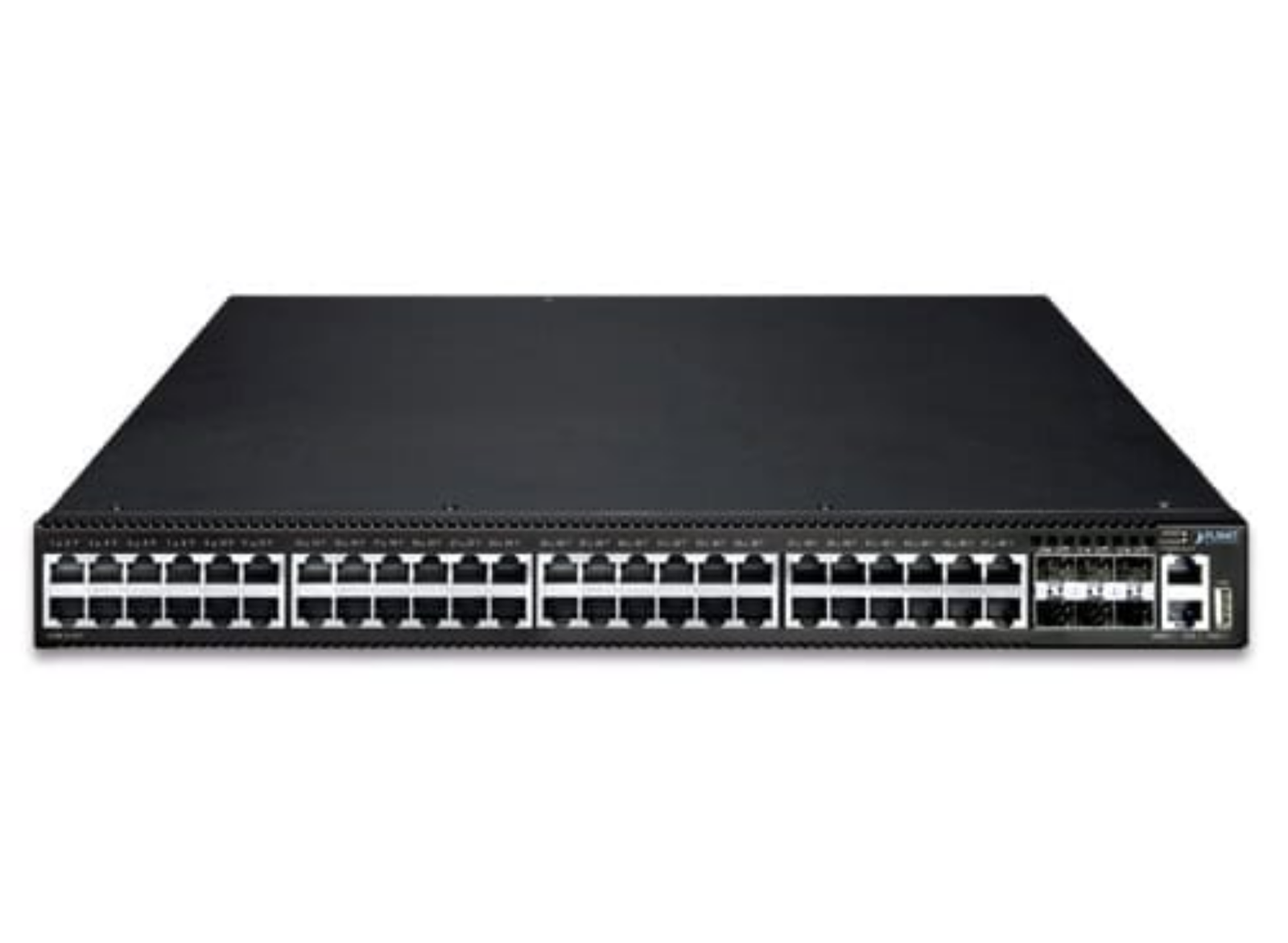

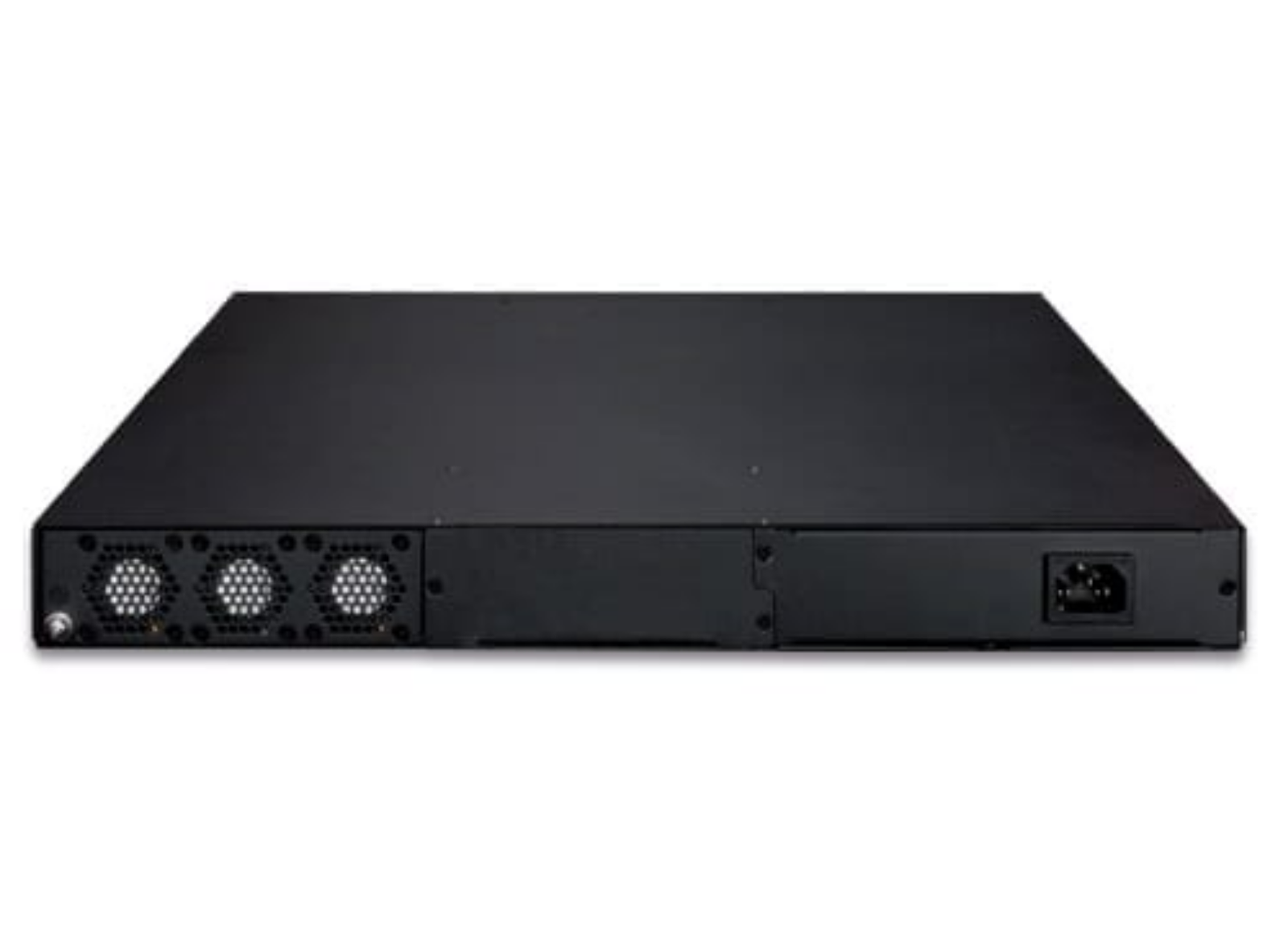

Planet SGS-6341-48T6X Layer 3 48-Port 10/100/1000T + 6-Port 10G SFP+ Stackable Managed Ethernet Switch

High-Density Layer 3 Switching with 10G Uplink Performance

Powerful 10Gbps and Layer 3 Routing Solution for Enterprise Backbone and Data Center Networking

PLANET SGS-6341-48T6X is a Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various network applications and flexible deployment. It features 48 10/100/1000BASE-T RJ45 ports and 6 1G/10GBASE-X SFP+ ports with 216Gbps switch fabric in a 1U rugged case design.

The SGS-6341-48T6X provides high-density performance, Layer 3 static routing, RIP and OSPF. It can handle large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. Its WRR and network security features support effective traffic control for ISP, enterprise VoIP, video streaming and multicast applications.

High Performance 10Gbps Ethernet Capacity

The six SFP+ slots support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX. With 10Gbps uplink interfaces, the SGS-6341-48T6X provides non-blocking switch fabric and wire-speed throughput up to 216Gbps, simplifying LAN upgrades for increasing bandwidth demands.

Central IP Stacking Management

The SGS-6341-48T6X supports IP stacking, allowing network managers to configure up to 8 switches via one single IP address instead of setting each unit individually.

Centralized Hardware Stacking Management

Up to 8 SGS-6341-48T6X units can be stacked as one logical switch. The ring-based stacking design provides redundancy, and switches can be hot-swapped without service interruption.

Redundant Ring, Fast Recovery for Critical Network Applications

The SGS-6341-48T6X supports ITU-T G.8032 ERPS and Spanning Tree Protocol for enhanced reliability, with recovery time of less than 50ms in certain ring networks.

Layer 3 Routing Support

The SGS-6341-48T6X supports Layer 3 static routing, RIP and OSPF to improve network efficiency and routing performance.

Rich Multi-layer Networking Protocols

The SGS-6341-48T6X supports RIP, RIPng, OSPFv2, OSPFv3, BGP and BGP4+, making it suitable for traditional and virtualized data center networks.

Strong Multicast

The SGS-6341-48T6X supports IPv4 IGMPv1/v2/v3 snooping, IPv6 MLD v1/v2 snooping, MVR, PIM-DM, PIM-SM and PIM-SSM.

Full IPv6 Support

The SGS-6341-48T6X provides IPv6 management and secure features such as SSH, ACL, WRR and RADIUS authentication.

Robust Layer 2 Features

The SGS-6341-48T6X supports port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control, IGMP snooping, 802.1Q VLAN, Q-in-Q, voice VLAN and GVRP.

Excellent Layer 2 to Layer 4 Traffic Control

The SGS-6341-48T6X includes traffic management and WRR features for VoIP, video conferencing, telecom and enterprise applications.

Powerful Security from Layer 2 to Layer 4

The SGS-6341-48T6X supports ACL policies, IEEE 802.1x port-based authentication and RADIUS integration for secure network access.

Efficient and Secure Management

The SGS-6341-48T6X includes console, Web and SNMP management interfaces, Cisco-like command via Telnet or console port, and secure remote management via SSHv1/v2 and TLSv1.2.

Intelligent SFP Diagnosis Mechanism

The SGS-6341-48T6X supports SFP-DDM, allowing administrators to monitor real-time SFP and SFP+ transceiver parameters.

Key Features

Physical Ports:
48 10/100/1000BASE-T RJ45 copper ports
6 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
RJ45 to DB9 console interface for basic management and setup
MGMT port for HTTP server access
USB port

Stacking Features:
IP Stacking
Single IP address management, supporting up to 8 IP units
Hardware Stacking
Single IP address stack management, supporting up to 8 hardware units
Redundant Ring stacking architecture

IPv4 Features:
Static Routing
RIP v1/v2
OSPFv2
BGP
Policy Routing
BFD for OSPF and BGP

IPv6 Features:
ICMPv6
DHCPv6
ACLv6
IPv6 Telnet
IPv6 Neighbor Discovery
Path MTU Discovery
MLD and MLD Snooping
IPv6 Static Routing
RIPng
OSPFv3
BGP4+
Manual Tunnel
ISATAP Tunnel
6-to-4 Tunnel

Multicast Routing Features:
PIM-DM
PIM-SM
PIM-SSM
IGMP v1/v2/v3

Layer 2 Features:
Auto-MDI/MDI-X
IEEE 802.3x flow control
Back-pressure flow control
32K MAC address table
IEEE 802.1Q VLAN
Q-in-Q VLAN
Private VLAN Edge
Protocol-based VLAN
MAC-based VLAN
Link Aggregation
STP, RSTP, MSTP
Port mirroring
G.8032 ERPS

Quality of Service:
8 priority queues
Strict Priority
WRR
IEEE 802.1p CoS/ToS
IPv4/IPv6 DSCP
Port-based WRR

Security:
IEEE 802.1x authentication
RADIUS/TACACS+ authentication
ACL
DHCP Snooping
Dynamic ARP Inspection
IP Source Guard

Management:
IPv4 and IPv6 dual stack management
Console and Telnet CLI
HTTP web management
SNMP v1/v2c/v3
SSHv2, SSLv3, TLSv1.2
RMON
TFTP client
BOOTP and DHCP
Firmware upload/download via HTTP
Reset button
Dual images
DHCP Relay
DHCP Option 82
DHCP Server
NTP
SFP-DDM
Ping and trace route for IPv4 and IPv6
