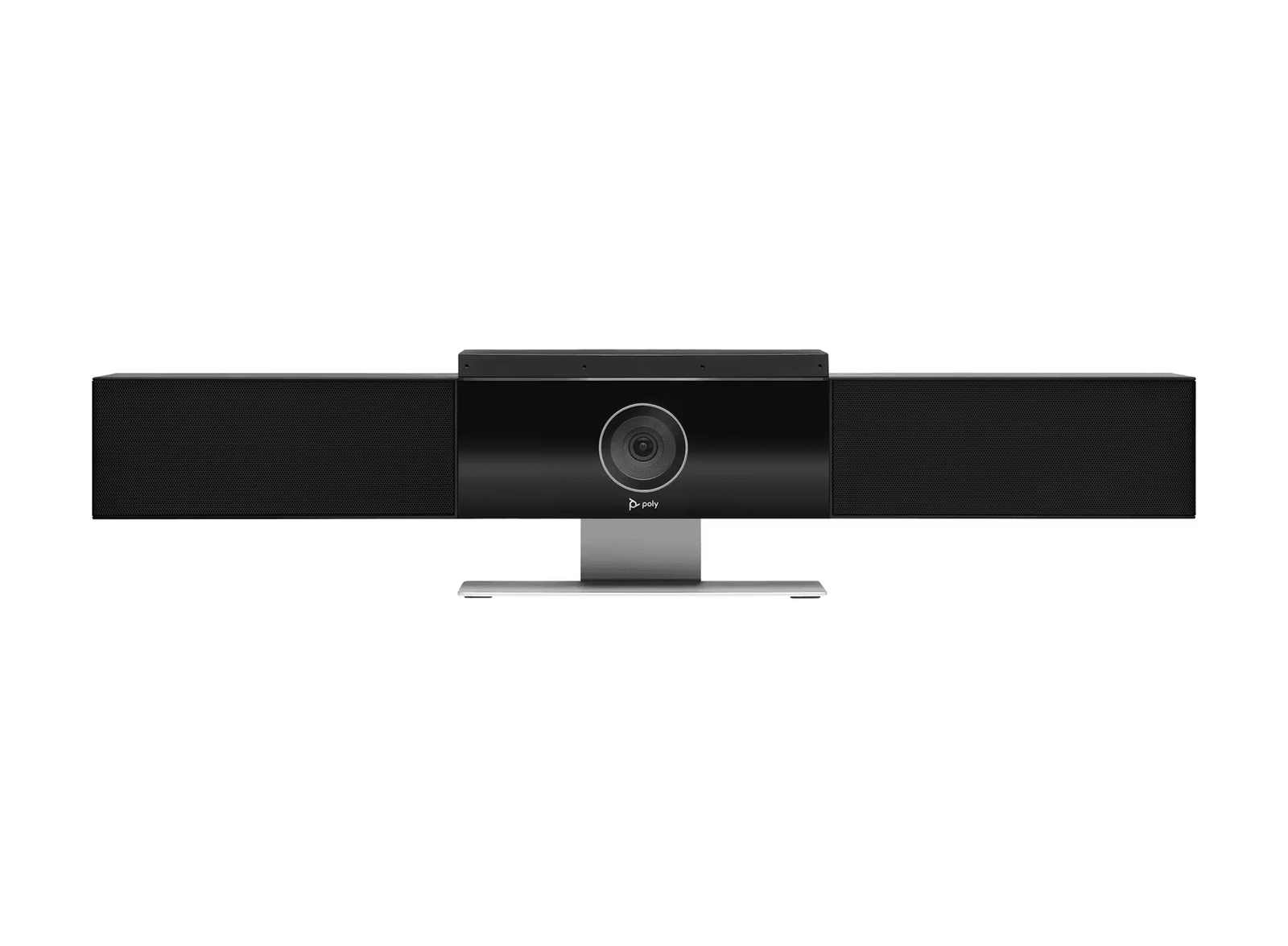

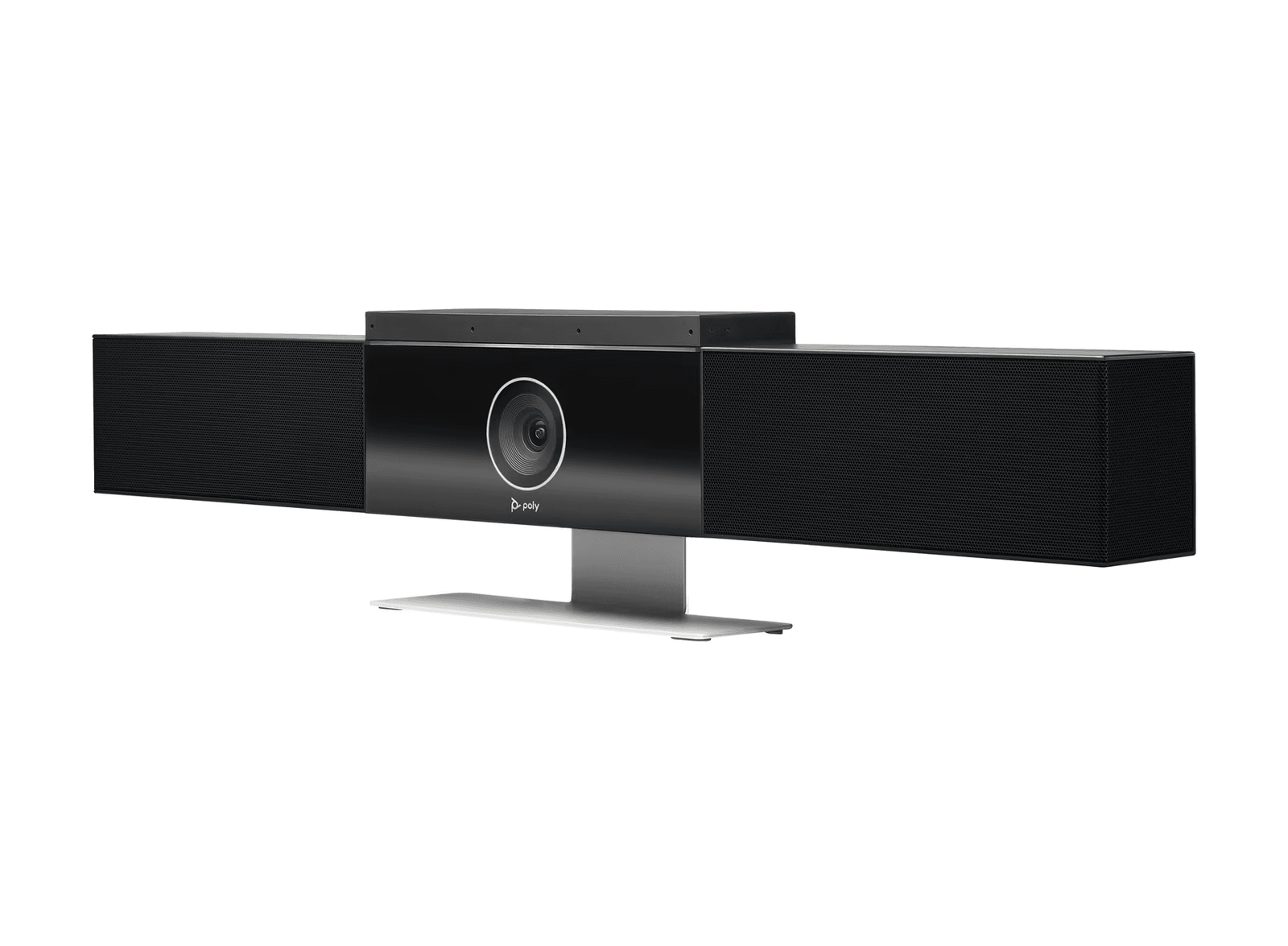

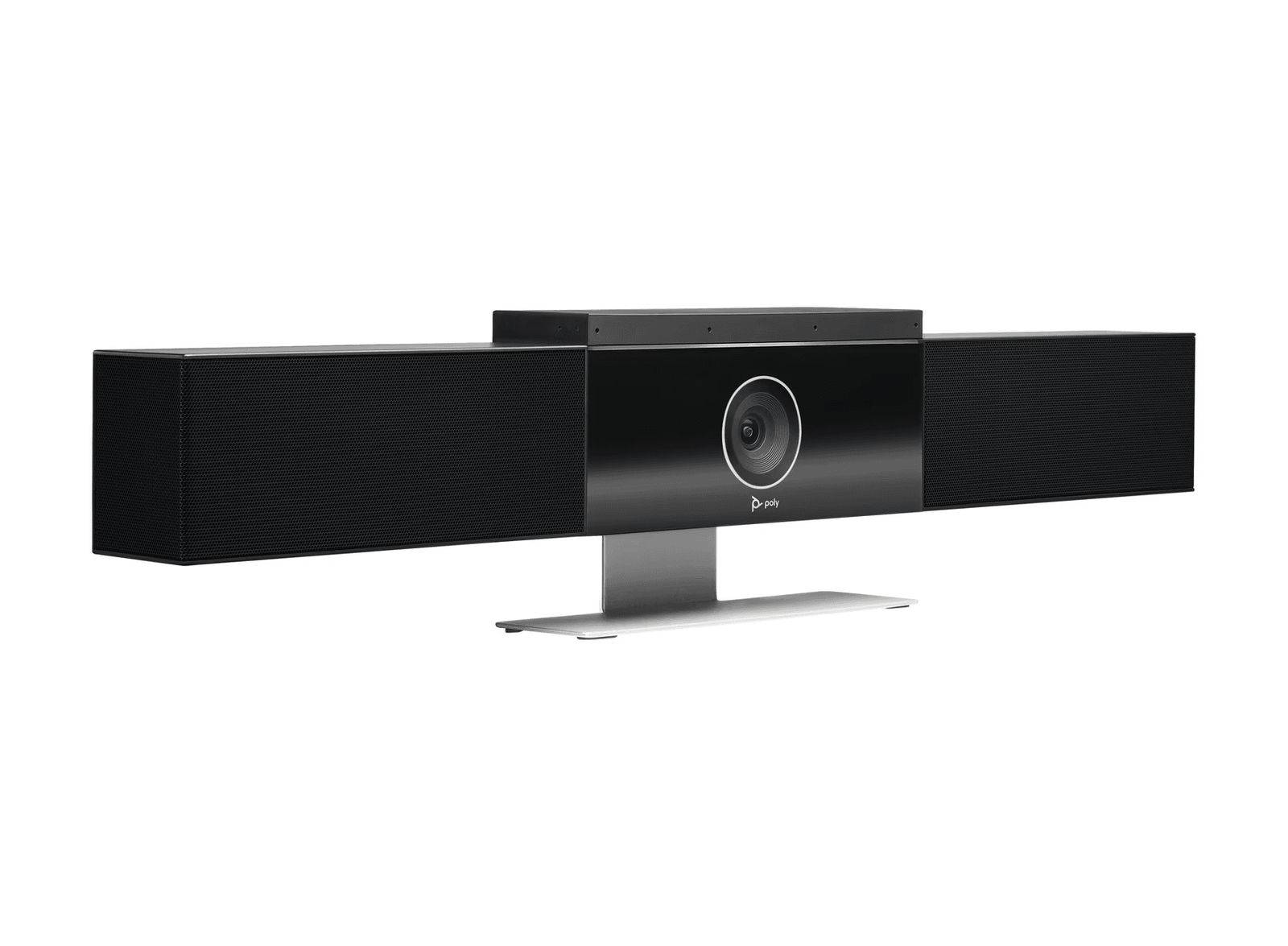

POLY Studio USB Video Bar

NoiseBlockAI technology
Distracting sounds are reduced with Poly NoiseBlockAI technology.

Acoustic Fence technology
Keep outside conversations out of your calls with Acoustic Fence technology, which captures only the voices within a defined space.

Microphone range
Ensure everyone in the room can be understood clearly with up to 15 ft/4.6 m microphone pickup range or add an optional expansion mic to extend that range even further.

Hi-fidelity speakers
Hear what’s being said even if you’re seated at the back of the room. High-fidelity stereo speakers fill the room with sound so that remote participants can be heard clearly.

Poly DirectorAI technology
Be more productive on both ends of your video call with a smart camera that features Poly DirectorAI smart camera tech that automatically frames the room or tracks the person speaking for deeper engagement — no drivers or software needed.

120-degree field of view
The camera’s ultra-wide field of view reaches even the back corners of a medium-sized room. See everyone while avoiding fisheye distortion with its 120-degree field of view.

Category	Feature	Details
SUPPORTED OPERATING SYSTEMS	Compatible Operating Systems	Windows 7, Windows 10, Windows 8.1, macOS 10.12, macOS 10.13, macOS 10.14
BOX CONTENTS	What's in the box	Poly Studio, Remote control with 2 AAA batteries, AC power adapter, Wall mount kit, Setup sheet, Table stand, USB Type-C® to USB Type-A cable

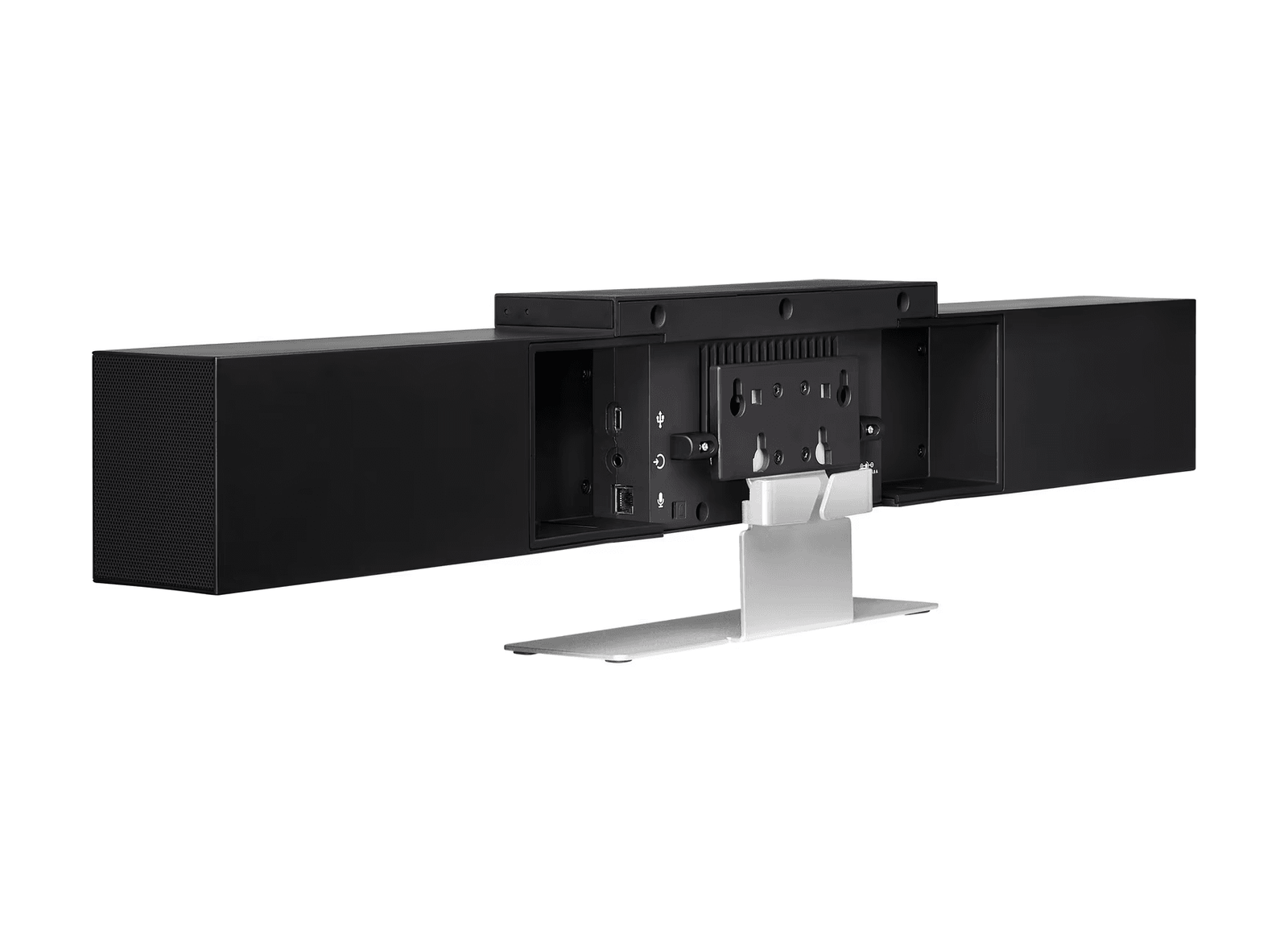

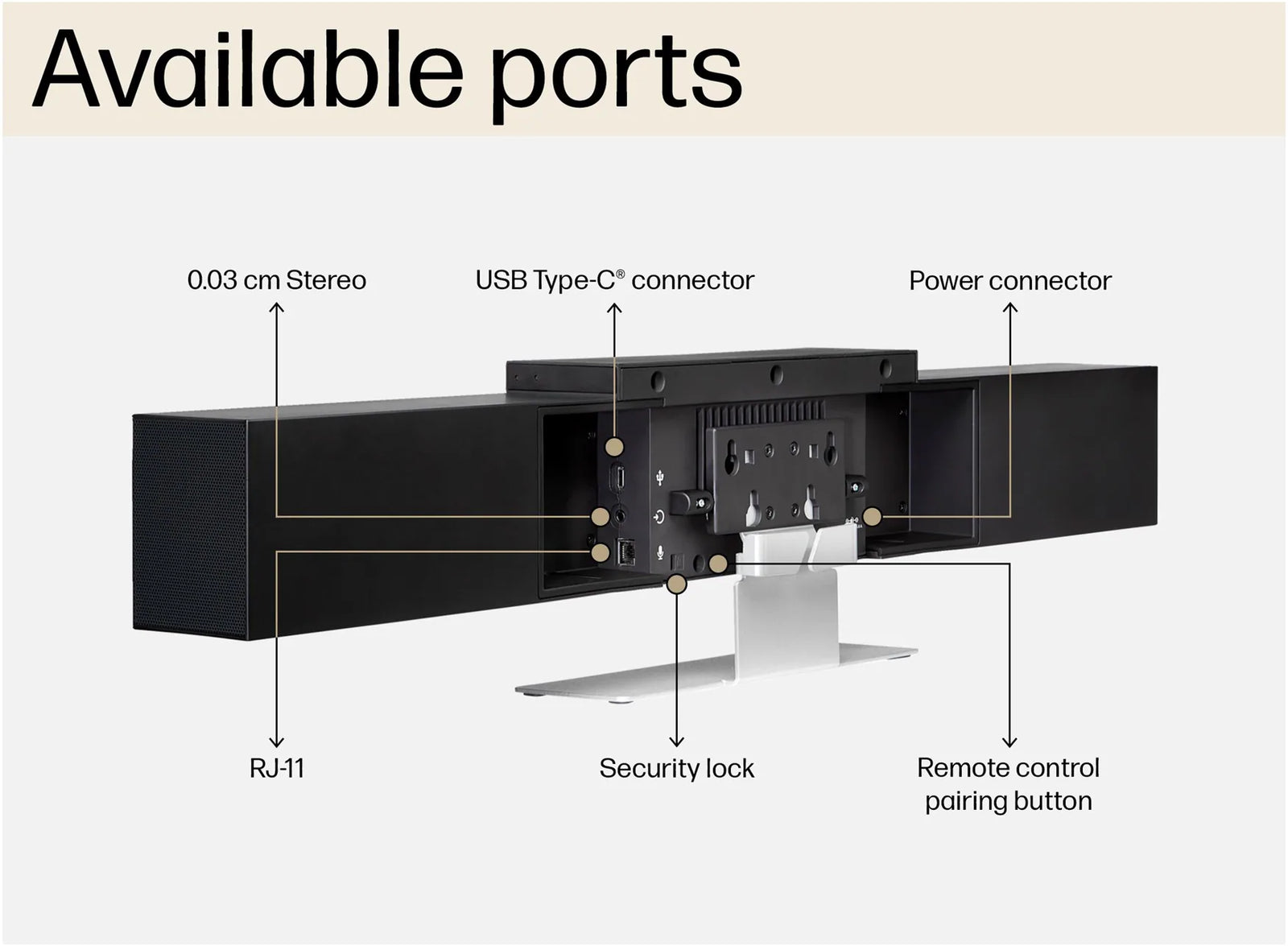

CONNECTIVITY AND COMMUNICATIONS	Ports	1 USB Type-C® (5Gbps signaling rate), 1 audio-in, 1 line in (optional microphone)
	Wireless technologies	Bluetooth® 4.2, WiFi 802.11a/b/g/n/ac (SISO)
WEIGHTS	Weight	2.342 kg (without stand), 2.856 kg (with stand)
DIMENSIONS	Minimum dimensions (W x D x H)	105 x 700 x 70 mm (without stand), 156 x 700 x 70 mm (with stand)
BATTERY AND POWER	Power	100 - 240 VAC 50/60 Hz
	Power supply type	External
	Power	12 VDC, 5A
SECURITY MANAGEMENT	Physical security	Standard Kensington lock slot
WARRANTY	Manufacturer Warranty	Poly standard one-year limited warranty
SOFTWARE AND APPLICATIONS	Certified collaboration software	Microsoft Teams, Zoom
	Interoperability	Zoom Certified, Microsoft Teams Certified, All cloud service providers through Poly Video App mode, USB Device mode

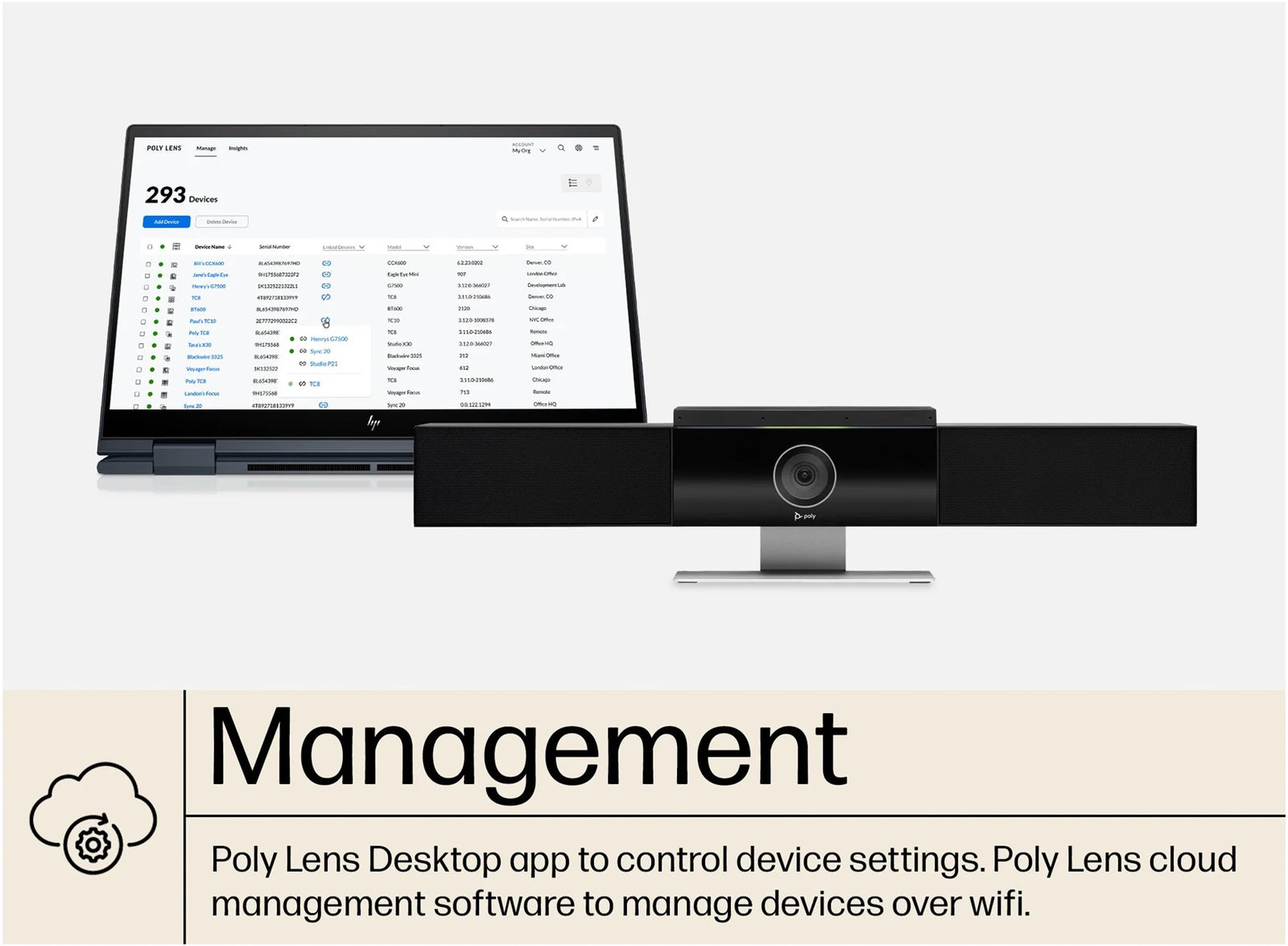

	Management Software	Poly Lens
MULTIMEDIA AND INPUT DEVICES	Audio	Poly NoiseBlockAI technology, Poly Acoustic Fence technology, Poly Acoustic Clarity technology
	Microphone type	Six-element beamforming microphone array
	Microphone pickup range (metric)	Up to 4.57 m
	Sensitivity (speaker)	90 dB
	Speaker bandwidth	100 Hz to 20 kHz
	Speaker type	Stereo speakers
CAMERA SPECIFICATIONS	Audio standards	UAC 1.0, HID 1.11
	Camera type	Single-lens
	Diagonal field of view (dFoV)	120°
	Horizontal field of view (hFoV)	110°
	Lens cover capabilities	Integrated
	Camera resolution	2160p, 4K UHD (3840 x 2160)
	Zoom capability	5x
	Smart camera technology	Poly DirectorAI with speaker framing, People framing, Group framing, Presenter tracking, DirectorAI perimeter
	Video standards	UVC 1.1/1.5 Video
