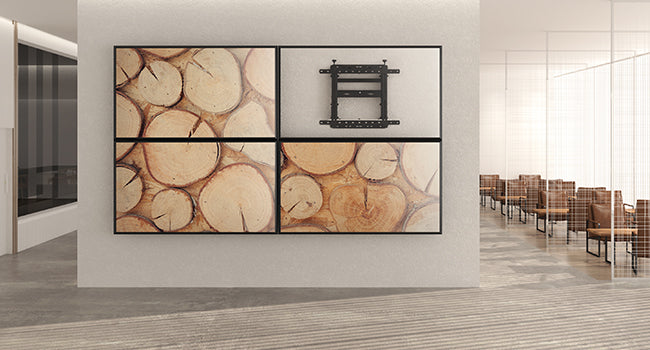

Pop-Out Video Wall Mount AS1346T - 43" to 70" Screens
SKU: AS1346T
£179.59 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Warranty3 Year Warranty
- Mounting TypeWall Mounts
- VESA Patterns600x400
- Description
- Specifications
- Warranty
-
Designed for commercial use

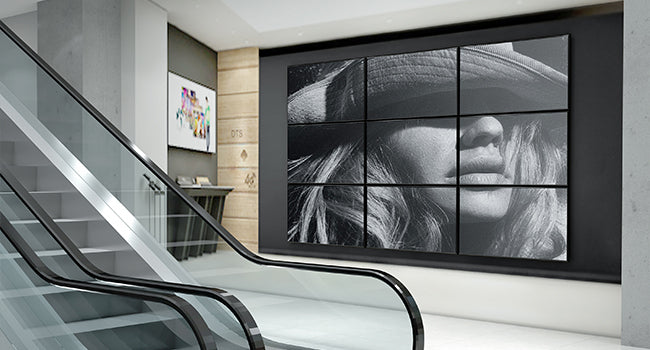

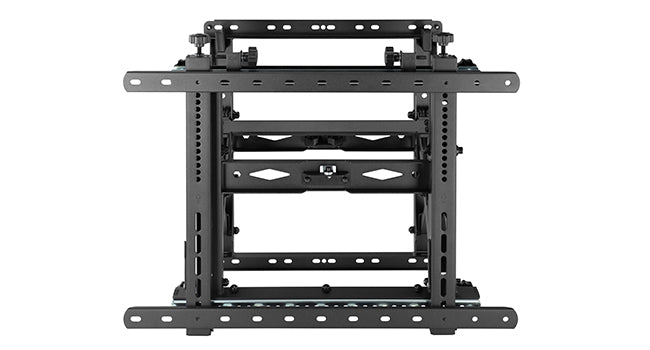

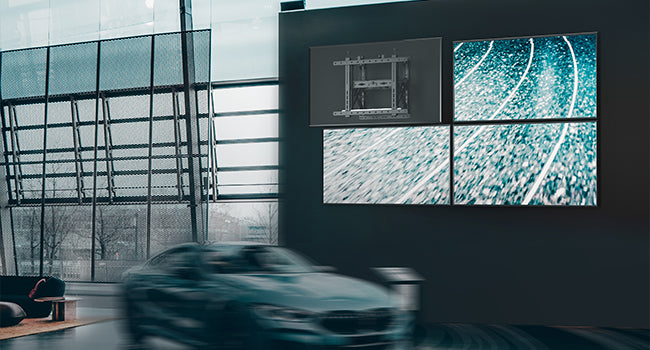

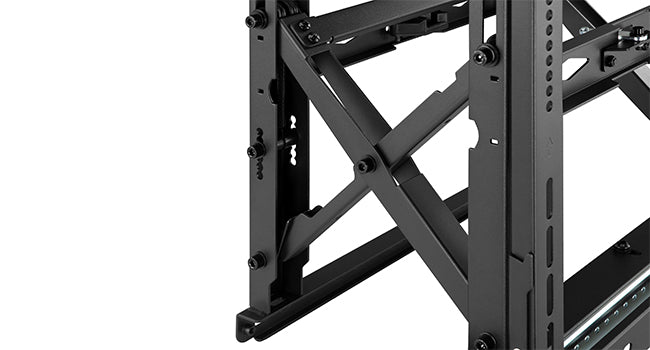

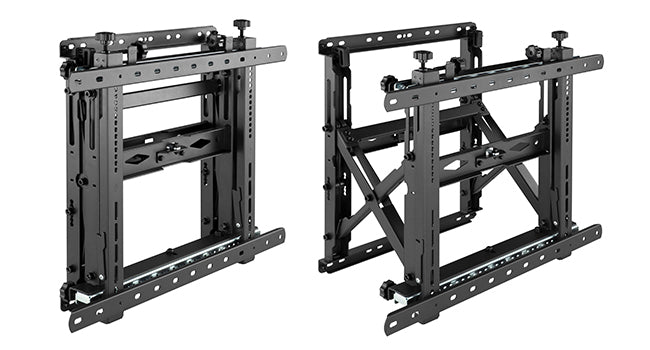

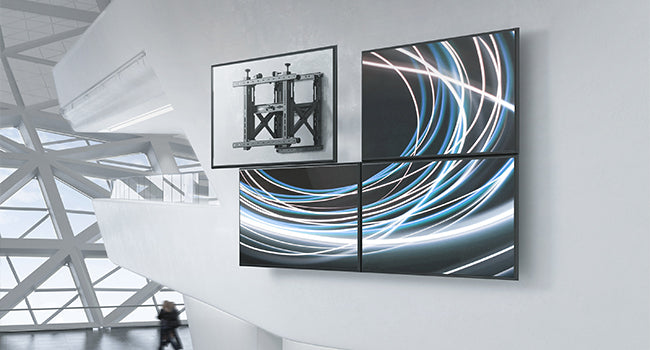

Micro-adjustment video wall mount

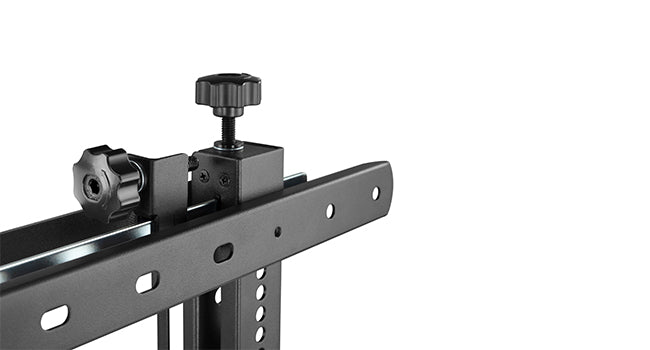

Up/down micro-adjustment: 13mm
In/out micro-adjustment: 13.5mm
Tilting micro-adjustment range of +2° to -3°

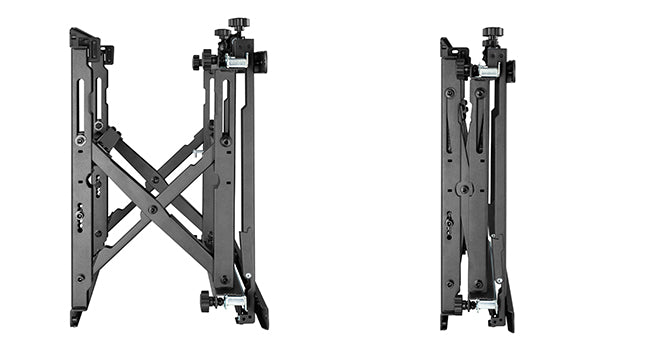

Range of pop out: 135mm
Suitable for most 42”-70” screens
Maximum VESA pattern: 600x400mm
Maximum hole pattern: 604x405mm
Mounting profile from wall: 120-325mm
Maximum weight capacity: 70kg/154lbs
Anti-theft security feature (requires padlock)
-
Mount Type Pop-Out Video Wall Mount Mounting Pattern Universal Material Steel, Plastic Material Finish Black Powder Coated Recommended Screen Size 42"-70" Weight Capacity 70kg/154lbs Load Tested 4 times weight capacity approved Maximum Hole Pattern (WxH) 604x405mm Compatible VESA Patterns 200x200mm, 400x200mm, 300x300mm, 300x200mm, 400x300mm, 400x400mm, 600x400mm Tilt -3° to +2° Swivel 0° Level Adjustment 13.5mm/13mm Rotation 0° Anti-theft Yes -
Warranty
3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.
Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.
Covers hardware failure but excludes accidental damage or user error.
All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.
Free lifetime telephone and email technical support.
