ProDVX 10.1" Android Touch Display 12 Panel PC, Power Over Ethernet+, Surround LED Bar | APPC-10SLB-R23
SKU: APPC-10SLB-R23
£501.80 (Excl. VAT)
- Description
- Specifications
- Downloads
-
ProDVX 10.1" Android Touch Display 12 Panel PC, Power Over Ethernet+, Surround LED Bar | APPC-10SLB-R23

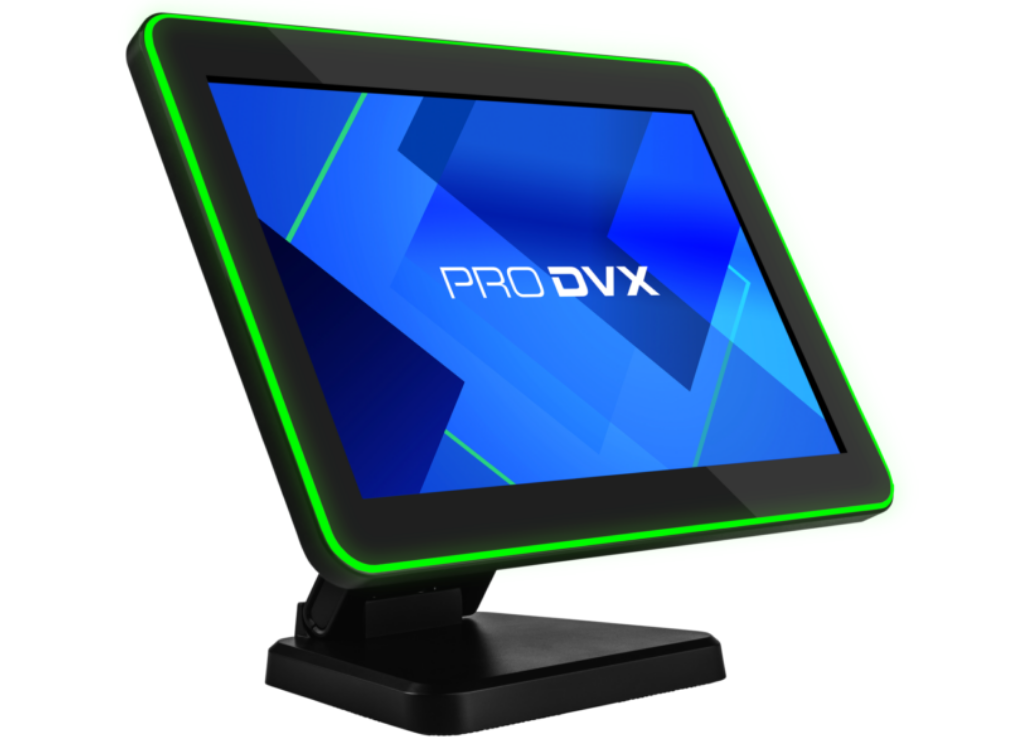

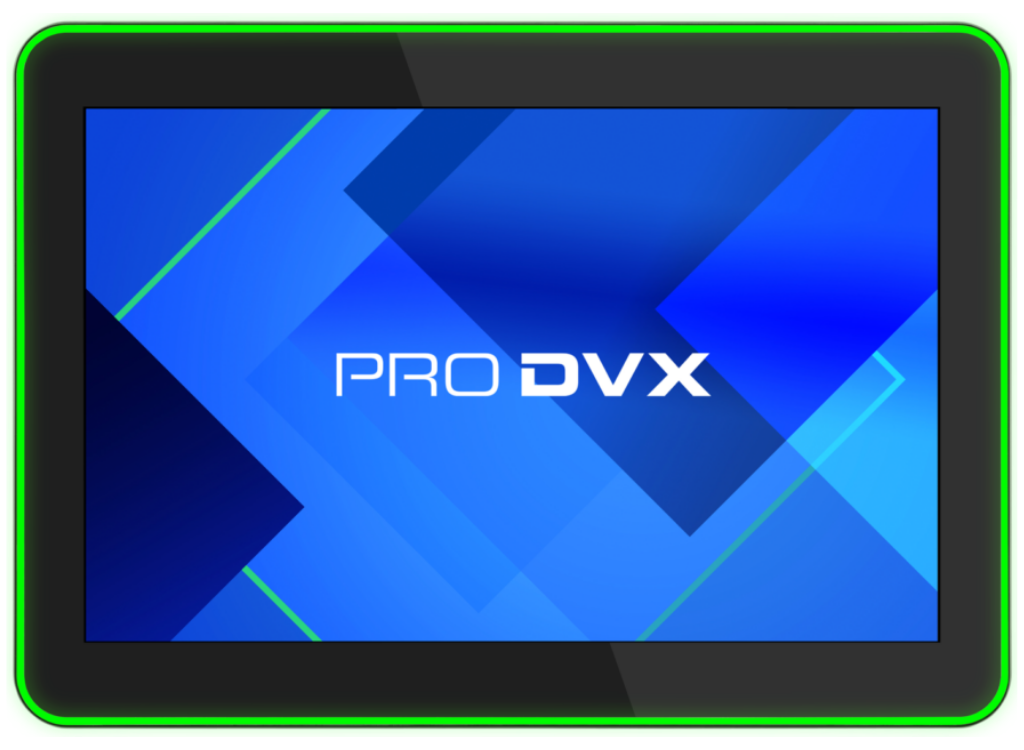

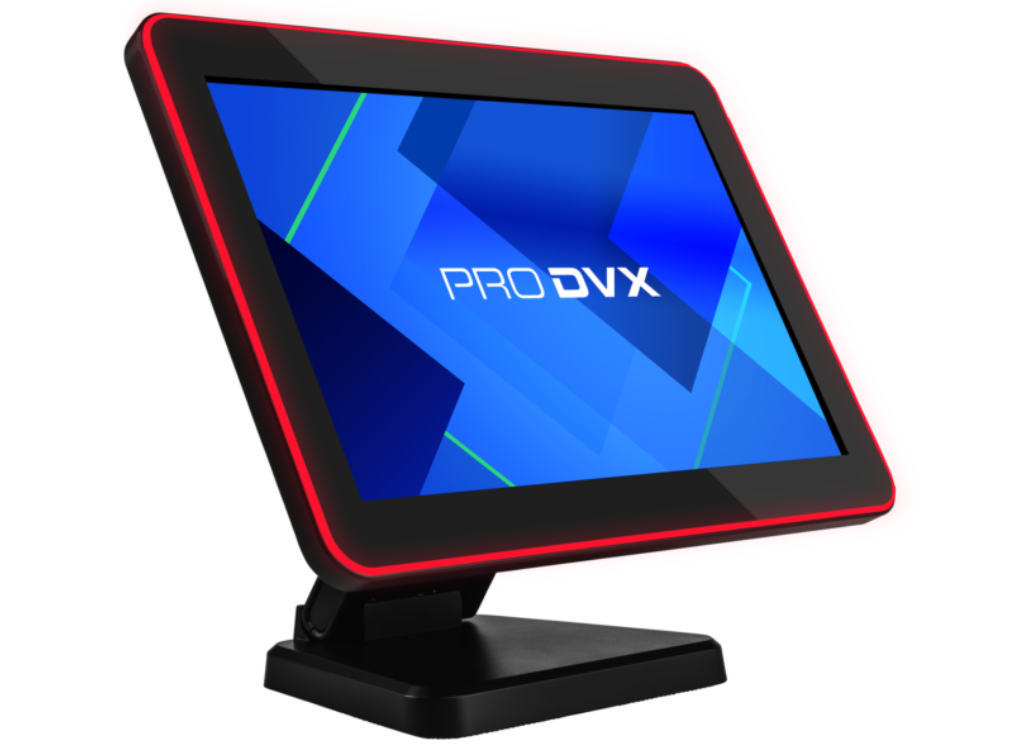

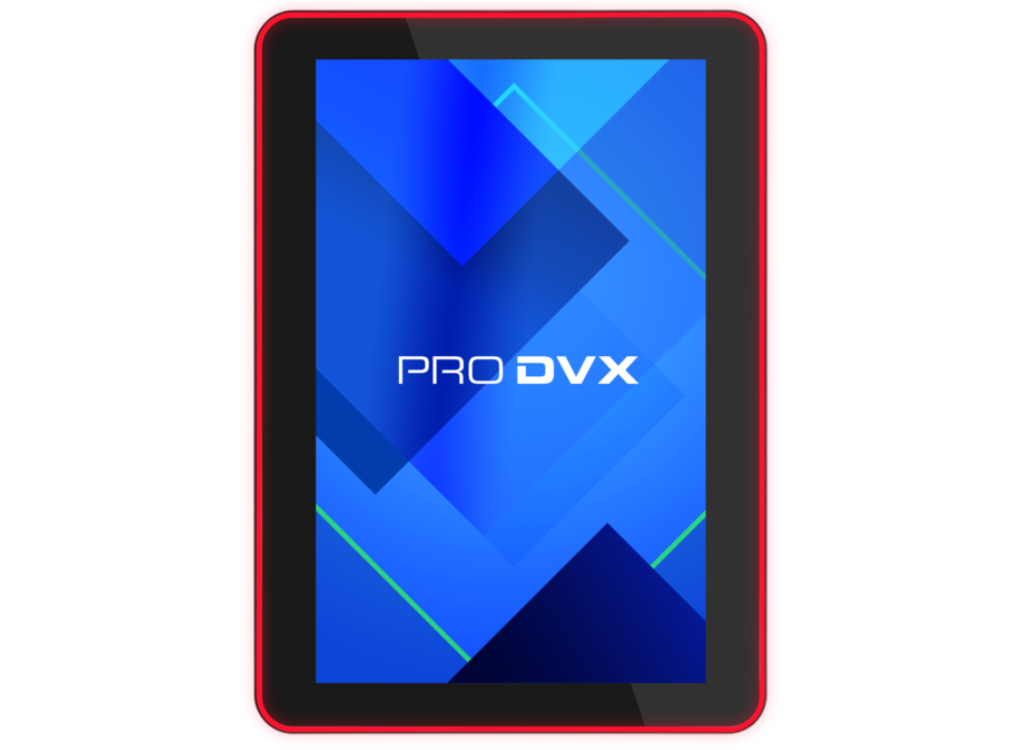

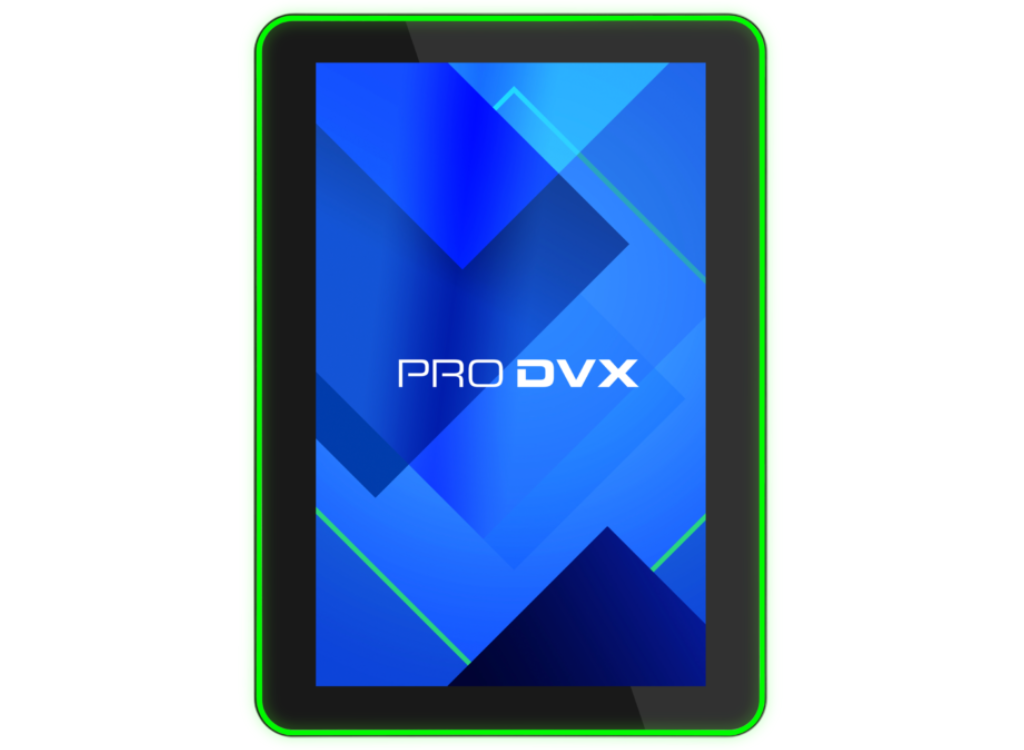

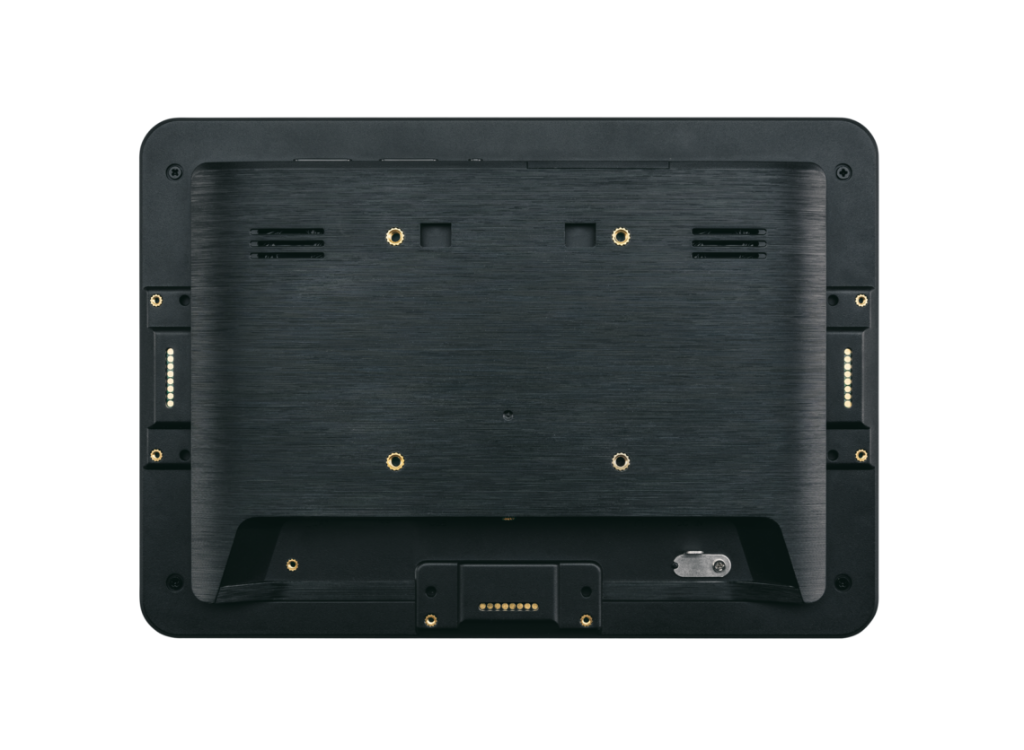

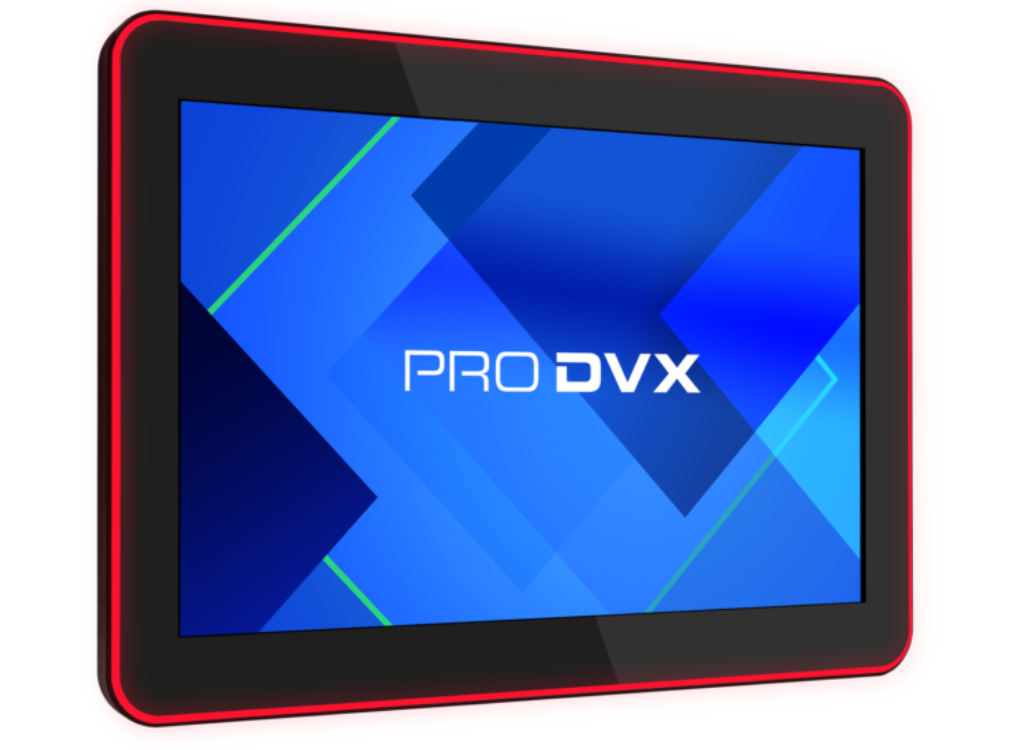

The APPC-10SLB (R23-7501) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a surround RGB LED bar for efficient signalling. The APPC-10SLB (R23-7501) ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10SLB (R23-7501) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
-

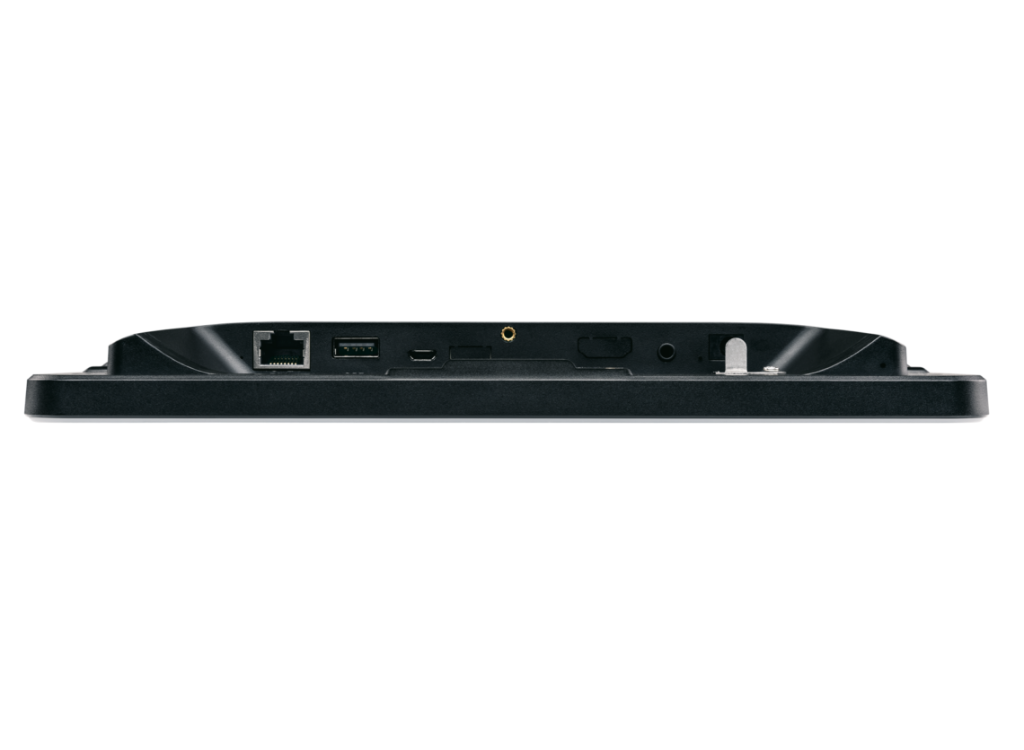

Category Feature Specification Panel Panel type TFT LCD IPS Resolution 1280 x 800 Aspect ratio 16:10 wide Backlight Edge-LED backlight Brightness 500 cd/m² Viewing angle H160 / V160 Contrast ratio 800:1 Touch Type 10 TP Pcap 10ms Treatment Non-glare Convenience Landscape, Portrait, Table Mode, Flushmount Operation hours 24h / 7d System Chipset Cortex A55, 2.0 GHz, 4-Core CPU RK3568 GPU Mali-G52 Cooling Fanless System memory 4 GB DDR4 SDRAM Video input N.A. Video out Yes, HDMI out Video resolution 1280 x 800 Internal storage 16 GB eMMC Flash External storage SD-Card Slot (door) Card slot SD OS Android 12 LED Light Bar Surround LED bar (RGB) I/O Ports DC-IN 12 V Audio-out 3.5 mm USB USB 2.0 Ethernet RJ45 GPIO Yes Micro-USB Yes Pogo pin 3x HDMI out Yes Network LAN RJ45 10/100/1000 Mbps LAN WiFi 802.11 a/b/g/n/ac Bluetooth 5 Power over Ethernet IEEE 802.3at (PoE+) Integrated NFC NFC via PoGo & USB Camera Camera via PoGo & USB Video/Audio Video support H.264, MP4, MPG, MPEG2, MPEG4 Audio support AAC, ASF, MP2, OGG, WAV, WMA Photo support JPG, JPEG, PNG, BMP, GIF Microphone Yes Speakers 2 x 2 W Audio Jack Output 3.5mm Physical Housing ABS+PC (Macrolon) Color Black Weight 650 g Dimensions 255.3 x 181 x 26.7 mm Mounting / VESA VESA 75 Power Supply 12 V / 2 A (EU, UK, US) Power Supply Included? No Power Usage 10 ~ 23 Watt Pogo Pins 3x (bottom/left/right) Other OSD Language Multi OSD language Clock Battery (RTC) CR1220 Lithium metal, non-rechargeable Storage Temperature -10 ~ 55°C Working Temperature 0 ~ 40°C Humidity 10 ~ 90% non-condensing MTBF 50,000 hours demonstrated Standard Warranty 3 years Certifications Certifications UKCA, CE, FCC, RoHS, REACH SKU SKU 5010500 -
Description Downloads Datasheet Downloads
