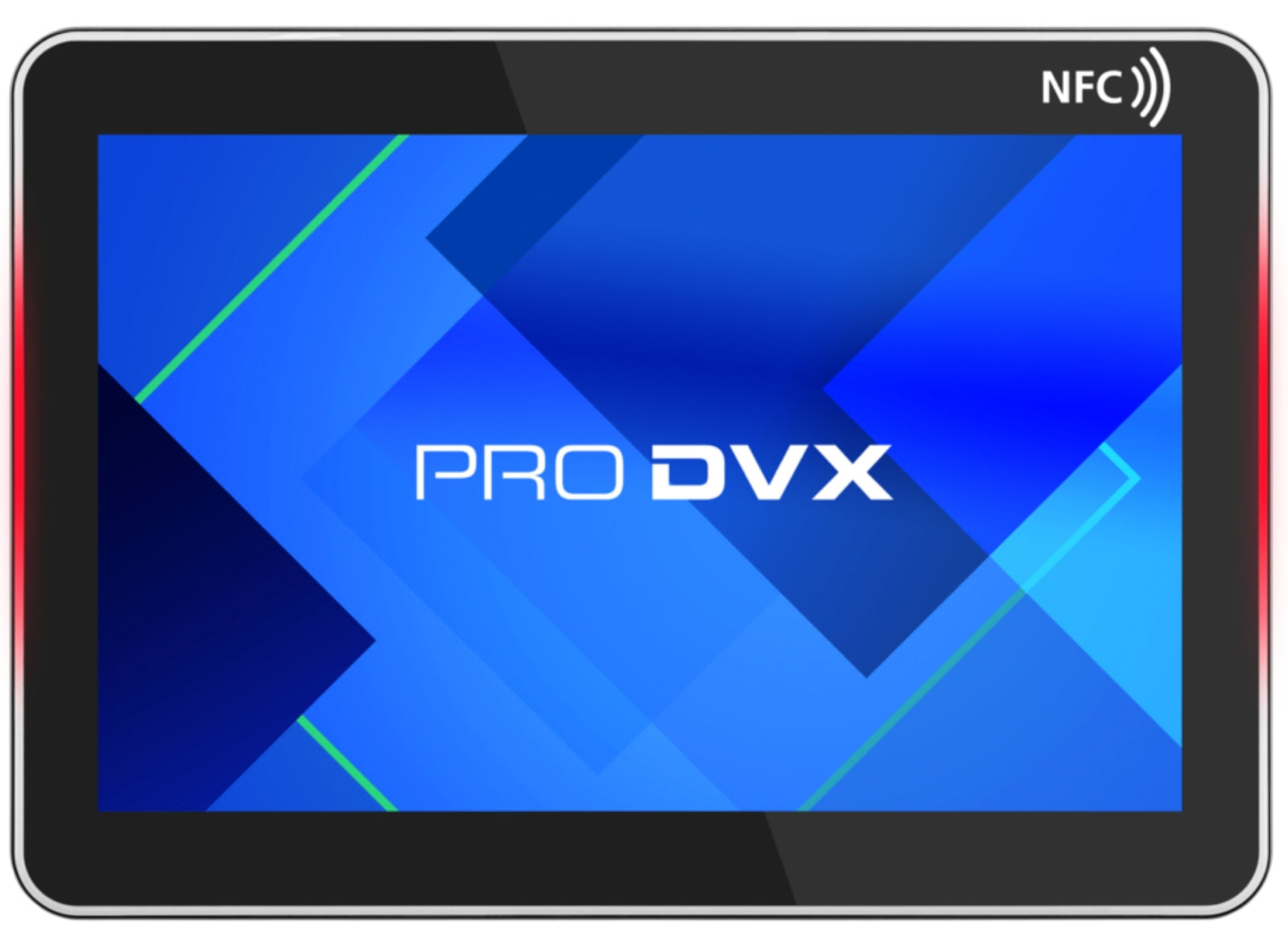

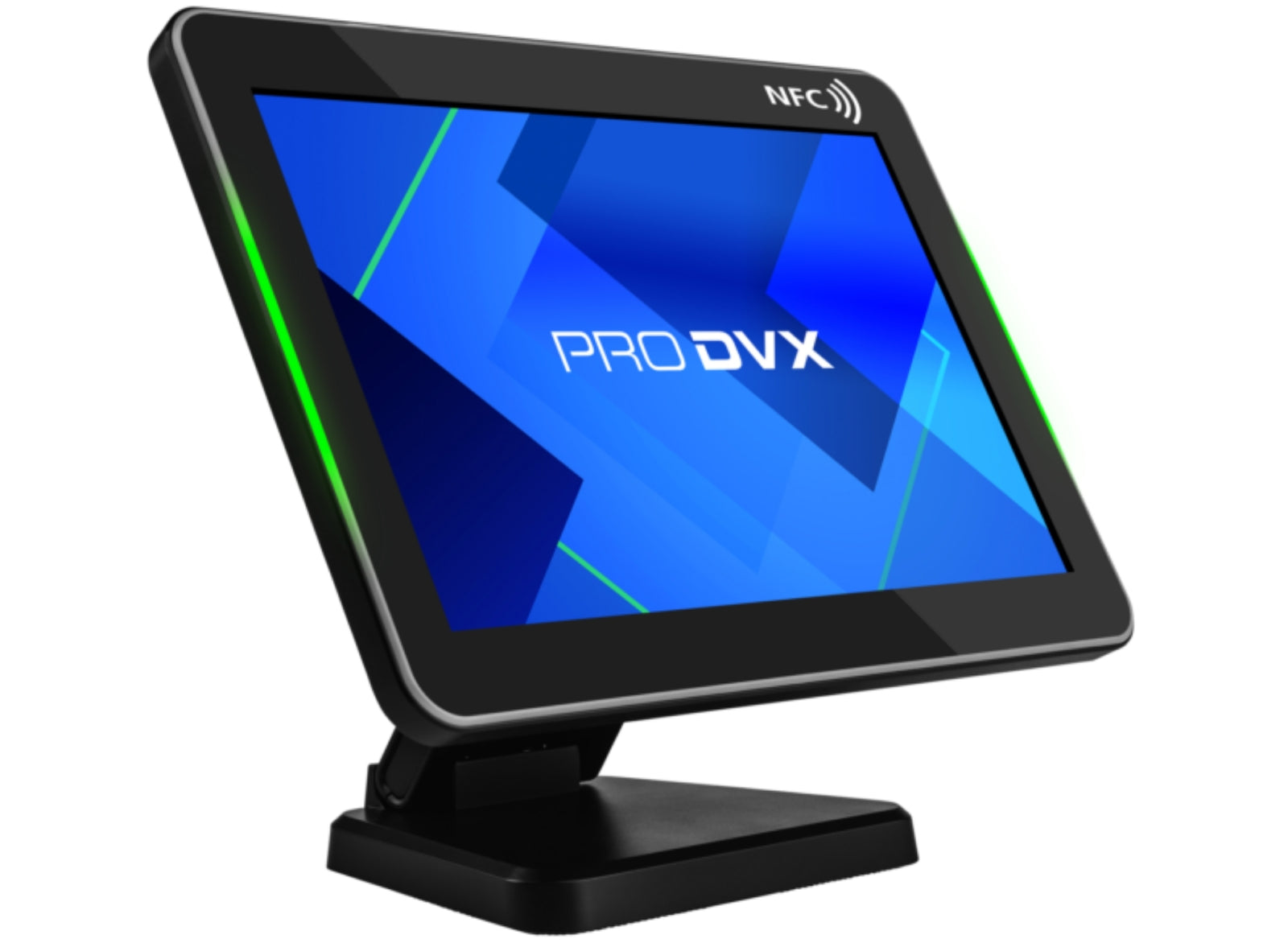

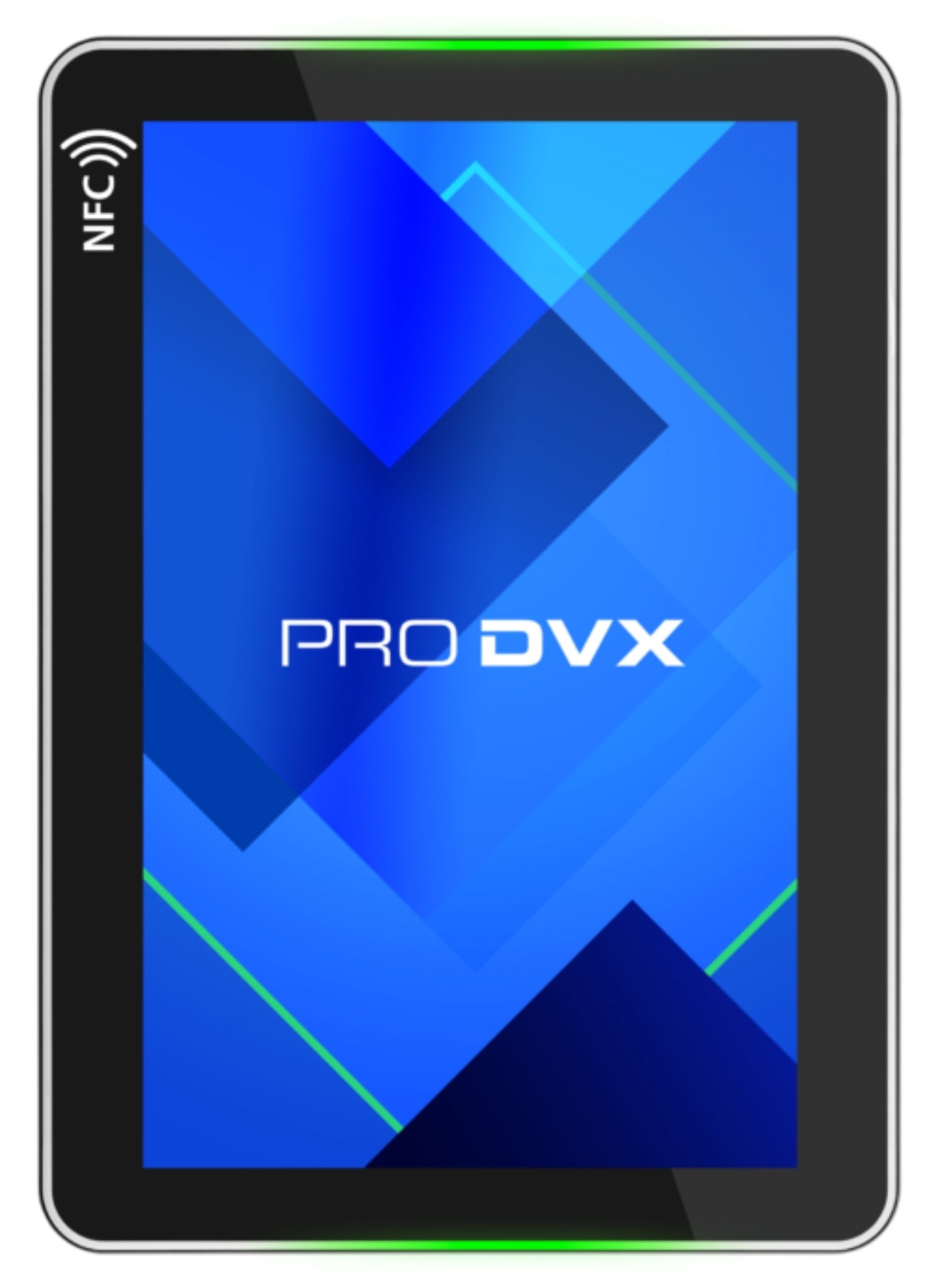

The APPC-10XPLN (R23-7281) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a 2-sided RGB LED bar for efficient signalling, and an integrated NFC reader for NFC-enabled solutions. The APPC-10XPLN (R23-7281) ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10XPLN (R23-7281) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
| Category | Details |
|---|---|
| Panel Type | TFT LCD IPS |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 wide |
| Brightness | 500 cd/m² |
| Touch Type | 10 TP Pcap 10ms |
| CPU | Cortex A55, 2.0 GHz, 4-Core |
| GPU | Mali-G52 |
| Memory | 4 GB DDR4 SDRAM |
| Internal Storage | 16 GB eMMC Flash |
| External Storage | SD-Card Slot |
| OS | Android 12 |
| LED Light Bar | 2-sided RGB LED |
| I/O Ports | 12 V DC-IN, USB 2.0, RJ45, HDMI out, GPIO, 3.5mm audio-out, Micro-USB |
| Network | 10/100/1000 Mbps LAN, WiFi 802.11 a/b/g/n/ac, Bluetooth 5, PoE+ |
| Integrated NFC | Yes (NXP PN553) |
| Microphone | Yes |
| Speakers | 2 x 2 W |
| Dimensions | 255.3 x 181 x 26.7 mm |
| Weight | 650 g |
| Mounting/VESA | VESA 75 |
| Power Supply | 12 V / 2 A (not included) |
| Working Temp | 0 ~ 40°C |
| Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| Description | Downloads |
|---|---|
| ProDVX 10" PoE LED Android Touch Display | APPC-10XPLN-R23 DataSheet | Downloads |
| ProDVX 10" PoE LED Android Touch Display | APPC-10XPLN-R23 Quick Start Guide | Downloads |
