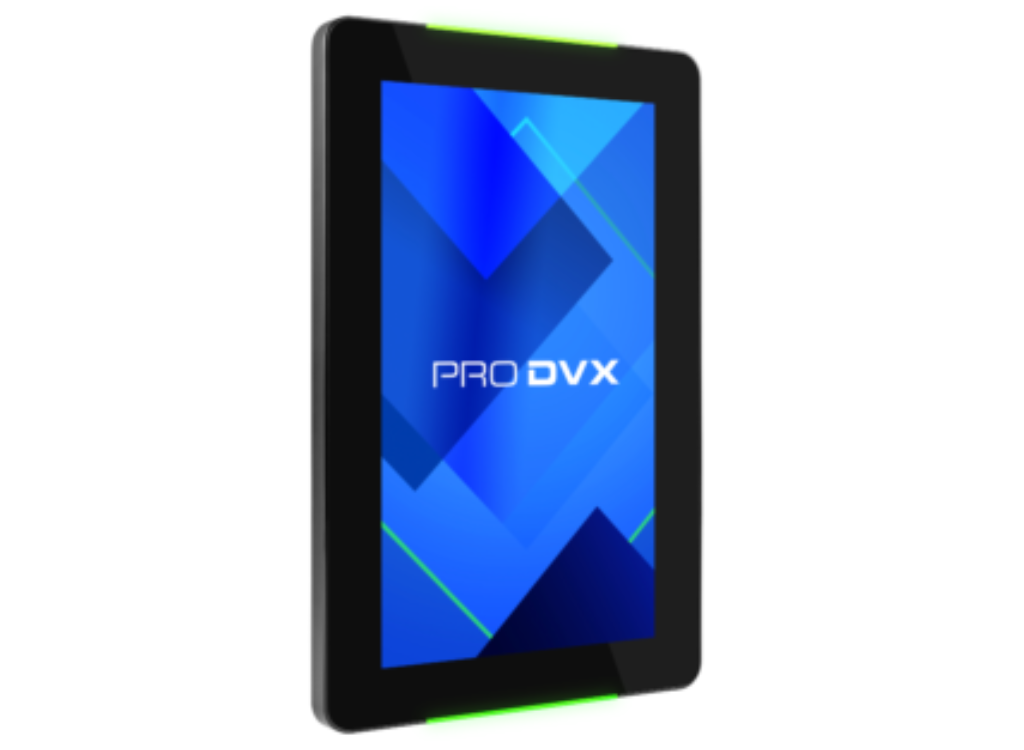

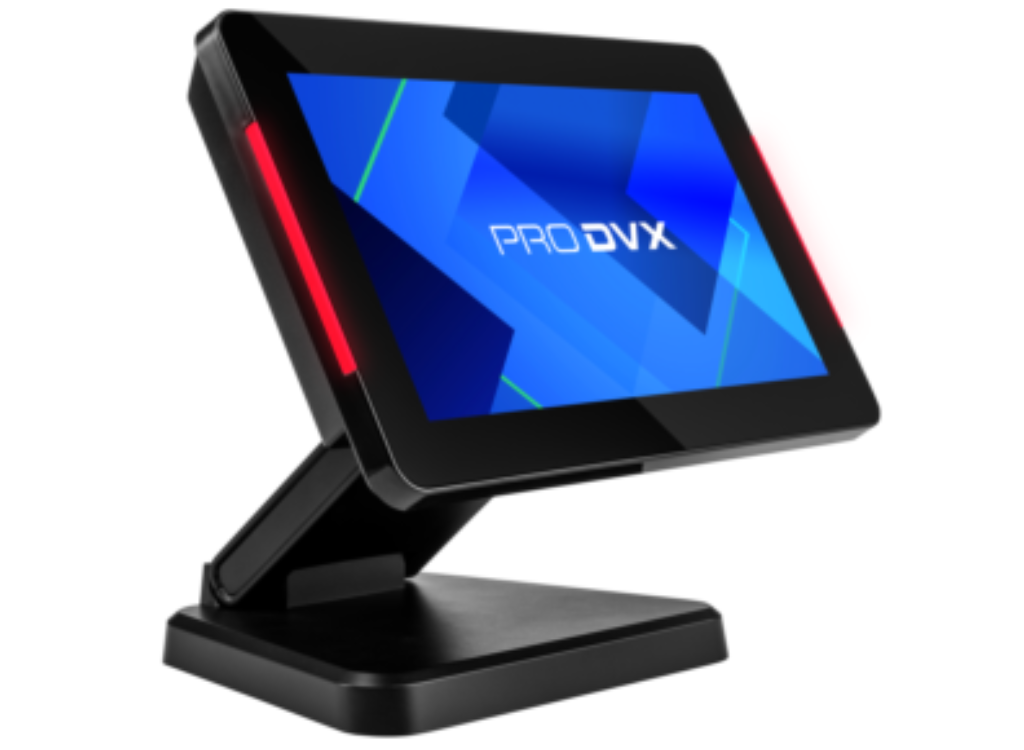

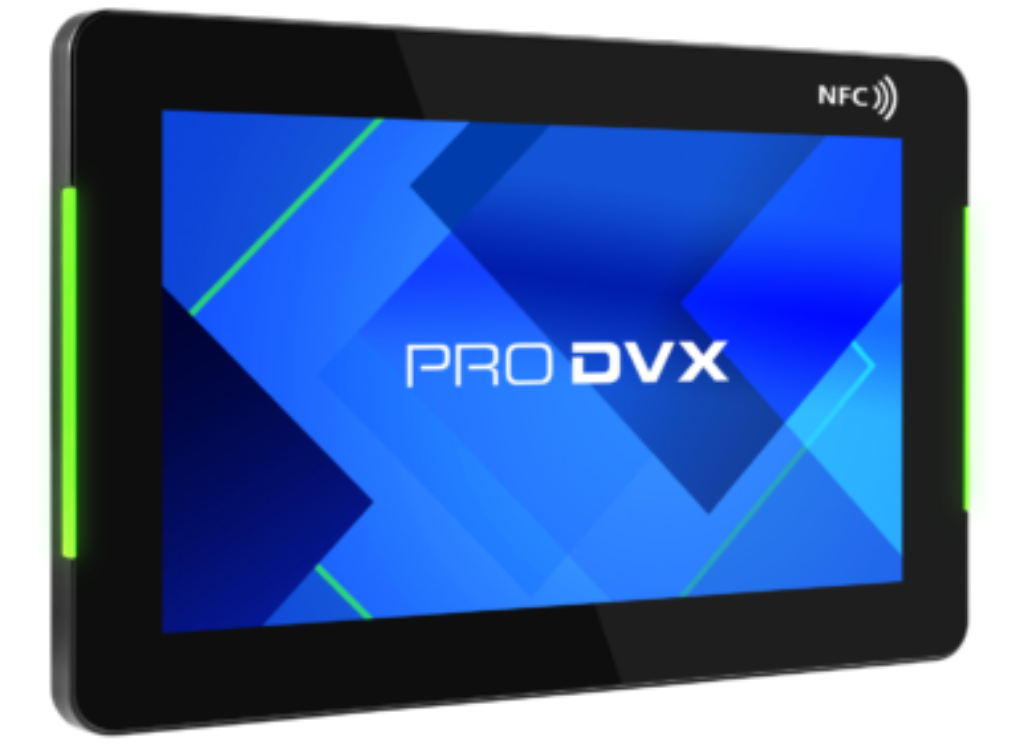

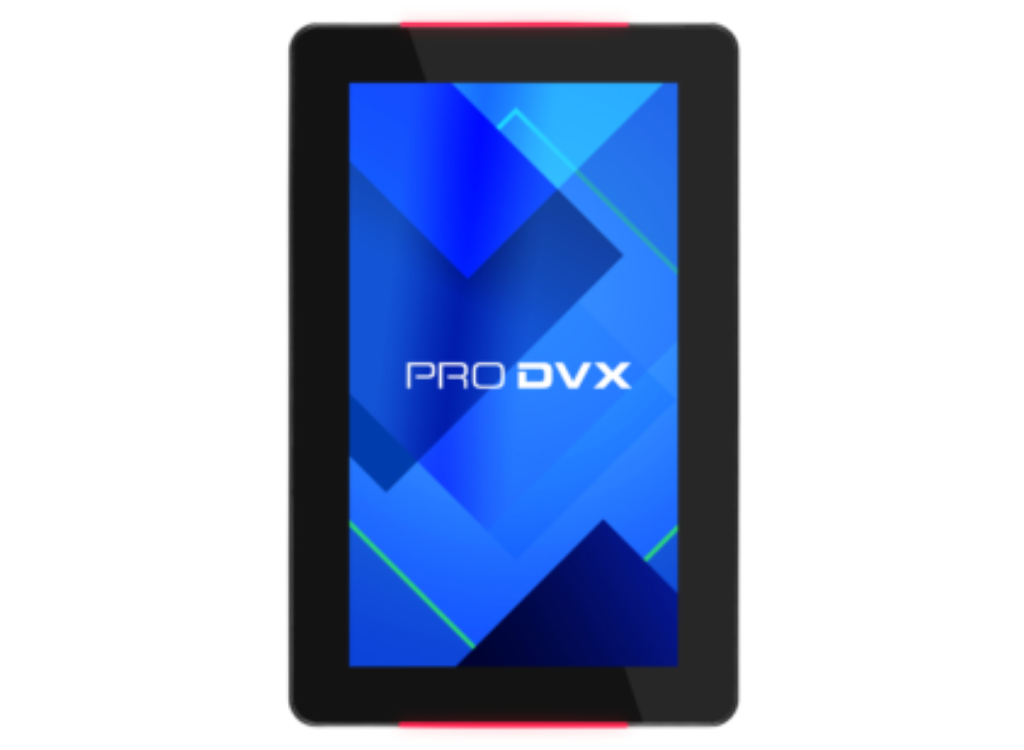

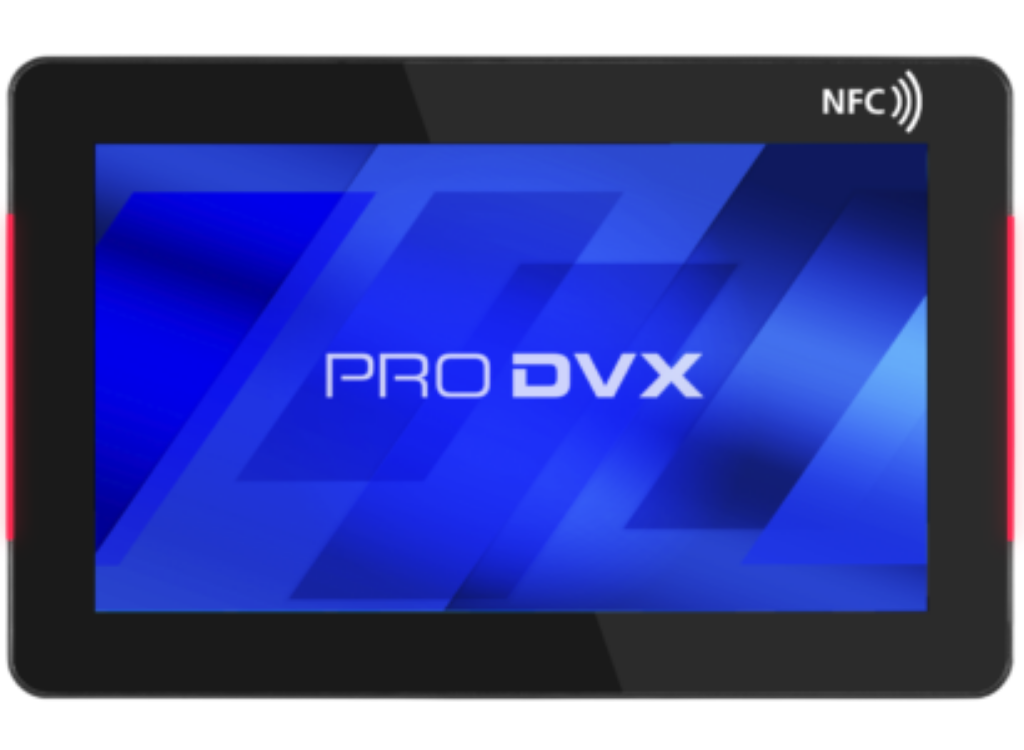

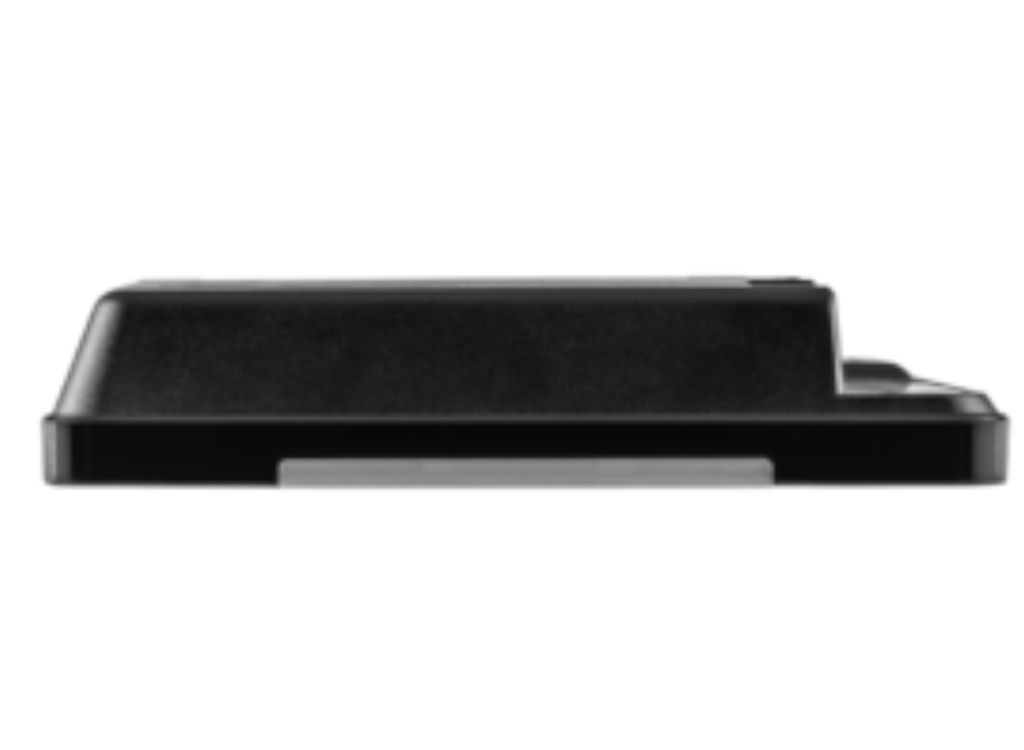

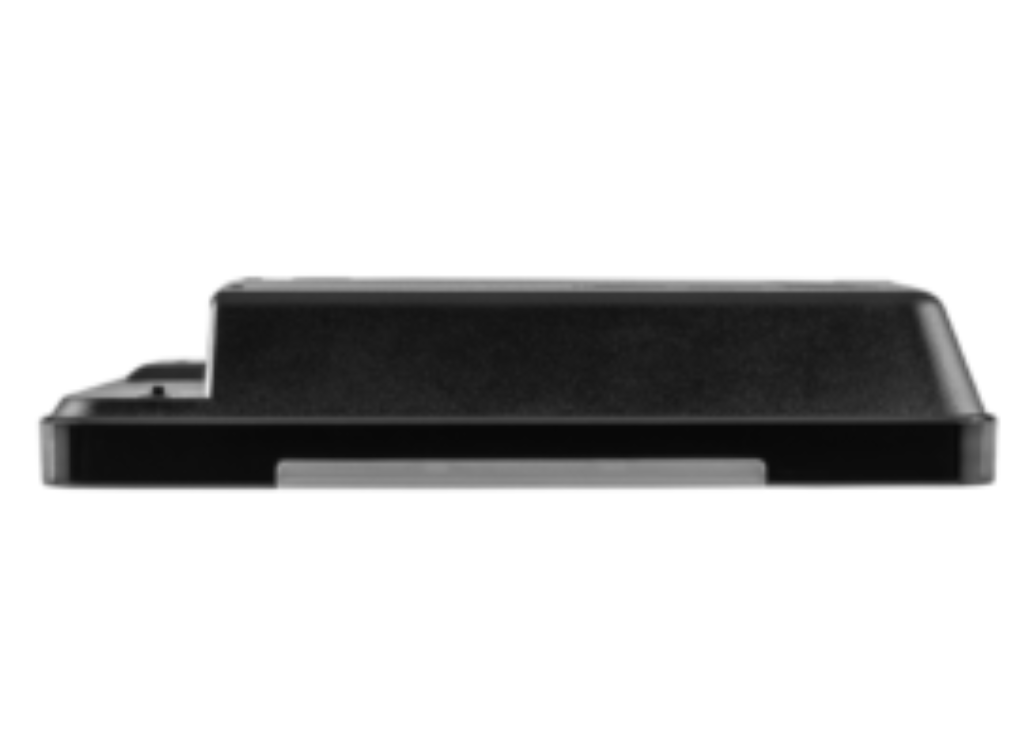

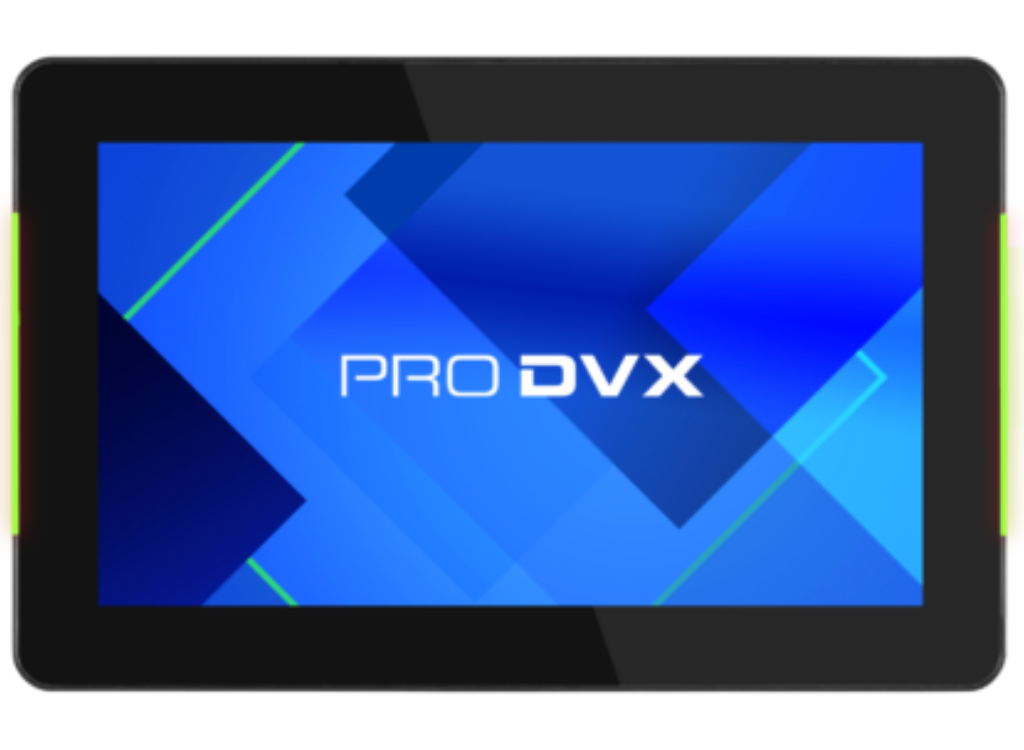

The APPC-7XPLN (R23-7281) is a 7-inch Android Panel PC running on Android 12. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility. Additionally, the APPC-7XPLN (R23-7281) includes an integrated NFC module for added functionalities.
| Feature | Specification |
|---|---|
| Panel | |
| Panel type | TFT LCD |
| Resolution | 1024 x 600 |
| Aspect ratio | 17:10 wide |
| Backlight | Edge-LED backlight |
| Brightness | 300 cd/m² |
| Viewing angle | H140 / V130 |
| Contrast ratio | 800:1 |
| Touch Type | 10 TP Pcap 10ms |
| Treatment | Non-glare |

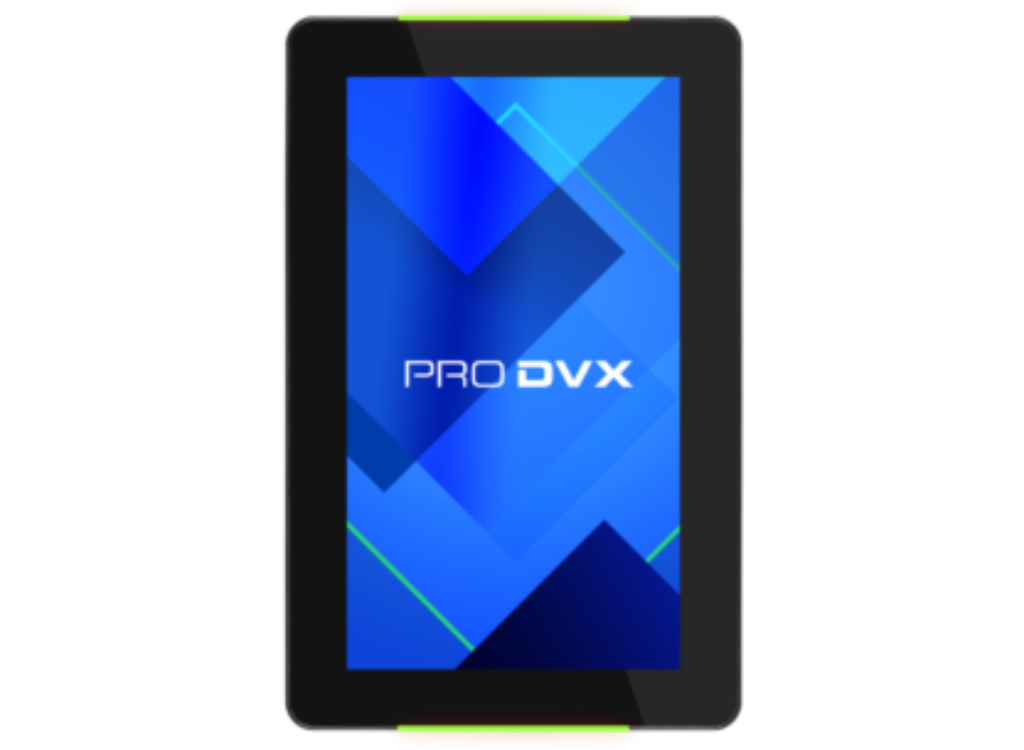

| Convenience | Landscape, Portrait, Table Mode, Flushmount |
| Operation hours | 24h / 7d |
| System | |
| Chipset | Cortex A55, 2.0 GHz, 4-Core |
| CPU | RK3568 (Quad-core ARM Cortex-A55) |
| GPU | Mali-G52-2EE |
| Cooling | Fanless |
| System memory | 4 GB DDR4 SDRAM |
| Video input | N.A. |
| Video out | N.A. |
| Video resolution | 1024 x 600 |
| Internal storage | 16GB eMMC |
| External storage | MicroSD-Card Slot (door) |
| Card slot | miniSD |
| OS | Android 12 |
| LED Light Bar | 2-sided LED bar (RGB) |

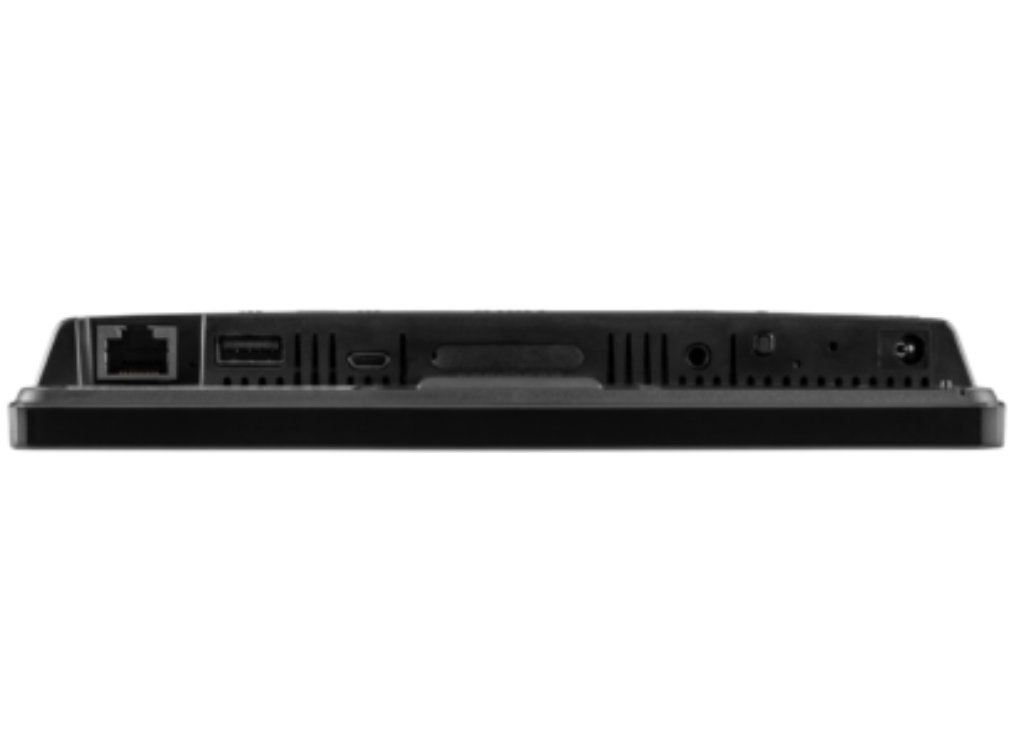

| I/O Ports | |
| DC-IN | 12 V |
| Pogo pin | 1x |
| Combo Jack | Yes |
| USB | USB 2.0, Micro-USB |
| Ethernet | RJ45 |
| LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | 5 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |

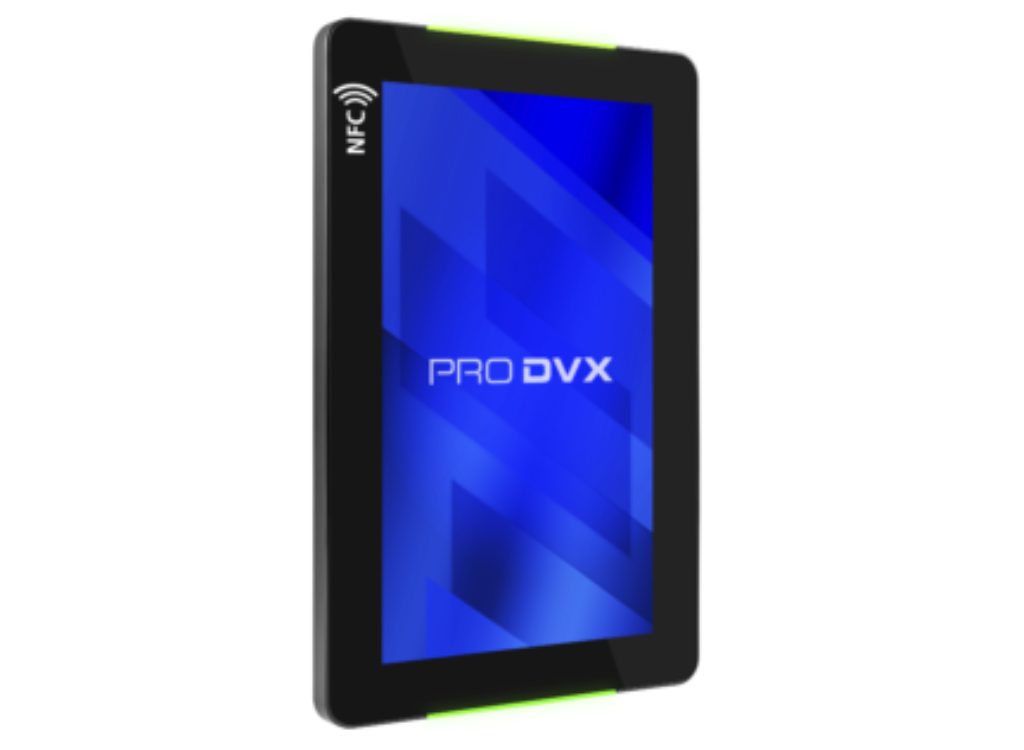

| Integrated NFC | Integrated NFC reader (NXP PN553) |
| Camera | via PoGo & USB |
| Video/Audio | |
| Video support | MPEG2, MPEG4, H.264, MP4, MPG |
| Audio support | MP2, WMA, WAV, AAC, OGG, MP3, ASF |
| Photo support | JPG, JPEG, PNG, BMP, GIF |
| Microphone | Yes |
| Speakers | 2 x 1 W |
| Audio Jack Output 3.5mm | Yes |
| Physical | |
| Housing | ABS+PC (Macrolon) |
| Color | Black |
| Weight | 360 g |
| Dimensions | 188.1 x 120.3 x 25.2 mm |

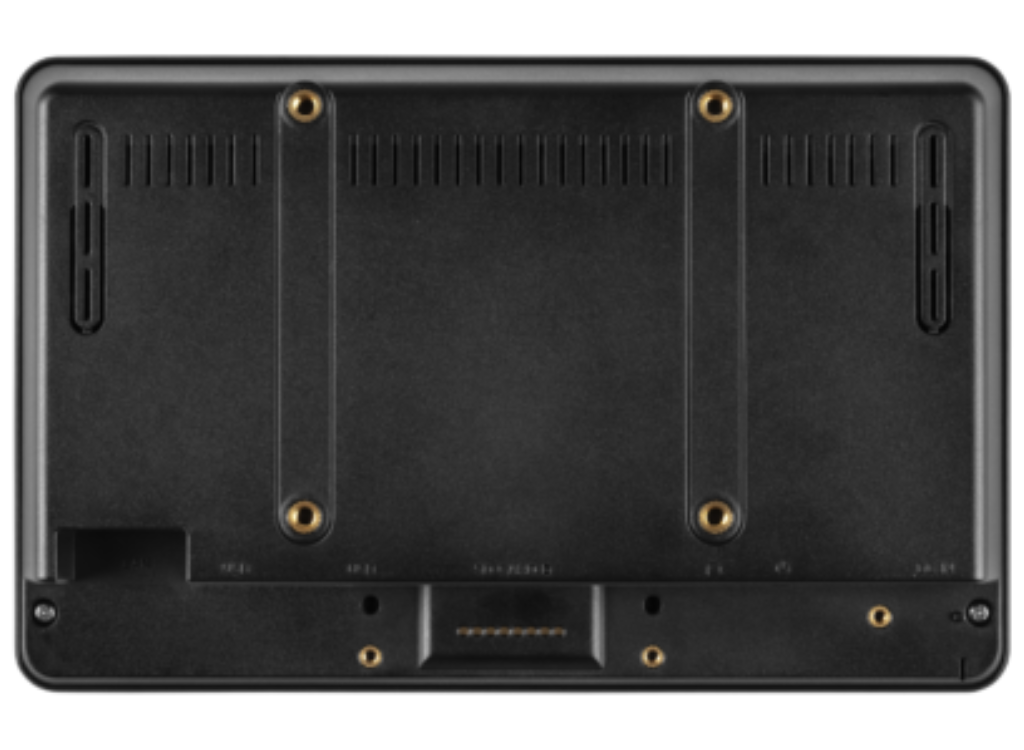

| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A |
| Power Supply Included? | Optional accessory |
| Power Usage | 6 ~ 23 Watt |
| Pogo Pins | 1x (bottom) |
| Other | |
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 Lithium metal, non-rechargeable |
| Storage Temperature | -10 ~ 55°C |
| Working Temperature | 0 ~ 40°C |
| Storage/Working Humidity | 0 ~ 95% non-condensing |
| MTBF | 35,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| SKU | 5007560 |
