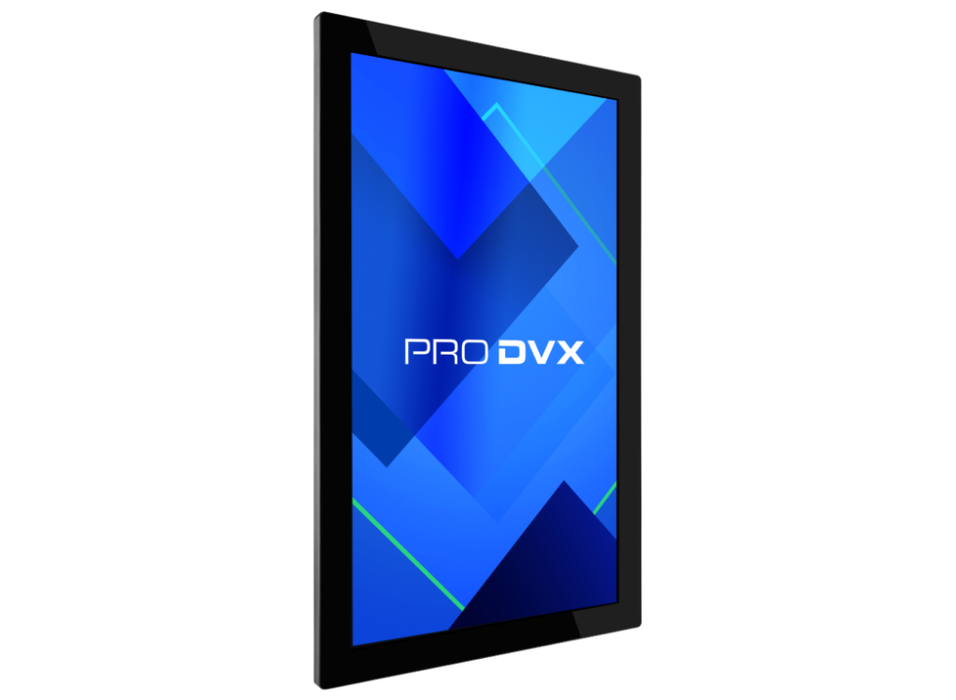

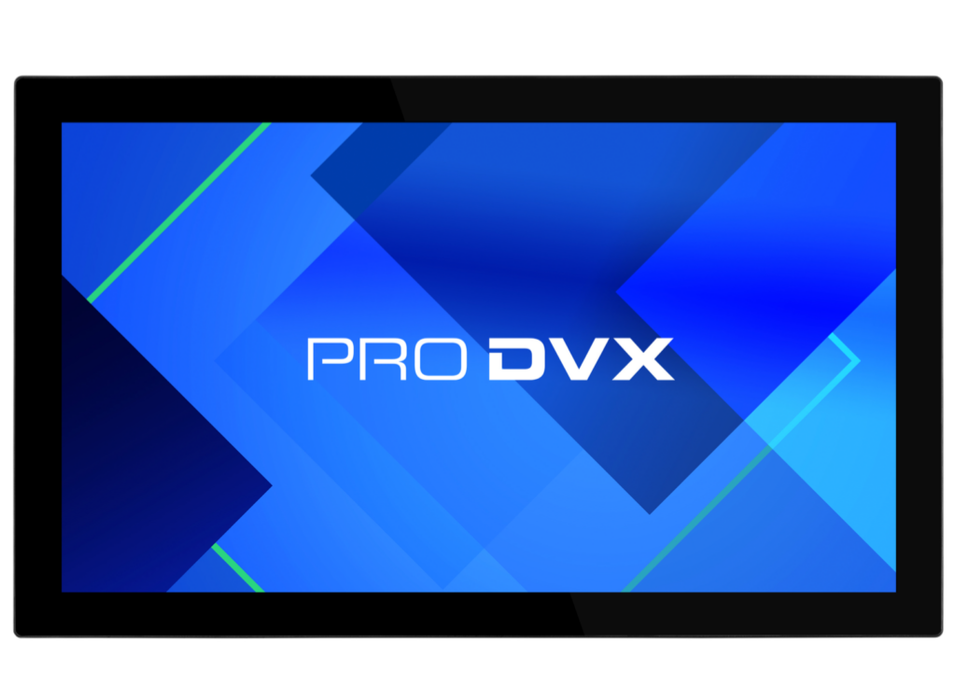

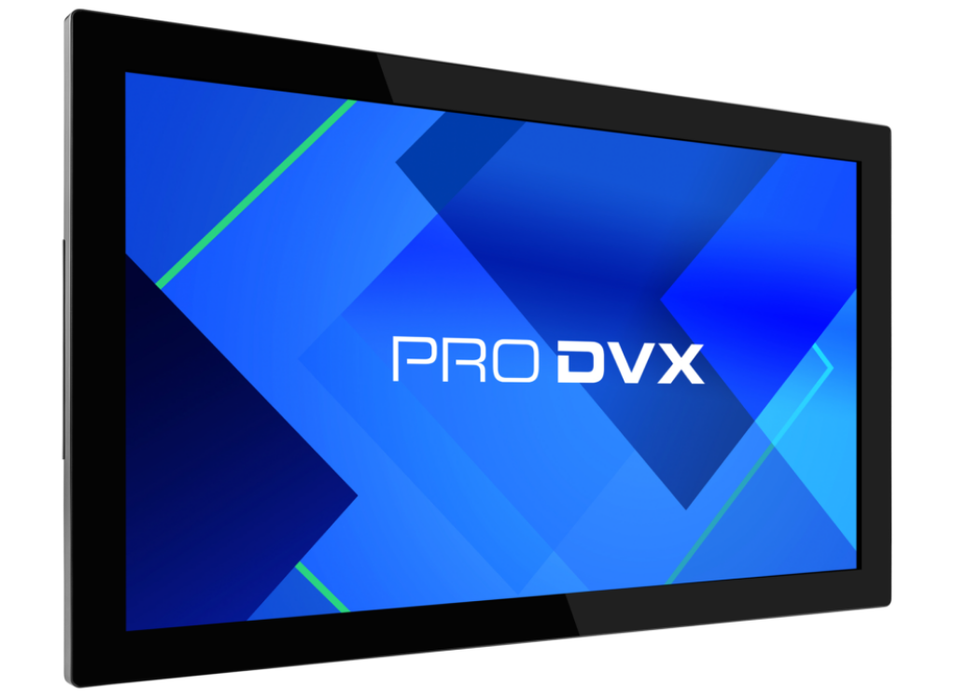

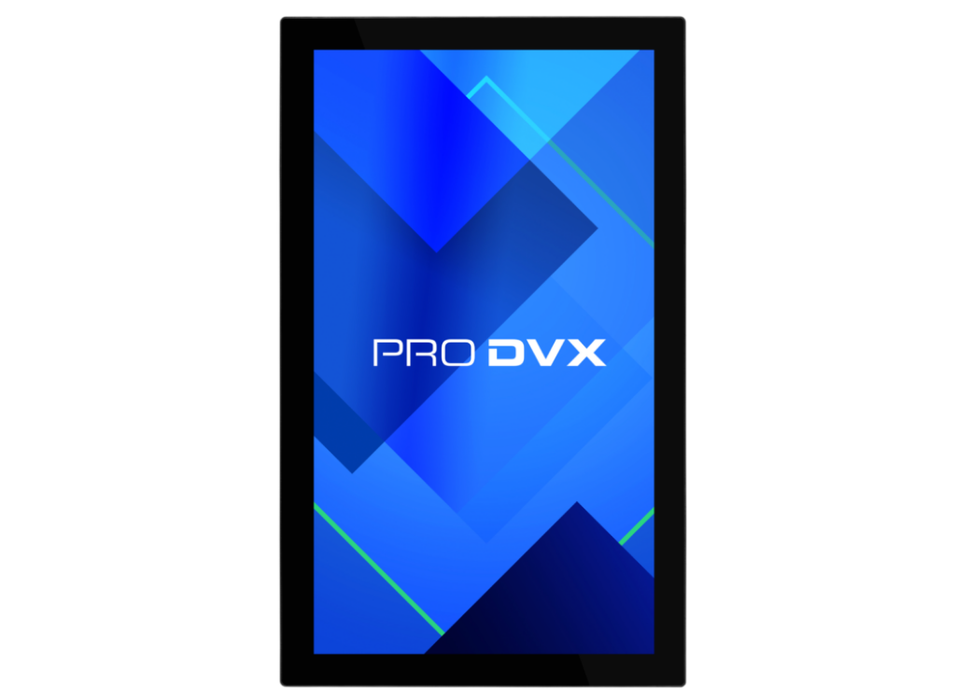

ProDVX APPC-22XP R23 22" Full HD Android 11 Touch Display
SKU: APPC-22XP R23
£871.74 (Excl. VAT)
- Display Size22"
- Operating SystemAndroid 11
- VESA Patterns100x100
- Panel TypeIPS Panel
- ResolutionFull HD (1080p)
- Brightness250 cd/m2
- Description
- Specifications
- Downloads
-
ProDVX APPC-22XP R23 22" Full HD Android 11 Touch Display
The APPC-22XP (R23-7222) is a 22-inch Android-based Panel PC, ready to improve your digital communication with its cutting-edge features. Featuring a high-performance Rockchip dual-processor and Mali-T860 GPU, it delivers a seamless user experience. Enhanced RAM and storage ensure multitasking capability, while Android 11 provides the APPC-22XP (R23-7222) with a soft ware agnostic operating system. In addition, the APPC-22XP (R23-7222) is easily installable thanks to its VESA mounting frame and PoE++ capability, eliminating the requirement for extra power cables. Its durable touch panel supports 10-point touch functionality, up to 250 cd/m2 and is treated for non-glare to provide the most optimal user experience. Moreover, the APPC-22XP (R23-7222) showcases a broad range of I/O ports, granting unmatched flexibility for various applications. Whether utilized for interactive kiosks, self-service, or interactive wayfinding, the APPC-22XP (R23-7222) effortlessly handles any solution.
-
Category Specification Panel Panel Type TFT LCD IPS Resolution 1920 x 1080 Aspect Ratio 16:9 wide Backlight Edge-LED backlight Brightness 250 cd/m² Viewing Angle H178° / V178° Contrast Ratio 3000:1 Touch Type 10-point P-Cap, 20 ms Surface Treatment Non-glare Display Modes Landscape, Portrait, Table Mode Operation Hours 24/7 System CPU RK3399 (Dual Core Cortex-A72 + Quad Core Cortex-A53) GPU Mali T860 / 3D Graphic Engine (4K) Cooling Fanless System Memory 4GB LPDDR4 SDRAM Internal Storage 16GB eMMC External Storage SD Card Slot (door) OS Android 11 Video Input N/A Video Output Yes, mini-HDMI out LED Light Bar via PoGo Connectivity & I/O Power Input 12V DC-IN Pogo Pins 3x (bottom, left, right) COM Ports 2x COM (RJ45) USB Ports 2x USB 2.0, 1x USB 3.0, 1x USB-C Audio I/O 3.5 mm jack in/out, S/PDIF Network 1x Ethernet RJ45 (10/100/1000 Mbps) WiFi 802.11 a/b/g/n/ac Bluetooth Bluetooth 5 Power over Ethernet IEEE 802.3bt Type 3 (PoE++) Integrated NFC via PoGo & USB Camera via PoGo & USB Multimedia Video Support 3GP, ASF, AVI, DAT, FLV, MKV, MOV, VOB, WMV, MP4, MPG, RM, TS Audio Support AAC, ASF, MP2, OGG, WAV, WMA Photo Support JPG, JPEG, PNG, BMP, GIF Microphone Yes Speakers 2 x 3 W Physical Housing ABS+PC (Macrolon) Color Black Weight 3500 g Dimensions (mm) 530.5 x 321.22 x 35 mm Mounting VESA 100 Power Supply 12V / 5A (Included) Power Usage 30 ~ 45 Watt Environmental Storage Temp -10 ~ 55°C Working Temp 0 ~ 40°C Humidity 10 ~ 90% non-condensing MTBF 50,000 hours demonstrated Clock Battery CR1220 Lithium (non-rechargeable) Miscellaneous OSD Language Multi-language Warranty 3 years Certifications UKCA, CE, FCC, RoHS, REACH SKU 5022300 -
Document Downloads Datasheet Downloads User Guide Downloads Drawing Downloads
