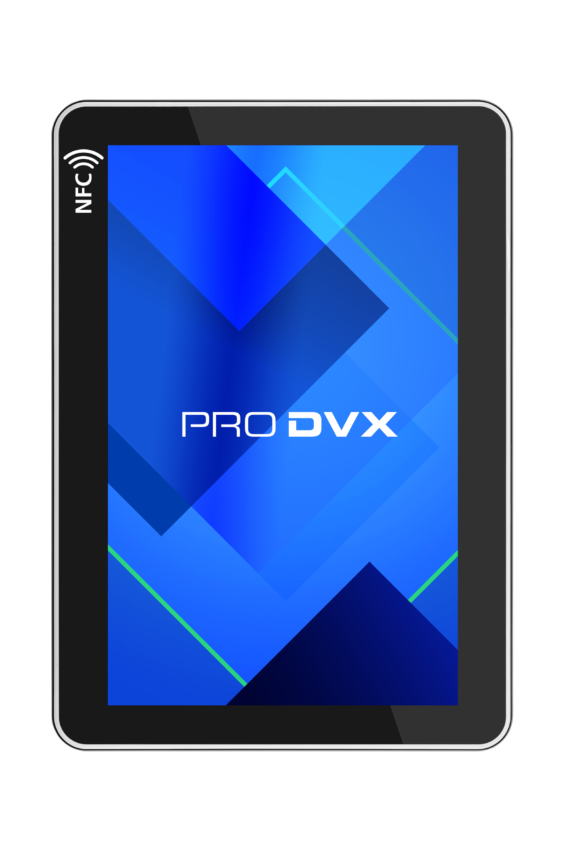

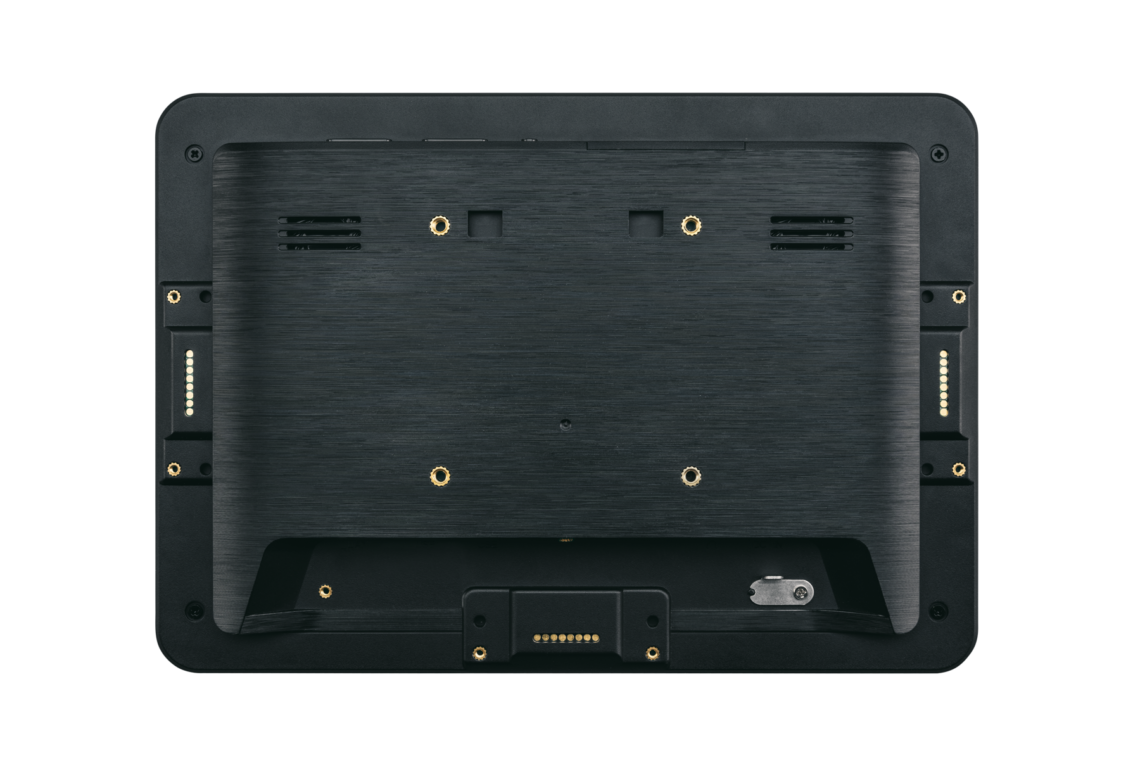

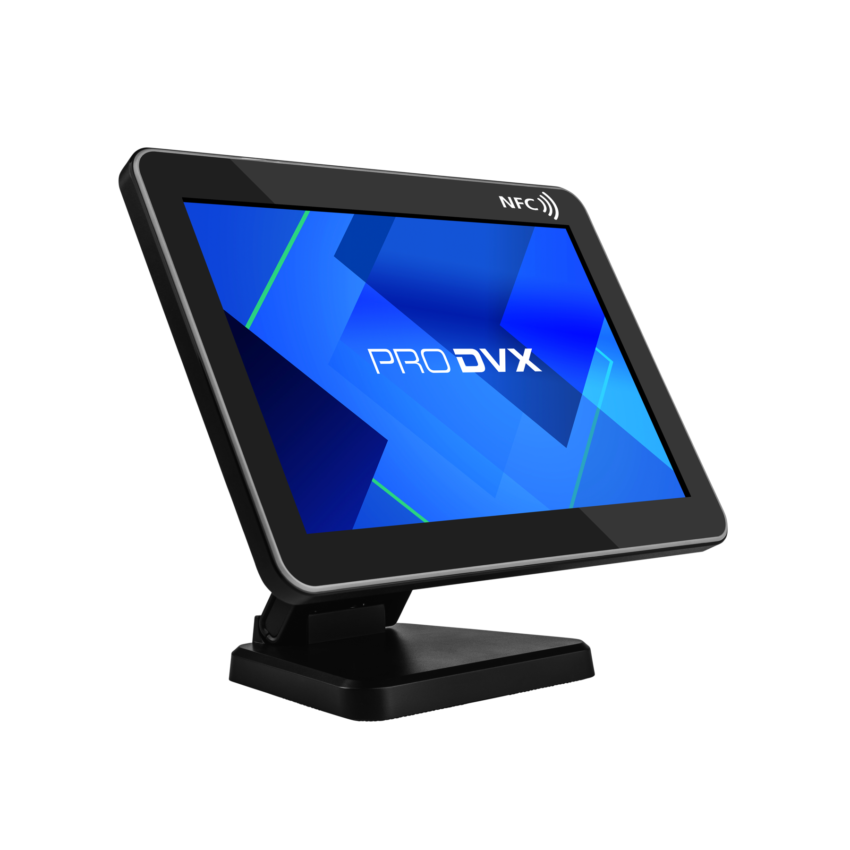

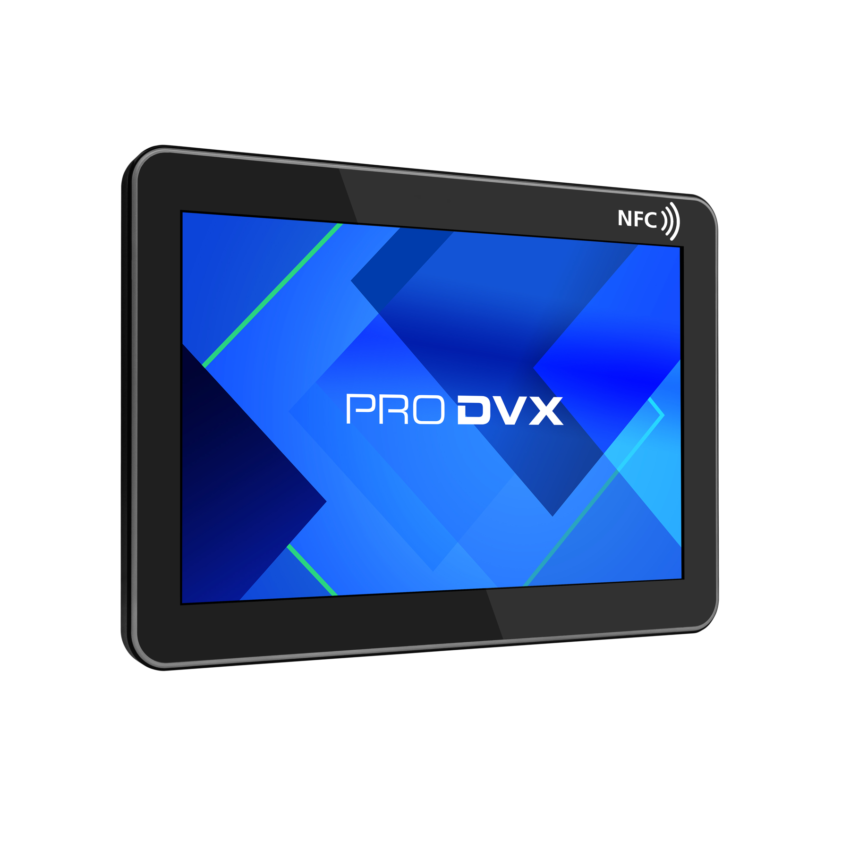

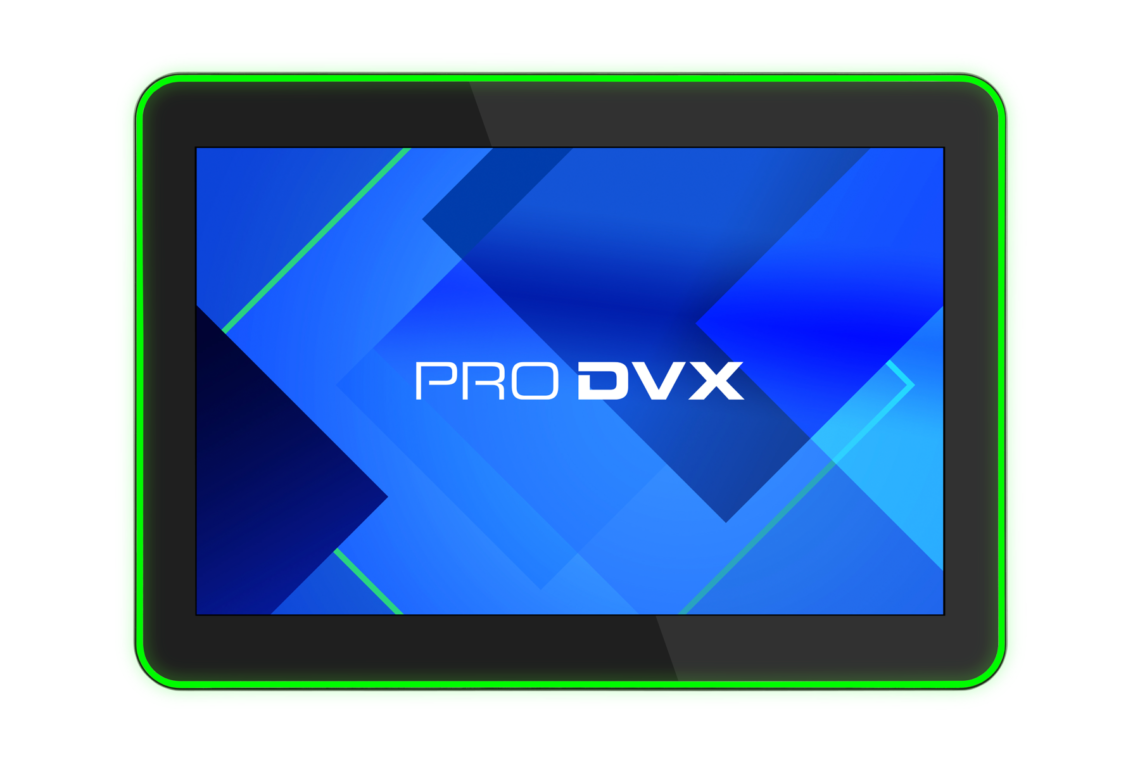

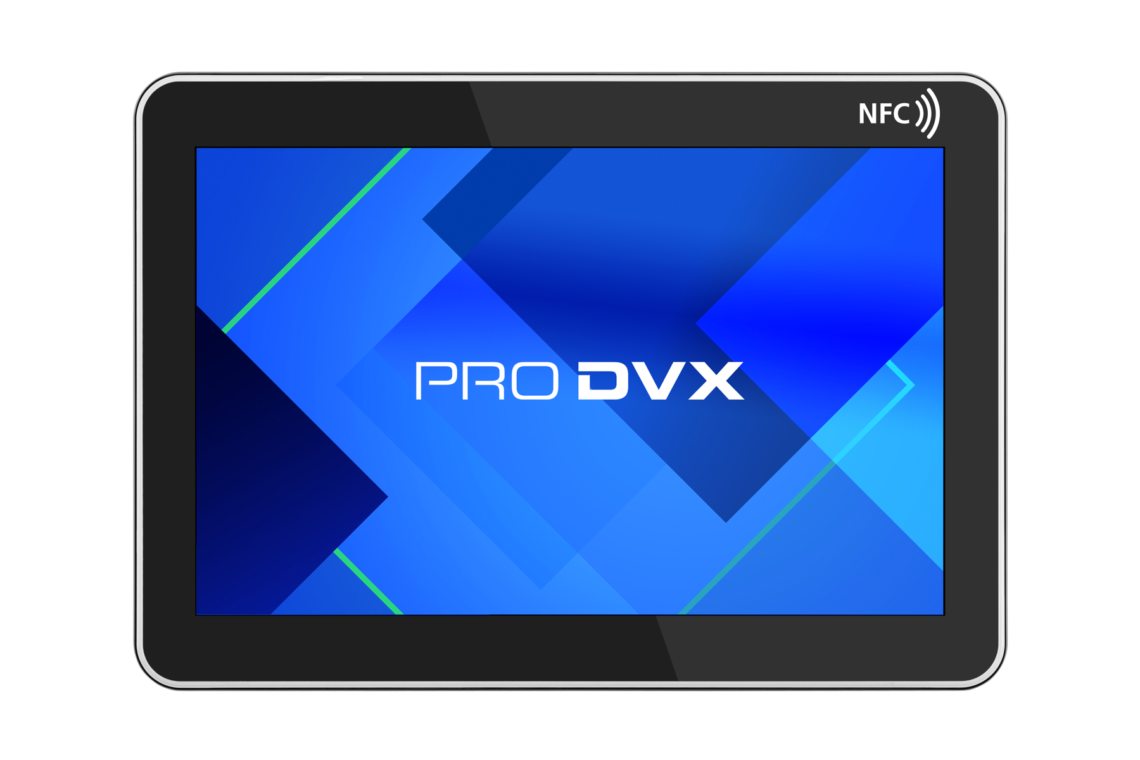

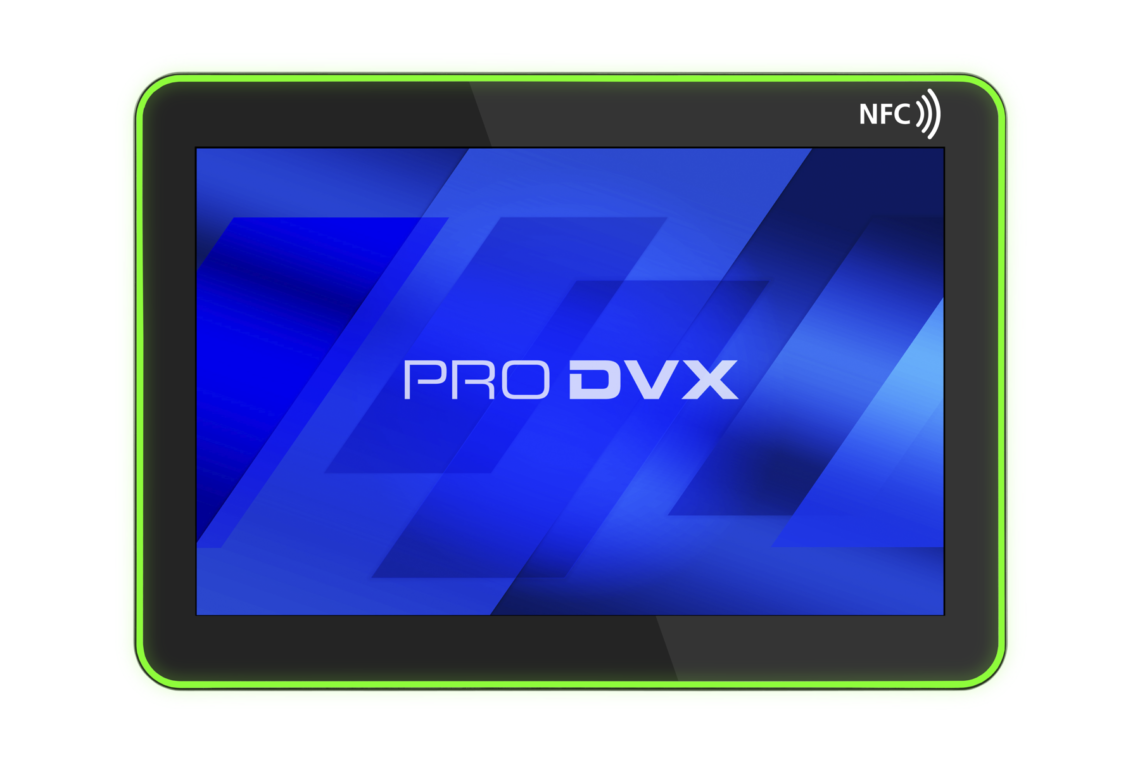

The APPC-10SLBN (R23-7581) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a surround RGB LED bar for efficient signalling, and an integrated NFC reader for NFC-enabled solutions. The APPC-10SLBN (R23-7581) ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10SLBN (R23-7581) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
| Feature | Details |
|---|---|
| Panel Type | TFT LCD IPS |
| Resolution | 1280 x 800, 16:10 |
| Brightness | 500 cd/m², non-glare |
| Viewing Angle | H160° / V160°, 800:1 contrast |
| Touch Type | 10-point PCAP, 10 ms |
| Operation Hours | 24/7 |
| CPU | RK3568 |
| GPU | Mali-G52 |
| Memory | 4 GB DDR4 SDRAM |
| Internal Storage | 16 GB eMMC |
| External Storage | SD-Card Slot |
| OS | Android 12 |

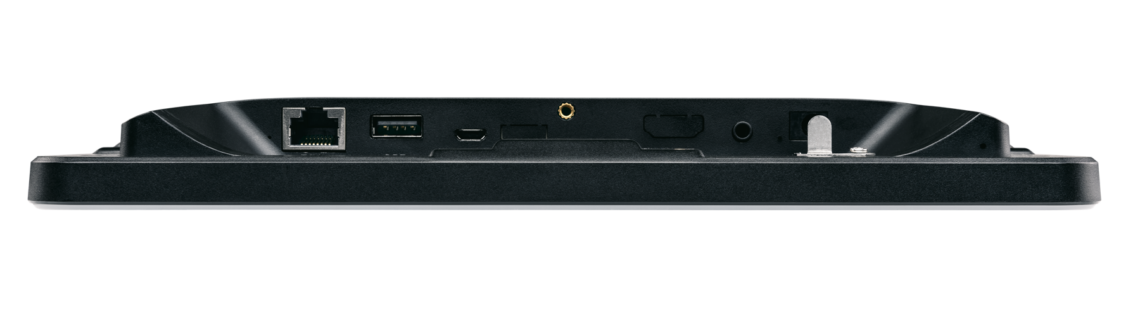

| Ports | 12V DC-IN, USB, RJ45, HDMI out, Audio-out |
| Network | LAN RJ45, WiFi, Bluetooth 5 |
| PoE | IEEE 802.3at (PoE+) |
| NFC | Integrated NFC reader |
| Camera | Via PoGo & USB |
| Speakers | 2 x 2 W |
| Audio Jack | 3.5mm Output |
| Housing | ABS+PC, Black |
| Weight | 650 g |
| Dimensions | 255.3 x 181 x 26.7 mm |
| Mounting | VESA 75 |
| Power Usage | 10 ~ 23 Watt |
| Operating Temp | 0 ~ 40°C |
| Storage Temp | -10 ~ 55°C |
| Humidity | 10 ~ 90% non-condensing |
| Certifications | UKCA, CE, FCC, RoHS, REACH |
| Description | Downloads |
|---|---|
| ProDVX PoE LED Android Touch Display | APPC-10SLBN-R23 DataSheet | Downloads |
| ProDVX PoE LED Android Touch Display | APPC-10SLBN-R23 User Manual | Downloads |
| ProDVX PoE LED Android Touch Display | APPC-10SLBN-R23 Quick Start Guide |
Downloads |
