The new Promethean experience

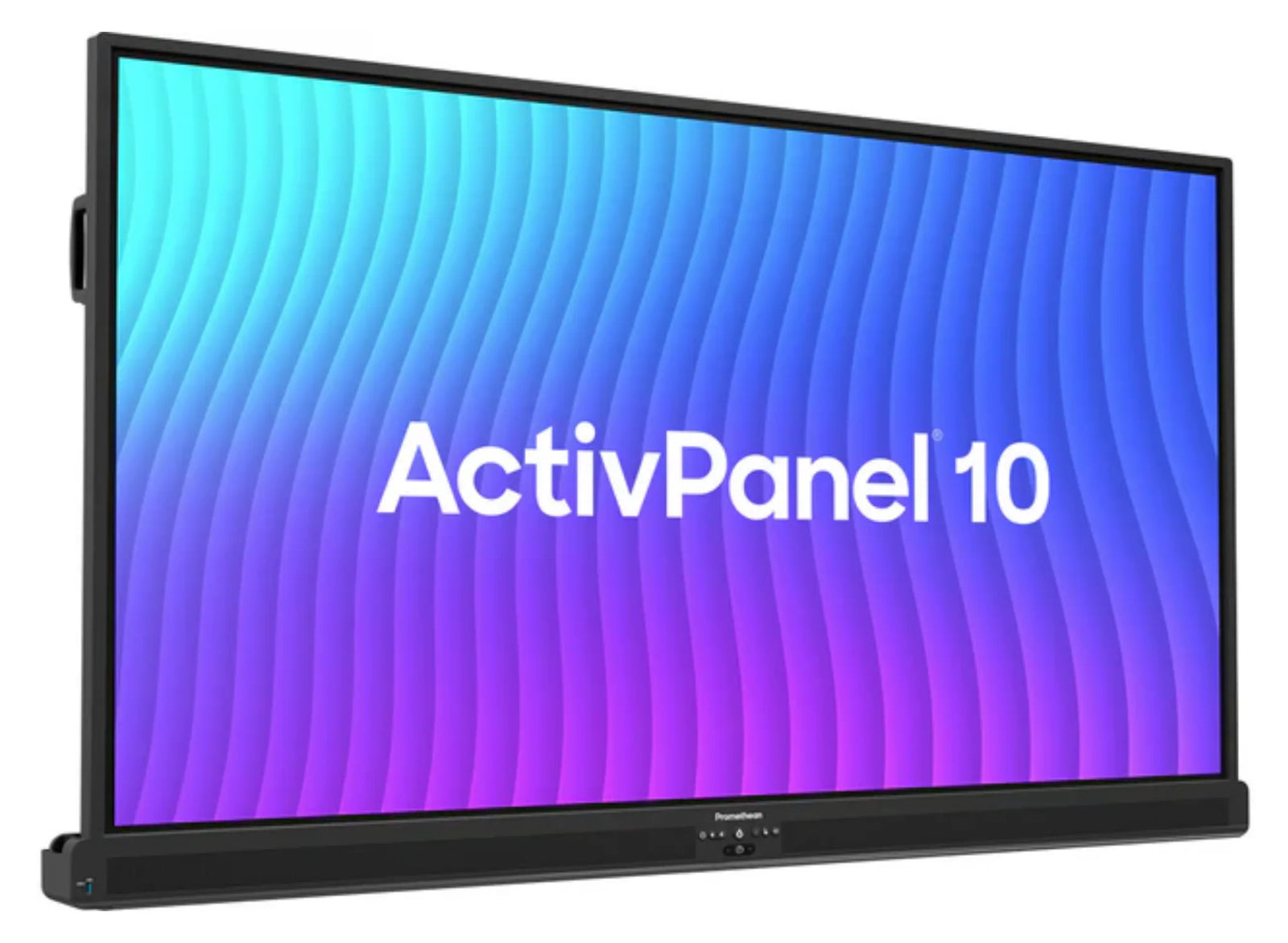

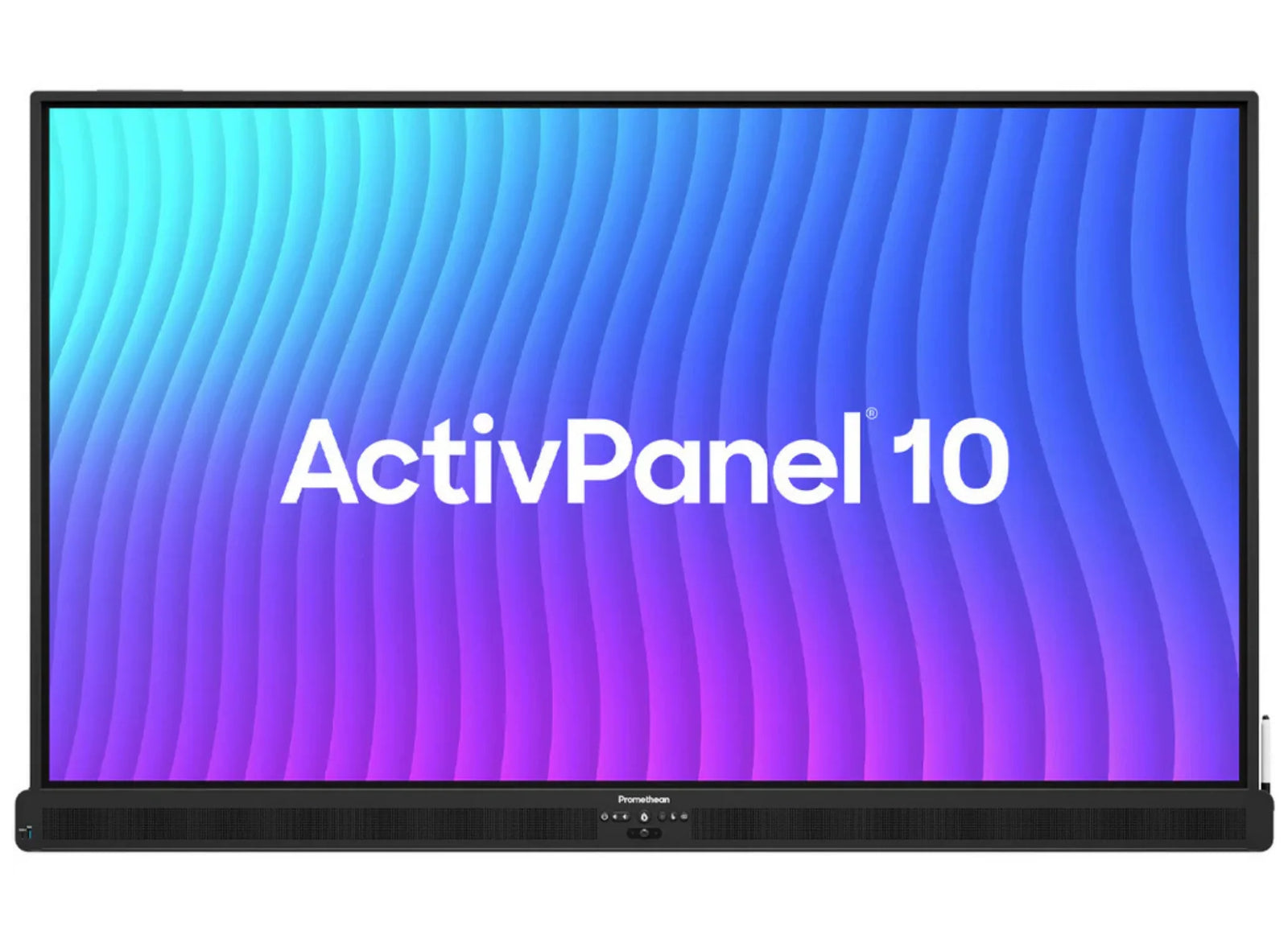

Meet ActivPanel 10 and
Promethean ActivSuite™
Tech your way, built to last. It’s that simple.
More flexible, more familiar.
This unified solution is designed for you.
You’re in control of your experience
Don’t conform. ActivPanel 10 fits your world.
A customised solution meets you exactly where you are.
Goodbye, one-size fits all. Hello, custom fit.
ActivPanel 10 is all about intelligent options. Choose your ideal panel configuration—model, size, operating system, and accessories—with no compromises.
User-friendly, made friendlier
The ActivPanel 10 experience supports the most creative, productive you.
Raise the bar of excellence
Promethean ActivSuiteTM
With our new software, your favourite ActivPanel engagement apps are accessible on your device to use at and away from the panel. Hello, enhanced freedom and flexibility!
An industry-leading display
Get the full picture with reduced reflection, every-angle views, highly accurate colour, and true-black contrast thanks to optical bonding, QLED, and FALD1. All that, and it saves energy.
High tech, low footprint
ActivPanel 10 is Energy Star Certified, durably designed, consumes less power2, and comes with less packaging.
Intelligent features and accessories
Picture-in-picture
Easily integrate media and play videos in a small window while continuing to use other windows.
ActivPen® 2
Access Promethean ActivSuite apps and control content anywhere in the room with an active pen, air mouse, and digital pointer.
Full Array Local Dimming (FALD)
An industry-leading display, true black and high contrast visuals provide a clearer, more vibrant image.
8-array mic and speakers
Boost participation by using the panel’s built-in soundbar and 8-array mic.
Optional 4K ePTZ4 camera
Custom-fit and cord-free with electronic pan, tilt, and zoom.
| Screen Size and Resolution | 65" 4K UHD (3840 x 2160 @ 60 Hz) 75" 4K UHD (3840 x 2160 @ 60 Hz) 86" 4K UHD (3840 x 2160 @ 60 Hz) |
Backlight Technology | Direct LED Backlight |
| Screen Type | TFT LCD | Blue Light Reduction | Yes |
| Bonded Glass | Yes | Aspect Ratio | 16:9 |
| Display Area | 65": 1431 x 807 mm (56.3 x 31.8 in) 75": 1653 x 931 mm (65.1 x 36.7 in) 86": 1898 x 1069 mm (74.7 x 42.1 in) |
Display Colours | 1.07 Billion (10-bit) |
| LCD Viewing Angle | 178° | LCD Response Time | 8 ms |
| LCD Refresh Rate (Panel) | 60 Hz | LED Lifespan | 50,000 hours |
| Contrast Ratio | 5000:1 Dynamic, 1200:1 Static | Typical Max. Brightness | 65": 520 cd/m² 75": 500 cd/m² 86": 565 cd/m² |
| Ambient Light Sensor | Yes | Glass Hardness | 9H (pencil), 7 (Mohs) |
| Glass Type | Heat tempered | Glass Thickness | 3.2 mm |
| Glass Coating | Anti-Glare, Anti-Fingerprint, Anti-Smudge | Operating System | No OS - Secure by Design |
| Compatible Promethean Devices | OPS-M, OPS-A, Chromebox | Dual Front-facing Speakers | 2 x 20 W |
| Vellum Touch Technology | Yes | Continuous Touch Points | 40 |
| Touch Resolution | 32768 x 32768 px | Touch Response Time | 3 ms |
| Touch Accuracy | <1 mm | Scan Rate | 500 Hz |
| Gestures and Edge Swipes | Windows® supported | Unique Pen IDs | 3 |
| Pen and Touch Differentiation | Yes | Palm Erase | Yes |
| Palm Rejection | Yes | Writing-hand Palm Rejection | Yes |
| Pens Included | 2 x Passive battery-less pens | Pen Holder | Integrated full-length pen tray and side pockets |
| Pen Tip Diameter | 3 mm | Pen Eraser Diameter | 7 mm |
| Integrated Active Pen Charging | Active Pen Ready | Touch-enabled PiP | Yes |
| Compatibility | Windows® 10 and 11; macOS® Ventura 13 and Sonoma 14; Linux® Ubuntu 22.04 to 24.04 LTS; ChromeOS™; Android 14 | OPS Slot | 1 |
| HDMI In (Rear) | 2 x 2.1 | Display Port | 1 x 1.4 |
| USB-A (Rear) | 3 x 3.2 Gen 1 | USB-A (Rear) | 1 x 2.0 |
| USB-B (Touch, Rear) | 3 x 3.0 | USB-C (Rear) | 1 x 3.2 Gen 1 (100 W Power Delivery) |
| USB-A (Front) | 1 x 3.2 Gen 1 | USB-C (Front) | 1 x 3.2 Gen 1 |
| HDMI Out | 1 x 2.0 | LAN In (RJ45) | 10/100/1000 |
| LAN Out (RJ45) | 10/100/1000 | Wake-on-LAN | Yes |
| S/PDIF | Optical | Audio Out (3.5 mm) | 1 |
| Serial (RS232) | 1 | Page / Notes | Page 1 |
| Product Specifications | ActivPanel 10 2024 SS 05/25 v1.9 EN-INTL | Power Requirements | 100 V - 240 V AC |
| Max. Energy Star Reported Luminance | 450 cd/m² | Power Consumption | 65": 122 W 75": 147 W 86": 176 W |
| Power Consumption (Standby) | <= 0.5 W | Proximity Sensor | Yes |
| Ultra-quiet Fanless Design | Yes | Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -15 °C to 55 °C (-5 °F to 131 °F) | Operating Humidity | 20% to 80% non-condensing humidity |
| Storage Humidity | 20% to 90% non-condensing humidity | Regulatory Certifications | CE, FCC, IC, UL, CUL, CB, RCM |
| Energy Star Certified | Yes | Trade Agreements Act (TAA) Compliance | Yes |
| % Recyclable Packaging | Minimum of 98% | Energy Usage at 400 cd/m² Per Year (kWh) | 65": Min: 333 Max: 340 75": Min: 380 Max: 393 86": Min: 463 Max: 472 |
| Carbon Footprint (KgCO2/yr) | 65": 266 75": 308 86": 355 |
DNSH Certifications | REACH, RoHS, POPs, Eco Design, WEEE |
| Panel Dimensions | 65": 1484 x 107 x 931 mm (58.4 x 4.2 x 36.7 in) 75": 1705 x 107 x 1056 mm (67.1 x 4.2 x 41.6 in) 86": 1950 x 107 x 1194 mm (76.8 x 4.2 x 47 in) |
Packed Dimensions | 65": 1640 x 185 x 1030 mm (64.6 x 7.3 x 40.6 in) 75": 1860 x 185 x 1155 mm (73.2 x 7.3 x 45.5 in) 86": 2095 x 185 x 1290 mm (82.5 x 7.3 x 50.8 in) |
| Panel Net Weight | 65": 37.8 kg (83.3 lbs) 75": 50.7 kg (111.8 lbs) 86": 62.9 kg (138.7 lbs) |
Packed Weight | 65": 46.6 kg (102.7 lbs) 75": 61 kg (134.5 lbs) 86": 75.3 kg (166 lbs) |
| Wall Mount Dimensions | 65": 600 x 400 mm (23.6 x 15.8 in) 75": 800 x 400 mm (31.5 x 15.8 in) 86": 800 x 600 mm (31.5 x 23.6 in) |
What’s in the Box | 1x ActivPanel 10 1x 3 m Length HDMI Cable 1x 3 m Length USB Cable (A-B) 1x 3 m Regional Power Cable 1x 3 m Length USB-C Cable 1x Remote Control 2x Batteries for Remote Control 2x Passive Pens 1x Sealed Antistatic Bag 8x Desiccant 4x VESA Mount Screws (M8) 1x Mini PC Bracket with Screws 1x Quick Install Guide 1x Promethean ActivSuite Activation Hangtag |
| Installation | The installation of this product should be completed by a qualified installer. Use of components not supplied by Promethean or not meeting minimum specifications may impact performance, safety and warranty. For more information, visit Support.PrometheanWorld.com. | Warranty | Warranty term and upgrade options vary by region. Contact your local reseller or distributor for information and visit PrometheanWorld.com/Warranty. |
| Support | For all Promethean products, visit Support.PrometheanWorld.com. | ActivInspire® Professional | 1 x Single User Licence Included |
| Promethean ActivSuite™ | 2 x Seats Included | Legal Notice | ©2025 Promethean. All Rights Reserved. Promethean, the Promethean logo, ActivPanel, ActivInspire, and Vellum are trademarks or registered trademarks of Promethean Limited in the United Kingdom, United States, and other countries around the world. All other product and company names are trademarks or registered trademarks of their respective holders. Unless specifically identified as such, Promethean’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between Promethean and the owners of these trademarks. Applicable Terms and Conditions for warranty and support available at PrometheanWorld.com/warranty. All weights and dimensions are approximate. Product specifications are subject to change without notice. PrometheanWorld.com. |
| Description | Downloads |
|---|---|
| Datasheet | Download |
