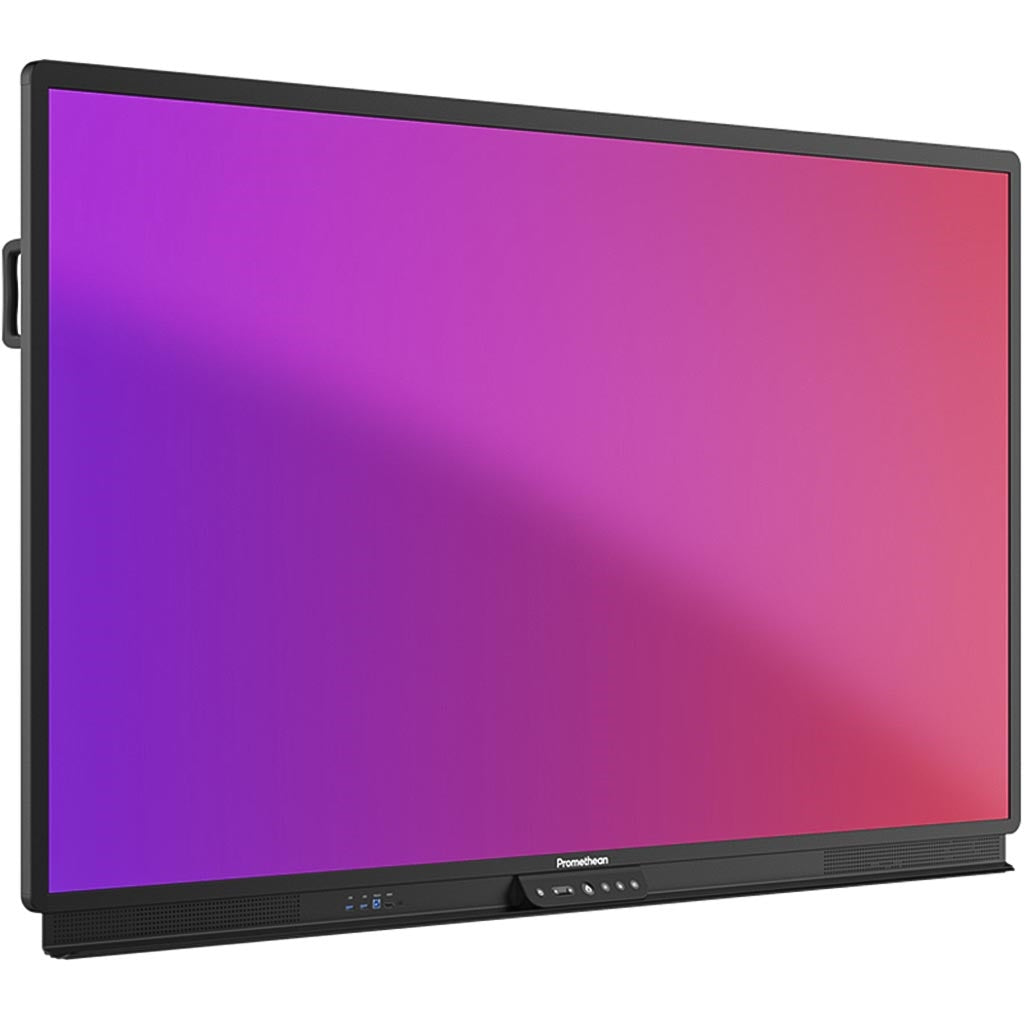

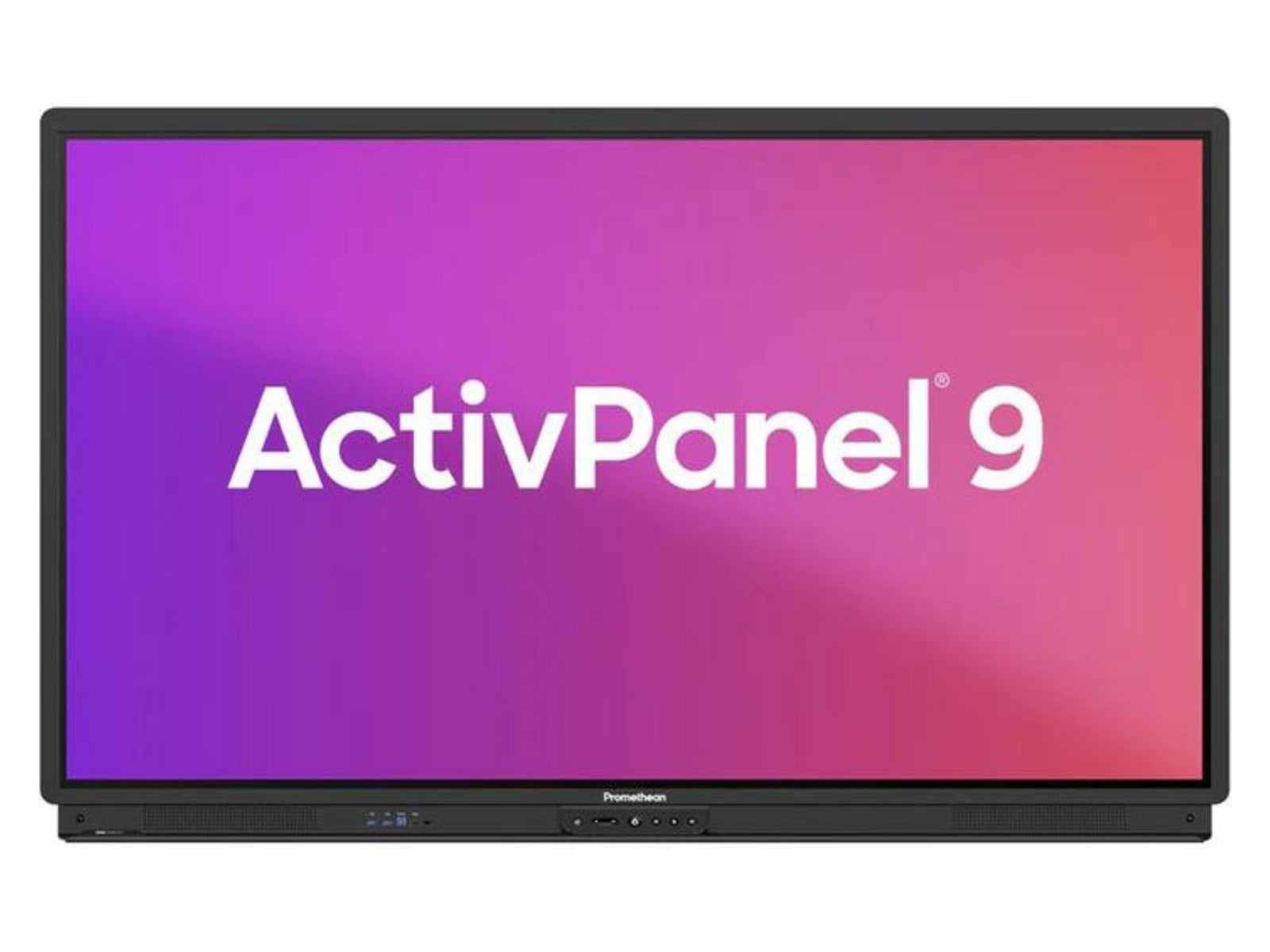

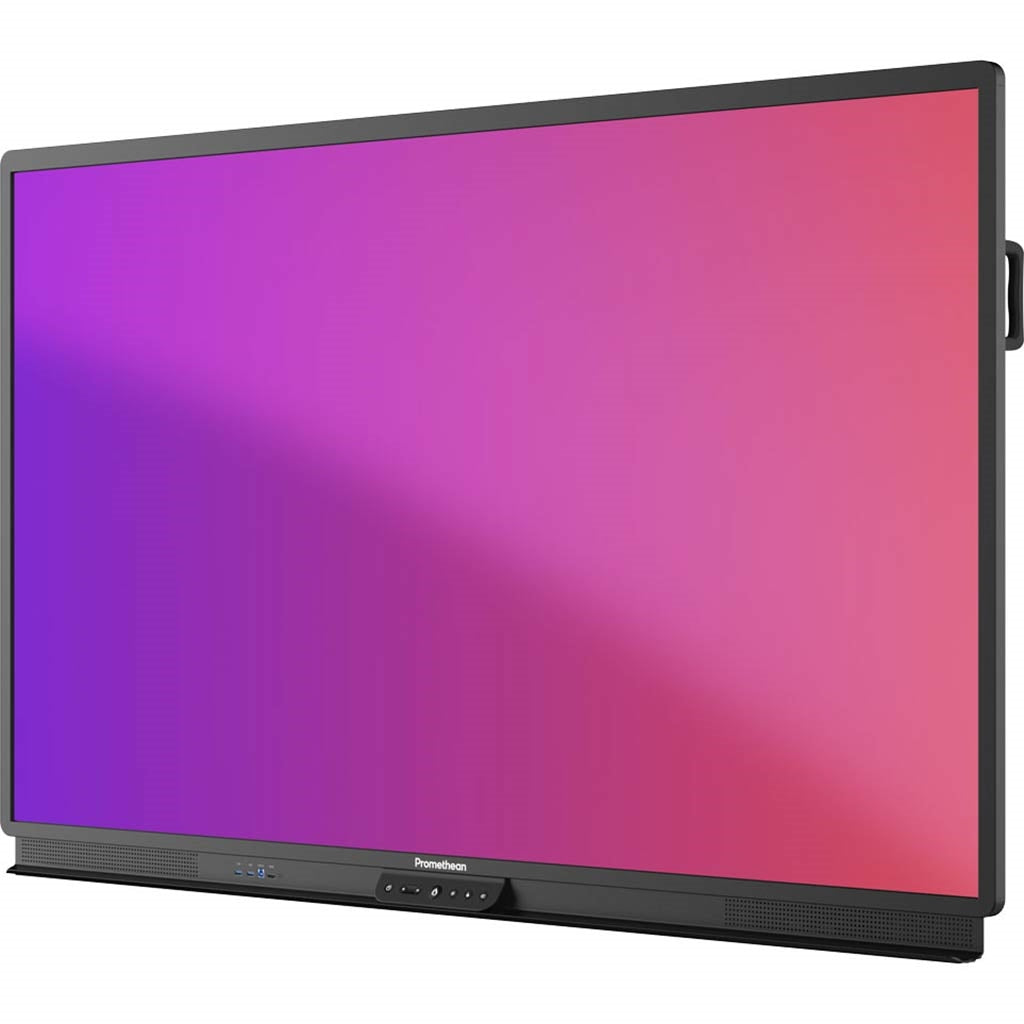

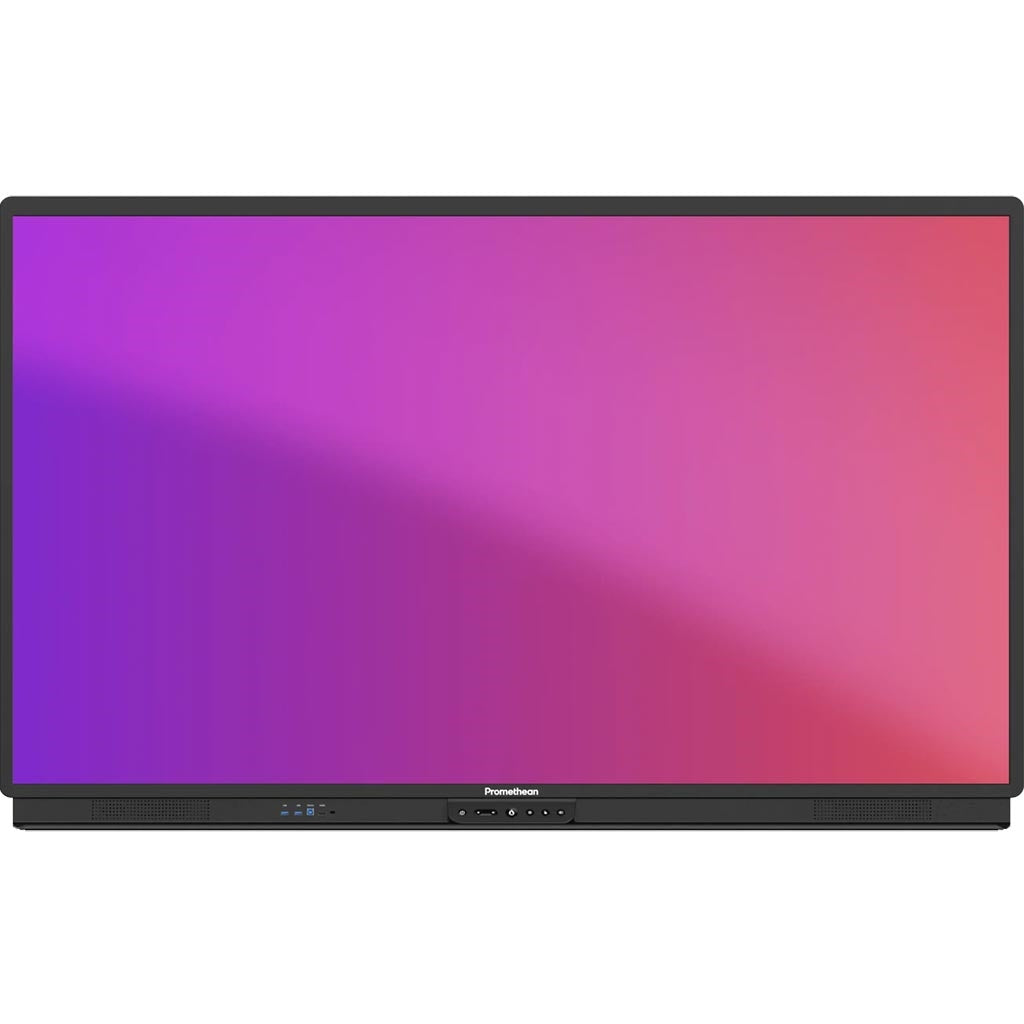

Promethean AP9-B65-EU-1

ActivPanel 9 Premium 65” Interactive Touchscreen

• Description
• Specifications
• Warranty

• ActivPanel 9
  Learning, transformed

  Promethean’s next-generation interactive panel delivers our most robust, seamless, and secure user experience yet, offering features that respond to the unique needs
  of teachers, IT administrators, and school leaders.

  Connectivity
  The only interactive panel with ActivSync technology

  ActivSync

  Intuitive remote

  Roaming profile

  Save and open files quickly and easily between your panel and your device

  Navigate your panel with an intuitive remote so you can move around the classroom freely

  Work seamlessly with educational platforms like Google Classroom and Microsoft Teams

  Access your content and customisations from any ActivPanel 9 with your roaming profile

  Connect your device directly to the panel with one cable for your audio, video, and data

  Simplicity
  Easy to use, so you can focus on teaching

  Simultaneous browsers

  Proximity sensor

  Screen capture

  Sign in with ease and get started the moment you switch your panel on

  Create a Promethean account so you can personalise your user profile and access it from anywhere

  Customise your settings and menu with your favorite apps and tools

  Capture your screen and quickly save it to the panel, the cloud, or your device

  Open two browsers on the panel at once for improved instruction

  Collaborate and communicate in the classroom with Screen Share

  Security
  Enhanced security protects your personal data

  Multiple sign-in options

  Sign out remotely

  Panel management

  Authenticate with multiple sign-in options, including a password, QR code, Promethean desktop app, and NFC card

  Keep your personal data private within your Promethean account, not on the panel

  Install security updates through remote panel management

  Lock your panel quickly and easily when you need to be away for a short time

  Sign out of your panel from anywhere, ensuring your data is kept safe

  Adaptability
  Ideal for all learning environments

  Record lessons

  Platform/device agnostic

  Screen share in real time

  Record lessons, including classroom voices and panel content

  Share recorded lessons with remote and absent students through any platform

  Screen share in real-time for hybrid and blended learning situations

  Work seamlessly with educational platforms like Google Classroom and Microsoft Teams

  Longevity
  Built to last and powered with robust capabilities

  USB-C with 100 watts of power delivery
  Integrated microphone array that captures voices in the classroom
  Flexible connection options with seven forms of video inputs and outputs
  Improved viewing from anywhere in the classroom and increased writing accuracy with bonded glass
  Vellum touch technology with pen and finger differentiation, palm erase, advanced palm rejection, and 20-point touch

  Powered USB-C

  Integrated microphone

  7 video inputs and outputs

  Vellum touch technology

• DISPLAY
  Screen Size and Resolution	65" 4K; UHD (3840 x 2160 @ 60 Hz)
  	75" 4K; UHD (3840 x 2160 @ 60 Hz)
  	86" 4K; UHD (3840 x 2160 @ 60 Hz)
  Screen Type	TFT LCD (Direct LED Backlight)
  Blue Light Reduction	Yes
  Bonded Glass	Yes
  Aspect Ratio	16:9
  Display Area	65" 4K: 1429 x 804 mm (56.3 x 31.7 in)
  	75" 4K: 1652 x 930 mm (65 x 36.6 in)
  	86" 4K: 1895 x 1066 mm (74.6 x 41.9 in)
  Display Colours	1.07 Billion (10-bit)
  LCD Viewing Angle	178°
  LCD Response Time	8 ms
  LCD Refresh Rate (Panel)	60 Hz
  LED Lifespan	50,000 hours
  Contrast Ratio	5000:1 Dynamic, 1200:1 Static
  Brightness	400 cd/m2
  Ambient Light Sensor	Yes
  Glass Hardness	9H (pencil), 7 (Mohs)
  Glass Type	Heat tempered, Anti-Glare
  Glass Thickness	4 mm

  INTERACTIVITY
  Vellum Touch Technology	Yes
  Continuous Touch Points	20
  Touch Resolution	32768 x 32768 px
  Response Time	≤5 ms
  Touch Accuracy	1 mm
  Tracking Rate	4 m/s
  Scan Rate	200 Hz
  Gestures and Edge Swipes	Windows® supported
  Eraser Included (Block Eraser)	Yes
  Unique Pen IDs	2
  Pen and Touch Differentiation	Yes
  Palm Erase	Yes, writing and non-writing hand
  Pens Included	Yes, 4
  Pen Type	Battery-less pen
  Pen Holder	Integrated full-length pen tray
  Pen Tip Diameter	3 mm (Eraser 7 mm)
  Classroom Essential Apps	Including Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share, Browser, PDF Reader, Media Player
  Compatibility	Windows® 7 to 11; Mac OS® 10.8 to 10.11; macOS® Sierra 10.12.1 or later; Linux® Ubuntu 20.04 LTS; Chrome OS™

  COMPUTING
  Operating System	ActivPanel OS
  RAM	6.5 GB
  Internal Storage	64 GB
  CPU	ARM CORTEX - A73 x 4
  GPU	ARM Mali-G52 2EE MC2
  ActivSync™	Yes
  Trusted Platform Module	Yes
  Cloud Based User Profiles	Yes

  AUDIO
  Dual Front-facing Speakers	2 x 18 W
  Subwoofer	1 x 15 W
  Microphone Array	Yes

  CONNECTIVITY
  OPS Slot	1
  HDMI In (Rear)	2 (1 x 2.0, 1 x 2.1)
  HDMI In (Front)	1 (2.0)
  Display Port	1 (1.2)
  USB-A 2.0 (Rear)	1
  USB-C 3.2 (Rear)	1 (100 W Power Delivery)
  USB-B 3.0 (Touch, Front)	1
  USB-B 3.0 (Touch, Rear)	3
  USB-A 3.0 (Front)	2
  USB-A 3.0 (Rear)	2
  MicroSD Slot	Yes
  LAN In (RJ45)	1 Gbps
  LAN Out (RJ45)	1 Gbps
  Wake-on-LAN	Yes
  Wi-Fi (Client)	IEEE 802.11 a/b/g/n/ac/ax, Wi-Fi 6 and dual band supported
  Bluetooth	5.0
  HDMI Out	1 (2.0)
  VGA In	1
  PC Audio (3.5 mm)	1
  AV-In (3.5 mm)	1
  Mic (3.5 mm)	1
  Audio Out (3.5 mm)	1
  RS-232	1
  Proximity Sensor for Warm Boot	Yes
  NFC (Near-field Communication)	Yes

  PANEL MANAGEMENT
  OTA Updates	Yes
  Promethean Panel Management	Yes

  POWER
  Power Requirements	100 V - 240 V AC
  Energy Star Power Consumption	65" 4K: 119 W
  	75" 4K: 163 W
  	86" 4K: 194 W
  Power Consumption (Standby)	<= 0.5 W
  Ultra-Quiet Fanless Design	Yes

  ENVIRONMENTAL
  Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
  Storage Temperature	-15 °C to 55 °C (-5 °F to 131 °F)
  Operating Humidity	20% to 80% non-condensing humidity
  Storage Humidity	20% to 90% non-condensing humidity

  COMPLIANCE & CERTIFICATION
  Regulatory Certifications	CE, FCC, IC, UL, CUL, CB, RCM
  Energy Star Certified	65" 4K: Yes
  	75" 4K: Yes
  	86" 4K: Yes

  PHYSICAL SPECIFICATIONS
  Panel Dimensions	65": 1508 x 945 x 85 mm (59.4 x 37.2 x 3.3 in)
  	75": 1730 x 1070 x 86 mm (68.1 x 42.1 x 3.4 in)
  	86": 1974 x 1207 x 86 mm (77.7 x 47.5 x 3.4 in)
  Packed Dimensions	65": 1655 x 1035 x 225 mm (65.2 x 40.7 x 8.9 in)
  	75": 1870 x 1175 x 225 mm (73.6 x 46.2 x 8.9 in)
  	86": 2125 x 1295 x 260 mm (83.7 x 51 x 10.2 in)
  Panel Net Weight	65": 44.5 kg (98.1 lb)
  	75": 57.8 kg (127.4 lb)
  	86": 73.3 kg (161.6 lb)
  Packed Weight	65": 61.5 kg (135.6 lb)
  	75": 78.5 kg (173.1 lb)
  	86": 95.7 kg (211 lb)
  Wall Mount Dimensions	1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in)
  VESA Mount Point	65": 600 x 400 mm (23.6 x 15.7 in)
  	75": 800 x 400 mm (31.5 x 15.7 in)
  	86": 800 x 600 mm (31.5 x 23.6 in)

  EDUCATION SOFTWARE LICENCE
  ActivInspire® Professional	Single User
  	Included

  PACKED CONTENTS
  What’s in the Box	1x ActivPanel 9 Premium
  	1x 3 m Length HDMI Cable
  	1x 3 m Length USB Cable (A-B)
  	1x 3 m Regional Power Cable
  	1x 2 m Length USB-C Cable
  	1x Remote Control
  	2x Batteries for Remote
  	4x Pens
  	1x Block Eraser
  	1x Sealed Antistatic Bag
  	8x Desiccant
  	4x VESA Mount Screws (M6)
  	1x Mini PC Bracket with Screws (x2)
  	2x NFC Cards
  	1x Quick Install Guide
  	1x Promethean Wi-Fi/Bluetooth Module
  	3x Antennae
  	1x Wi-Fi/Bluetooth Module User Guide
  	1x Wall Mount

  INSTALLATION
  Installation	The installation of this product should be completed by a qualified installer. Use of components not supplied by Promethean or not meeting minimum specifications may impact performance, safety, and warranty. For more information, visit Support.PrometheanWorld.com.

  WARRANTY
  Warranty term and upgrade options vary by region. Contact your local reseller or distributor for information and visit PrometheanWorld.com/Warranty.

  SUPPORT
  Support	For all Promethean products, visit Support.PrometheanWorld.com.




• Comprehensive warranty cover for added peace-of-mind.

  Promethean offers two warranty options:

  • ActivCare Standard: our basic warranty offering, automatically provided for all Promethean products
  • ActivCare Plus: our premium purchasable warranty enhancements




  Current Warranty Details (Updated October 2021)

  • Warranty Terms & Conditions
  • Warranty at a Glance Matrix

  ACTIVCARE STANDARD WARRANTY

  The ActivCare Standard Warranty is our basic warranty offering, automatically provided for all Promethean products.

  By registering your product, your warranty will begin on the date of installation, you will receive a warranty certificate and you will be able to take advantage of toll free telephone numbers (country applicable) to contact Promethean Technical Customer Support. Registration must take place through the Registration Portal within 90 days of the date of installation or set up.

  To provide quality support, our Technical Customer Support Team will need your product serial number and/or proof of purchase. We offer free, online support through our Promethean Support Portal and Promethean Support Community, as well as access to email and telephone support.

  For information on your specific product’s warranty term, please see the Warranty at a Glance Matrix.

  Take a few moments to register your product.

  ACTIVCARE PLUS WARRANTY

  ActivCare Plus offers purchasable premium warranty extensions and enhancements available for registered Promethean products, in addition to the ActivCare Standard warranty. If you’re interested in purchasing ActivCare Plus, please visit the How to Buy section of the website and locate a local reseller near you.

  To register your products and activate the ActivCare Plus warranty, please visit the Registration Portal.

  Mix and Match ActivCare Plus To Meet Your Needs

  Advanced Replacement

  This can be purchased for up to five years on relevant products. Advanced Replacement reduces waiting time to receive replacement products, which ship at no charge to you, and before the faulty products are returned to Promethean. We aim to ship replacement products within seven working days of the fault being reported*. Advanced Replacement is only available in certain countries (see Warranty Types Available sections of the Warranty at a Glance Matrix).

  On-Site Support

  This option upgrades both Return for Repair and Advanced Replacement services to a full, On-Site Support service and can be purchased for up to five years on relevant products. On-Site Support means that an authorized Promethean Service Provider will attend site to repair or replace faulty parts, following a complete diagnostics call with Promethean Technical Customer Support. The Service Provider will arrive on-site within three days of the fault being reported*. This option is only available in certain countries (see Warranty Types Available sections of the Warranty at a Glance Matrix).
