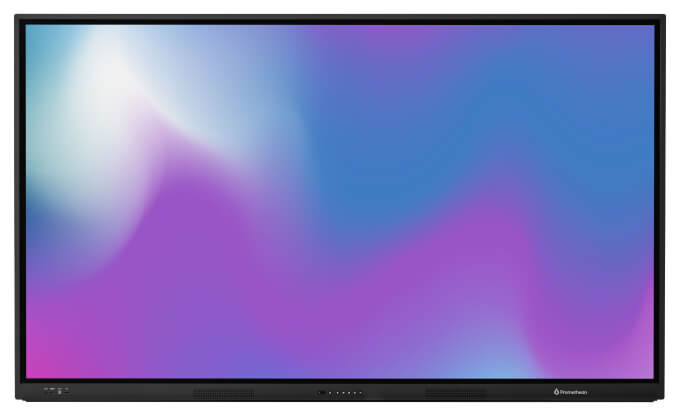

Promethean APLX-65-EU-1OPS-A-4R32S ActivPanel LX 65" Interactive Touchscreen Display

ActivPanel LX
A high-performing panel

Everyone deserves access to interactive technology. That’s why we created the ActivPanel LX, an easy-to-use, flexible, and affordable front-of-classroom display built to engage, enlighten, and excite teachers and students alike.
Designed to work with your current technology platform—along with the software and apps you know and love—this robust interactive display provides the quality, dependability, and versatility you expect from Promethean.

Seamless integration with the tech you use today
The ActivPanel LX can be plugged into a laptop with a single USB-C cable, instantly turning your computer into a large-format interactive display. It can also be paired with a computing module that fits your preferred ecosystem—whether it be Google or Windows—giving you maximum flexibility. And as your edtech evolves and your needs change, your ActivPanel LX will always be able to adapt.

Beautifully simple, and so easy to use
Because the ActivPanel LX works with the hardware, software, and apps you currently use, there’s no learning curve. That means teachers can start delivering engaging, interactive lessons right away. The ActivPanel LX is easy to install and set up, requiring minimal training and limited support from IT staff. Not only that, IT administrators won’t need to enroll, manage, or frequently update the panels, or deal with security issues.

Incredible quality and value for a low price
The ActivPanel LX offers an impressive array of features at a low price, so you can rest assured you’ll be using it for many years to come.

A crystal clear 4K display that leverages HDMI 2.0 technology
Gigabit ethernet ports for uncompromised network speeds
to a connected OPS device
LCD bonded glass offering excellent writing and viewing experiences
Advanced touch technology providing pen and touch
differentiation, palm erase, and 20 points of touch
Dual front-facing speakers and an integrated full-length pen tray

DISPLAY

Property	65"	75"	86"
Screen Size and Resolution	65" 4K; UHD (3840 x 2160 @ 60 Hz)	75" 4K; UHD (3840 x 2160 @ 60 Hz)	86" 4K; UHD (3840 x 2160 @ 60 Hz)
Screen Type	TFT LCD (Direct LED Backlight)	TFT LCD (Direct LED Backlight)	TFT LCD (Direct LED Backlight)
Blue Light Reduction	Yes	Yes	Yes
Bonded Glass	Yes	Yes	Yes
Aspect Ratio	16:9	16:9	16:9
Display Area	65": 1431 x 805 mm (56.3 x 31.7 in)	75": 1652 x 930 mm (65 x 36.6 in)	86": 1897 x 1068 mm (74.7 x 42 in)
Display Colours	1.07 Billion (10-bit)	1.07 Billion (10-bit)	1.07 Billion (10-bit)
LCD Viewing Angle	178°	178°	178°
LCD Response Time	8 ms	8 ms	8 ms
LCD Refresh Rate (Panel)	60 Hz	60 Hz	60 Hz
LCD Brightness (cd/m²)	400 cd/m²	400 cd/m²	400 cd/m²
LED Lifespan	50,000 hours	50,000 hours	50,000 hours
Contrast Ratio	5000:1 Dynamic 1200:1 Static	5000:1 Dynamic 1200:1 Static	5000:1 Dynamic 1200:1 Static
Brightness	350 cd/m²	350 cd/m²	350 cd/m²
Ambient Light Sensor	Yes	Yes	Yes
Glass Hardness	8H (pencil), 7 (Mohs)	8H (pencil), 7 (Mohs)	8H (pencil), 7 (Mohs)
Glass Type	Heat tempered, Anti-Glare	Heat tempered, Anti-Glare	Heat tempered, Anti-Glare
Glass Thickness	3.2 mm	3.2 mm	3.2 mm

INTERACTIVITY

Property	Value
Vellum Touch Technology	Yes
Continuous Touch Points	20
Touch Resolution	32768 x 32768 px
Response Time	10 ms
Touch Accuracy	1 mm
Tracking Rate	4 m/s
Scan Rate	200 Hz
Gestures and Edge Swipes	Windows® supported
Unique Pen IDs	1
Pen and Touch Differentiation	Yes
Palm Erase	Yes
Palm Rejection	Yes
Pens Included	Yes, 2
Pen Type	Battery-less pen
Pen Holder	Integrated full-length pen tray
Pen Tip Diameter	3 mm
Compatibility	Windows® 7 to 11; Mac OS® 10.8 to 10.11; macOS® Sierra 10.12.1 or later; Linux® Ubuntu 20.04 LTS; Chrome OS™

POWER

Property	65"	75"	86"
Power Requirements	100 V - 240 V AC	100 V - 240 V AC	100 V - 240 V AC
Power Consumption (Typical)	65": 106 W	75": 132 W	86": 175 W
Power Consumption (Standby)	<= 0.5 W	<= 0.5 W	<= 0.5 W
Ultra-Quiet Fanless Design	Yes	Yes	Yes

ENVIRONMENTAL

Property	Value
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity	20% to 80% non-condensing humidity
Storage Humidity	20% to 90% non-condensing humidity

COMPLIANCE & CERTIFICATION

Property	65"	75"	86"
Regulatory Certifications	CE, FCC, IC, UL, CUL, CB, RCM	CE, FCC, IC, UL, CUL, CB, RCM	CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified	65": Yes	75": Yes	86": No

PHYSICAL SPECIFICATIONS

Property	65"	75"	86"
Panel Dimensions	65": 1482 x 899 x 110 mm (58.3 x 35.4 x 4.3 in)	75": 1716 x 1033 x 110 mm (67.6 x 40.7 x 4.3 in)	86": 1962 x 1171 x 110 mm (77.2 x 46.1 x 4.3 in)
Packed Dimensions	65": 1640 x 1010 x 185 mm (64.6 x 39.8 x 7.3 in)	75": 1860 x 1130 x 185 mm (73.2 x 44.5 x 7.3 in)	86": 2095 x 1270 x 185 mm (82.5 x 50 x 7.3 in)
Panel Net Weight	65": 36.6 kg (80.7 lb)	75": 50 kg (110.2 lb)	86": 63.4 kg (139.8 lb)
Packed Weight	65": 46.7 kg (103 lb)	75": 61.6 kg (135.8 lb)	86": 76.6 kg (168.9 lb)
VESA Mount Point	65": 600 x 400 mm (23.6 x 15.7 in)	75": 800 x 400 mm (31.5 x 15.7 in)	86": 800 x 600 mm (31.5 x 23.6 in)

Comprehensive warranty cover for added peace-of-mind.

Promethean offers two warranty options:
- ActivCare Standard: our basic warranty offering, automatically provided for all Promethean products
- ActivCare Plus: our premium purchasable warranty enhancements
Current Warranty Details (Updated October 2021)
- Warranty Terms & Conditions
- Warranty at a Glance Matrix
ACTIVCARE STANDARD WARRANTY

The ActivCare Standard Warranty is our basic warranty offering, automatically provided for all Promethean products.

By registering your product, your warranty will begin on the date of installation, you will receive a warranty certificate and you will be able to take advantage of toll free telephone numbers (country applicable) to contact Promethean Technical Customer Support. Registration must take place through the Registration Portal within 90 days of the date of installation or set up.

To provide quality support, our Technical Customer Support Team will need your product serial number and/or proof of purchase. We offer free, online support through our Promethean Support Portal and Promethean Support Community, as well as access to email and telephone support.

For information on your specific product’s warranty term, please see the Warranty at a Glance Matrix.

Take a few moments to register your product.

ACTIVCARE PLUS WARRANTY

ActivCare Plus offers purchasable premium warranty extensions and enhancements available for registered Promethean products, in addition to the ActivCare Standard warranty. If you’re interested in purchasing ActivCare Plus, please visit the How to Buy section of the website and locate a local reseller near you.

To register your products and activate the ActivCare Plus warranty, please visit the Registration Portal.

Mix and Match ActivCare Plus To Meet Your Needs

Advanced Replacement

This can be purchased for up to five years on relevant products. Advanced Replacement reduces waiting time to receive replacement products, which ship at no charge to you, and before the faulty products are returned to Promethean. We aim to ship replacement products within seven working days of the fault being reported*. Advanced Replacement is only available in certain countries (see Warranty Types Available sections of the Warranty at a Glance Matrix).

On-Site Support

This option upgrades both Return for Repair and Advanced Replacement services to a full, On-Site Support service and can be purchased for up to five years on relevant products. On-Site Support means that an authorized Promethean Service Provider will attend site to repair or replace faulty parts, following a complete diagnostics call with Promethean Technical Customer Support. The Service Provider will arrive on-site within three days of the fault being reported*. This option is only available in certain countries (see Warranty Types Available sections of the Warranty at a Glance Matrix).
