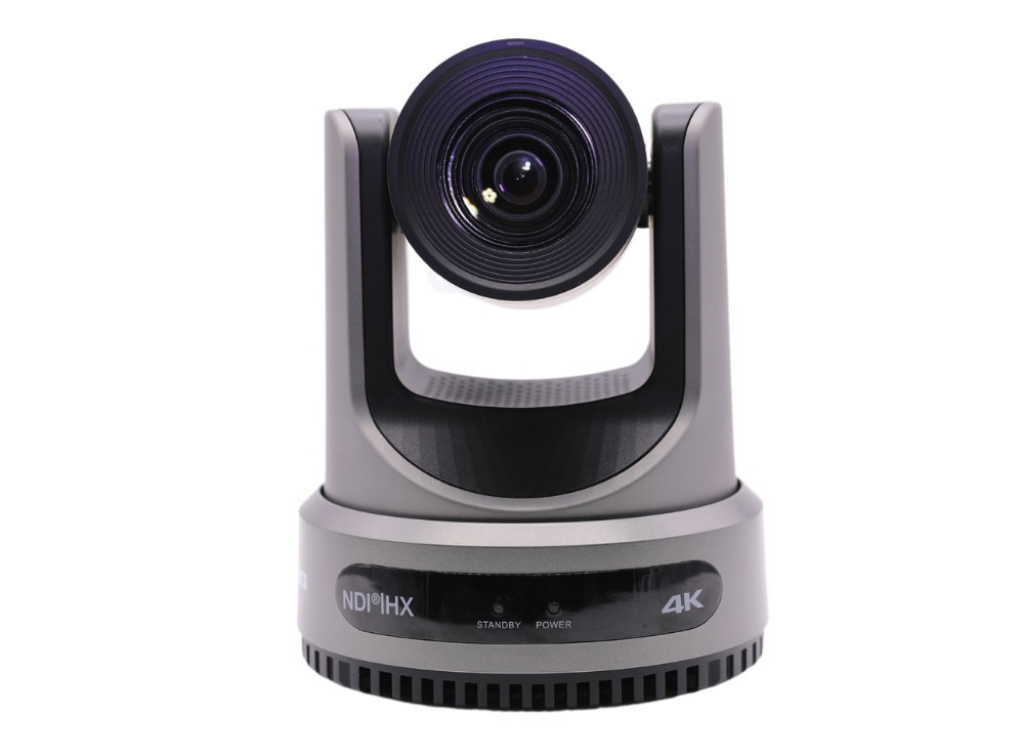

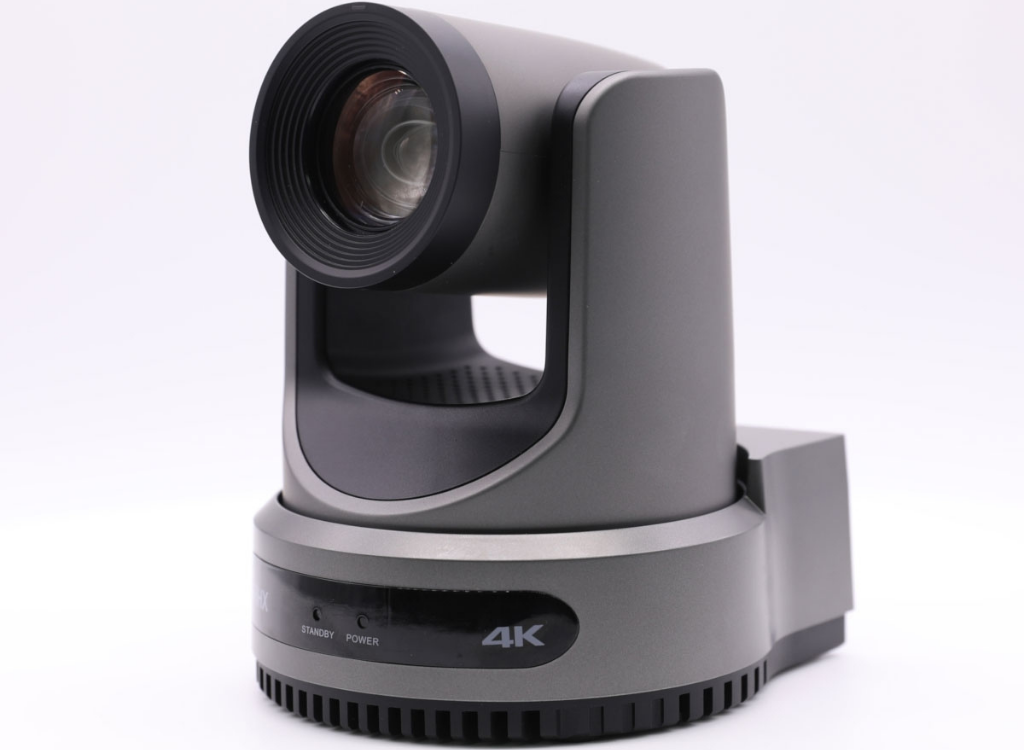

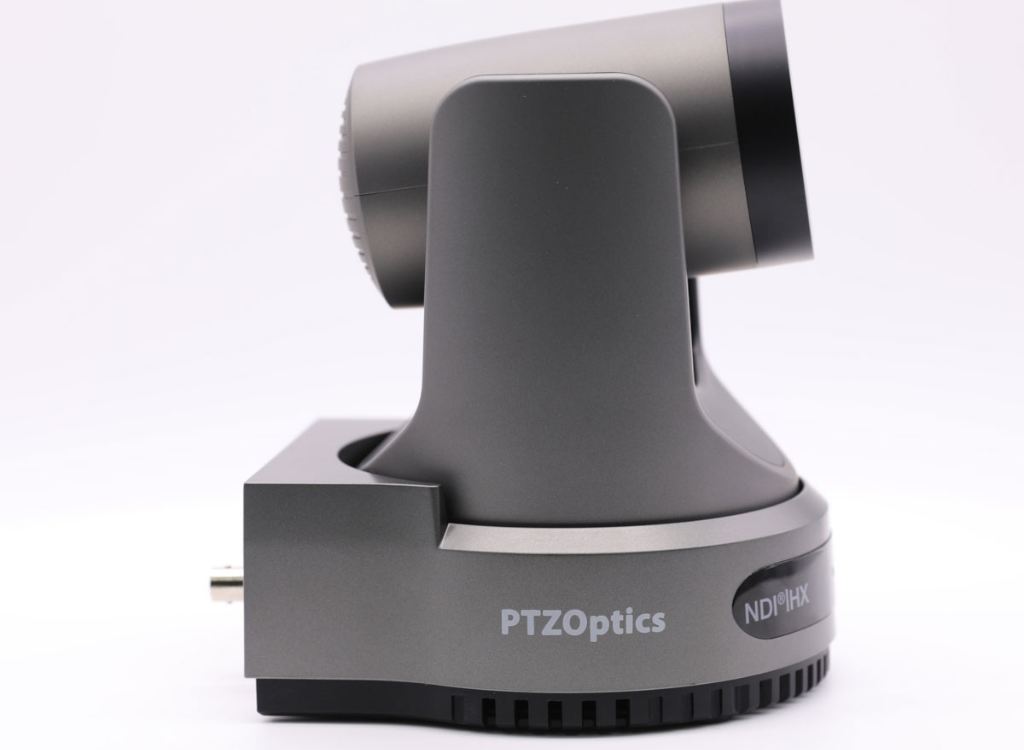

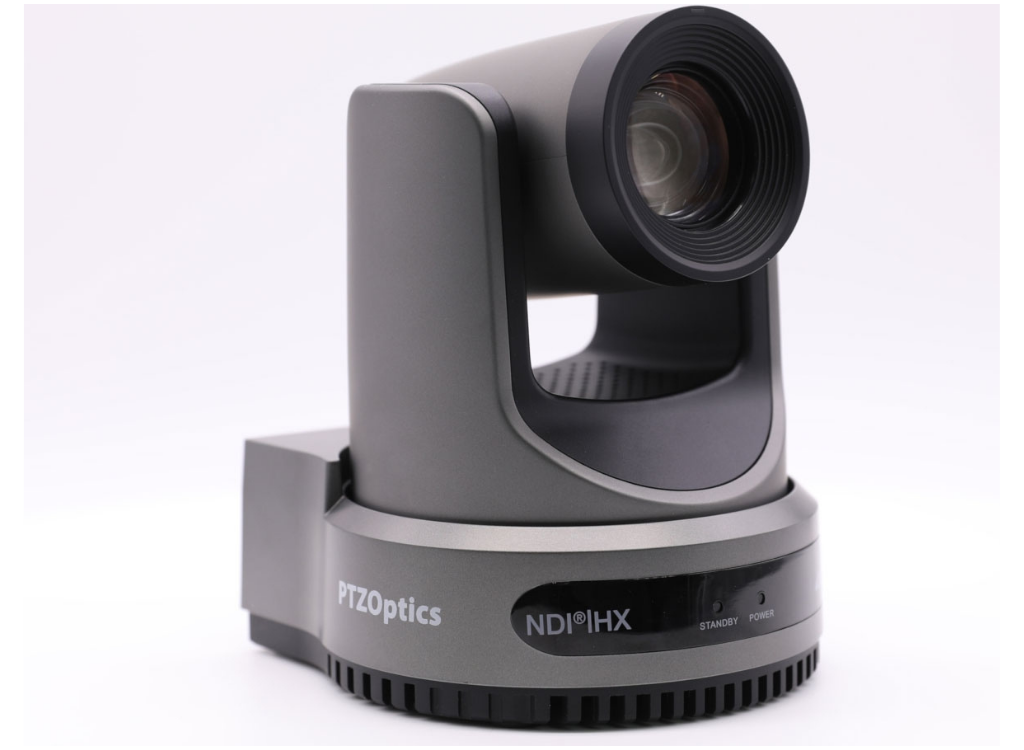

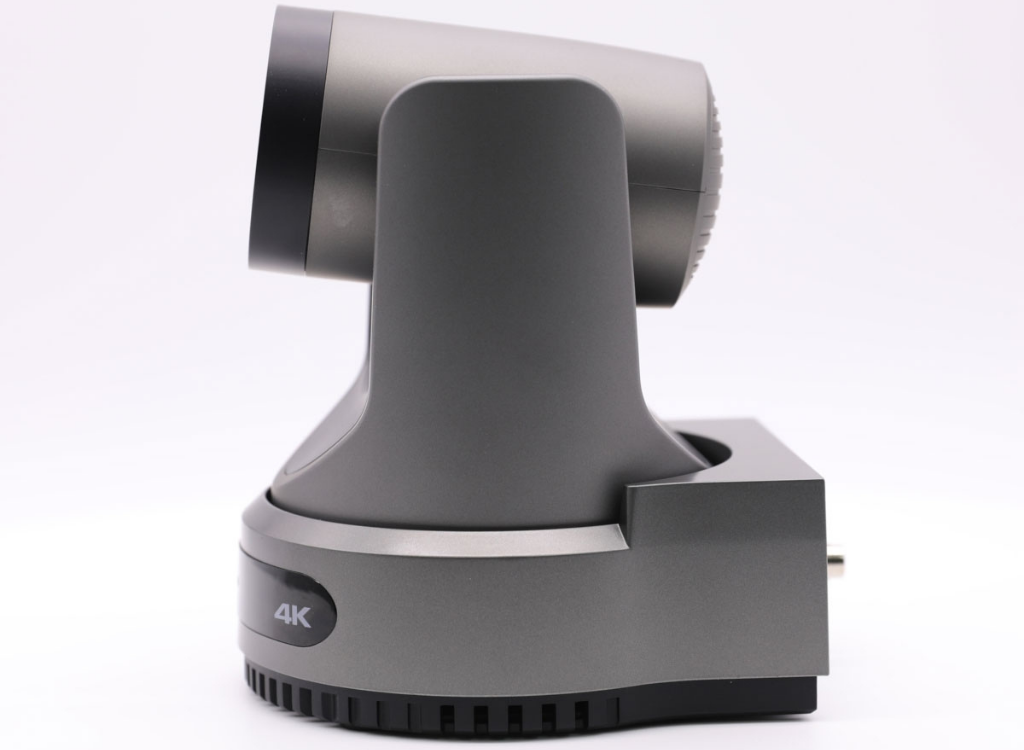

PTZOptics PT12X-4K-GY-G3 12X Move 4K Auto-Tracking PTZ Camera

SKU: PT12X-4K-GY-G3
Part Number: PT12X-4K-GY-G3
Condition: Brand New
Purchase Orders Accepted
Save £923.29 Save £923.29

£1,178.43 (Excl. VAT)

Current price - £1,414.12 (Inc. VAT)
£1,178.43 - £1,178.43
Current price- - £1,414.12
Availability:
9 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • PTZOptics PT12X-4K-GY-G3 12X Move 4K Auto-Tracking PTZ Camera


    A New Standard for PTZ Cameras

    The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.


    Designed with the Future in Mind

    Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI® HX3 for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.


    Pan, Tilt, Zoom, Track.

    Control your production from behind the scenes – or right in front of them. With the Move 4K’s unique Presenter Lock™ technology, the camera can lock onto a specific person from up to 300 feet away, even while other people are in frame. Plus, this built-in auto-tracking feature allows users to seamlessly switch between on-stage presenters with the simple click of a button.

    In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI — updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.


    Discreet Mounting Options

    Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.


    Take Control Your Way

    Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

    Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.


    Free Software for PTZOptics Users

    PTZOptics cameras are compatible with a wide range of free software solutions, including:

    Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
    Control apps for desktop and mobile devices
    Plugins and integrations for popular platforms, including OBS and Twitch
    Camera configuration and management tools
    Support and testing utilities
    And more!


    Unrivaled Warranties

    With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.

    The Move 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.



  • Category Specification
    Image Sensor & Lens
    Video Sensor 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M<br>20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
    Lens 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6<br>20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95<br>30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19
    Lens (35mm Equivalencies) 12x: 25mm ~ 299mm, F1.8 ~ F2.6<br>20x: 31mm ~ 589mm, F1.58 ~ F3.95<br>30x: 32mm ~ 825mm, F1.61 ~ F5.19
    Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94<br>SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
    Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
    Field of View 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)<br>20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)<br>30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide)
    Display Field of View 12x: 82.8°<br>20x: 66.6°<br>30x: 66.7°
    Min. Lux 0.5 Lux @ (F1.8, AGC ON)
    Shutter 1/30s ~ 1/10000s
    Pan/Tilt Movement
    Pan Movement ±170°
    Pan Speed 1.7°/s ~ 100°/s
    Tilt Movement -30° ~ +90°
    Tilt Speed 1.7°/s ~ 69.9°/s
    Presets 255 Presets
    Video Tracking Supported
    Image Flip, Mirror, Freeze Supported
    Power Options
    Power Supply DC 12V / PoE+ (802.3at)
    Input Power 18W (Max)
    Physical Specifications
    Material Aluminum, Plastic
    Color White and Gray
    Dimensions (W x D x H) 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm<br>30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm
    Weight 12x and 20x: 3.25 lbs (1.47 kg)<br>30x: 4.41 lbs (2.0 kg)
    Working Environment Indoor
    Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
    Storage Temperature -40°F ~ 140°F (-40°C to 60°C)

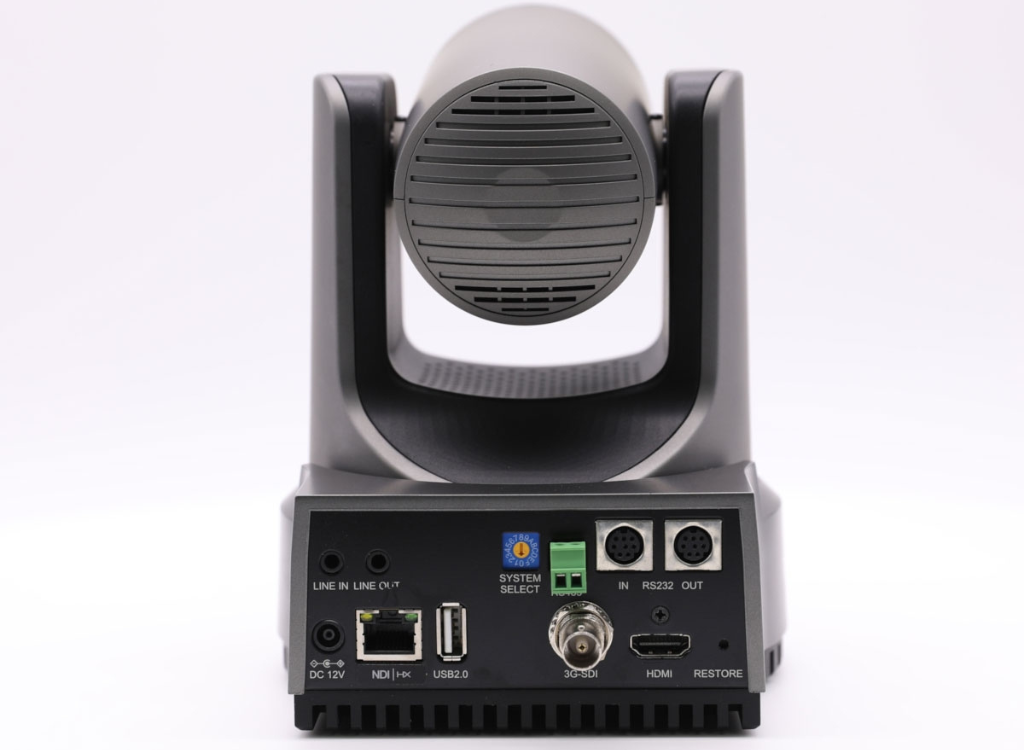

    Rear Board Connectors
    HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port<br>1x HDMI: version 2.0<br>1x USB 2.0: type A<br>1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
    Audio Interface 1x 3.5mm Line level Input
    Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P<br>1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P<br>1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
    Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at)
    Power Jack JEITA type (DC IN 12V)
  • Description Downloads
    Datasheet Downloads
    User Manual Downloads
