A New Standard for PTZ Cameras

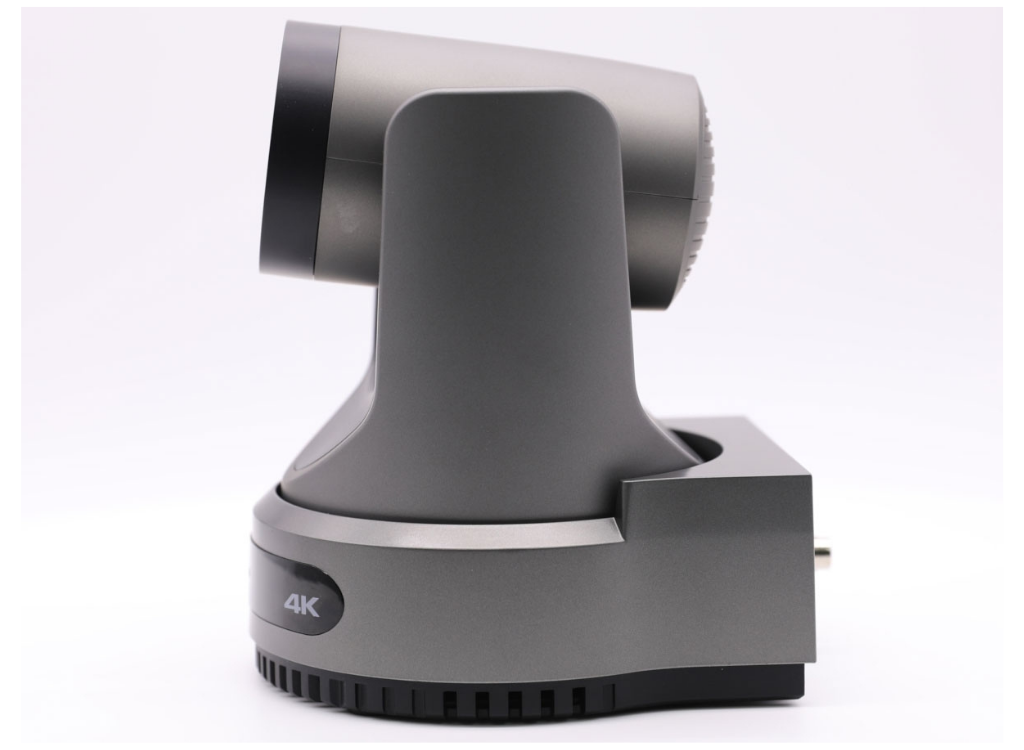

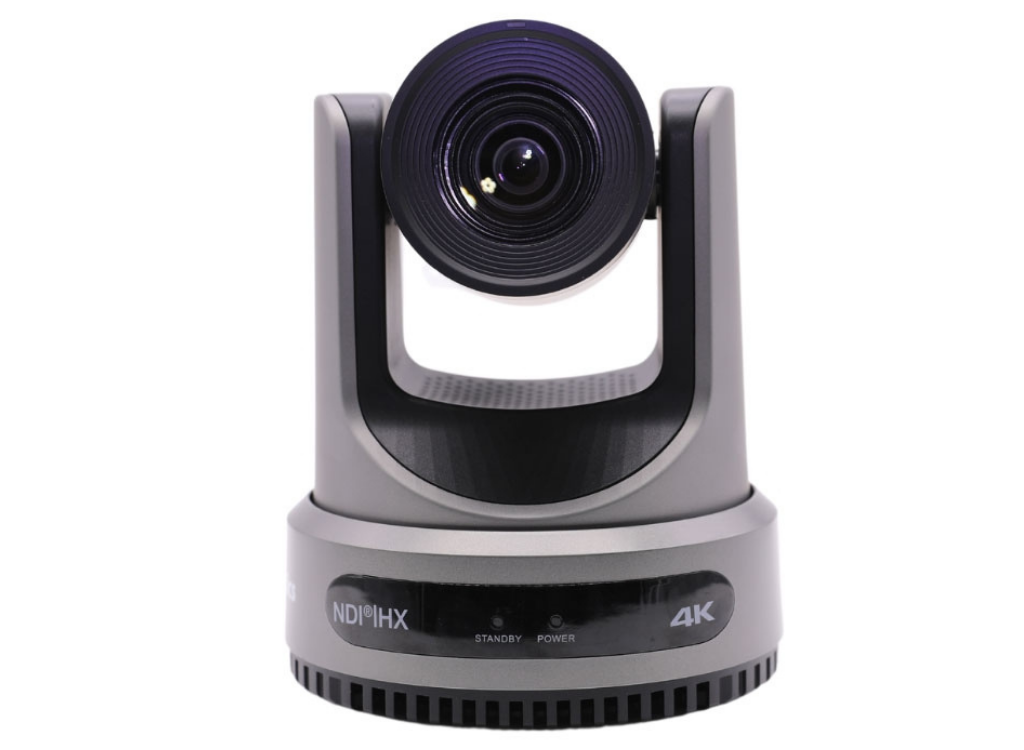

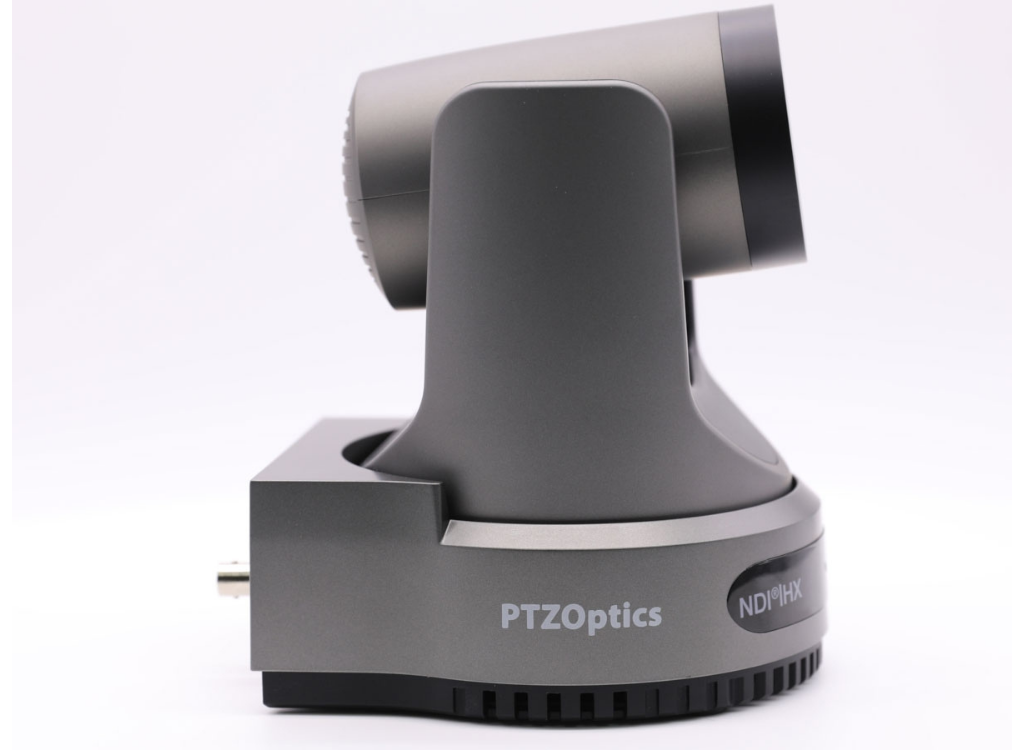

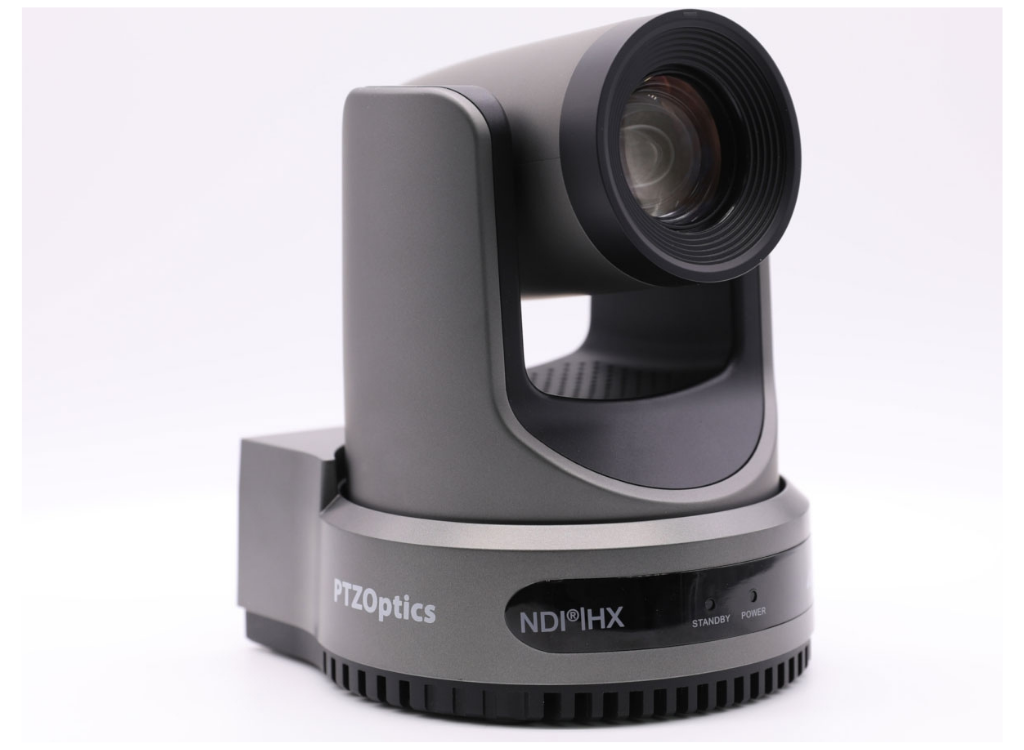

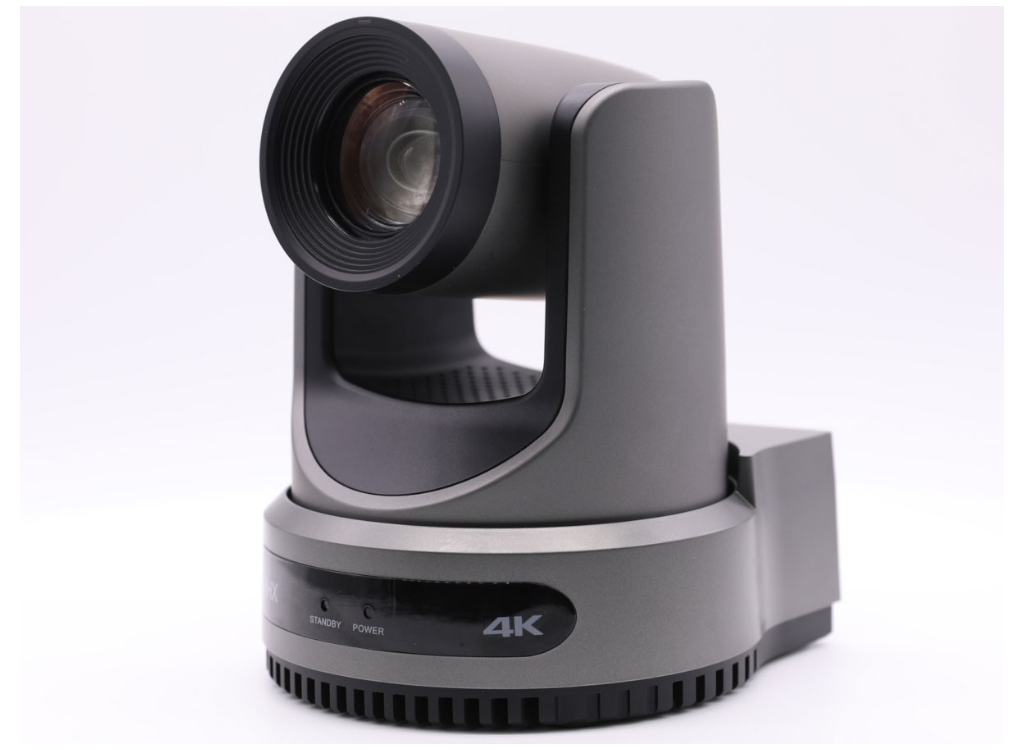

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.
Designed with the Future in Mind
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI® HX3 for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.
Pan, Tilt, Zoom, Track.
Control your production from behind the scenes – or right in front of them. With the Move 4K’s unique Presenter Lock™ technology, the camera can lock onto a specific person from up to 300 feet away, even while other people are in frame. Plus, this built-in auto-tracking feature allows users to seamlessly switch between on-stage presenters with the simple click of a button.
In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI — updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Discreet Mounting Options
Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.
Take Control Your Way
Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
Control apps for desktop and mobile devices
Plugins and integrations for popular platforms, including OBS and Twitch
Camera configuration and management tools
Support and testing utilities
And more!
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The Move 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.
| Category | Specification |
|---|---|
| Models | PT12X-4K-GY-G3, PT12X-4K-WH-G3, PT20X-4K-GY-G3, PT20X-4K-WH-G3, PT30X-4K-GY-G3, PT30X-4K-WH-G3 |
| Lens | (12X) Sony 1/2.5 inch CMOS, (20X) Sony 1/2.8 inch CMOS, (30X) Sony 1/1.8 inch CMOS |
| Image Sensor | (12X) 8.51MP, Effective Pixels: 8.29; (20X & 30X) 8.42MP, Effective Pixels: 8.29 |
| Optical Lens Focal Length | (12X) f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6; (20X) f = 6.25mm ~ 125mm, F1.58 ~ F3.95; (30X) f = 7.1mm ~ 210mm, F1.61 ~ F5.19 |
| Maximum Tracking Distance | (12X) 200’; (20X) 250’; (30X) 300’ |
| Optical Lens Field of View | (12X) H 6.9° ~ 72.5°, V 3.9° ~ 44.8°; (20X) H 3.5° ~ 60.7°, V 1.9° ~ 34.1°; (30X) H 2.5° ~ 59.2°, V 1.4° ~ 34.6° |
| Display Field of View | (12X) 82.8; (20X) 66.6; (30X) 66.7 |
| Resolution and Frame Rate | HDMI/IP/NDI/USB: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94, 1024x576, 720x480, 720x408, 640x480, 640x360-60/59.94/50/30/29.97/25<br>SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94, 1024x576, 720x480, 720x408, 640x480, 640x360-60/59.94/50/30/29.97/25 |
| Min Lux | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Pan Movement Range | ±170° |
| Tilt Movement Range | -30° ~ +90° |
| Pan Speed | 0.7°/s ~ 100°/s |
| Tilt Speed | 0.7°/s ~ 69.9°/s |
| Presets | 255 Presets |
| Preset Accuracy | 0.1° |
| Image Flip, Mirror, Freeze | Supported |
| Material | Aluminum, Plastic |
| Color | Gray, White |
| Dimensions (W x D x H) | (12X & 20X) 5.57” x 6.65” x 7.91” / 141.5 x 169 x 201 mm; (30X) 6.69” x 7.12” x 8.98” / 170 x 181 x 228 mm |
| Weight | (12X & 20X) 3.25 lbs (1.47 kg); (30X) 4.41 lbs (2.0 kg) |
| Working Environment | Indoor |
| Humidity Range | 10% - 80% |
| Operating Temperature | 14°F ~ 104°F (-10°C ~ 40°C) |
| Storage Temperature | -40°F ~ 140°F (-40°C ~ 60°C) |
| Connections | HD Video Output: 1x RJ45: 10/100/1000M Adaptive Ethernet Port |
| Audio Interface | 1x 3.5mm Line level Input |
| Communication Interface | 1x 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1x 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1x 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P |
| IR | 4x IR Addresses, Max distance 30ft / 9m |
| Power Supply | JEITA type (DC IN 12V) / PoE (802.3af) |
| Current Consumption | Max 1.0A |
| NDAA Compliant | Yes |
