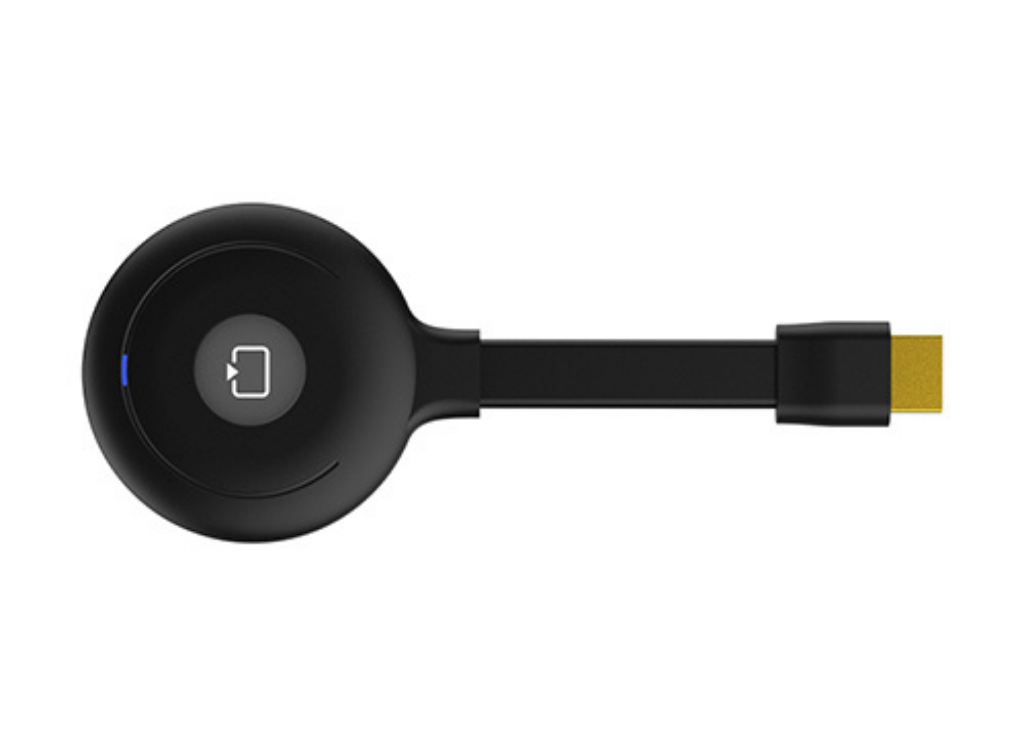

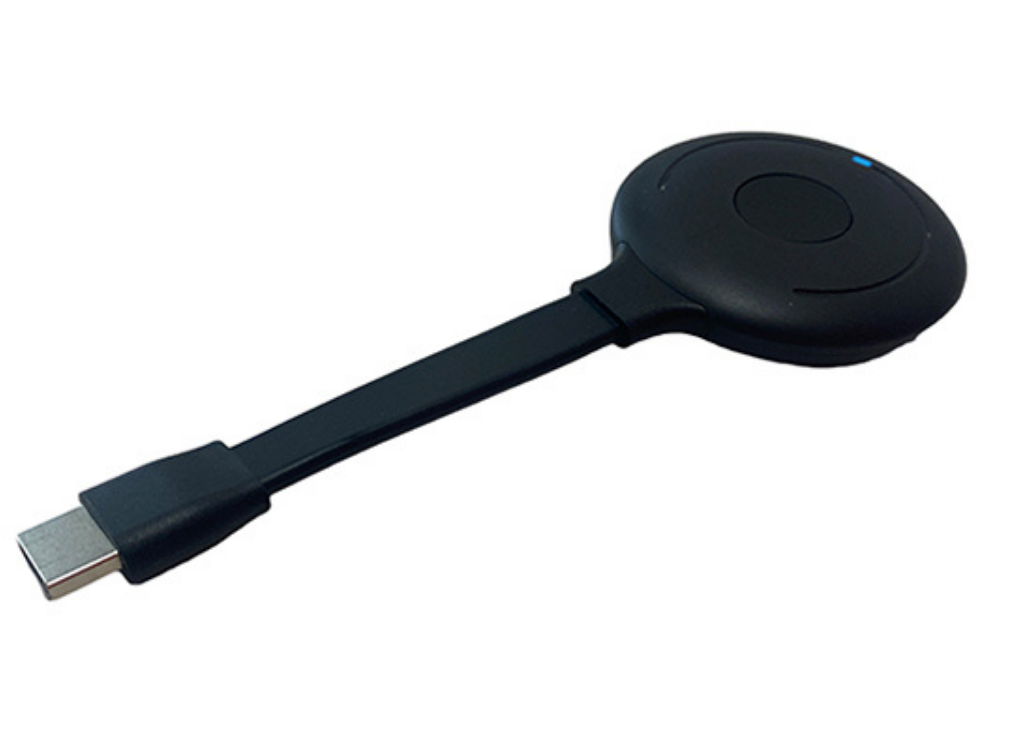

Pushshare Dongle | Wireless Mirroring and Collaboration for Corporate Meeting Rooms
Connect
Push
Share!

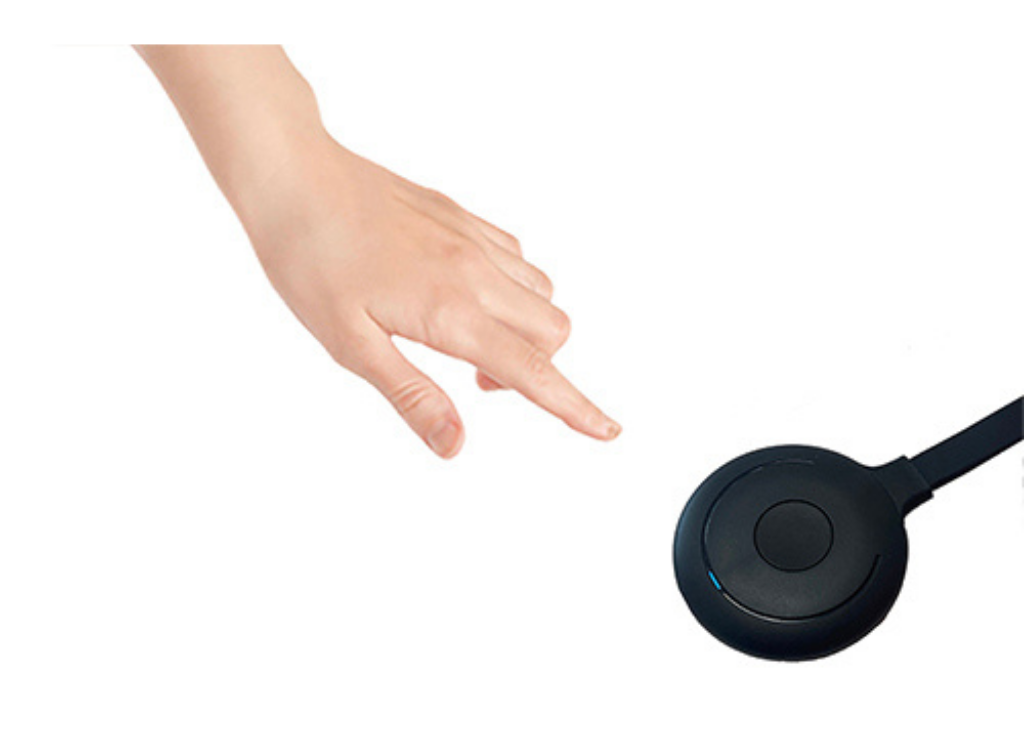

Simple Wireless Mirroring
PushShare enables smooth collaboration during meetings by allowing participants to wirelessly mirror their devices to the Interactive Touch Display* for more productive meetings. Once the dongle is connected to your device of choice, a simple push of the button will start wirelessly sharing the device’s display to your Interactive Touch Display* instantly. This simple system suits user behaviour so anyone can use it without the need for any installation or training – maximising the return on your investment.
Universal Compatibility
Bring Your Own Device! PushShare enables users connect wirelessly to their Interactive Touch Display* in seconds using any device that can output a HDMI signal, such as Windows or Mac laptop or PC. This truly is a fully agnostic solution.
High Security Protection
The connection between the PushShare dongle and your Interactive Touch Display* is fully password protected. PushShare is able to be seamlessly integrated into any IT network as it uses the hotspot network created by the Interactive Touch Display*. Users can be sure that their mirroring is protected and secure between the devices.
Multi-Screen Mirroring
With multiple PushShare dongles up to four separate devices can connect to the same Interactive Touch Displays* simultaneously (or nine when using the Receiving Unit). This is ideal for collaborative meetings that also require interactivity.
Seamless Integration
The PushShare dongle and Interactive Touch Display* have been designed in conjunction with one another for ultimate collaboration. The receiver hardware and software that the dongle communicates with is already integrated into your Interactive Touch Display*.
Cost Effective Solution
As a budget friendly meeting room solution, PushShare is essential for businesses. With only a dongle needed to improve collaboration and efficiency during meetings and presentations, the cost effectiveness cannot be compared.
PushShare Receiving Unit
The PushShare Receiving Unit is compatible with any HDMI Display.
Easy Integration with Existing hardware
The PushShare Receiving Unit was designed for easy integration with existing hardware. Just connect via HDMI (or VGA and 3.5mm audio) to legacy equipment and experience the full power of PushShare.
Share Content From Mobile Devices
The free PushShare app enables users to wirelessly mirror from mobile devices and tablets to the Receiving Unit in the same way as when using the traditional PushShare dongle. The user friendly app is compatible with both iOS and Android devices.
-
Category |
Details |
Connections |
|
I/O |
1 x USB type C (power, touch, pairing and upgrades), 1 x HDMI (audio video signal transfer) |
Support |
|
Sending Devices Supported |
Any device with HDMI output |
Receiving Devices Supported |
PushShare Receiving Unit (PSRV2) or Allsee PTxxF, PTxxG, PTxxH and PTxxJ ranges |
Reverse Touch Control |
10-point touch via Windows 7, 8.1 and 10, 1-point touch via macOS |
Audio Visual |
|
Resolution |
1920x1080 (P60) |
Encoding Resolution |
1920x1080 (P30) |
Simultaneous Connections |
1-4 (Separate Dongles) |
Resolution - 4 Displays |
3840x2160 |
Audio |
|
Audio |
44.1KHz/48KHz/16bit PCM (Stereo) |
Wireless Transmission |
|
Protocol |
IEEE 802.11ac/802.11n |
Rate |
867Mbps |
Distance |
≈30m |
Frequency Band |
2.4 GHz and 5 GHz |
Authentication Protocol |
WPA2-PSK |
Average Transmission Delay |
<150ms |
Power |
|
Power Consumption |
5V/500mA, average power consumption 1.5W |
Mechanical |
|
Unit Size (WxHxD mm) |
62x62x20 |
Net Weight (Kg) |
0.15 |
Package Size (WxHxD mm) |
215x93x26 |
Gross Weight (Kg) |
0.25 |
Environmental |
|
Operating Temperature |
+5°C ~ +40°C |
Storage Temperature |
-20°C ~ +60°C |
Operating Humidity |
0 ~ 90% |
Storage Humidity |
0 ~ 90% |
Accessories |
Included |
|
USB type C to type A cable x 1 (170mm), HDMI adapter (standard to mini HDMI), HDMI adapter (standard to micro HDMI) |
Warranty |
|
Warranty Period |
3 Years |
Technical Support |
Lifetime |
-
