Seamless Video Walls: Creates seamless and immersive video walls with razor-thin bezels, providing a visually stunning and cohesive display experience across multiple screens.
Nearly Invisible 0.44 mm Bezel: Features an exceptionally narrow bezel width of just 0.44 mm, virtually eliminating any distractions between individual screens for a seamless and uninterrupted viewing experience.
Image Enhancement Technology: Incorporates advanced image enhancement technology to optimize picture quality, ensuring sharpness, color accuracy, and overall visual excellence across the video wall display.

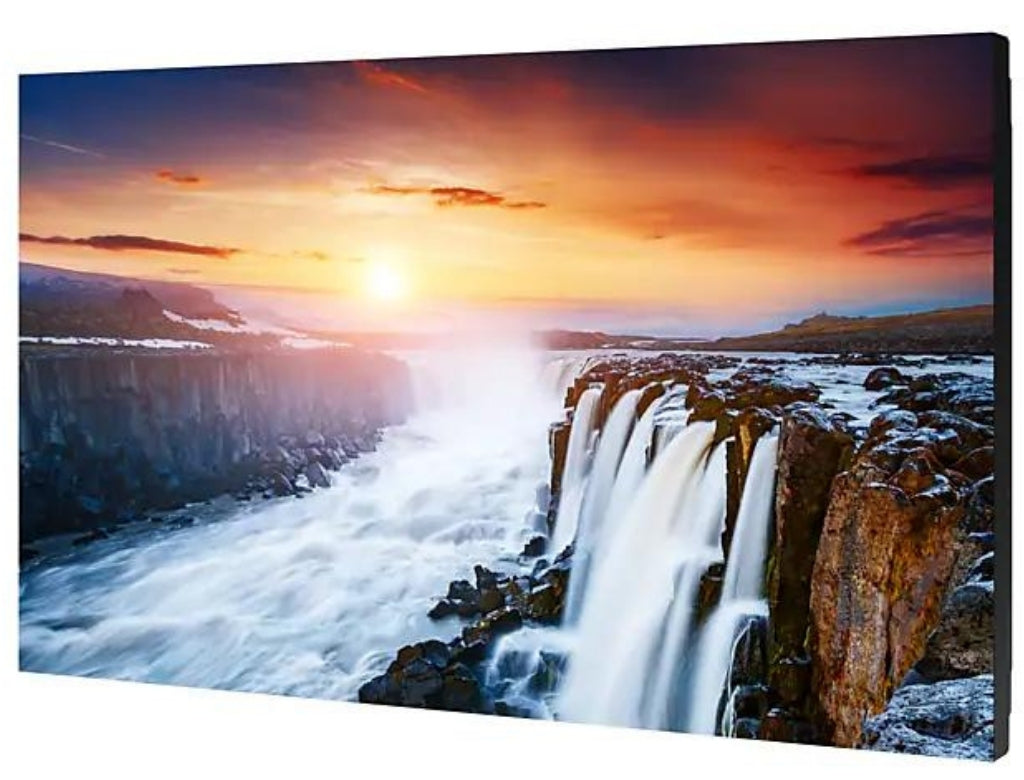

Seamless video walls with razor-thin bezels
With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHR-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.
Nearly invisible 0.44 mm bezel
An Exceptionally thin 0.44 mm even bezel — a 0.88 mm bezel-to-bezel depth — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides a more immersive viewing experience.
View content from any angle
The display’s wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear and accurate information regardless of video wall layout or location.
Image enhancement technology
Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.
Modern, slim design

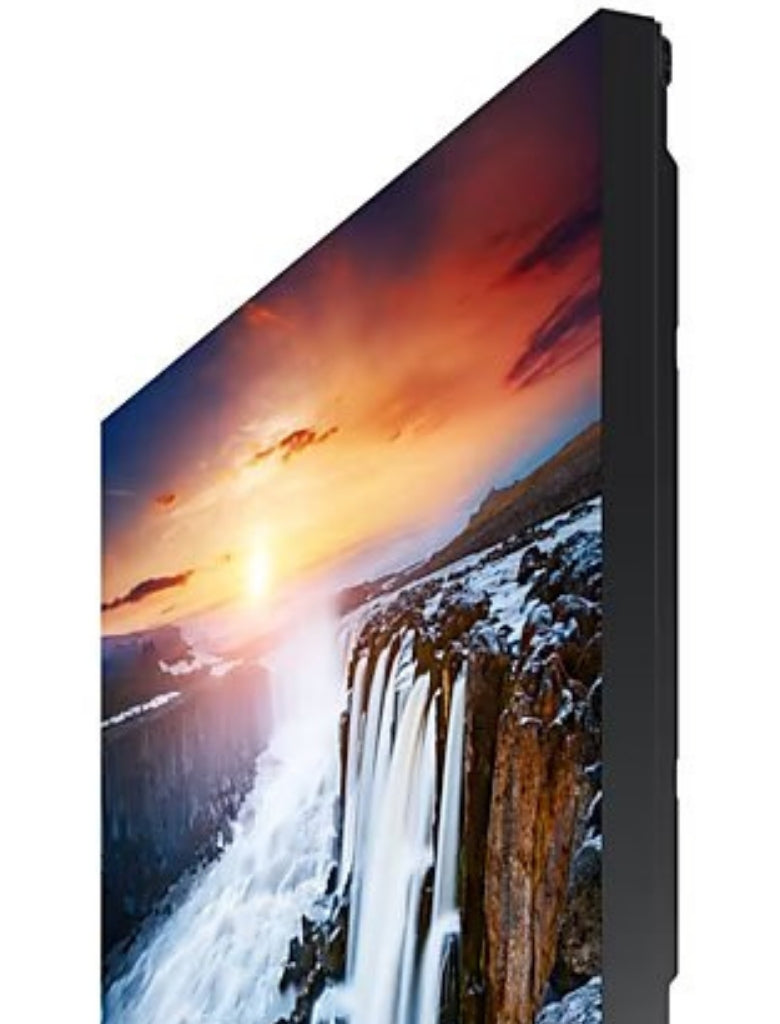

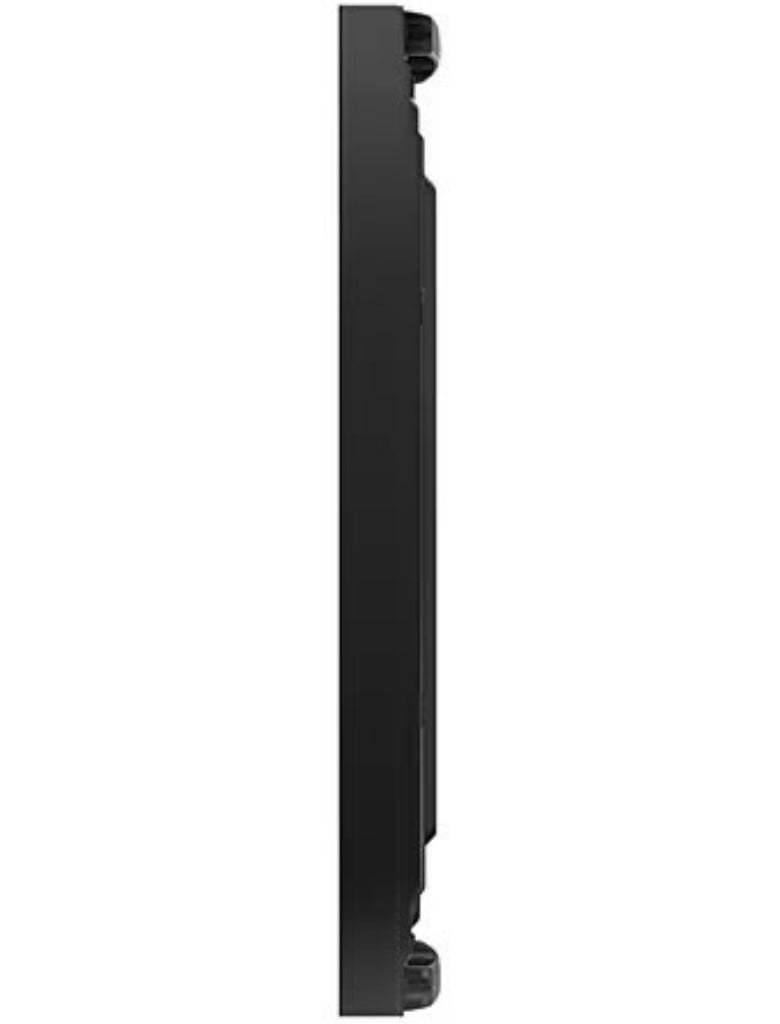

VHR-R displays feature an elevated design aesthetic with an ultra-slim depth of less than 70 mm. This allows the display to save space and create a clean, modern look for retail or other public spaces.
Vibrant images 24/7
Experience brilliant image presentation with an impressive 700 nit brightness allowing businesses to deliver clear information 24/7. The display’s non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible.
Convenient mobile calibration
Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5x5 video wall’s white balance simultaneously without the need for additional equipment.
Comprehensive calibration
Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung's Color Expert Pro, a powerful free software program.
Advanced UHD presentation

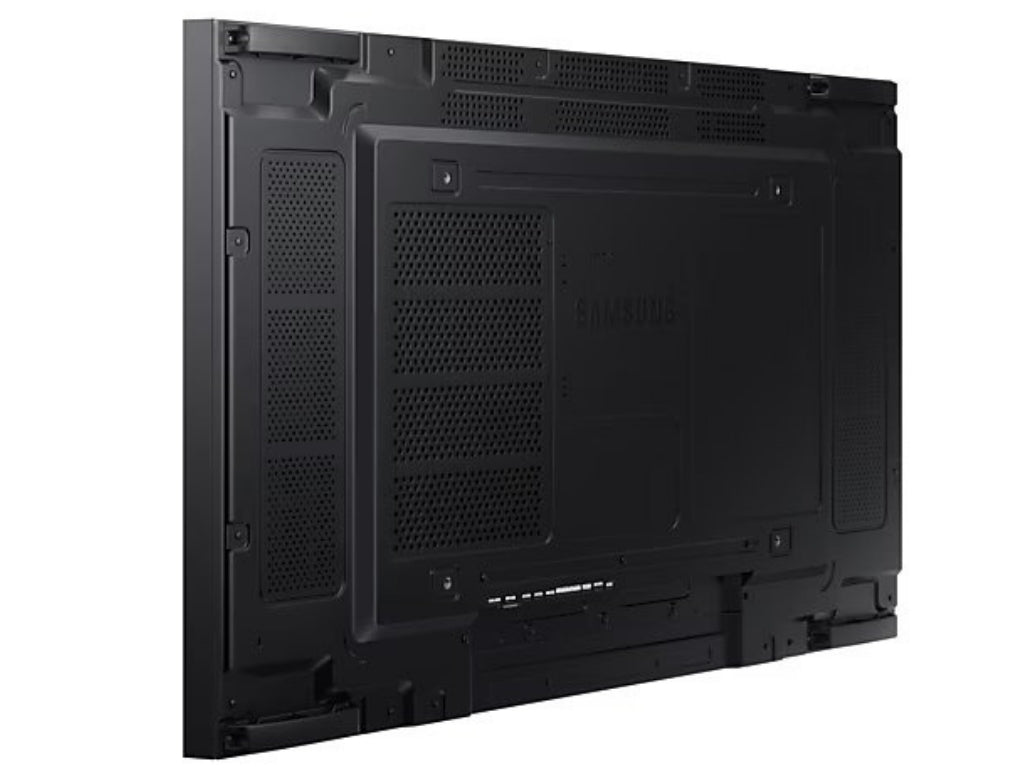

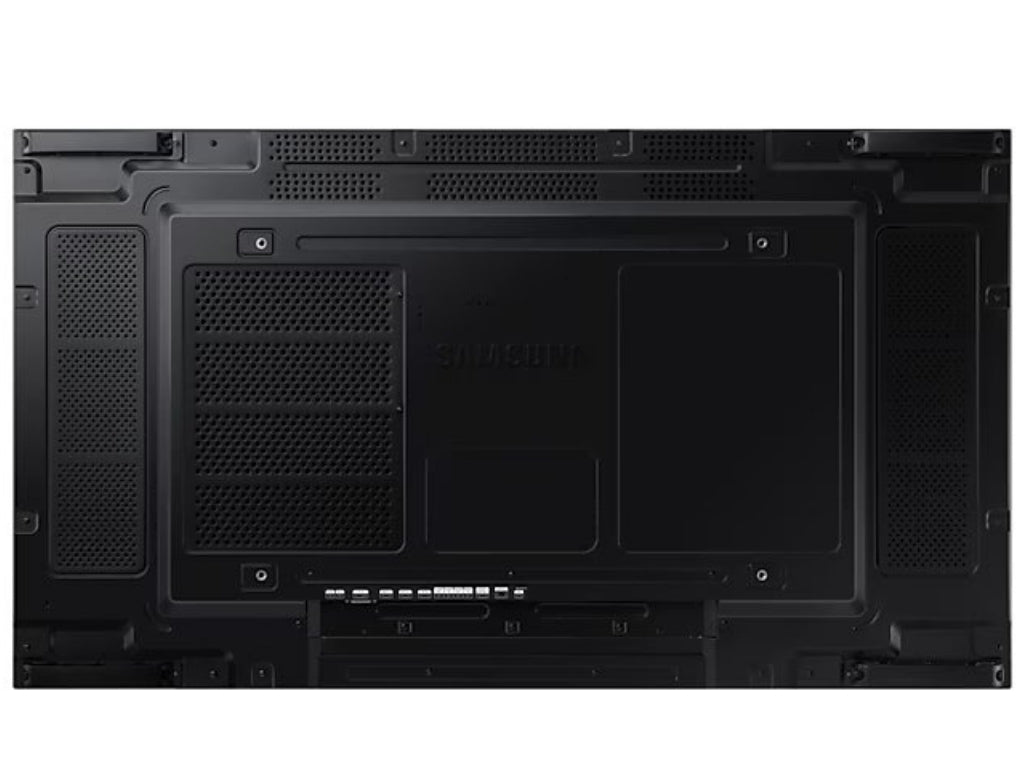

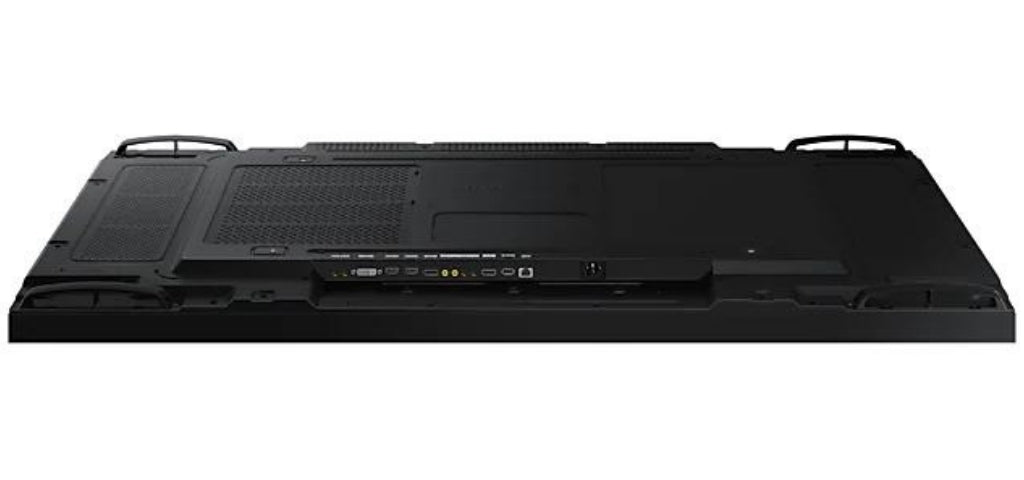

Samsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilizing DisplayPort 1.2 and HDMI ports, the VHR-R display can project UHD content across multiple screens up — to 5 x 5 — without requiring an external graphic card or UHD splitters.
Industry standard certified
The VHR-R series is EMC class B compliant, ensuring a safe viewing environment by meeting strict standards of electromagnetic wave emission. The display packaging also passed a rigorous 4-step test in an ISTA-certified laboratory designed minimizes possible damage during delivery.
Intuitive all-in-one operations
The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.
| Display | |
|---|---|
| Diagonal Size | 55" |
| Panel Type | Direct LED |
| Resolution | 1,920 x 1,080 |
| Pixel Pitch (HxV) | 0.63 x 0.63 mm |
| Brightness (Typical) | Max 700 cd/㎡ |
| Contrast Ratio | 1,100 : 1 |
| Viewing Angle (H/V) | 178 / 178 |
| Response Time | 8 ms |
| Colour Gamut | 0.72 % |
| Brightness | 0.28 % |
| H-Scanning Frequency | 57.3 kHz ~ 70 kHz |
| Maximum Pixel Frequency | 78 MHz |
| V-Scanning Frequency | 47 Hz ~ 63 Hz |
| Contrast Ratio (Dynamic) | 30,000 : 1 |

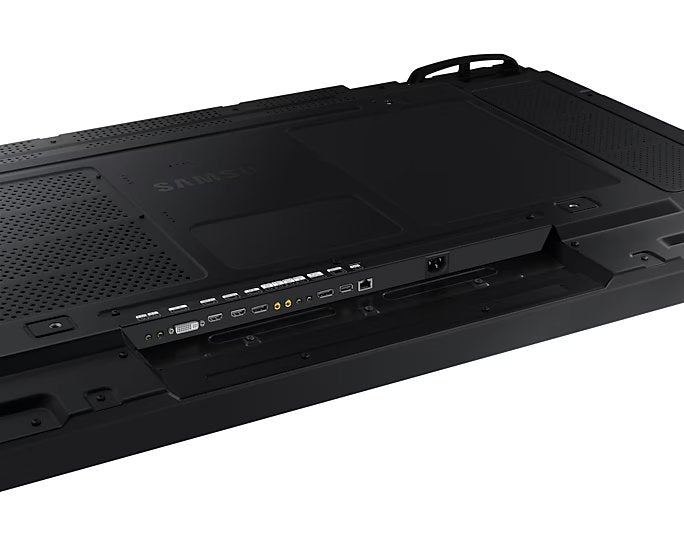

| Connectivity | |
| HDMI In | 2 |
| DP In | 1 |
| DVI In | 1 |
| Tuner In | No |
| USB | 1 |
| Component In | No |
| Composite In | No |
| IR In | Yes |
| HDBaseT In | No |
| Audio In | Yes |
| Audio Out | Stereo Mini Jack |
| Video Out | Yes |
| Power Out | No |
| RS232 In | Yes |
| RS232 Out | Stereo Mini Jack |
| RJ45 In | Yes |
| RJ45 Out | No |
| Power | |
| Power Supply | AC 100 to 240 VAC (60 / 50 Hz) |
| Power Consumption (On Mode) | 270 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 1211.0 x 681.7 x 69.9 mm |
| Package Dimension (WxHxD) | 1414.0 x 844.0 x 257.0 mm |
| Weight | |
| Set Weight | 16.8 kg |
| Package Weight | 25.1 kg |
| Operation Conditions | |
| Temperature | 0°C ~ 40°C |
| Humidity | 10 ~ 90 % |
| Mechanical Specification | |
| VESA Mount | 600 x 400 mm |
| Bezel Width | 0.44 (even) |
| Frame Material | Glossy |
| General Feature | |
| External Memory Slot | No |
| Optional Feature | |
| Mount | Yes |
| Stand | No |
| Internal Player (MagicInfo) | |
| MagicInfo Daisychain Videowall Support | Yes |
| Eco | |
| Energy Efficiency Class | G |
| Certification and Compliance | |
| EMC | Class A |
| Safety | 60950-1 |
