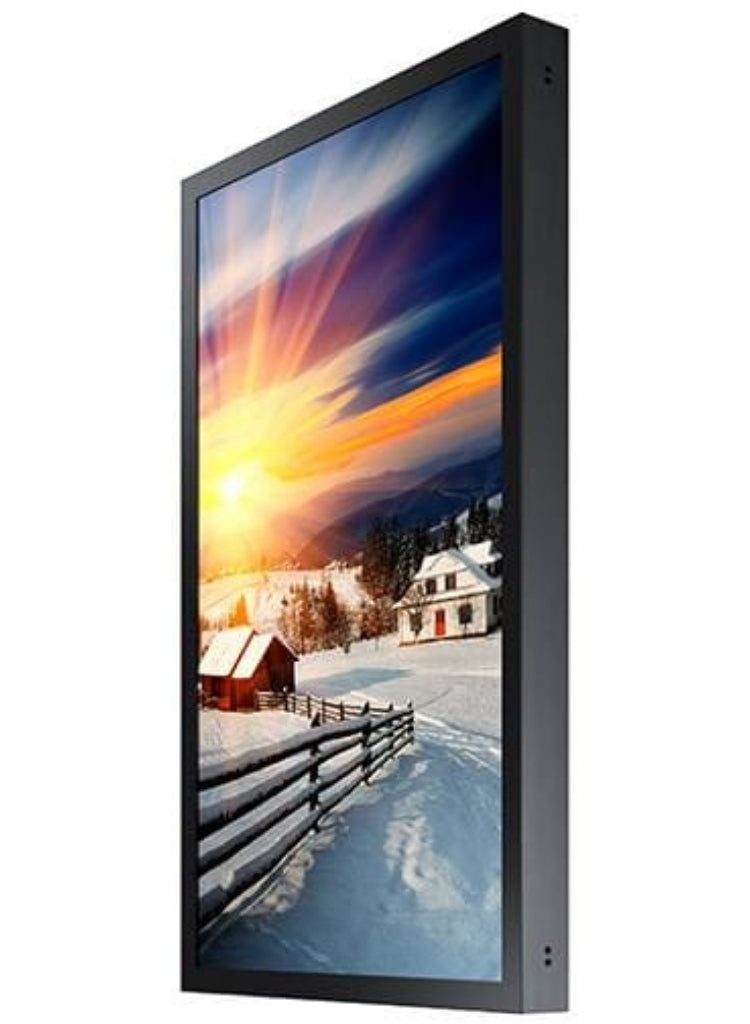

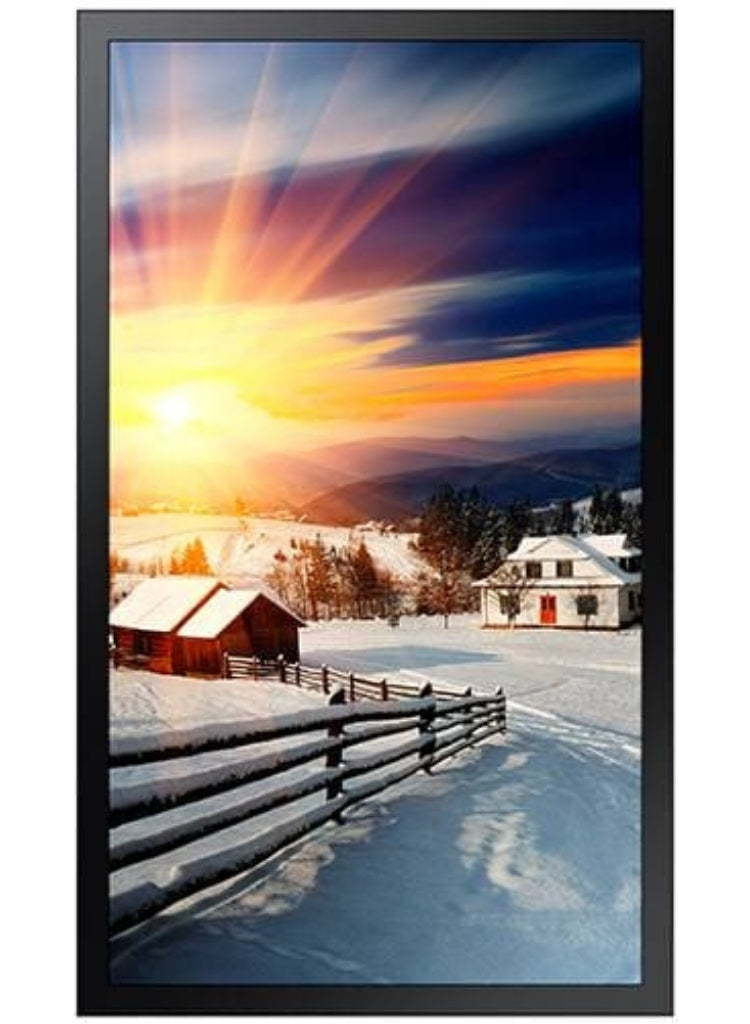

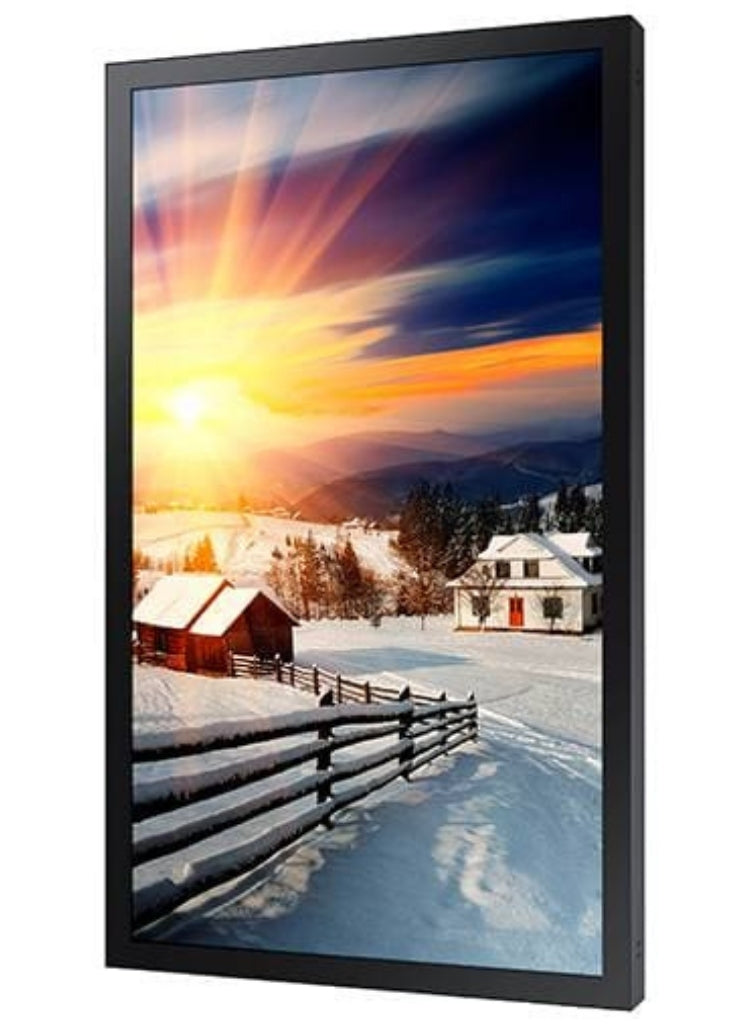

OH85N
Deliver bright, creative messages on robust outdoor signage.
85" large-sized digital displays optimized for outdoor usage
Excellent visibility under direct sunlight through 3,000nit high brightness
Optimal durability with IP56-rated displays
Advanced content management via MagicINFO S6 Player powered by TIZEN
Features
Large displays optimized for DOOH
The OHN series has elevated the typical outdoor advertising experience with its bold and engaging content delivery for any bus stop or street billboard. The OHN series will make any business standout from the crowd with its immersive and high-quality images and content.
Unsurpassable visibility day and night
The OHN series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. With a built-in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.
Easy-to-use management software
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allows for painless content management and ensures seamless transition and playback.
Resistant to outdoor elements
The OHN series is verified to perform in outdoor settings. IP56-rated protection ensures the OHN series will withstand physical impact as well as dust, humidity or other outdoor elements that could affect the display.
| Panel | |
|---|---|
| Diagonal Size | 85" |
| Type | 60Hz D-LED Local Dim. BLU |
| Resolution | 3840*2160 (4K UHD) |
| Pixel Pitch (mm) | 0.488 x 0.488 |
| Active Display Area (mm) | 1872(H) x 1053(V) |
| Brightness (Typ.) | 3,300 (w/o glass) nit |
| Contrast Ratio | 3000:1 |
| Viewing Angle (H/V) | 178/178 |
| Response Time (G-to-G) | 8ms |
| Display Colors | 8 bit - 16.7 Mbit |
| Color Gamut | 72% |
| Operation Hour | N/A |
| Haze | 0% |
| Display Dynamic C/R | 100,000:1 |
| H-Scanning Frequency | 15 ~ 135KHz (HDMI), 30 ~ 135KHz (DP) |
| V-Scanning Frequency | 24 ~ 75Hz (HDMI), 30 ~ 75Hz (DP) |
| Maximum Pixel Frequency | 594MHz (HDMI), 533.25MHz (DP) |
| Connectivity | |
| Input | RGB |
| DP 1.2 | |
| Video | HDMI 2.0 (2) |
| HDCP | HDCP 2.2 |
| USB | USB 2.0 (1) |
| Output | Audio |
| Stereo Mini Jack | |
| External Control | RS232C (In), RJ45 (In) |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V (+/- 10%), 50/60 Hz |
| Power Consumption | |
| Max[W/h] | 1800.0 |
| Typical[W/h] | W/W(EU) 600 US/KOR/Etc. 1,010※ Etc: CHINA, TAIWAN, BRA |
| BTU(Max) | 6138.0 |
| Sleep mode | less than 1W |
| Off mode | less than 1W |
| Mechanical Specification | |

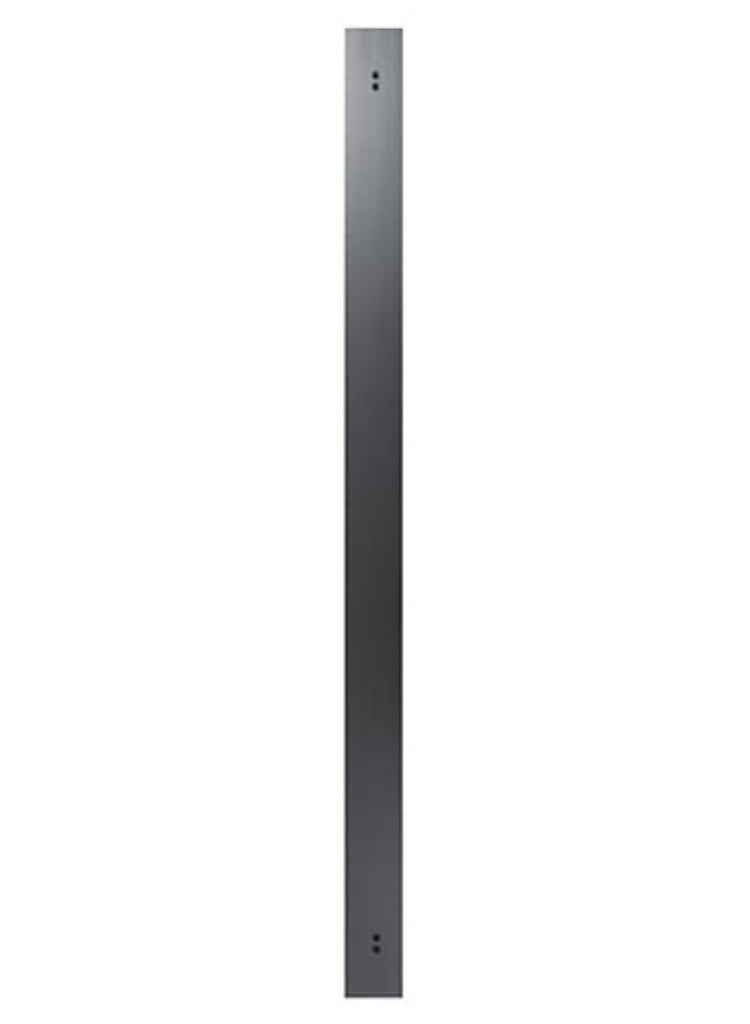

| Dimension (mm) | Set: 2,004 x 1,185 x 120 |
| Package | 2,175 x 1,383 x 495 mm (Without Pallet) |
| Weight (kg) | Set: 137 |
| Package | 185 |
| Operation | |
| Operating Temperature | -30 ℃ ~ 50 ℃ |
| Humidity | 10% ~ 100% (Non-Condensing) |
| Feature | |
| Key Features | Slim High Brightness, IP56 Outdoor, Built-in MagicInfo Player S6, SSSP6 |
| Orientation | N/A |
| Remote Control | N/A |
| Special Features | IP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping) |
| Internal Player | |
| Processor | Cortex A72 1.7GHz Quad-Core CPU |
| On-Chip Cache Memory | L1 Instruction Cache: 48KB, L1 Data Cache: 32KB, L2 Cache: 2MB |
| Clock Speed | 1.7GHz |
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit |
| Graphics | Graphic resolution: 1920x1080, Output resolution: up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES |
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
| Multimedia | Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9, Audio Decoder - AC3 (DD), MPEG |
| IO Ports | USB 2.0 |
| Operating System | Tizen 4.0 (VDLinux) |
| Certification | |
| Safety | CB (Europe): IEC60950-1/EN60950-1, UL(USA): cUL60950-1 |
| EMC | FCC (USA): Part 15, Subpart B Class B, CE (Europe): EN55032:2015 Class B EN55035:2017 |
| IP Rating | IP56 |
| Accessory | |
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries |
| Optional | Stand: N/A, Mount: N/A, Specialty: N/A |
| Media Player | Media Player |
| Media Player | Media Player |
| N/A | N/A |
| Document Type | Download Link |
|---|---|
| User Manual (Common) (XL) |
