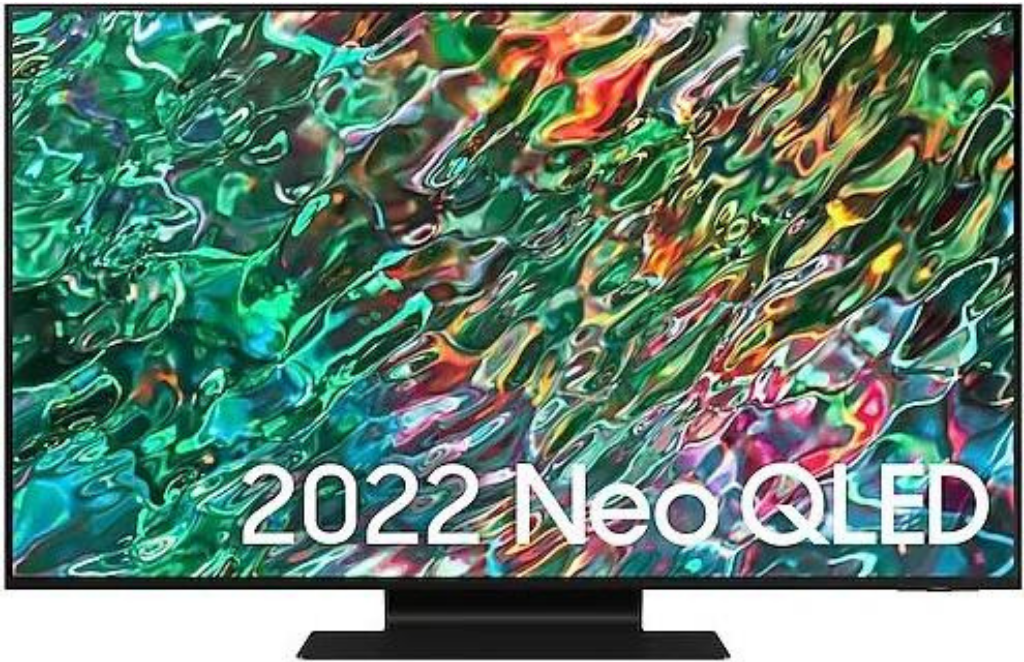

Samsung QE43QN90BATXXU 43" 4K HDR Smart TV

Experience flawless 4K TV

Top 4 Features

Super-focused lights, epic blacks and a brilliantly intense picture
Quantum Matrix Technology
This game-changing technology works with intense precision to control Samsung’s ultra-fine, super-sharp Quantum Mini LEDs. It works in tandem with the brilliant AI-powered processor to deliver epic contrast - for our sharpest 4K viewing yet. With clear-cut lights and incredible blacks - the picture is so intense, it’ll take your breath away.

The brilliance of AI-powered 4K TV viewing
Samsung Neo Quantum Processor 4K
Using Deep Learning algorithms, this processor is able to adjust the picture in real-time, scene by scene and create three-dimensional depth. From the nightly news to that classic movie, it automatically adjusts the brightness, amplifies the contrast, enhances objects and upscales the resolution of everything you’re watching to 4K.

Spectacular contrast just as the director intended
Quantum HDR 2000* powered by HDR10+
From gloomy shadows to sun-scorched scenes – see the spectacular detail in every shot, exactly as you’re meant to. Thanks to leading HDR brightness, you'll see it in all true-to-life quality with rich colour and remarkable contrast.

The ultimate 3D surround sound experience. Powered by Dolby Atmos
Super Surround Sound powered by Dolby Atmos®*
Uncompromising, best-in-class surround sound takes your audio experience to a whole new level of immersion. This TV is packed with eight multi-directional speakers* and, for the first time, supports Dolby Atmos technology for the ultimate, cinematic surround sound experience. Helicopter flying across the skies or rain thumping down from above, it’s so realistic, you’ll feel every moment as if you’re actually there.


Day or night, every seat is the best in the house
Ultra Viewing Angle with Anti Reflection Screen*
See every moment from any angle, without the brightness of the sun or the lights in your room getting in the way. Our critically acclaimed anti-glare TV screen absorbs reflections so you can enjoy TV in incredible colour and contrast, day or night. Whether you're on the edge of your seat or stretched out on a corner sofa, you'll never miss any of the drama.

Easy on the eyes
EyeComfort Mode
The new EyeComfort Mode feature even readjusts TV brightness settings depending on the time of day, so it's always easy on the eyes.

3-dimensional depth with powerful neural networks
Real Depth Enhancer
Real Depth Enhancer now mirrors how human eyes process depth by increasing foreground contrast. So when you are watching a nature documentary, it enhances an elephant's wrinkles while leaving the background as it is - just as a person's eyes would.

Where Gaming Comes Together
Gaming Hub
Samsung Gaming Hub is the new home for gaming on Samsung smart Iv. Instantly play the biggest games from Xbox and more top cloud gaming services with no downloads, and no console required. Just switch on your TV and play.

Stream Xbox games on Samsung TV
Xbox Game Pass
Access hundreds of Xbox games on your Samsung Smart TV. With the Xbox Game Pass, there's no more need for a separate console to play your favorite games.

Ultra-smooth 4K gaming, ready for your next-gen console
Motion Xcelerator Turbo Plus/ Pro**
Experience ultra-smooth, lightning quick, immersive 4K gaming. Your QN90B Neo QLED TV and HDMI 2.1* work in perfect synergy with next-gen consoles to deliver ultra-high 120Hz TV refresh rates and ultra-low input lag. And if
you're out for the ultimate, next-gen ready gaming monitor - our 50"/43" QN90B with unrivalled 4K 144Hz TV motion is the go-to for ultra-responsive, smooth-as-silk gameplay**

Brings ultra-crisp HDR gaming to the big screen
FreeSync Premium Pro
Leave tearing and stuttering behind thanks to AMD FreeSync Premium Pro and VRR. Engineered for the most immersive and responsive experience, Samsung Neo QLED makes super smooth, ultra crisp, next level HDR gaming on a big screen a reality.

An elegant TV design, from all sides
Sleek Design
Perfect the minimalist look with this super slim and ultra-stylish TV. From the middle of the sofa to the armchair
in the corner, your TV has been delicately crafted to look beautiful from any angle.

Discover an abundance of apps and services
to simply enjoy, only on Samsung Smart TV

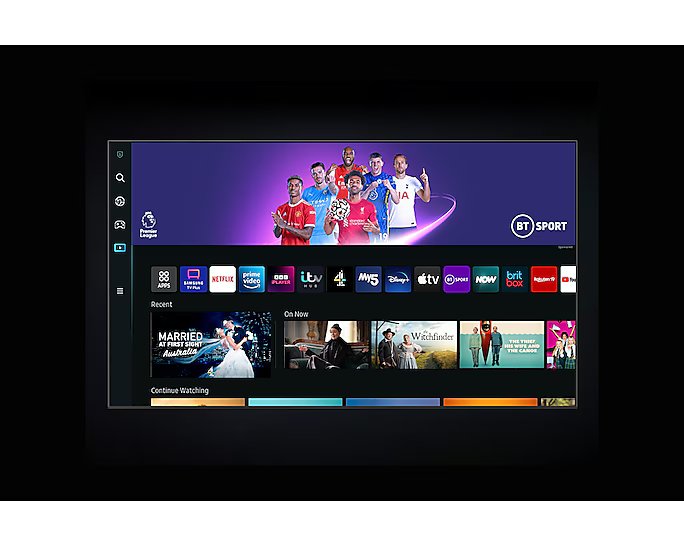

Smart TV powered by Tizen
With the best-selling Samsung Smart TV* at your fingertips, it's never been easier to enjoy TV. Dive into a huge collection of 4K films, TV shows, and all your catch-up TV apps - including Netflix, Disney+, Apple TV, NOW TV and BT Sport apps** - all in one place at the touch of a button. Discover our easy-to-use Smart Hub platform and spend less time searching and more time watching what you love, with tailored recommendations.

Control your smart home from your TV
Connected Living (with Built-in SmartThings)
Control all the devices in your connected smart home system through your Samsung Smart TV with SmartThings built-in. You can monitor home cameras, or see who's at the door from the comfort of your sofa. It'll make your life easier, more secure and more connected. Finally, smart living - made simple.

Free TV, no strings attached
Samsung TV Plus
Get instant access to top news, dramas, entertainment and more with Samsung TV Plus - free TV. There's no subscription, no sign-up, no additional device, or credit card needed.

See it all at once, on the big screen
Multi View
Never miss another moment. With Multi View, you can play your mobile content alongside the TV program, all at once, on the same screen. Simply cast your phone to your TV with screen mirroring to split the big TV screen *. Handy if you want to keep an eye on the football score whilst watching a movie.

Feature	Details
Product	QLED
Series	9
Display
Screen Size	43"
Refresh Rate	100Hz (Up to 144Hz)
Resolution	4K (3,840 x 2,160)
Screen Curvature	N/A
Anti Reflection	Yes
Video
Picture Engine	Neo Quantum Processor 4K
One Billion Color	Yes
PQI (Picture Quality Index)	4500
HDR (High Dynamic Range)	Quantum HDR 1500
AI Streaming	N/A
HDR 10+	Yes (ADAPTIVE/GAMING)
AI Upscale	Yes
HLG (Hybrid Log Gamma)	Yes
Contrast	Quantum Matrix Technology
Color	100% Colour Volume with Quantum Dot
Viewing Angle	N/A
Micro Dimming	Ultimate UHD Dimming
Contrast Enhancer	Real Depth Enhancer
Film Mode	Yes
Motion Technology	Motion Xcelerator Turbo Pro
Dynamic Refresh Technology	N/A
Clear Motion	LED Clear Motion
Noise Reduction	Yes
Expert Calibration	Yes
Smart Calibration	Basic/Professional
Filmmaker Mode (FMM)	Yes
Audio
Dolby Atmos	Yes
Dolby Digital Plus	MS12 2ch
Active Voice Amplifier	Yes
Adaptive Sound	Adaptive Sound+
Object Tracking Sound	OTS Lite
Q-Symphony	Yes
Audio Pre-selection Descriptor	Yes
Sound Output (RMS)	20W
Speaker Type	2.0CH
Woofer	N/A
Multiroom Link	Yes
Bluetooth Audio	Yes
Dual Audio Support (Bluetooth)	Yes
Buds Auto Switch	N/A
Smart Service	Samsung SMART TV
Operating System	Tizen™
Bixby	Multiple languages
Far-Field Voice Interaction	Yes
Multi Voice Assistant	Yes (GB, DE, FR, IT, ES, AT, IE)
Google Assistant Built-in	N/A
Works with Google Assistant	Yes (GB, FR, DE, IT, ES, AT, DK, IE, NL, NO, SE only)
Works With Alexa	Yes (GB, FR, DE, IT, ES, AT, IE only)
Samsung TV Plus	Yes (Multiple regions)
Web Browser	Yes
SmartThings App Support	Yes
SmartThings	Yes
Universal Browse & Play	Yes (GB, FR, DE, IT, ES)
Media Home	Yes
Smart Feature
TV to Mobile - Mirroring	Yes
Mobile to TV - Mirroring, DLNA	Yes
NFC on TV	N/A
TV Initiate Mirroring	Yes
Mobile Tap Mirroring	Yes
Multi-View	Up to 2 videos
Sound Wall	Yes
Mobile Camera Support	Yes
360 Video Player	Yes
Easy Setup	Yes
App Casting	Yes
Chat Together	N/A
Watch Together	N/A
WiFi Direct	Yes
TV Sound to Mobile	Yes
Sound Mirroring	Yes
Ambient Mode	Ambient Mode+
Wireless Dex	Yes
Web Service	Microsoft 365
Game Feature
Auto Game Mode (ALLM)	Yes
Game Motion Plus	Yes
Dynamic Black EQ	Yes
Surround Sound	Yes
Super Ultra Wide Game View	Yes
Mini Map Zoom	Yes
FreeSync	FreeSync Premium Pro
G-SYNC	N/A
Light-sync	N/A
HGiG	Yes
Gaming Hub	Yes (Multiple regions)
Tuner/Broadcasting
Digital Broadcasting	DVB-T2CS2 x 2
Analog Tuner	Yes
CI (Common Interface)	CI+(1.4) / CI+(1.4 ECP

SAMSUNG SMART SIGNAGE STARDARD
WARRANTY GUIDE
SMART SIGNAGE

1. Warranty Term
Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.

Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.

2. Warranty Description
Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.

During the warranty period, Samsung will, at its sole discretion,

1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.

Service Response Turnaround Time (“TAT”):
The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).

Service Response may take more than 1 business day depending on the case.

Service Repair TAT:
Service Repair means initial repair activity by Samsung or Samsung’s ASC.

※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.

Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.

In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.

Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.

3. Warranty Coverage
This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.

All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty
Description Downloads

Quick Guide Downloads

User Manual Downloads
